Brand Name: AOOSTAR

Funtion: None

High-concerned chemical: None

Interface Type: USB Type-C

Length: 22.5cm

Model Number: AG02

Origin: Mainland China

Package: Yes

Ports: 4

Do Not Support:

1. ASUS ROG Ally (1st Generation)

2. ASUS ZenBook Full Series Laptops
3.All mini PCs and handheld game consoles of 6800U and 7735U series.

4. Mac
Note: The Z1 processor requires the installation of official drivers.

Support:

It supports ASUS ROG handheld devices from the second generation onwards. It is compatible with CPUs from the 7840U series and later.

Please note that under power-on conditions, do not hot plug or unplug the OCulink cable,as there is a risk of damaging the computer.

AG02 Comparison between the initial version and the upgraded version.

1.USB4 port only supports data transfer, not power supply for devices → USB4 port supports data transfer and also provides 100W power supply for devices, saving more desktop space.
2. 350-400W power consumption 👉→ Upgraded to 800W power consumption to accommodate more and more EGPUs.
3. Silver Metal Case 👉→ Gray Metal Case

Caveats:

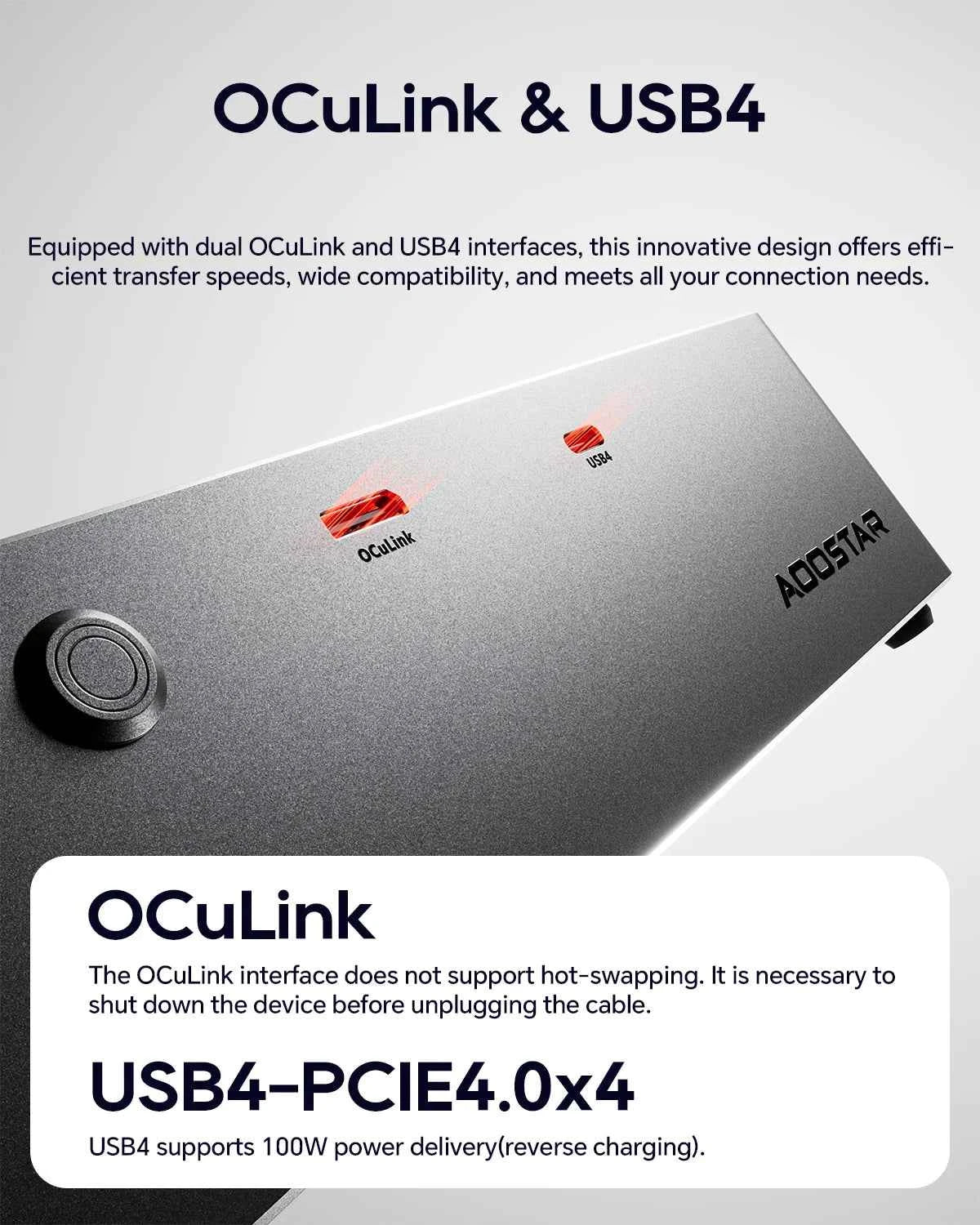

1) The Oculink interface does not support hot-swapping, so be sure to turn off the power when plugging or unplugging cables!
2) The Oculink port has a “fixed lock” design, when unplugging the OCULINK port, you need to press the switch to unlock it.
3）The built-in power supply is for Dock use only, please do not use it for other purposes.
4）Hot plugging and unplugging is only available for TGX devices.

Main Features:

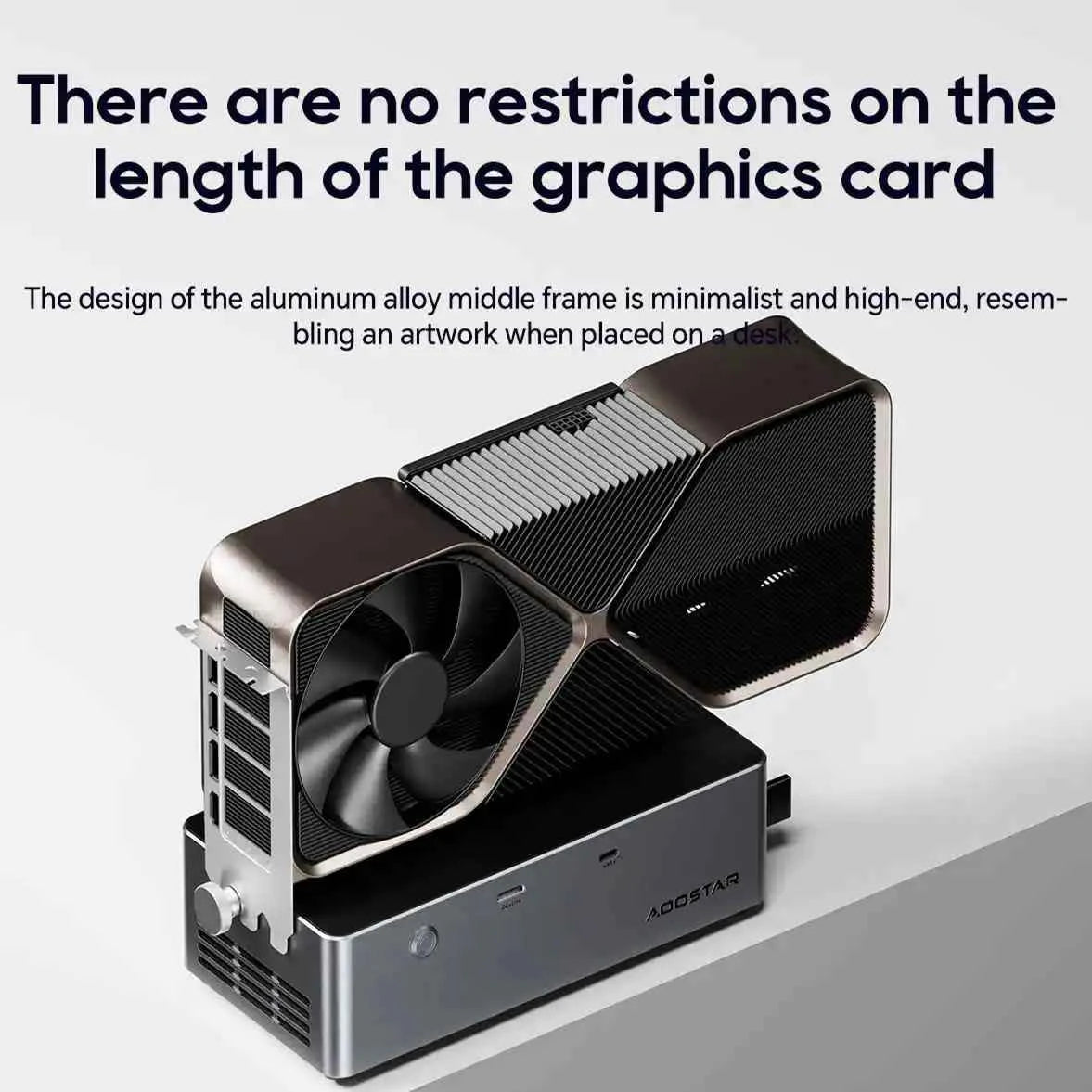

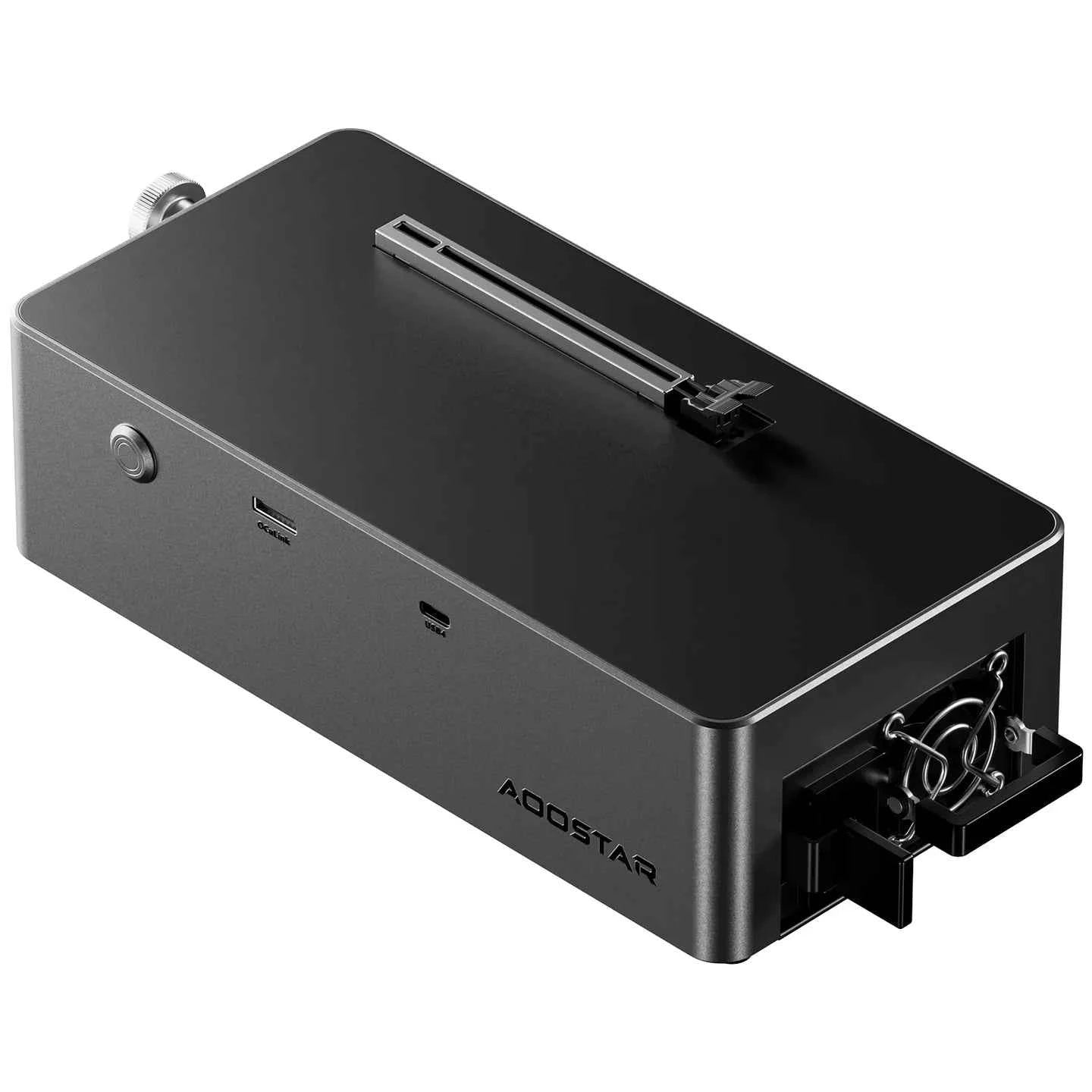

AOOSTAR AG02 GPU Dock adopts an open metal body design, an aluminum alloy profile middle frame, and measures 22.5 x 11 x 6cm, 1.5KG, and the graphics card is not limited in length.

800W Power:

AOOSTAR AG02 has a built-in customized Huntkey 800W power supply, which can realize the power supply one-line communication and comes with a hub design.

Compatible with

 AOOSTAR AG02 is compatible with most of the EGPUs on the market today.

OCuLink & TGX Ports

The OCuLink interface provides 64Gbps of effective bandwidth for PCIe 4.0 x4 lanes, and the dock is hot-swappable for the TGX interface of the 2024 Lenovo ThinkBook 14+ / 16+ Core Edition laptops.

Specification:

Power:800W
Interface configuration:  1 OCuLink interface, 1 X USB4 port ）2 x 8-pin graphics card power connectors

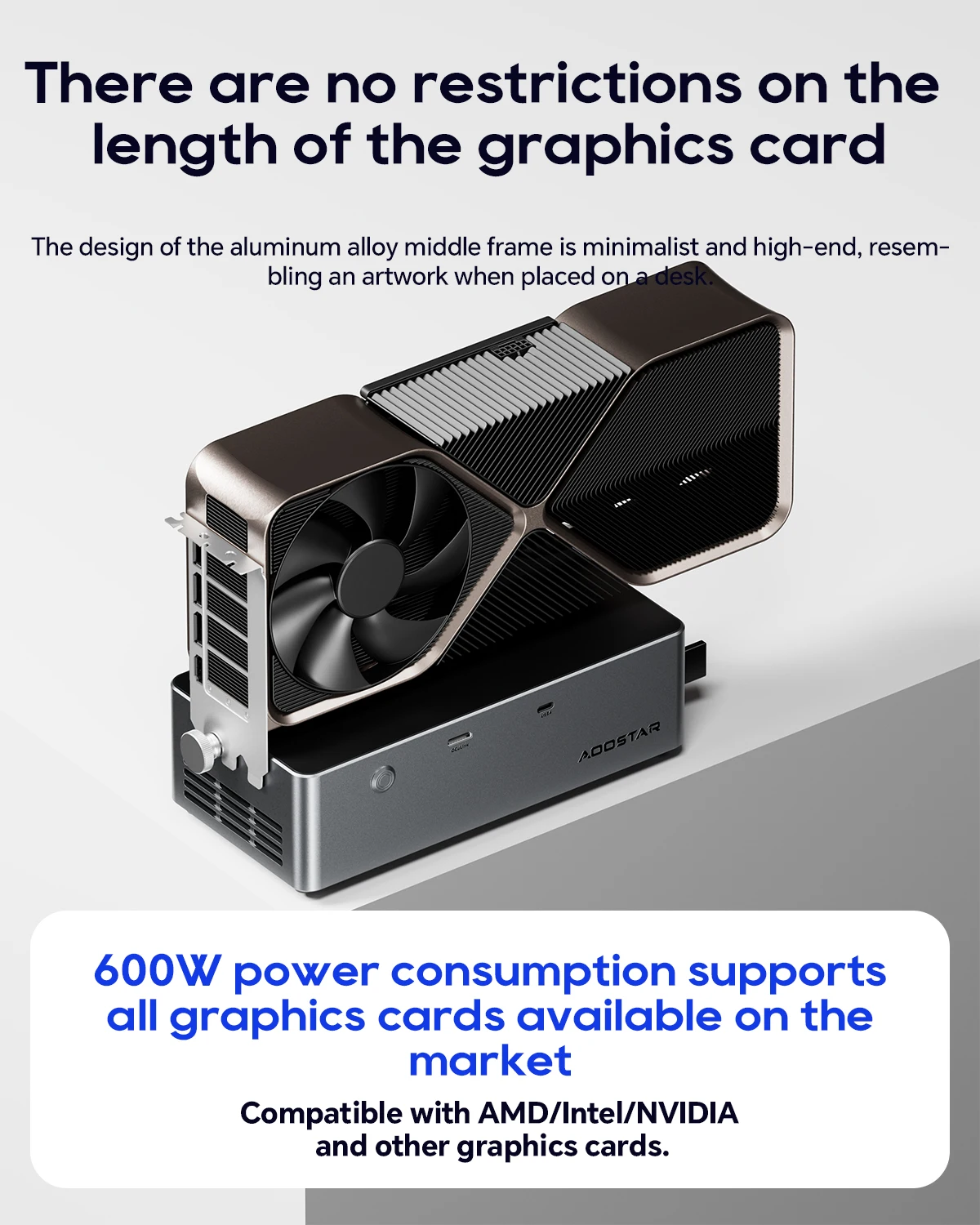

Device support:Built-in PCIE x16 interface, the maximum power consumption of the graphics card supports 600W, which basically meets the needs of most existing graphics cards
Power input: AC 220V~ 50/60Hz
OS:Support  Windows (Win 11 22h2 or higher recommended)

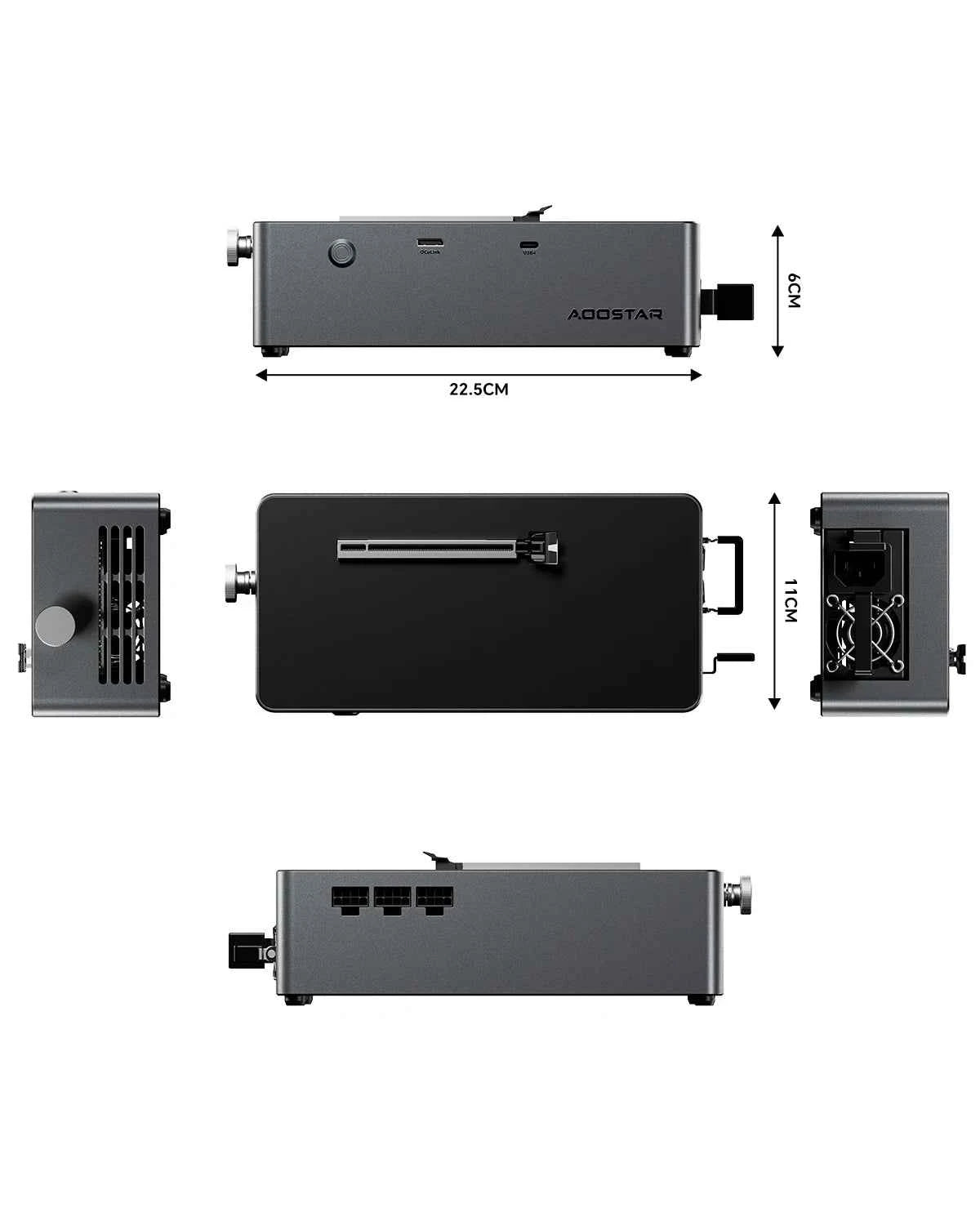

Size: 22.5CM*11CM*6CM

What In Box

• 1 x AOOSTAR AG02 EGPU Dock

• 1 x Oculink cable

• 1 x Power supply

• 2 x Switch Cable

• 1 x USB4 cable

• * The GPU is not included.

Note: This button is just for decoration, so there's no need to press it.
