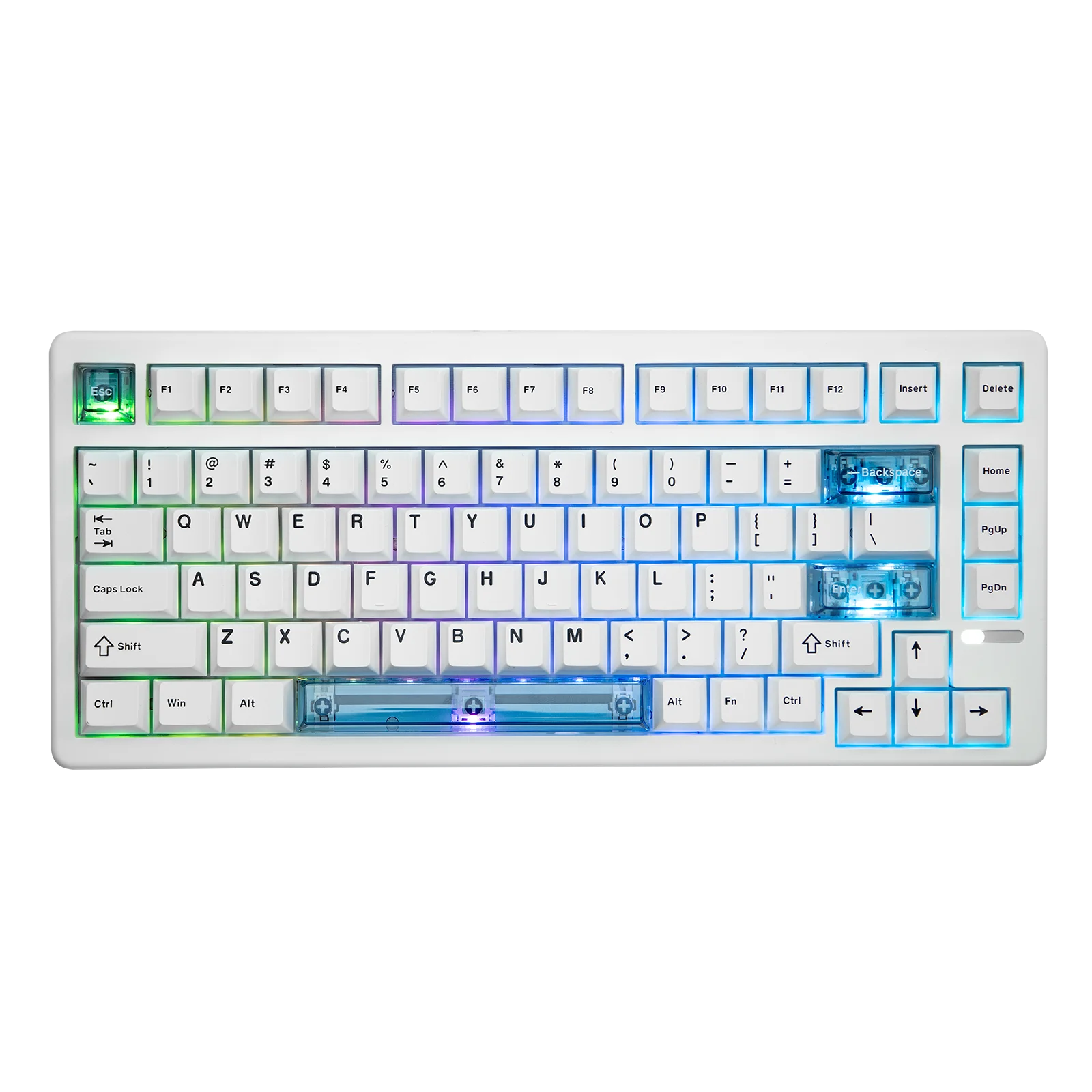

EPOMAKER HE80 Mechanical Keyboard Magnetic Hall Effect QWERTY US 75% Hot-Swap Gasket Creamy Wire DKS SOCD

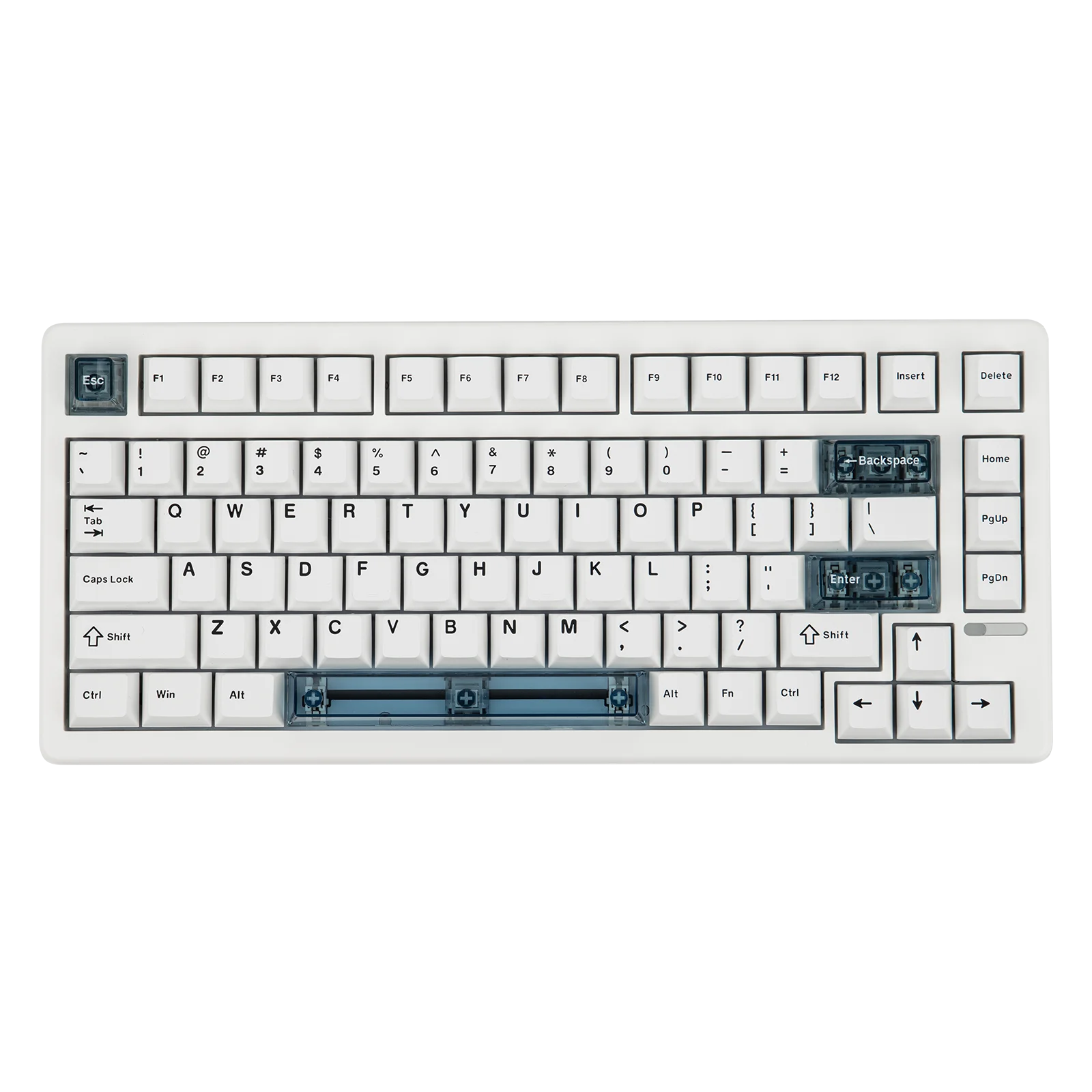

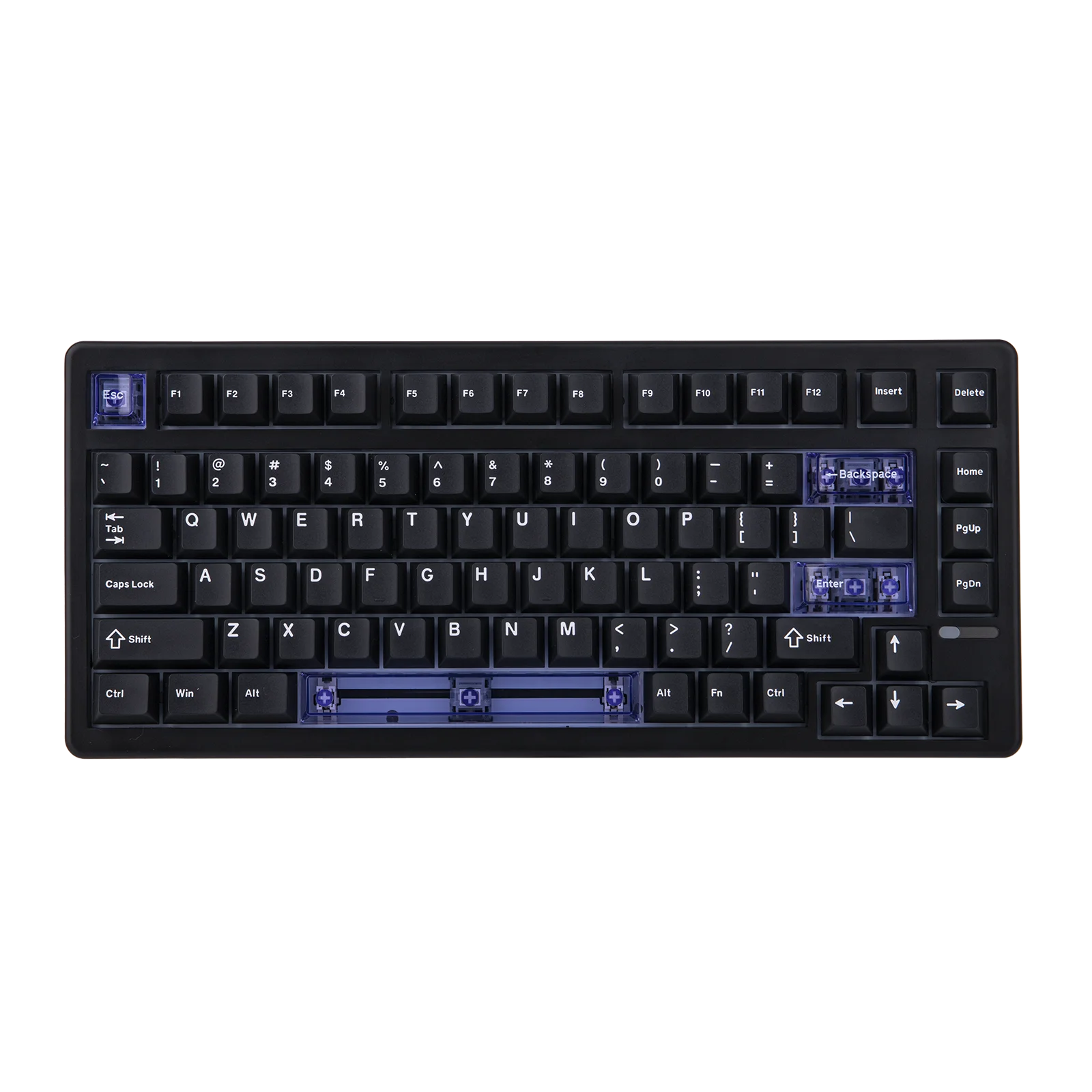

Functional Layout of 75%

Maximize desk space for optimal use of space and greater comfort in typing. With 82 lubricated keys, the HE80 wired keyboard features essential arrow keys and function keys, but in a compact size, offering more room for mouse movement for efficiency in gaming and work.

0.02mm Quick Drive with Zero Dead Zone

Slide through complex patterns with unparalleled fluidity and precision, as this Hall-effect keyboard performs complex maneuvers with fast speed and accuracy. With an adjustable drive and release path of 0.02mm per increment, the smallest finger movement ensures precise execution of commands.

Polling Rate of 8000Hz and Sweep Rate of 32000Hz

Equipped with high-level chips and calibrated magnetic switch, HE80 magnetic keypad offers polling rate of 8 kHz, scan rate of 32 KHz and key scan of 128 KHz (adjustable from 125 to 8 kHz). Because the Hall effect switches drive without physical contact between the switch and the PCB, the latency is significantly reduced to just 0.125 MS, 8 times faster than conventional keyboards with polling rate of 1 kHz.

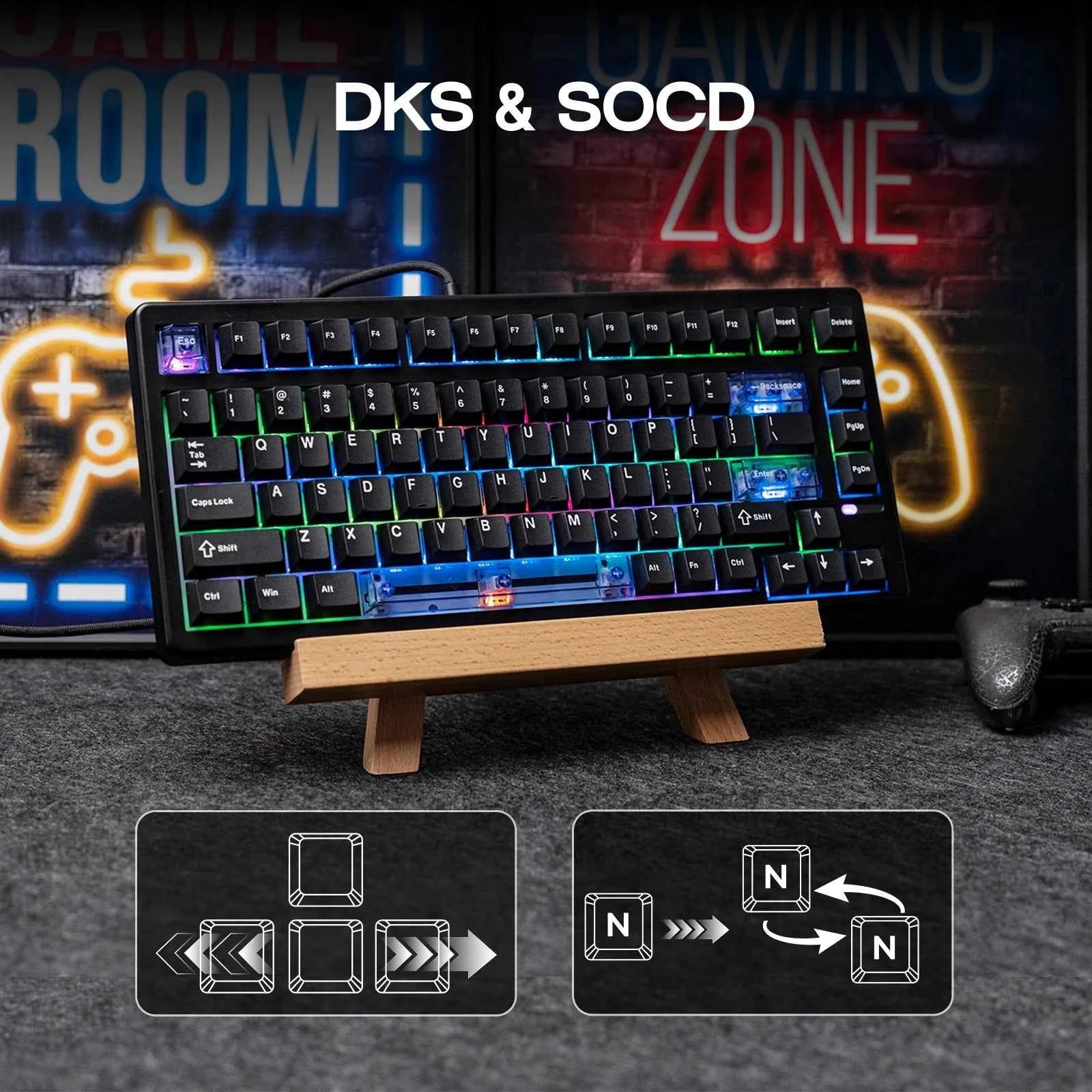

Snap Key (SOCD) and Dynamic Keystroke (DKS)

SOCD prioritizes the last keystroke from opposite directions, ensuring that your in-game moves are executed at the right time without your character getting locked in place. Program a single key with up to 4 functions depending on the trigger or release path with the DKS, or 2 functions by press or hold, for smooth and fast in-game action.

Adjustable Drive and Final Course

Every millisecond counts in professional games; with programmable trigger and release path, press or lift your fingers by just 0.02mm to activate or stop an action, gaining the necessary edge for fast-paced games such as FPS, MOBA, or rhythm games.

Double-Shot PBT Keys

Made with double-shot molding, the HE80 keyboard's subtitles and characters remain vibrant and clear even with everyday wear and tear. The use of premium PBT material keeps the HE80 keyboard in a high-quality state with no grease build-up or excessive glare, preserving its modern, minimalist, all-black design.

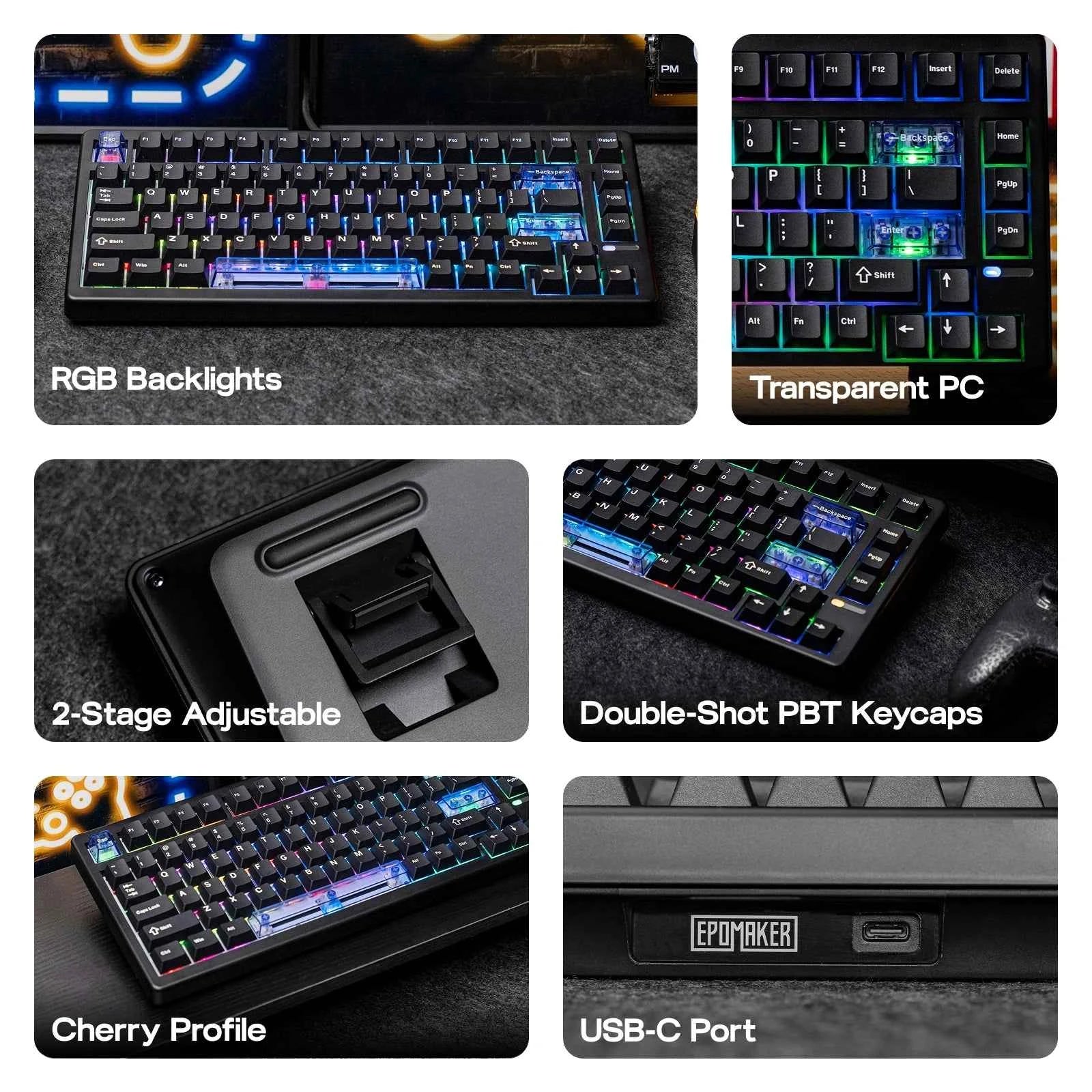

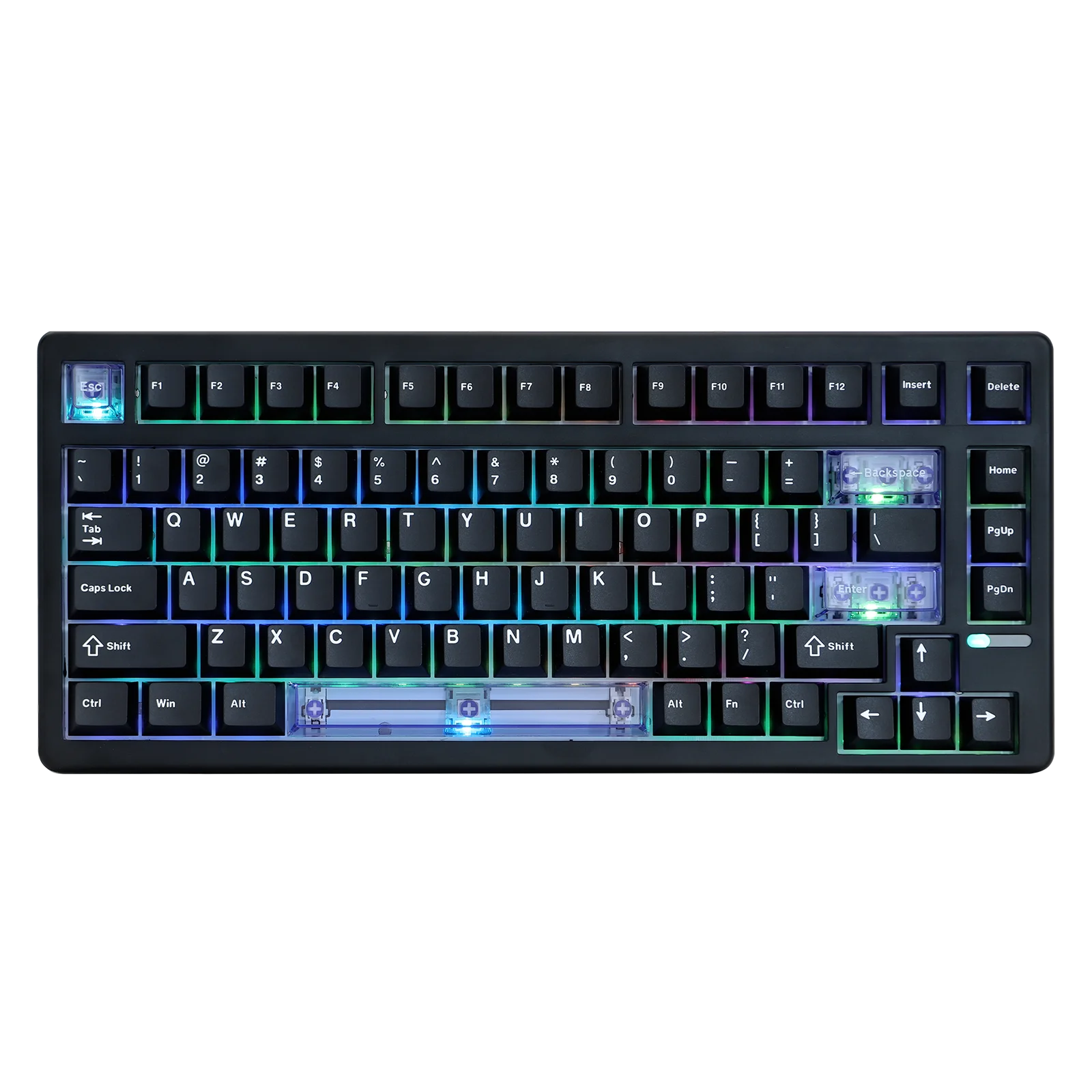

Programmable RGB Backlight

Offering dozens of pre-saved light effects and customizable per-key light patterns, the RGB HE80 keyboard delivers customization and an impressive typing joy. Adjustable in color, saturation, tone, luminosity and speed of light, let creativity flow with HE80's south-facing backlighting-use static lights for productive nights or immersive dynamic lights that dance as your fingers move.

EPOMAKER Online Driver

Customize key functions, drive path, macros, or backlight across devices, operating systems, and spaces with HE80's Chrome-based Web software that eliminates the need for downloads. Experience SOCD, DKS, MT and RT functions, design custom backlight effects, adjust keyboard sensitivity, or record macros-all with real-time visual feedback.

Technical Specifications

Brand: EPOMAKER

Model No.: HE80 Hall Effect Keyboard With Wire

Layout: US Layout of 75%, QWERTY

Number of Keys: 82 Keys

Battery: Without Battery

Connections: Wired Only (USB A to USB C)

Compatibility: Mac / Windows / Android / Linux / PS4 / PS5 / Switch

Keyboard Dimensions: 33.2 × 14.6 × 4.2 cm

Keyboard Weight: 0.83 kg

Front Height: 2.2 cm

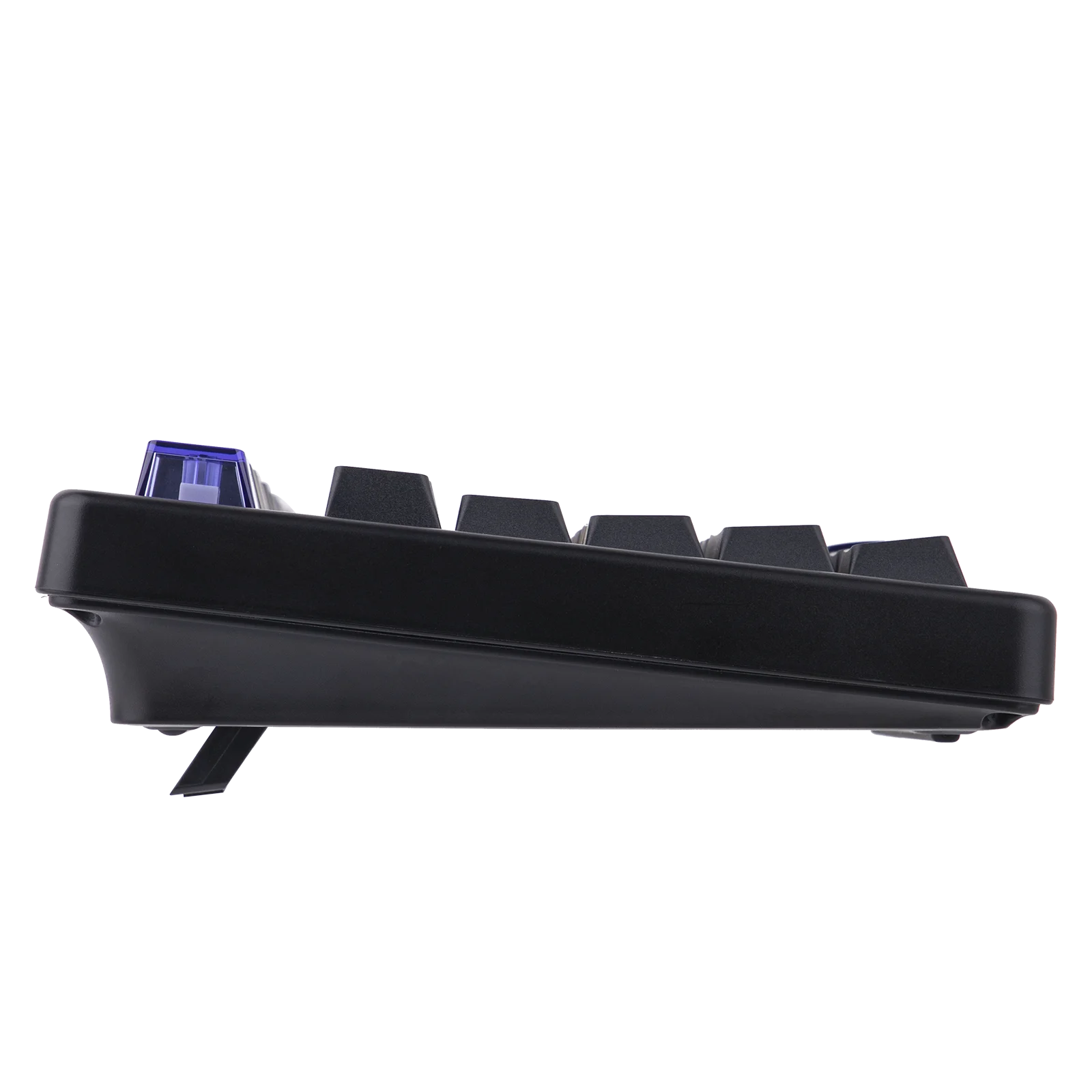

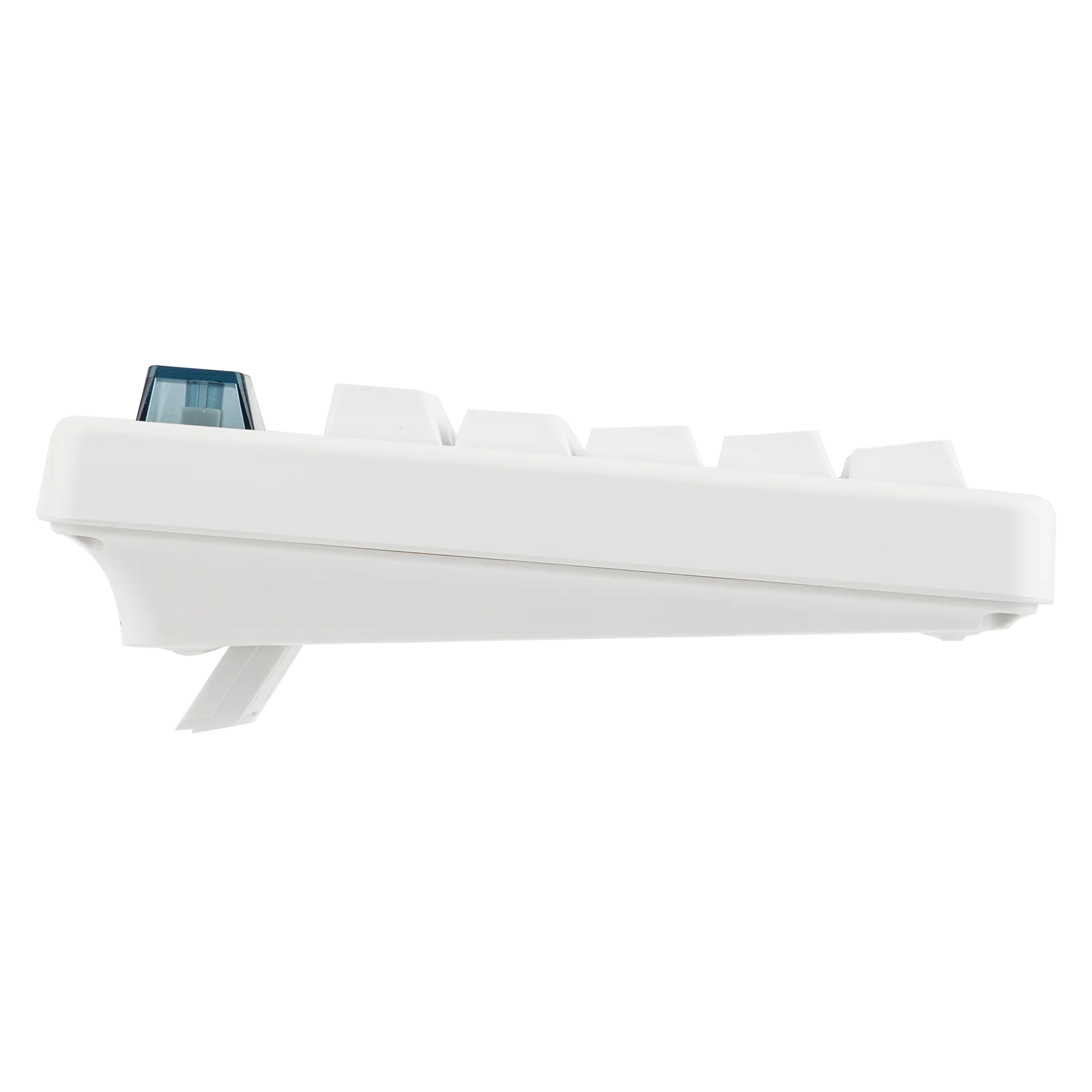

Angle of typing: 6 °, 8.5 ° and 11.5 °

Material of Housing: Plastic

Material of Plate: FR4 Plate

Flex-Cut: Without Flex-Cut

Stabilizers: Plate-Mounted Stabilizers (Plate-Mount)

Mounting Frame: Gasket Mounting (Gasket-Mount)

Sound Attenuation: 4 Layers of Acolytes, including Latex Sandwich Foam, IXPE Switch Foam, Bottom Silicone, and Bottom Foam

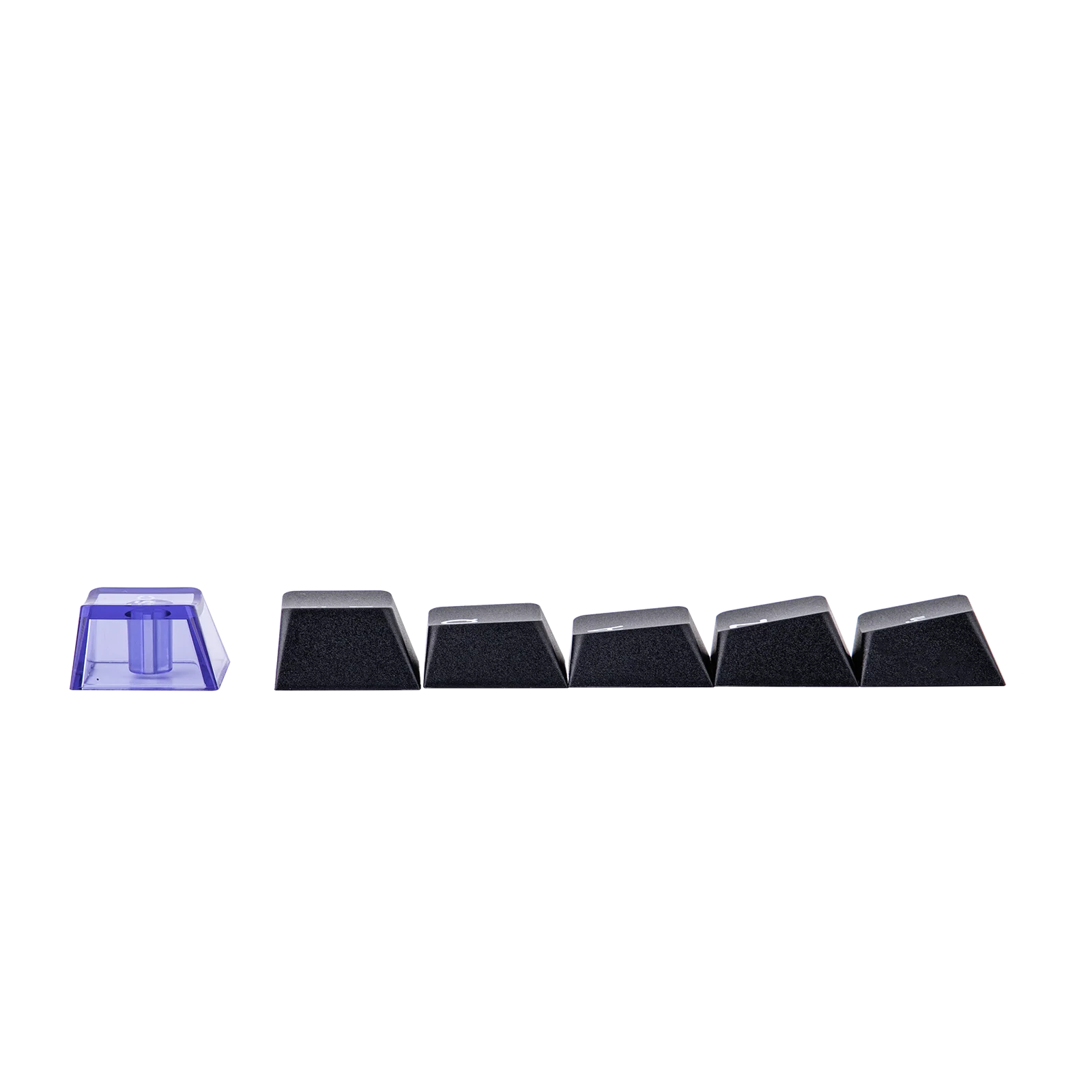

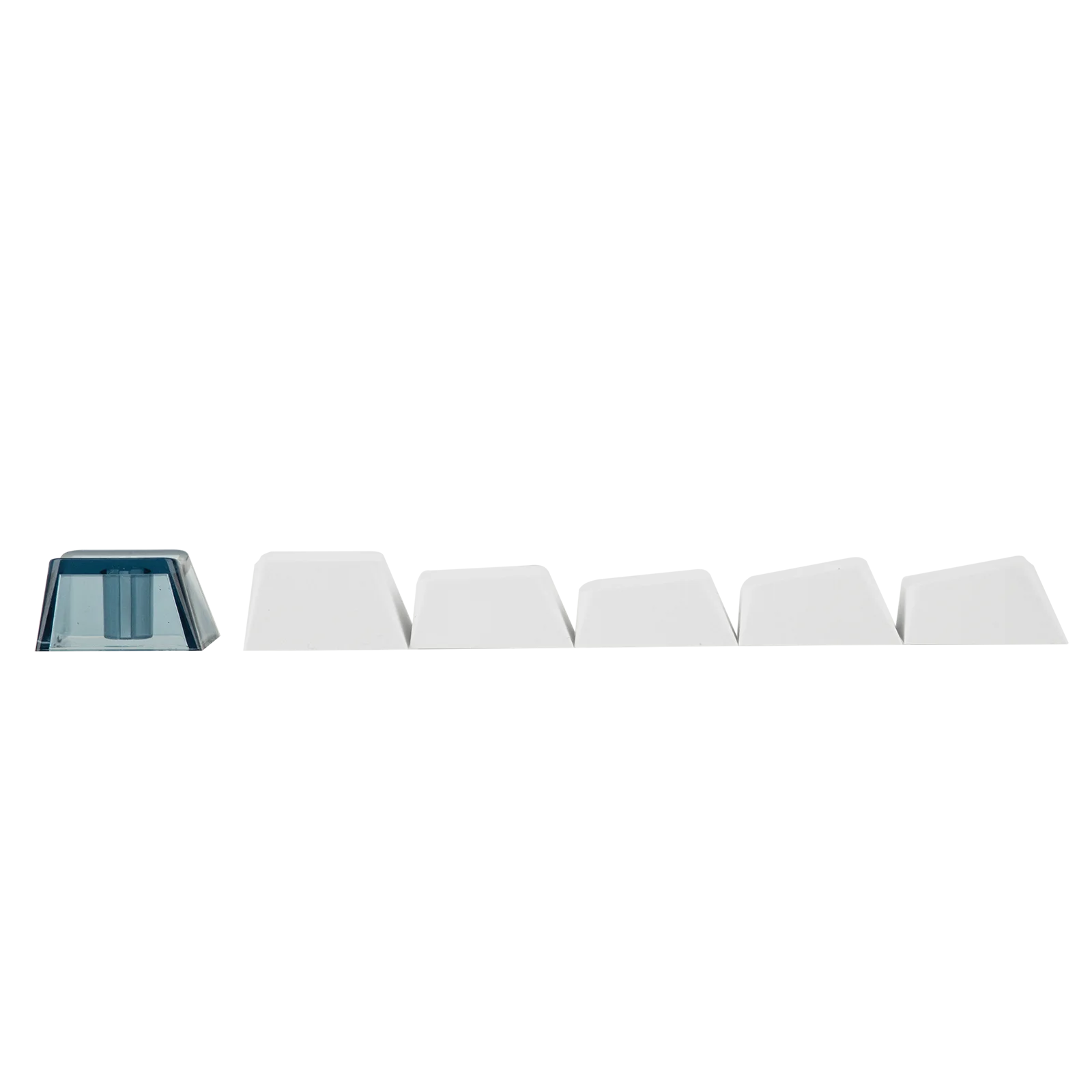

Profile of Keys: Cherry Profile

Material of Keys: PBT Keys and Clear Keys of Extra PC

Technique of Making the Keys: Double-Shot

Switch: Magnetic Hall-Effect Switch

Hot-Swap: Yes, compatible with other south-facing magnetic switches

RGB: Yes, RGB backlight per south-facing key

-Polling Rate: 8000Hz in wired mode (adjustable from 125 to 8 kHz)

Scan Rate: Scan of 32000Hz and scan per key of 128000Hz

Latency: 0.125 MS

Anti-Ghosting: Yes, the HE80 supports N-Key Rollover (N-Key Rollover)

Specifications of EPOMAKER MagneX Switch

Type of Switch: Magnetic Hall-Effect Switch

Initial Strength: 30 GF (minimum)

Power of Drive: 37 ± 5 GF

Total Lock-on Force: 45 gf (Max)

Drive Course: Adjustable from 0.1mm to 3.3mm, with increments of 0.02mm, in the EPOMAKER Web Driver

Total Course: 3,4 ± 0,1mm

Initial Magnetic Flux (if PCB is 1.6mm thick): 90 ± 10 Gs

Final Magnetic Flux (if PCB is 1.6mm thick): 550 ± 55 Gs

Material of Top Cover: PC

Material of Bottom Base: PC

Shaft Material (Stem): POM

Length of Spring: 18mm

Lubricated: Yes, lubricated in factory

Durability: 1,000,000,000 of activations

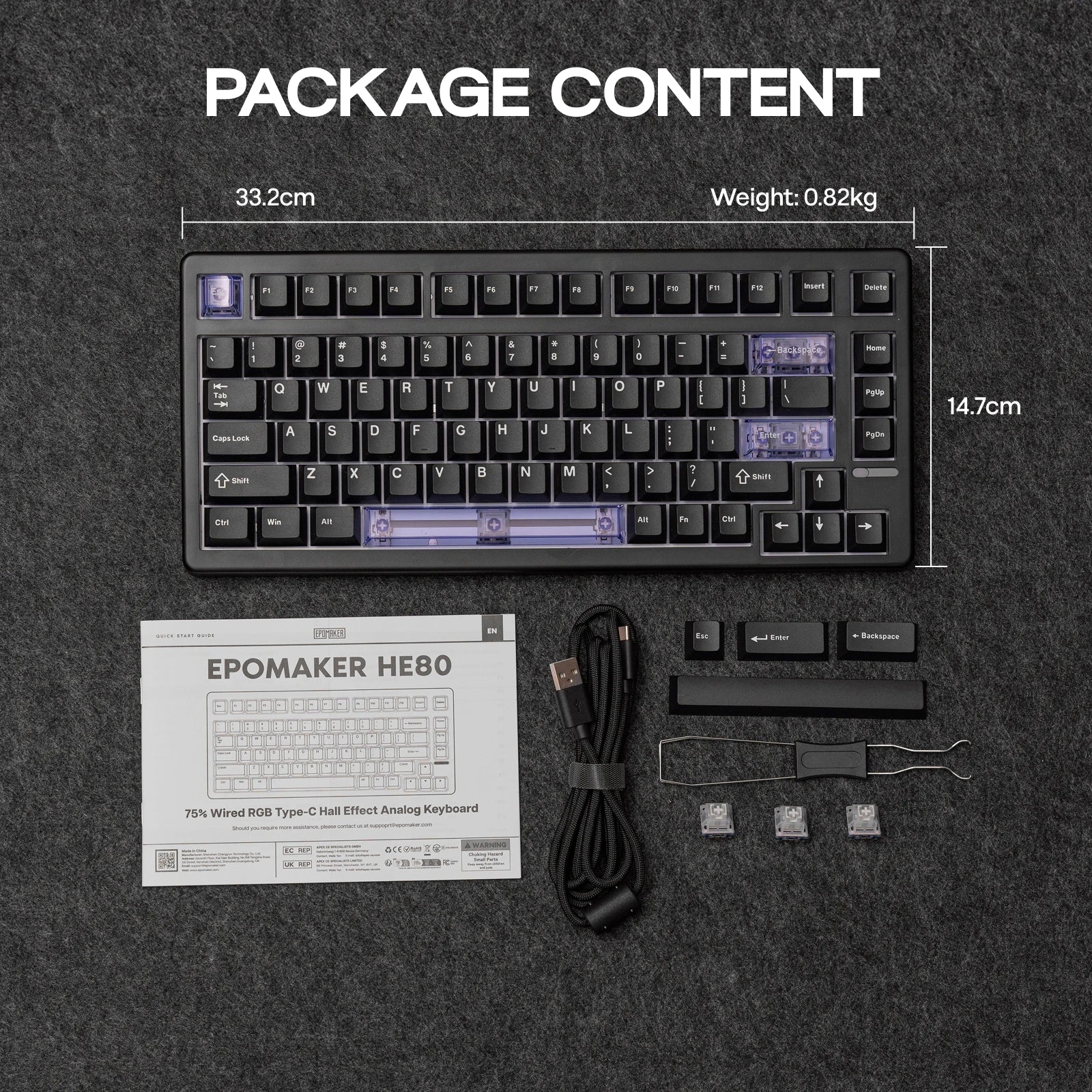

Contents of the package

1 × HE80 Wireless Magnetic Hall-Effect Gaming Keyboard

1 × Multilingual Manual (English, Spanish, French, Italian, Korean, Japanese, Chinese)

3 × Extra Magnetic Switches

3 × Additional PBT Keys

1 × 2-in-1 Switch and Key Remover
