SPECIFICATIONS

Active Area: 349.6 x 196.7mm

Battery Included: no

Brand Name: HUION

Brightness: 200nit (Typ.)

Certification: CE,FCC,RoHS,KC,weee

Color Gamut Coverage: 99%sRGB / 99%Rec.709 / 90%Adobe RGB

Color Gamut Volume: 120% sRGB

Contrast Ratio: 1000:1

Digital Pen: PW600L

Dimension: 421.2 x 236.81 x 12.62mm

Display Color: 16.7M (8bit)

Full Lamination: Yes

HUION Model: Kamvas 16 (Gen 3)

High-concerned chemical: None

Interface Type: USB

LCD Type: IPS 60Hz

OS Support: Windows 10 or later, macOS 10.12 or later, Android 6.0 or later, Linux(Ubuntu 20.04 LTS)

Origin: Mainland China

Output Voltage: 5V 3A

PPI (Pixels Per Inch): 186PPI

Package: Yes

Panel Size: 15.8"(Diagonal)

Pen Technology: PenTech 4.0

Power Consumption: 7W or below

Press Keys: 6 Programmable Press Keys, 2 Dial Controllers, 2 Function-switch button

Pressure Levels: 16384

Remind: It can not work alone, you need to connect to a laptop/PC/Android device.

Resolution Ratio: 5080lpi

Response Time: 14ms (Typ.)

Screen Resolution: 2560 x 1440

Screen Size(diagonal): 15.6"

Type: Pen Tablet Monitor,Digital Tablets

Video Interface: USB-C (HDMI Signal), Full-featured USB-C (DP Signal)

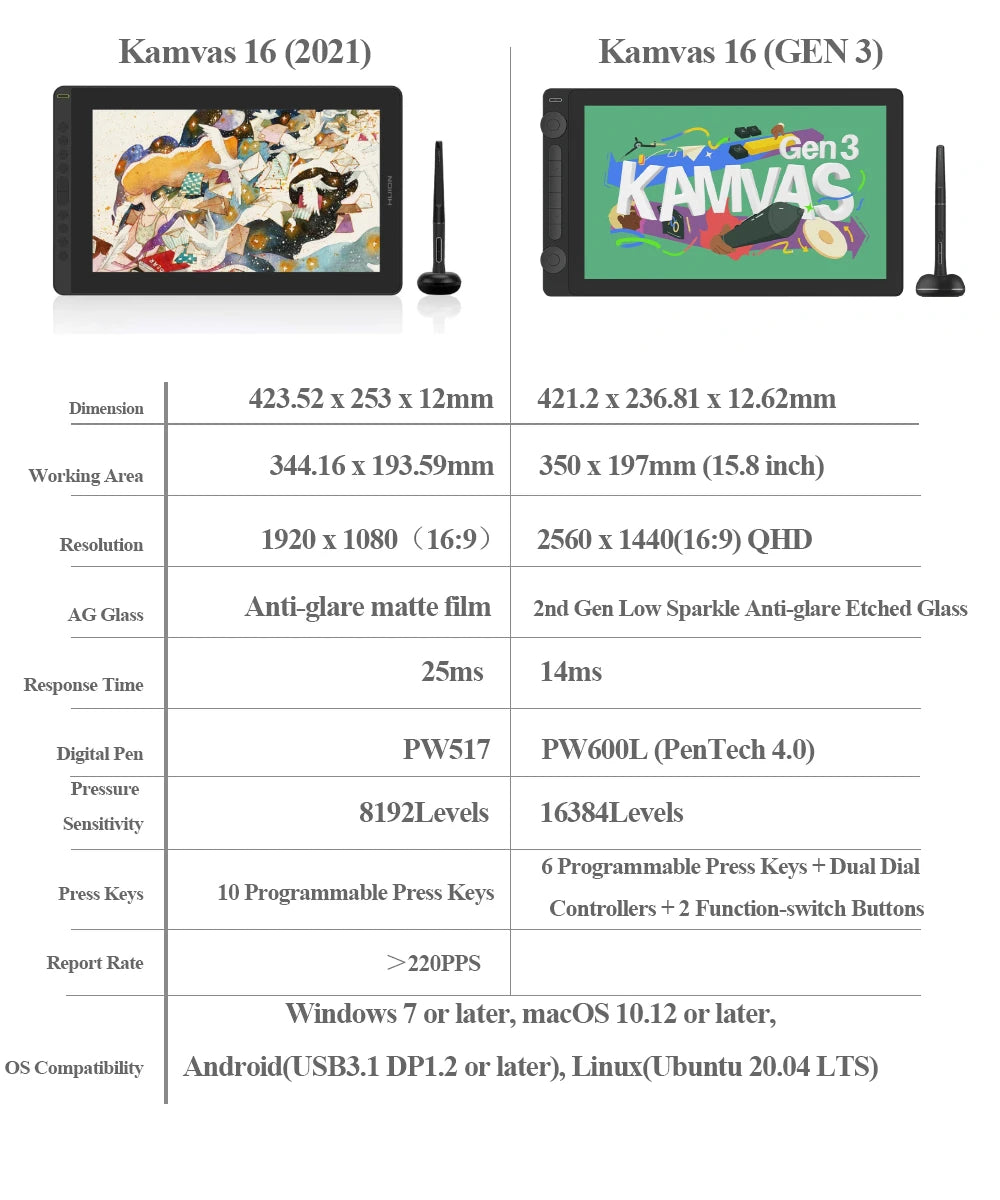

Kamvas 16 (Gen 3)

Kamvas 16 (Gen 3) optimizes its size to 15.8 inches and upgrades the resolution to 2.5K QHD from the predecessor, offering incredibly sharp details. With revolutionary PenTech 4.0 technology and exceptional color accuracy, Kamvas 16 (Gen 3) is the top choice for artists seeking the perfect balance of cost and performance to take their art to the next level.

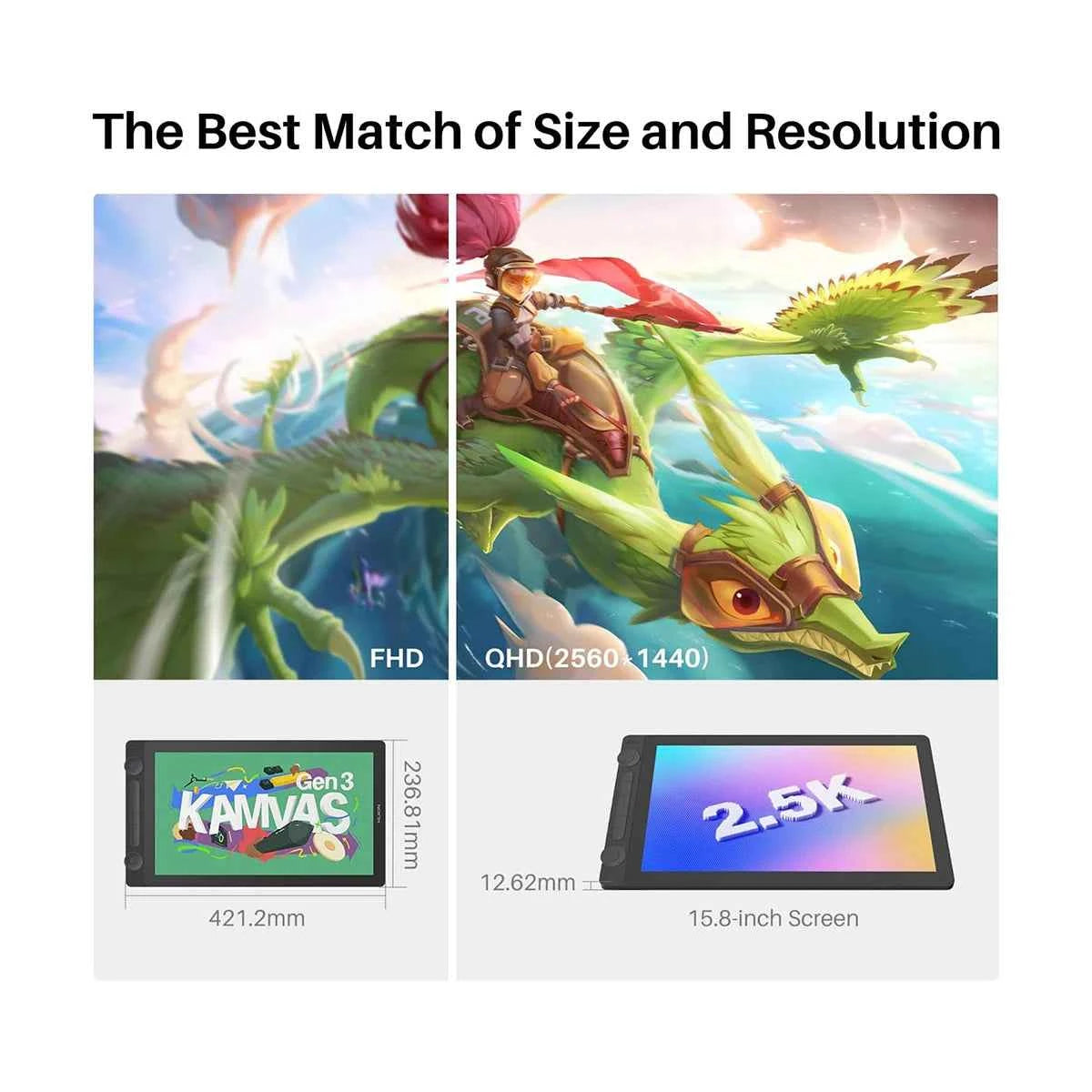

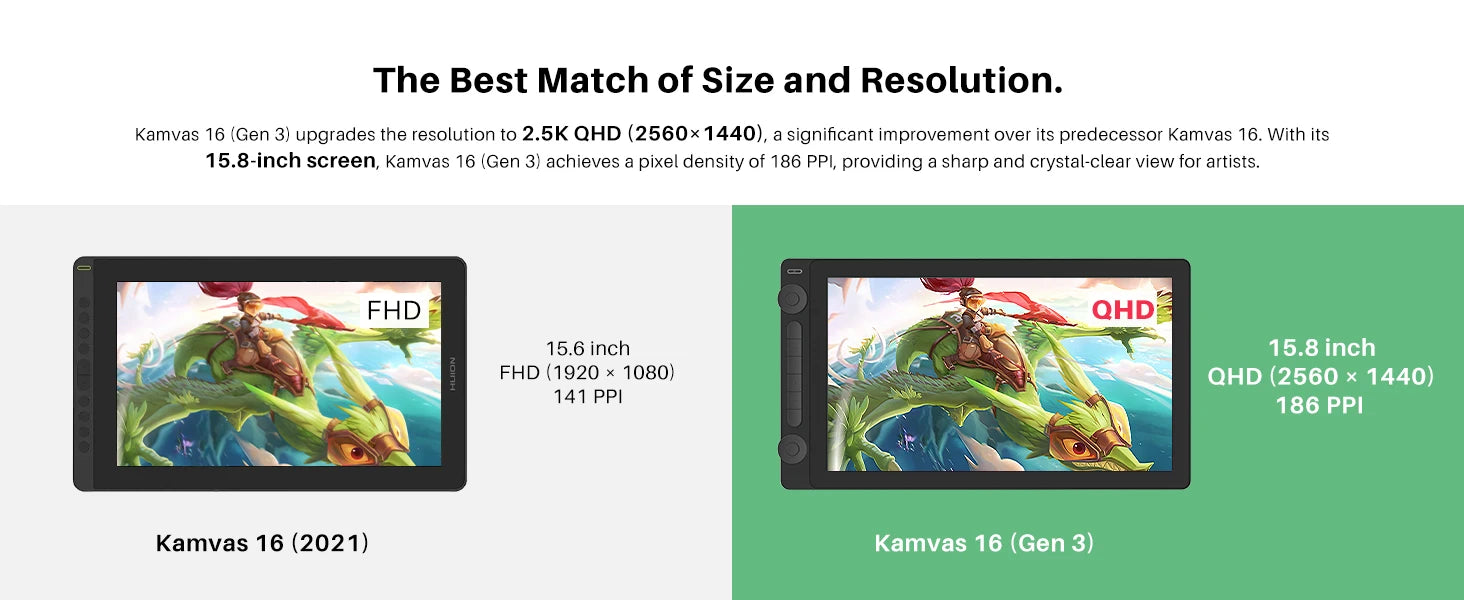

The Best Match of Size and Resolution.

Kamvas 16 (Gen 3) upgrades the resolution to 2.5K QHD (2560x1440), a significant improvement over its predecessor. With its 15.8-inch screen, Kamvas 16 (Gen 3) achieves a pixel density of 186 PPl, providing a sharp and crystal-clear view for artists.

The First Step in Drawing,The Beautiful Color.

Kamvas 16 (Gen 3) boasts a high-quality screen that covers 99% of the sRGB and Rec.709 color gamuts, as well as 90% of the Adobe RGB color gamut. The accurate color ensures that the colors displayed on the screen closely match your original illustrations, comics, animations, and other artworks.

Ensuring Accurate Color Display.

Each Kamvas 16 (Gen 3) undergoes rigorous factory color calibration to achieve ΔE<1.5, ensuring accurate color representation. It also includes a factory calibration report, so you can use the correct colors to enhance your artistic expression.

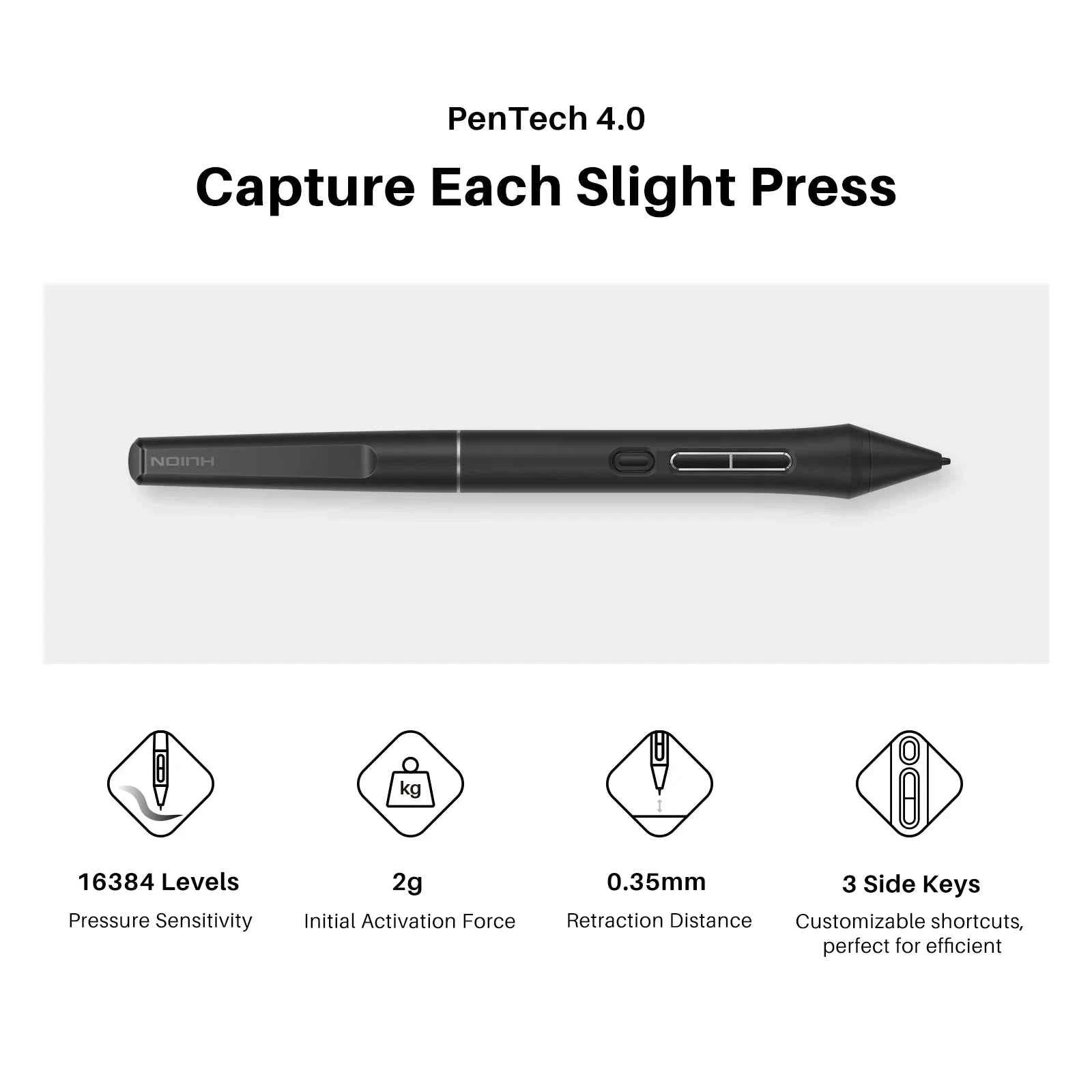

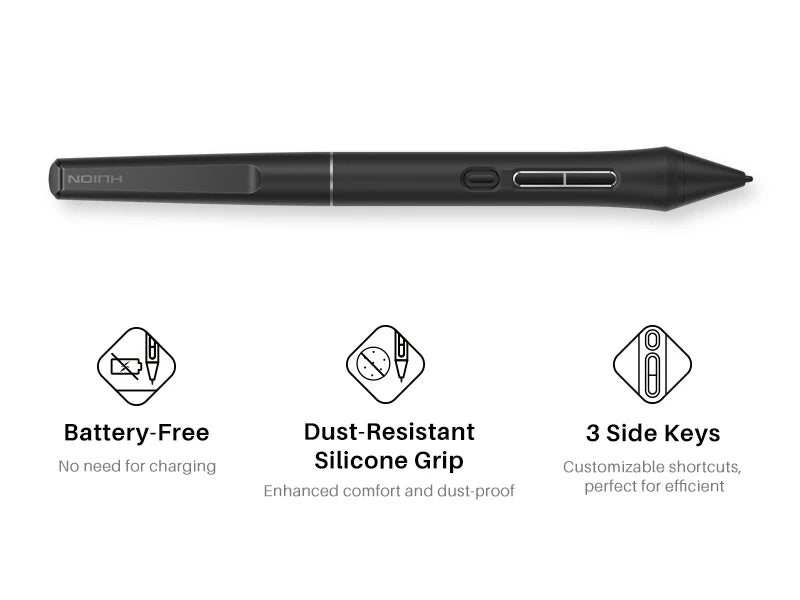

Digital Pen PW600L, Like a Real Pen.

Kamvas 16 (Gen 3) features Huion's latest PenTech 4.0 technology. The PW600L pen is equipped with the HV200 chip, significantly enhancing pen pressure sensitivity and cursor tracking. With three side buttons and a dust-proof grip, it not only provides a real pen-like experience but also boosts efficiency.

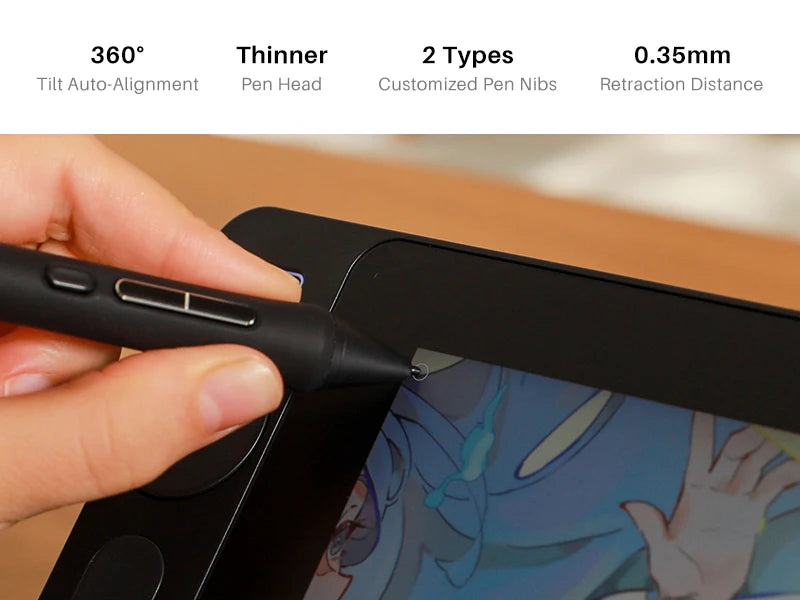

Enhanced Drawing Precision.

With revolutionary PenTech 4.0, the edge precision of the screen was enhanced, and Tilt Auto-Alignment technology decreased the cursor offset issues. Additionally, we’ve made the pen head smaller to avoid any obstruction of your view. With a 0.35mm retraction distance, the drawing experience becomes more stable and free of wobble.

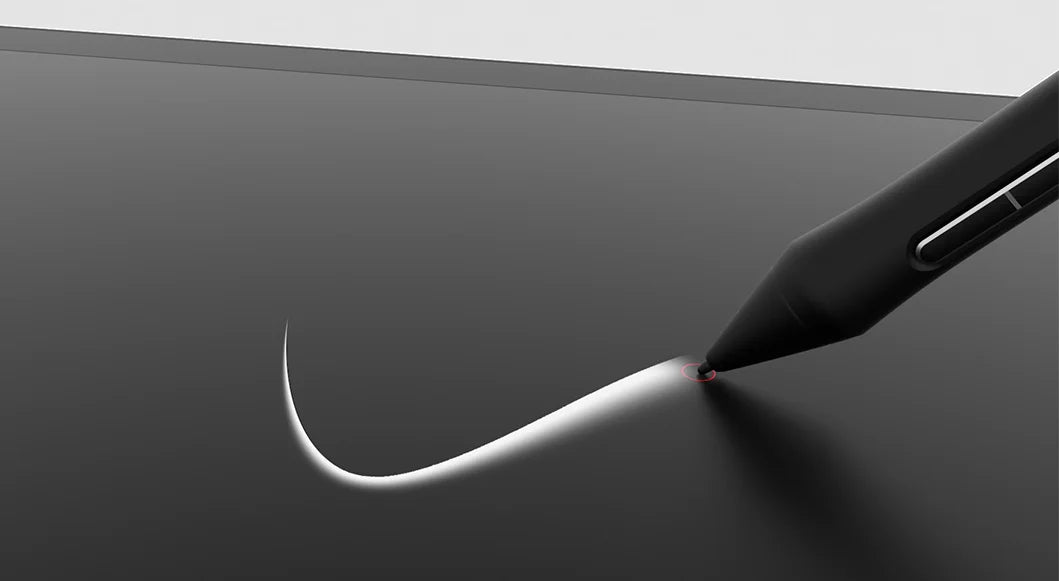

Capture Even the Lightest Strokes.

PenTech 4.0 divides pen pressure into 16,384 levels and offers a 2g initial activation force, capturing even light strokes. The adjustable maximum force range from 200g to 500g makes coloring and shading easier. Additionally, ±60° tilt support helps imitate effects like shading or broad strokes, like a real pen.

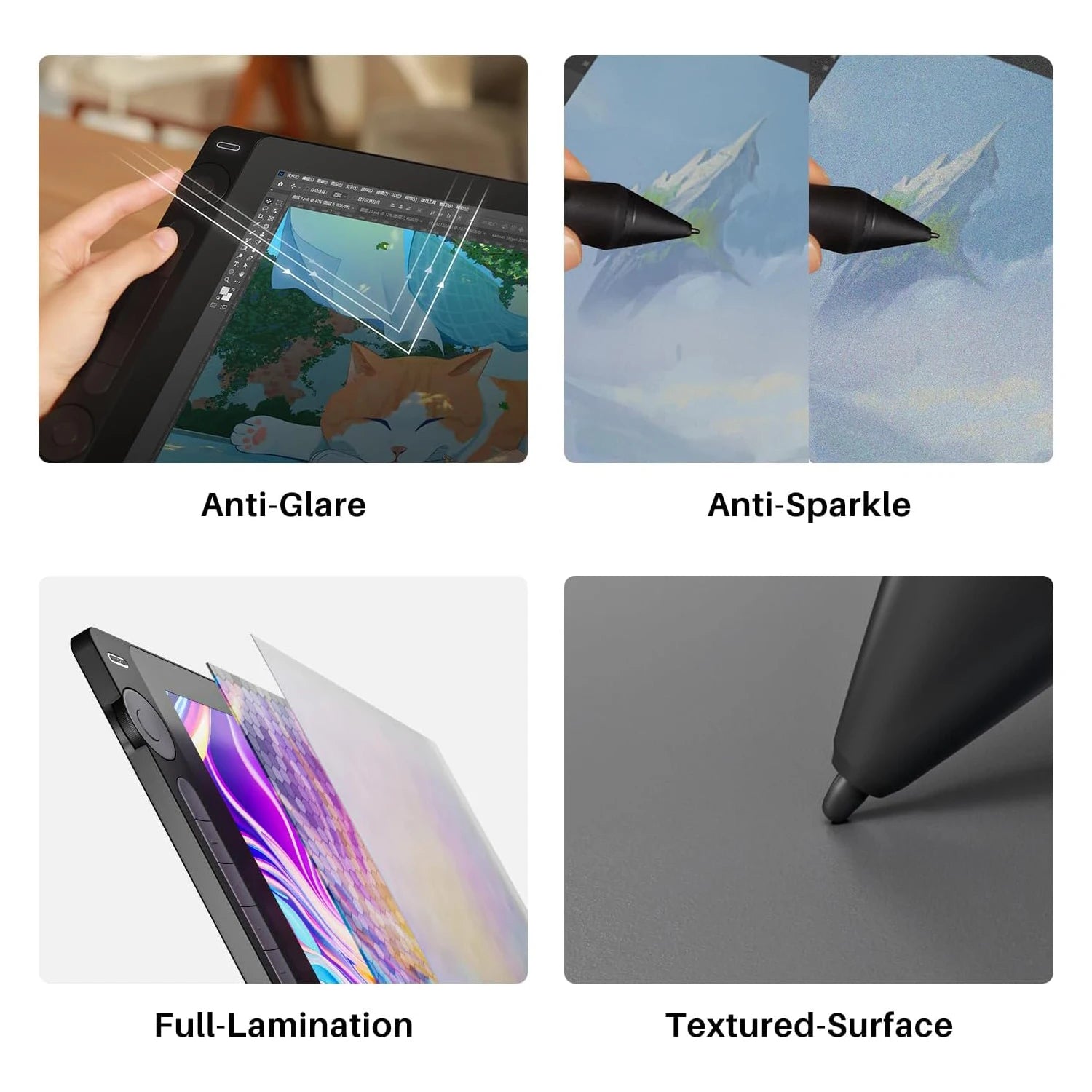

The Toughest Glass,For the Best Canvas.

Kamvas 16 (Gen 3) comes with upgraded anti-glare Canvas Glass, offering better durability than the anti-glare film of the previous Kamvas 16. Using nano etching technology, it reduces both glare and sparkle, minimizing image noise on white backgrounds. The improved surface provides a natural paper-like texture and full lamination for a more immersive creative experience.

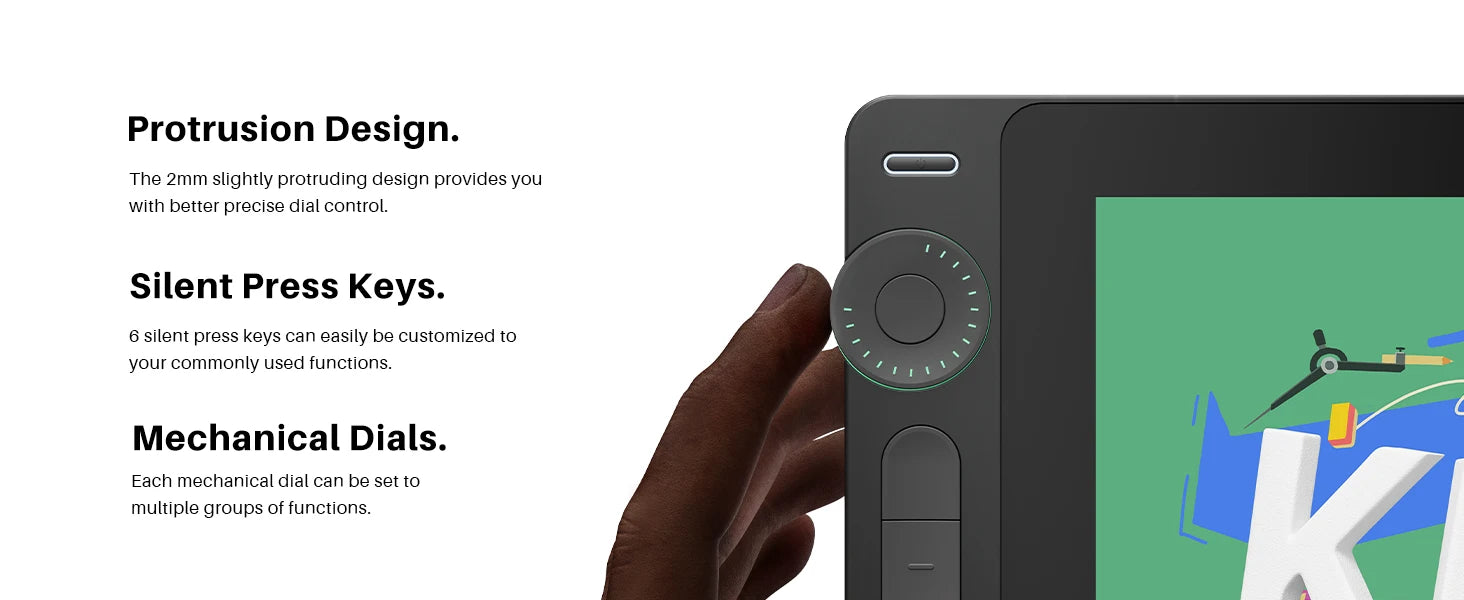

Dual Dials,Double Your Productivity.

Kamvas 16 (Gen 3) is equipped with 2 dial controllers and 6 silent press keys, allowing you to precisely adjust canvas, brushes, sliders, flow, opacity, frames, parameter sliders, and more.

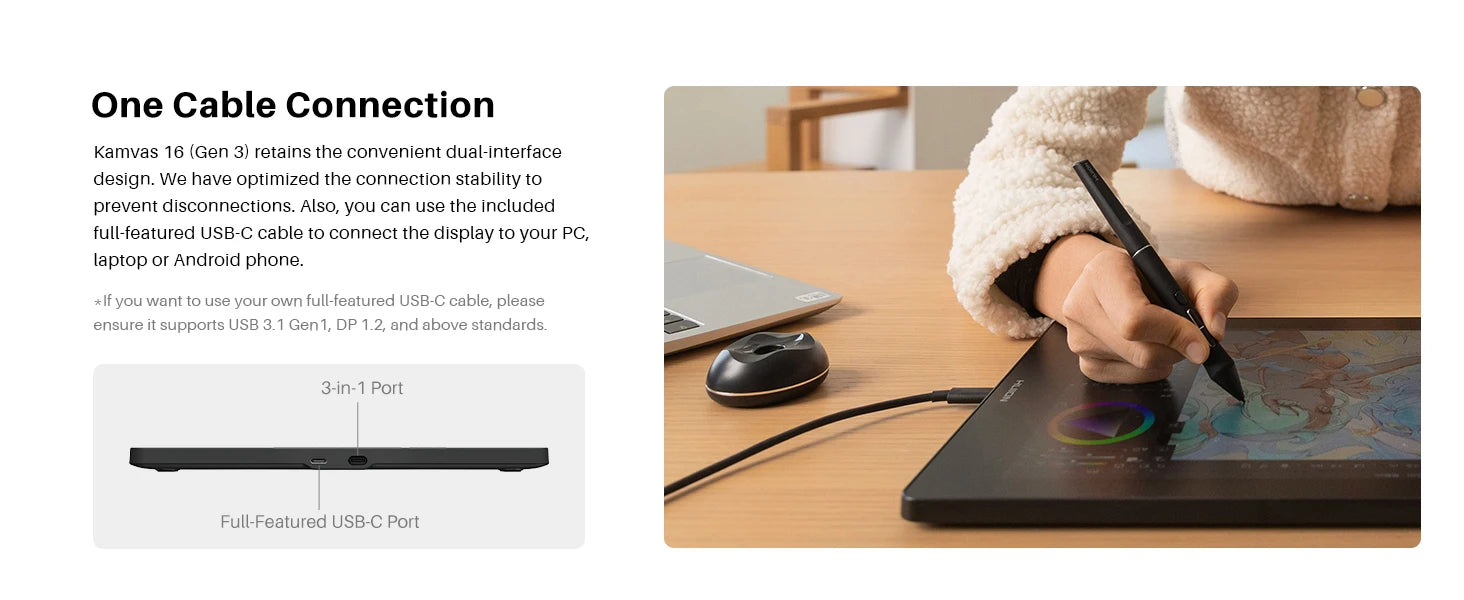

Stable Cable Connection.

Kamvas 16 (Gen 3) retains the convenient dual-interface design. We have optimized the connection stability to prevent disconnections. Also, you can use your own full-featured USB-C to USB-C cable to connect the display to your PC, laptop, or Android phone.

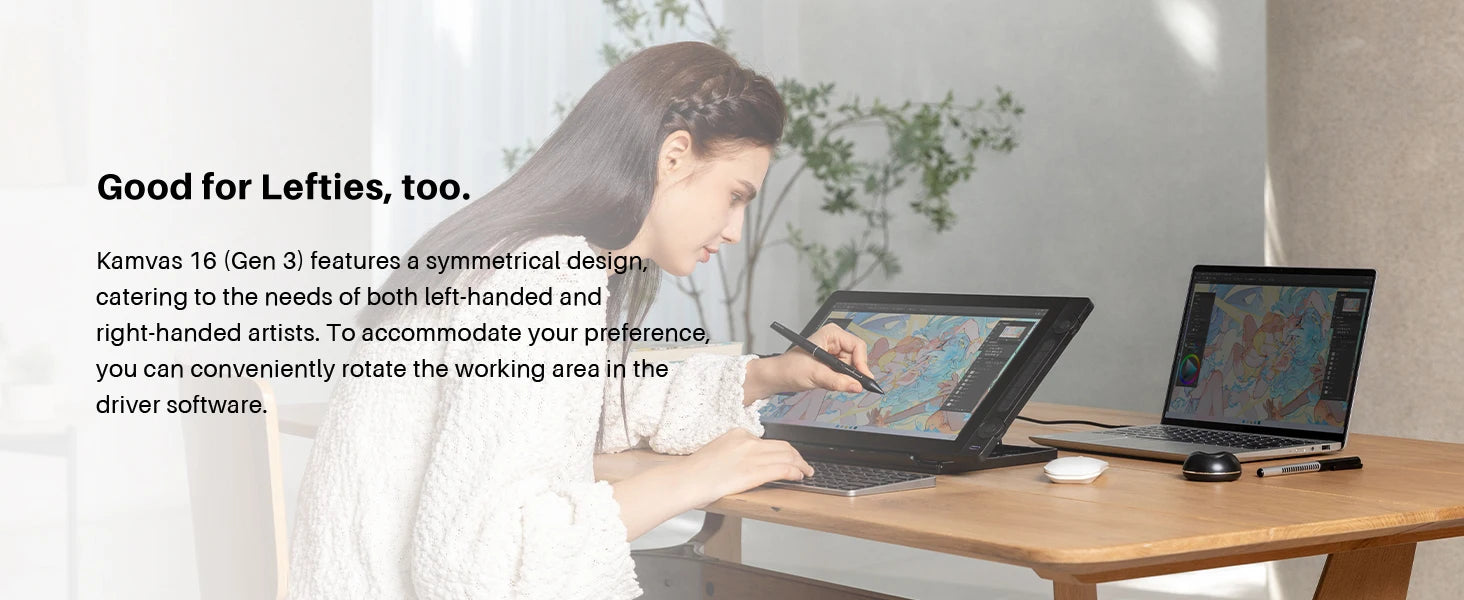

*If you want to use your own full-featured USB-C cable, please ensure it supports USB 3.1 Gen1, DP 1.2, and above standards.Good for Lefties, too.

Kamvas 16 (Gen 3) features a symmetrical design, catering to the needs of both left-handed and right-handed artists. To accommodate your preference, you can conveniently rotate the working area in the driver software.

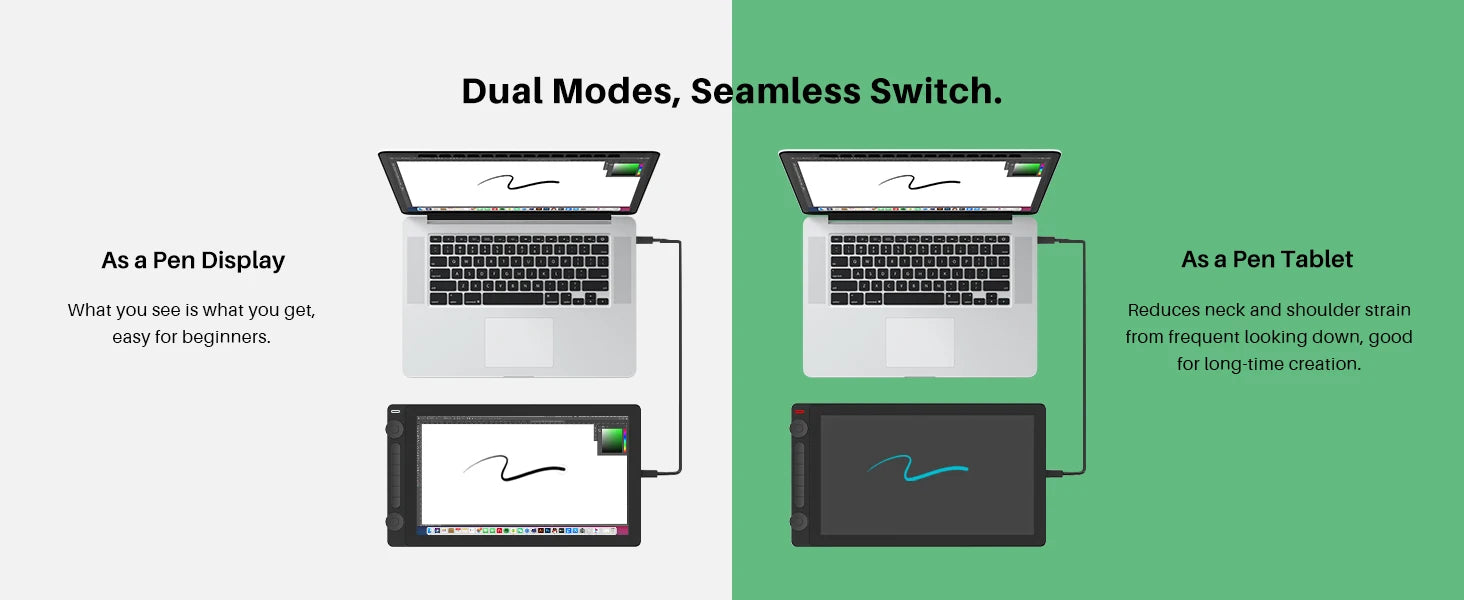

Dual Modes, Seamless Switch.

As a Pen Display: What you see is what you get, easy for beginners.

As a Pen Tablet: Reduces neck and shoulder strain from frequent looking down,good for long-time creation.
