Product Highlights
SPECIFICATIONS
Application: Server
Brand Name: Intel
Chip Process: 14NM
Choice: yes
Cooling system: no
Default TDP / TDP: 120
GPU-built: no
High-concerned chemical: none
Intel Model: Intel Xeon E5 2680 V3
L3 Cache Capacity: 30
Number OF Therads: 12
Origin: Mainland China
PCIe VERSION: PCIe
Processor Type: Intel Xeon
Socket Type: LGA 2011-3
Support Chipset Models: Intel Others
Support Memory Channels: 4
Support Memory Type: DDR4
Type: Twelve-Core
Unlocked: no
Usage Scenario: Workstation

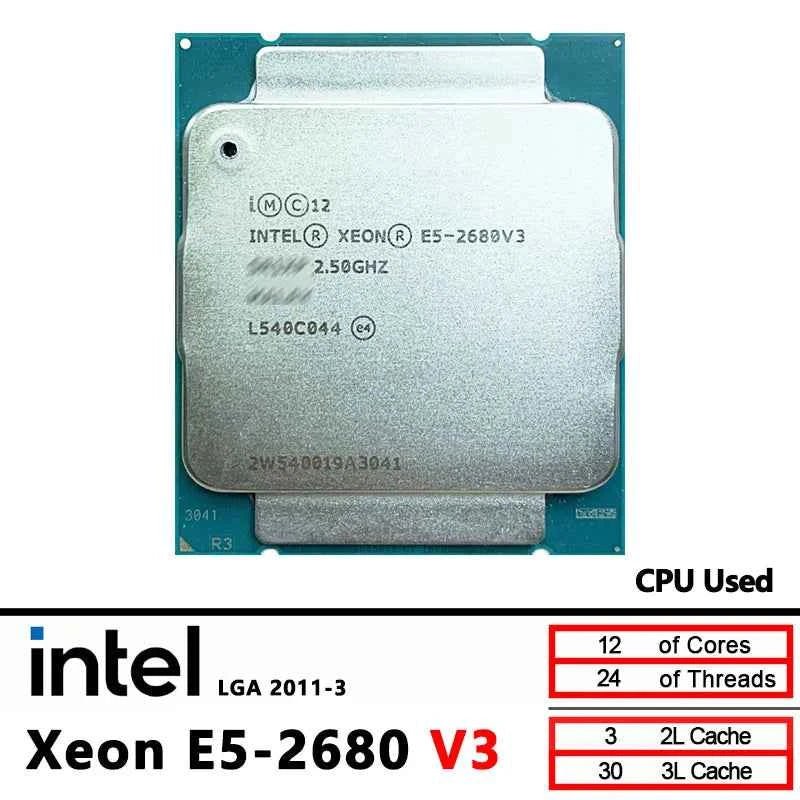

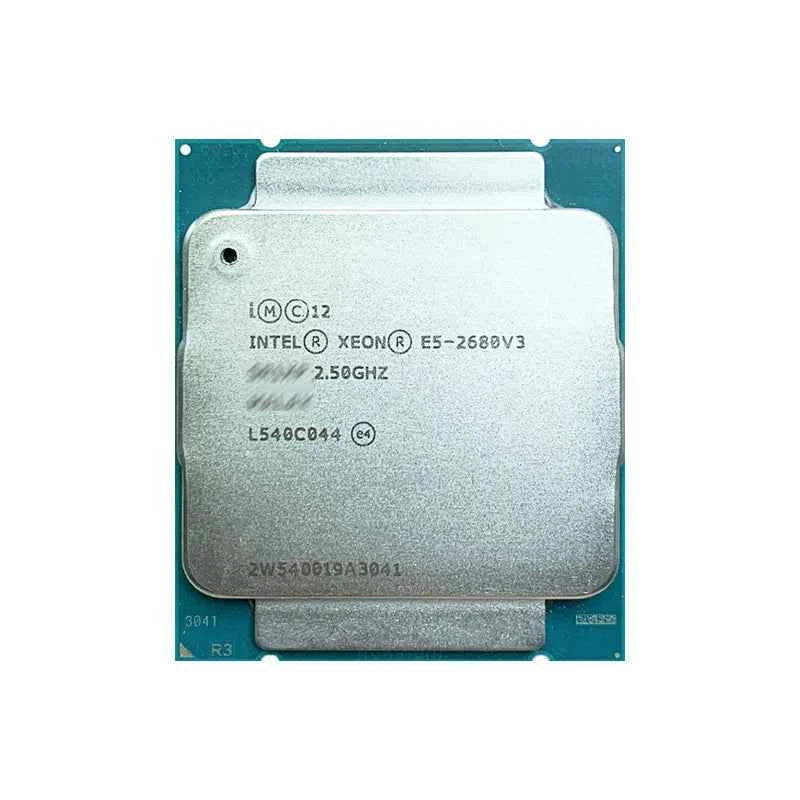

Intel Xeon E5-2680 v3 is a server level processor, and its detailed introduction is as follows:
Basic Parameters
Core/Thread: 12 cores and 24 threads.
CPU clock speed: 2.5GHz.
Maximum turbo frequency: 3.3GHz.
Core architecture: Haswell EP.
Production process: 22nm.
Level 3 cache: 30MB.
Bus speed: 9.6GT/s.
Number of QPI links: 2.
TDP power consumption: 120W.
Memory parameters
Memory type: DDR4 1600/1866/2133.
Number of memory channels: 4.
Maximum memory size: 768GB.
Maximum memory bandwidth: 68GB/s.
ECC: Supported.
Other Features
Scalability: Supports 2S (dual channel).
PCI Express Revision 3.0, with a maximum of 40 PCI Express channels.
Supported slots: FCLGA2011.
Advanced Technology: Supports Intel Turbo Boost 2.0, Hyper Threading Technology, Virtualization Technology (VT-x, VT-d), and more.
Intel Xeon E5-2680 v3 specifications
General information | |||||||||||||||||||||
Type |
CPU / Microprocessor |
||||||||||||||||||||
Market segment |
Server |
||||||||||||||||||||
Family |
Intel Xeon E5-2600 v3
|
||||||||||||||||||||
|
E5-2680 v3
|
||||||||||||||||||||
CPU part numbers |
|
||||||||||||||||||||
Frequency |
2500 MHz |
||||||||||||||||||||
Maximum turbo frequency |
3300 MHz |
||||||||||||||||||||
Bus speed |
9.6 GT/s QPI (4800 MHz) |
||||||||||||||||||||
Clock multiplier |
25 |
||||||||||||||||||||
Package |
2011-land Flip-Chip Land Grid Array |
||||||||||||||||||||
Socket |
Socket 2011-3 / R3 / LGA2011-3 |
||||||||||||||||||||
Size |
2.07" x 1.77" / 5.25cm x 4.5cm |
||||||||||||||||||||
Introduction date |
September 8, 2014 |
||||||||||||||||||||
End-of-Life date |
Last order date for consumer processors is Jan 26, 2018 |
||||||||||||||||||||
Price at introduction |
|||||||||||||||||||||
S-spec numbers | |||||||||||||||||||||
| |||||||||||||||||||||
Architecture / Microarchitecture | |||||||||||||||||||||
Microarchitecture |
Haswell |
||||||||||||||||||||
Platform |
Grantley-EP |
||||||||||||||||||||
|
Haswell-EP |
||||||||||||||||||||
|
M0 (QFRY) |
||||||||||||||||||||
CPUID |
306F2 (SR1XP) |
||||||||||||||||||||
Manufacturing process |
0.022 micron |
||||||||||||||||||||
Data width |
64 bit |
||||||||||||||||||||
The number of CPU cores |
12 |
||||||||||||||||||||
The number of threads |
24 |
||||||||||||||||||||
Floating Point Unit |
Integrated |
||||||||||||||||||||
|
12 x 32 KB 8-way set associative instruction caches |
||||||||||||||||||||
Level 2 cache size |
12 x 256 KB 8-way set associative caches |
||||||||||||||||||||
Level 3 cache size |
30 MB 20-way set associative shared cache |
||||||||||||||||||||
Physical memory |
768 GB |
||||||||||||||||||||
Multiprocessing |
Up to 2 processors |
||||||||||||||||||||
Extensions and Technologies |
|
||||||||||||||||||||
Low power features |
|
||||||||||||||||||||
Integrated peripherals / components | |||||||||||||||||||||
Integrated graphics |
None |
||||||||||||||||||||
Memory controller |
The number of controllers: 2 |
||||||||||||||||||||
Other peripherals |
|
||||||||||||||||||||
Electrical / Thermal parameters | |||||||||||||||||||||
|
0.65V - 1.3V |
||||||||||||||||||||
|
84.5°C |
||||||||||||||||||||
Minimum power dissipation |
44 Watt (C1E state) |
||||||||||||||||||||
Thermal Design Power |
120 Watt |
||||||||||||||||||||
Notes on Intel Xeon E5-2680 v3 | |||||||||||||||||||||
| |||||||||||||||||||||
