SPECIFICATIONS

Application: Server

Brand Name: Intel

Chip Process: 14NM

Choice: yes

Cooling system: no

Default TDP / TDP: 120

GPU-built: no

High-concerned chemical: none

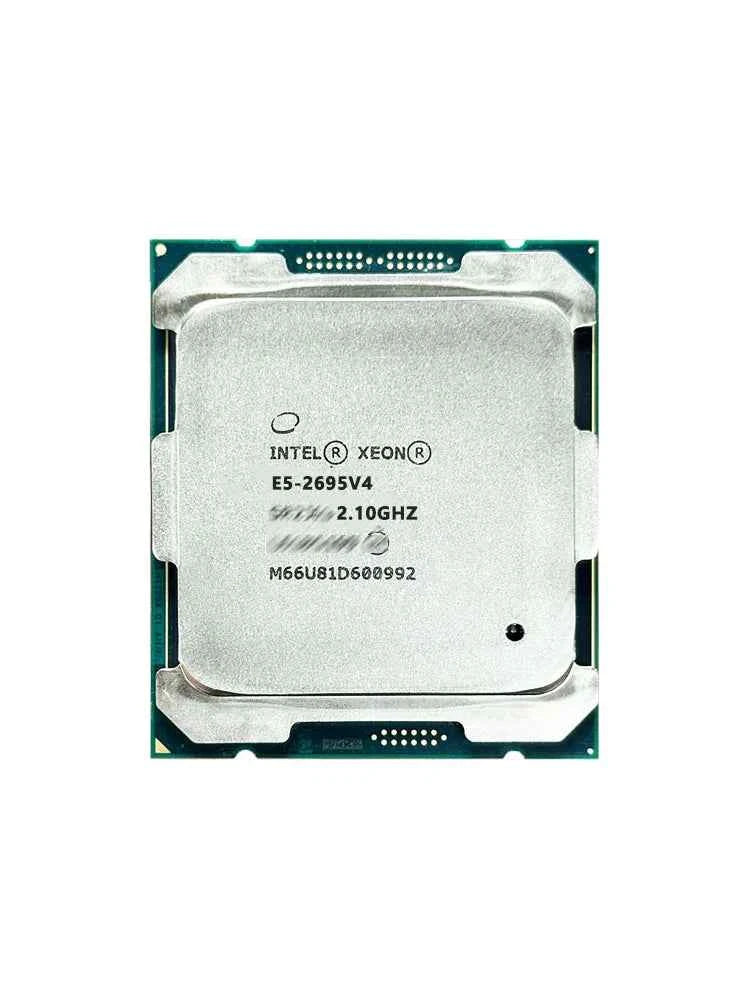

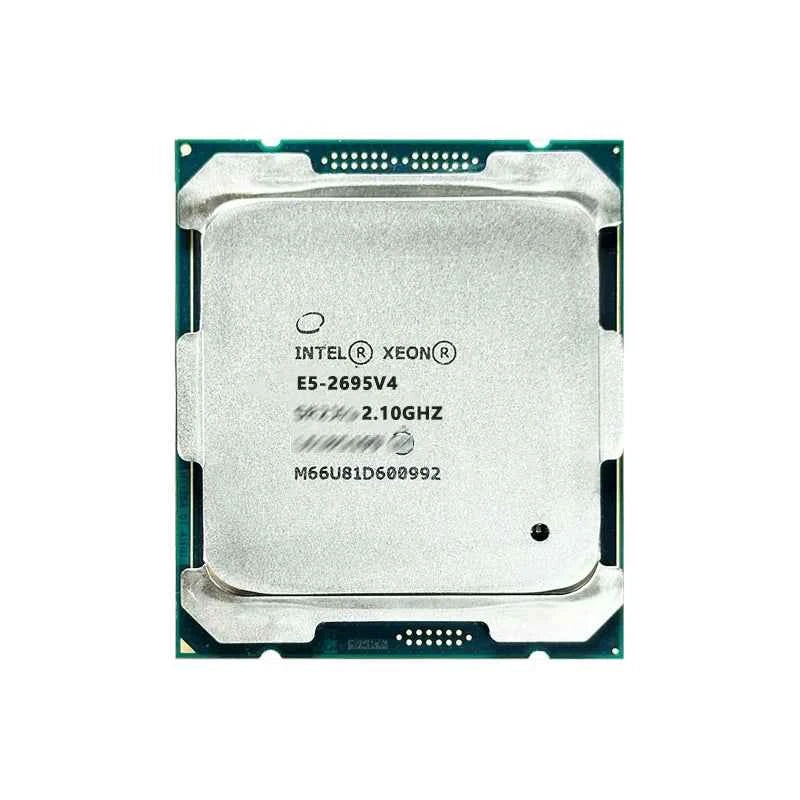

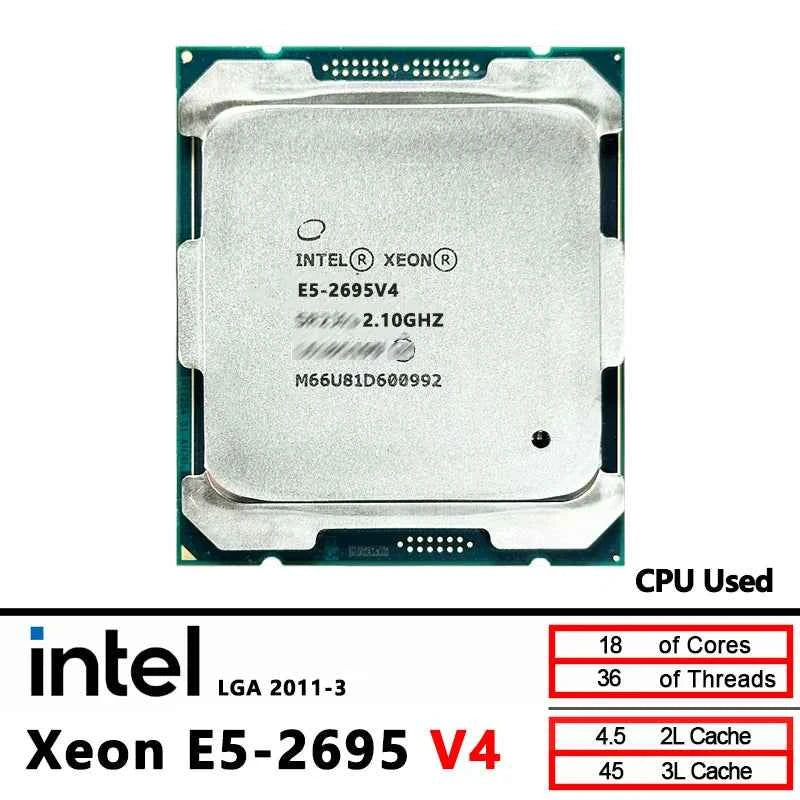

Intel Model: Intel Xeon E5 2695 V4

L3 Cache Capacity: 45

Number OF Therads: 36

Origin: Mainland China

PCIe VERSION: PCIe

Package: No

Processor Type: Intel Xeon

Socket Type: LGA 2011-3

Support Chipset Models: Intel Others

Support Memory Channels: 4

Support Memory Type: DDR4

Type: 18-core

Unlocked: no

Usage Scenario: Workstation

The Intel Xeon E5-2695 v4 also belongs to the Xeon E5 v4 series of server processors. Compared with the same series of E5-2699V4 and E5-2698V4, its core thread count, frequency, and power consumption are further reduced, with a greater emphasis on balancing power consumption and performance. The following are its detailed parameters and features:

core performance

Core Threads and Frequency: Adopting the 14nm Broadwell architecture, equipped with 18 cores and 36 threads, which is 2 cores and 4 threads less than the E5-2698V4; The base frequency has been reduced to 2.1GHz, with a maximum turbo frequency of 3.3GHz, which is lower than the previous two models' 3.6GHz, making it more suitable for scenarios where peak performance requirements are not extreme but long-term stable operation is required.

Cache and power consumption: The cache capacity of Intel Smart Cache is 45MB, which is lower than 50MB for E5-2698V4 and 55MB for E5-2699V4. TDP is only 120W, which is the lowest power consumption model among the three, reducing server heat dissipation pressure and long-term operating costs. Its bus speed remains at 9.6GT/s, with 2 QPI links to ensure the stability of data transmission.

Memory and Expansion

In terms of memory, it is consistent with the two processors in the same series, supporting a maximum of 1.5TB of memory, compatible with DDR4 1600/1866/2133/2400 specifications, supporting 4-channel ECC memory, and a maximum memory bandwidth of 76.8GB/s, which can meet the memory read and write requirements of servers for massive data processing.

The expansion capability has not been reduced, supporting 2-way server expansion, compatible with PCI Express 3.0, providing PCIe configurations of x4, x8, x16, with a maximum of 40 PCIe channels, and can flexibly interface with various server expansion hardware such as array cards and network cards.

Technology and Security: Supports Turbo Boost 2.0, Hyper Threading Technology, TSX-NI Technology, instruction set covering 64 bit and Intel AVX2, which can improve multitasking and complex computing efficiency. At the security level, it has Intel vPro technology, AES new instructions, trusted execution technology, and supports VT-x and VT-d virtualization technologies, balancing server operation security with the stability of virtualization scenarios
