Product Highlights
SPECIFICATIONS
Audio input test: 1Ch audio signal input
Battery: Built-in 18650 2600mA battery X 2
Brand Name: BOAVISION
Certification: CE
Choice: yes
DC12V Power Output: Output DC12V1A power for camera
Dimension: 194mm x 112mm x 48mm / 540g
High-concerned chemical: None
Item Type: CCTV Tester
LCD Adjustment: Brightness, Contrast, Saturation adjustable
LCD Screen: 5.0 inch TFT-LCD, (RGB) 800x 480 resolution

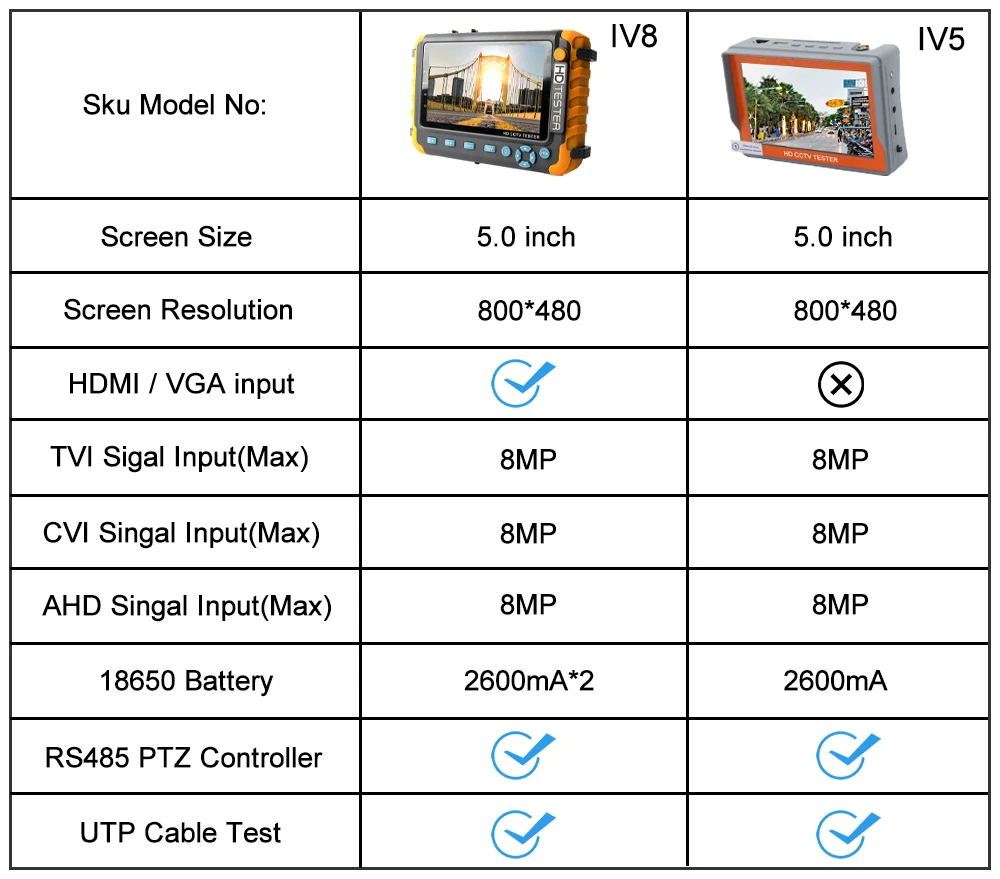

Model Number: MATC-IV5 / MATC-IV8W
Origin: Mainland China
PTZ Controller: Support RS485
Plug Type: None
Size: N/A
VGA/HDMI-compatible: Max support 1920X1080 video input
Video IN/OUT: 1Ch BNC Input & 1Ch BNC Output
Video Test: NTSC/PAL (Auto adapt)
semi_Choice: yes

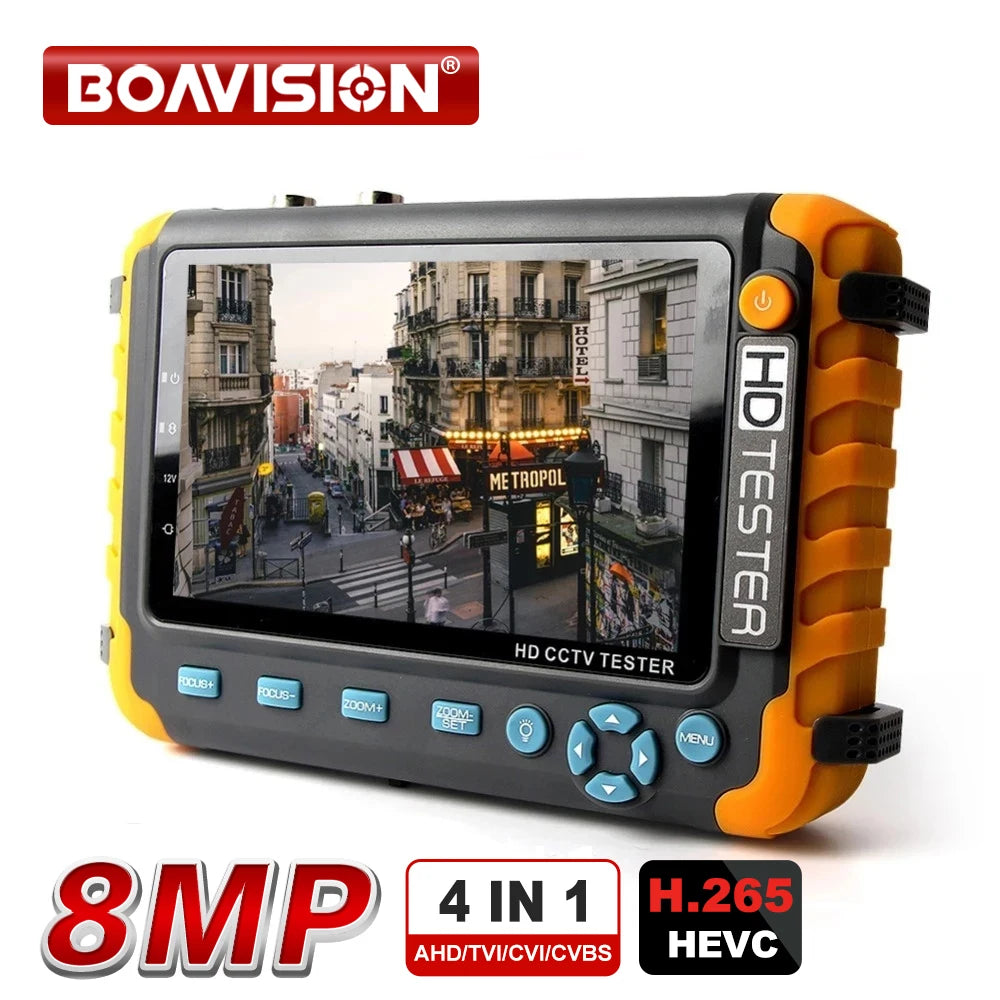

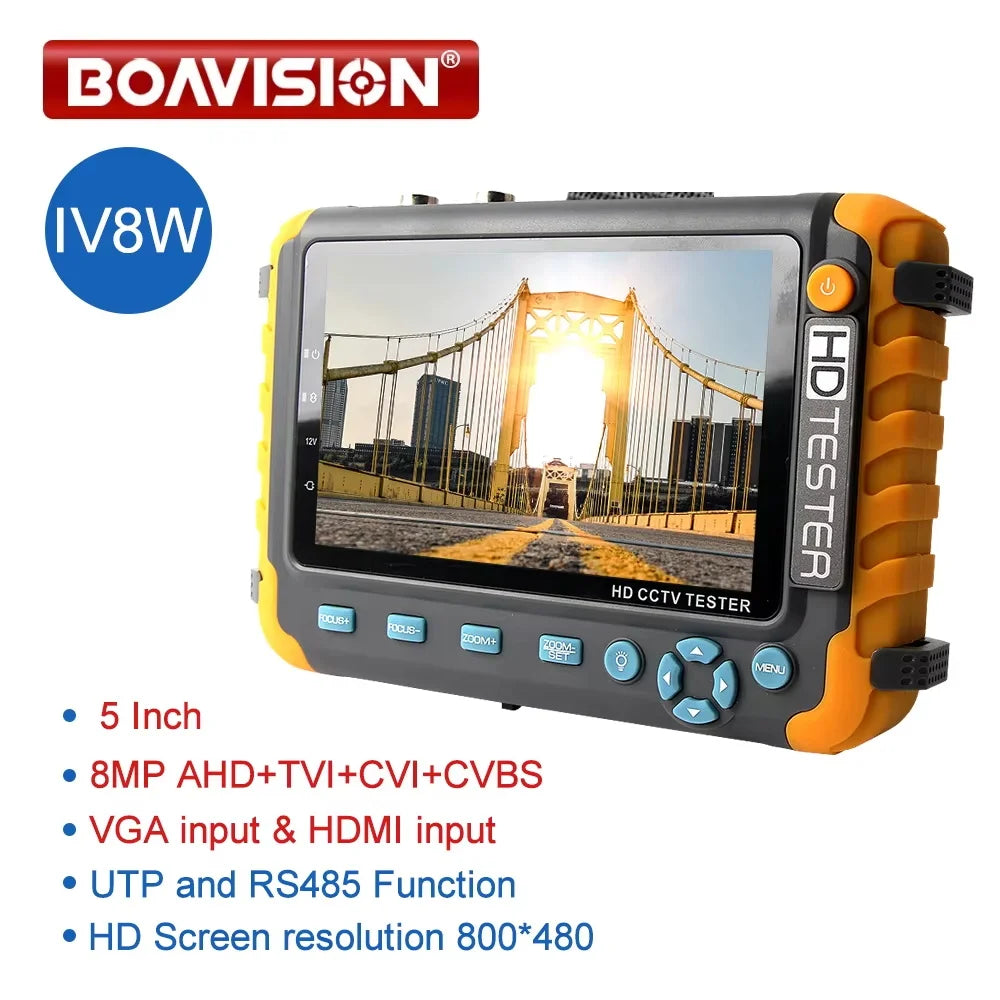

BOAVISION 5 log CCTV Tester Security Camera Tester Monitor V

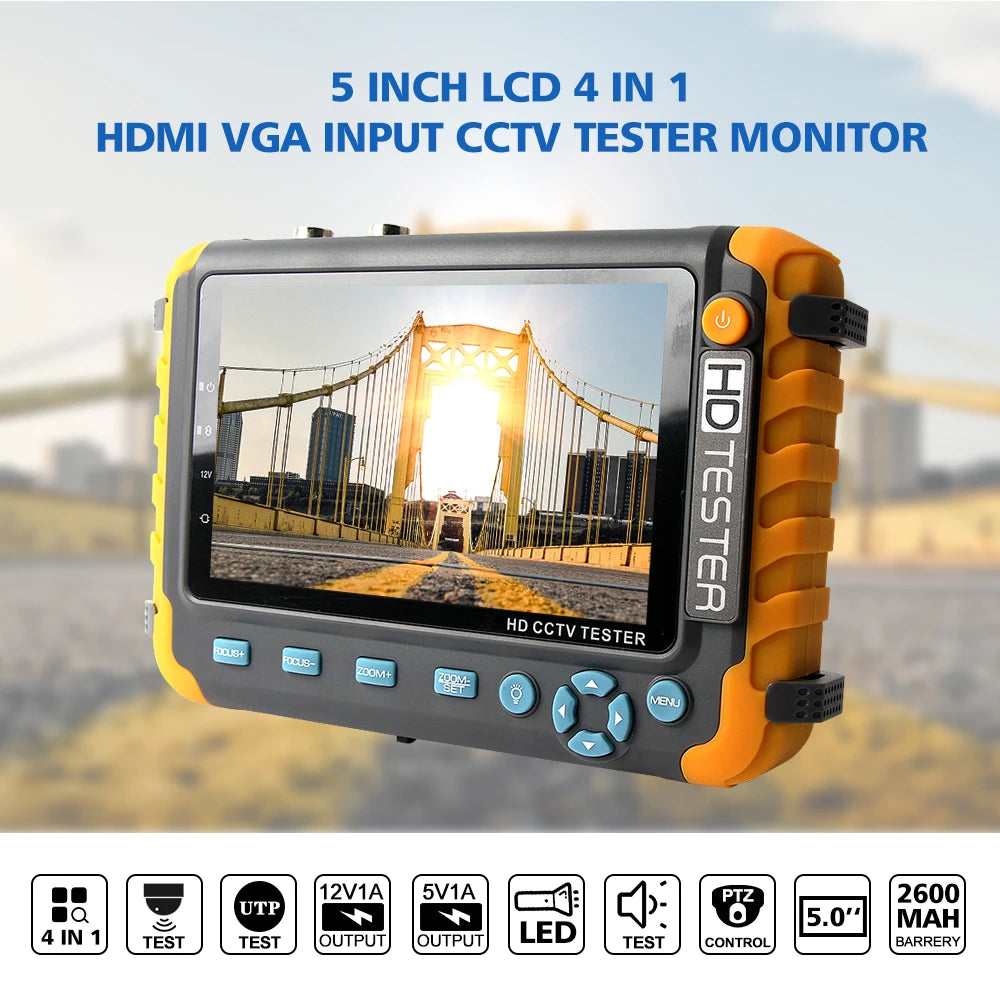

5 INCH LCD 4 IN 1 CCTV TESTER Monitor
HDMI-compatible VGA INPUT AHD TVI CVI ANALOG SECURITY CAMERA TESTER MONITOR
4 IN 1 CHIP
The 4 IN 1 Tester support max up to 8MP TVI CVI AHD Analog CVBS camera testing

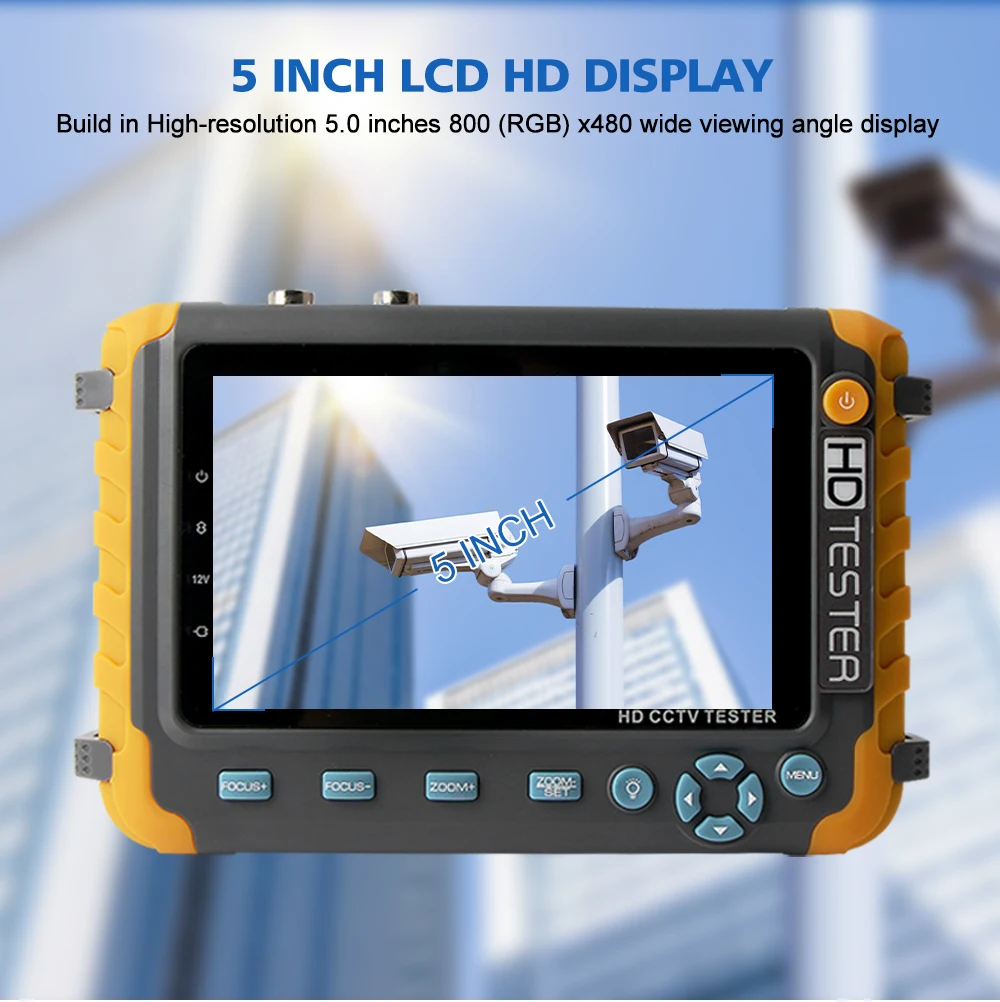

5 Inch LCD HD DISPLAY
Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display

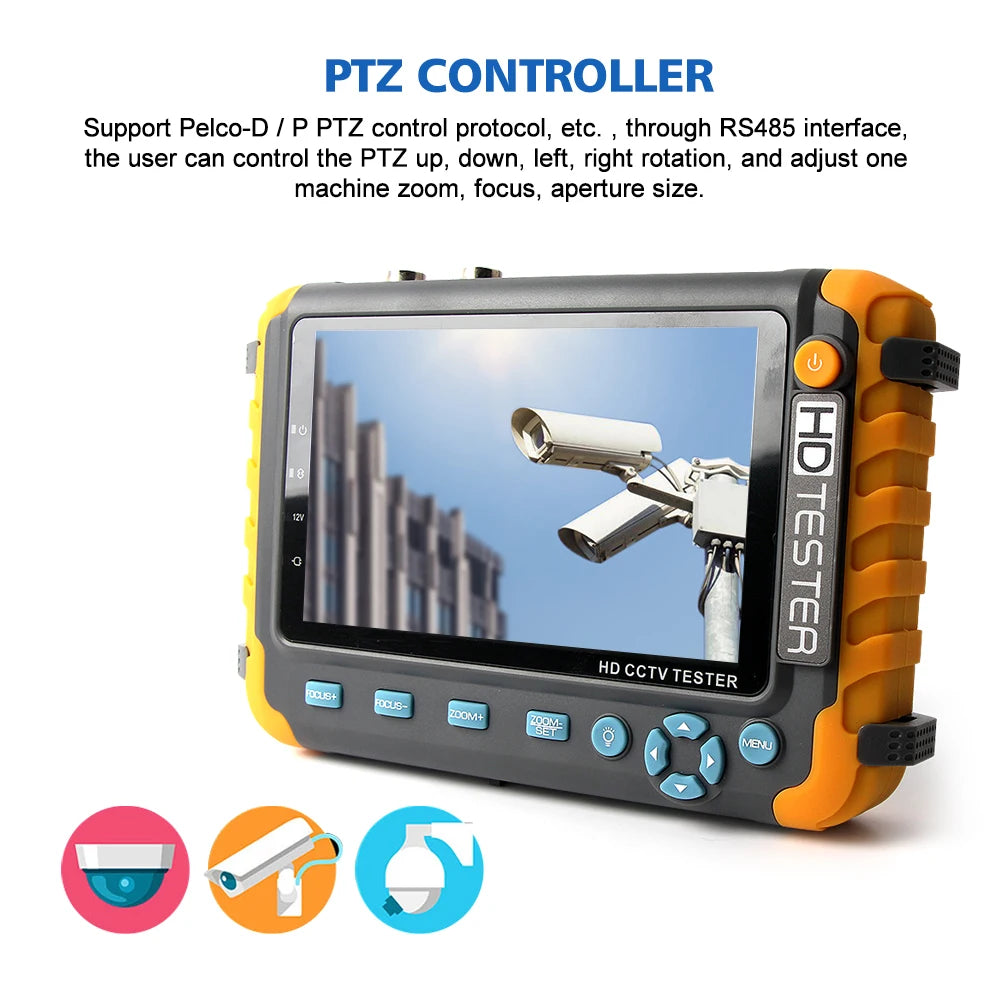

PTZ CONTROLLER
Support Pelco-D/P PTZ control protocol,etc , through RS485 interface, the user can control the ptz up,down,left ,right rotation,and adjust one machine zoom,focus,aperture size

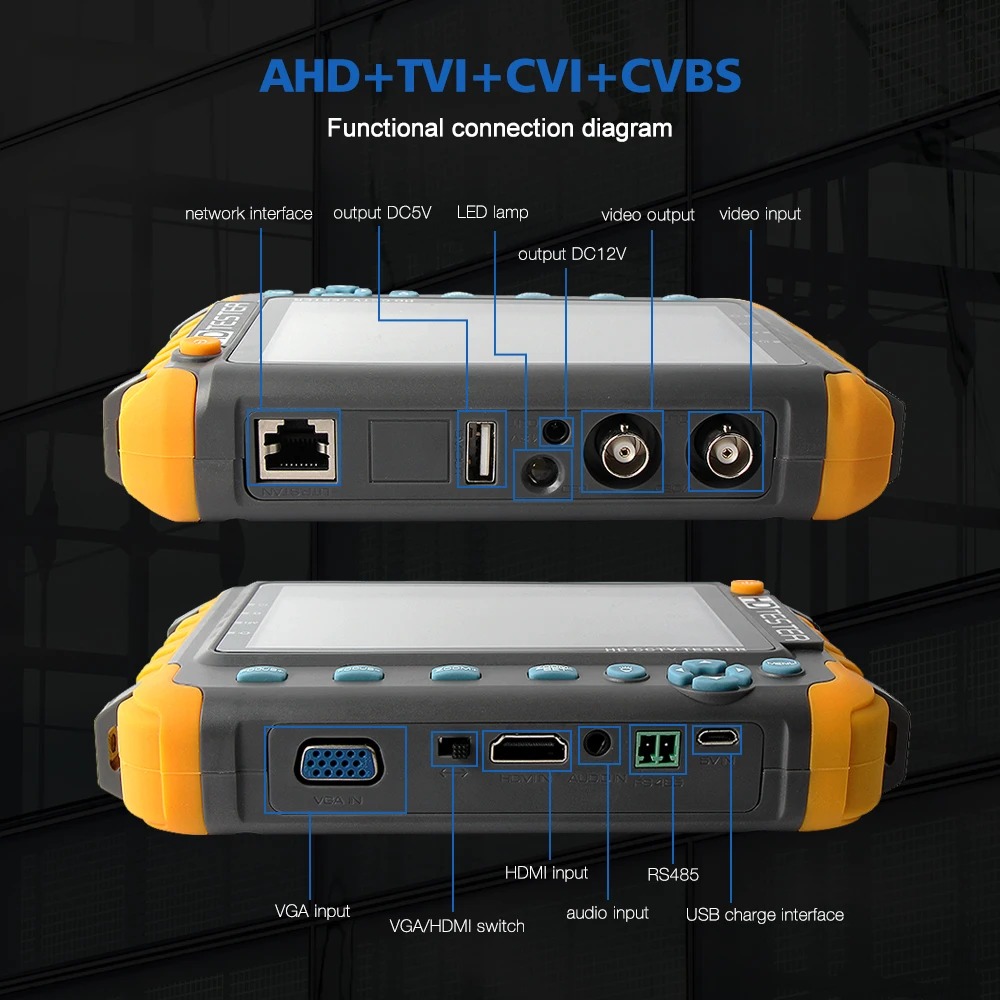

AHD+TVI+CVI+CVBS
Functional connection diagram

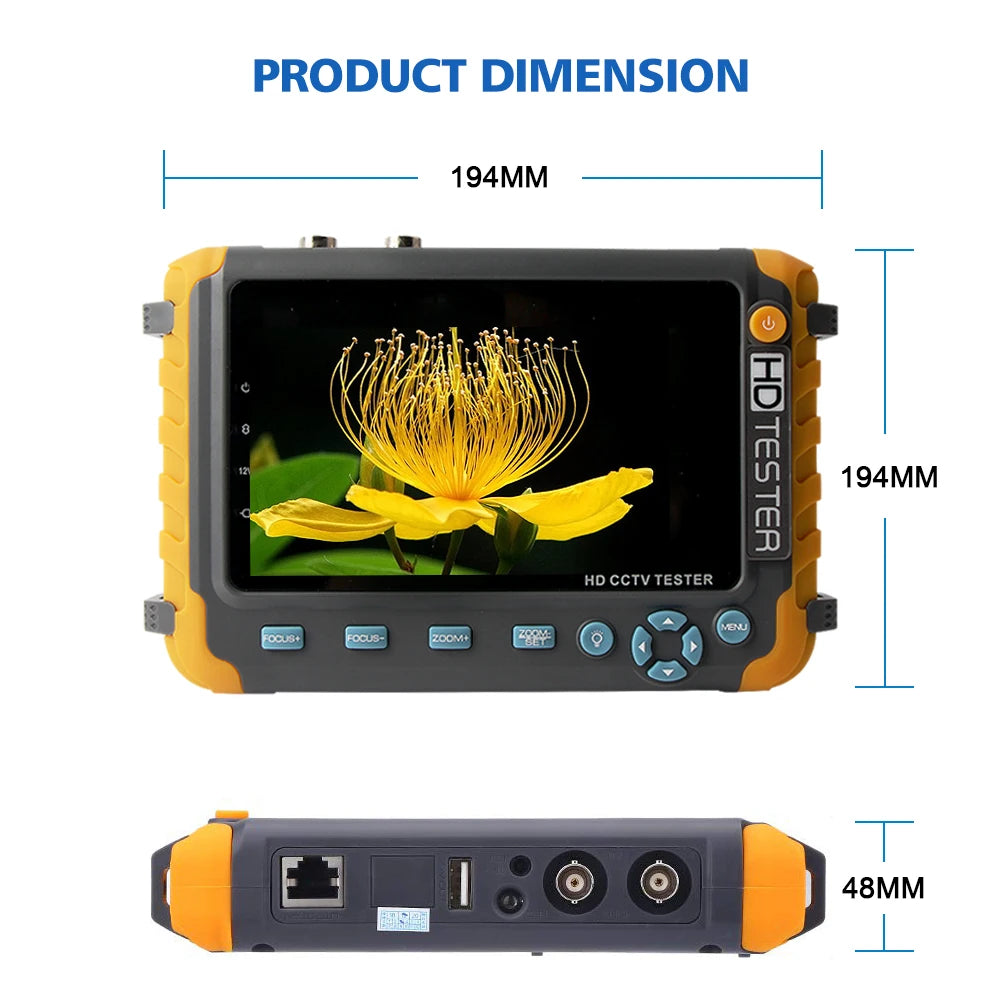

PRODUCT SIZE
5.0 inch TFT-LCD,800 (RGB) x 480 resolution

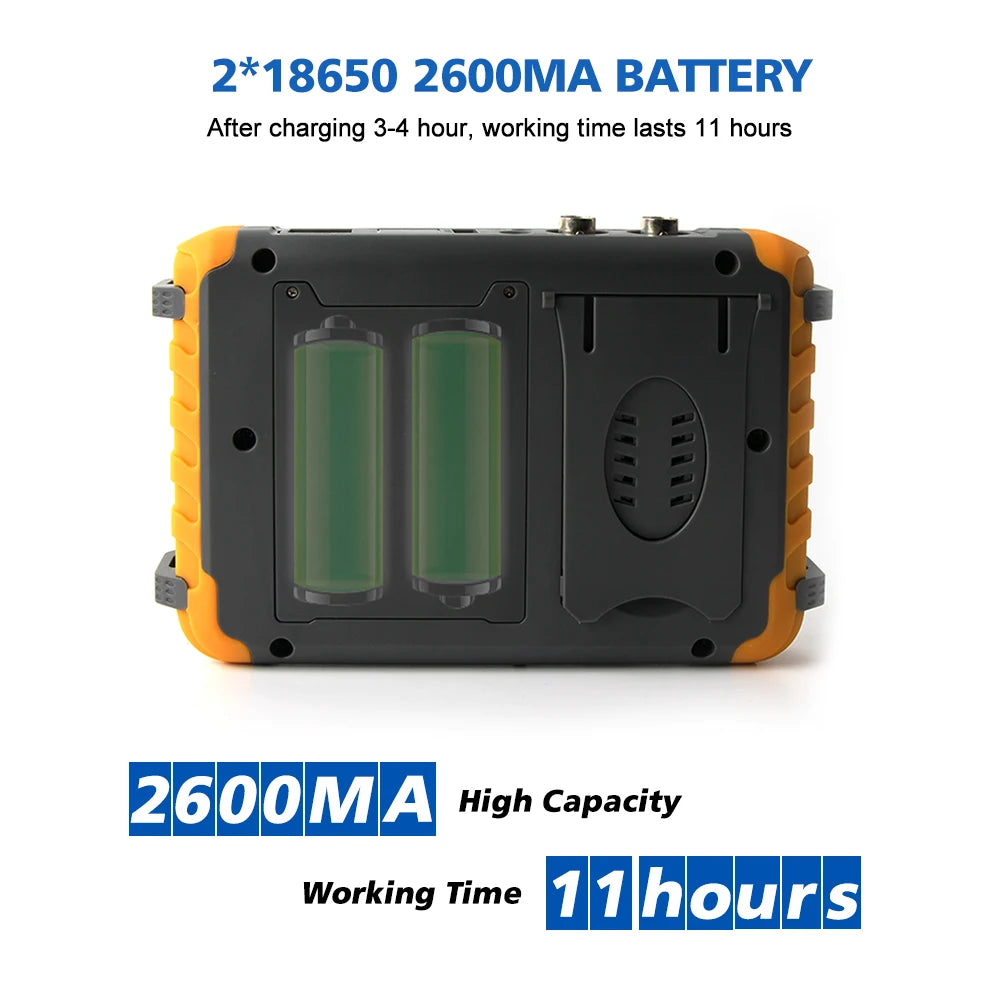

2*18650 2600MA BATTERY
After charging 3-4 hour, working time lasts 11 hours

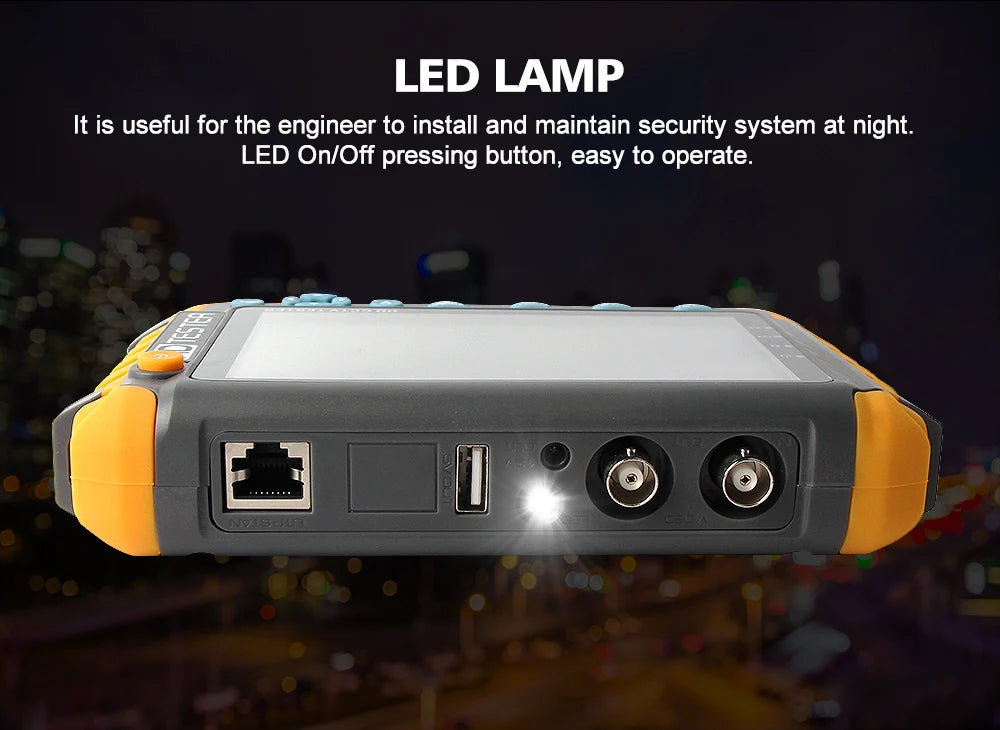

LED LAMP
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button,easy to operate.

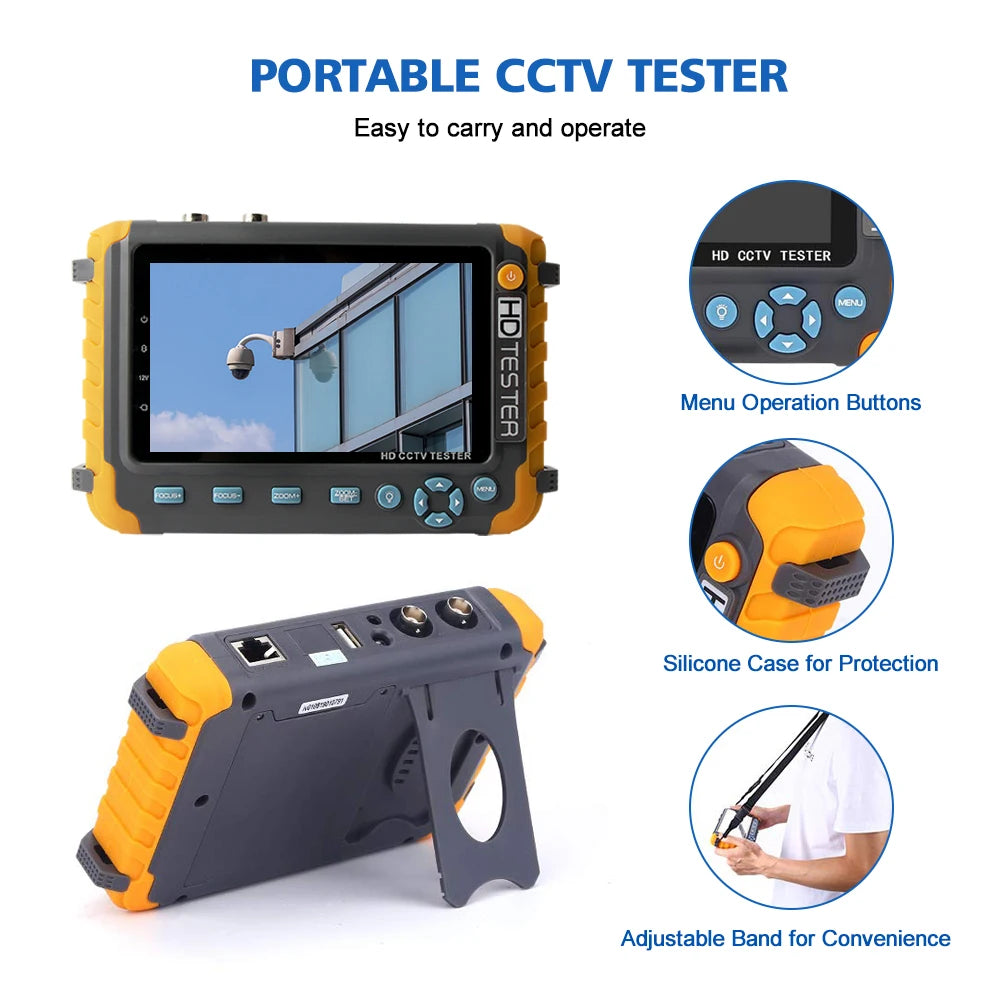

Portable CCTV Tester
Easy to carry and operation
The 4 IN 1 Testerl support TVI CVI AHD Analog CVBS camera testing, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc;
Product overview:
The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, high precision digital multi-meter, LED lamp etc.
Key feature
* Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,
* Support PAL/NTSC standard video signal. CVBS testing.
* PTZ controller
Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
* Image generator
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
* DC12V 1A output power
Power the camera with DC12V (1A) power from the tester.
* Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
* Improvement cable test
UTP cable, telephone cable etc order and connectivity test, can save testing report
* VGA/HDMI input
Support 1920X1080VGA/HDMI 1.0 video input, HDMI or VGA is optional via switch.
* TVI camera test
HD TVI video surveillance testing, support 5MP 25,30fps, 8MP(4K) 15fps. When TVI signal input, the tester will display HD TVI camera image.
* CVI camera test
HD TVI video surveillance testing, support 5MP 25,30fps,8MP(4K)15fps. When TVI signal input, the tester will display HD TVI camera image.
* AHD camera test
HD video surveillance testing, support AHD 2.0 version, 5MP 25,30fps,8MP(4K)15fps. When AHD signal input, the tester will display the AHD camera image.
* LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
Specification
Model |
MATC-IV8W |
LCD screen |
5.0 inch TFT-LCD, 800（RGB）x 480 resolution |
Video test |
NTSC/PAL (Auto adapt) |
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
Video IN/OUT |
1 channel BNC Input & 1 channel BNC Output |
VGA/HDMI input |
Max support 1920X1080 video input |
PTZ Controller |
Support RS485 |
PTZ Protocol |
Compatible with protocols PELCO-D/P, |
Baud Rate |
Baud Rate: 600,1200, 2400, 4800, 9600, 14400bps |
Color bar generator |
Support both PAL / NTSC format’s standard color bar output |
(Red, Green, Blue, White, Black, Grey) and testing image output | |
UTP Cable Test |
Display UTP cable connection status , cable type and |
the sequence of wires as well as read the number of the test box. | |
DC12V power output |
Output DC12V1A power for camera |
Audio input test |
1 channel audio signal input |
Coaxial HD test | |
TVI test |
1 channel TVI input(BNC interface), |
support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps, 5MP 25 / 30fps/8MP(4K)15fps | |
CVI Test |
1 channel TVI input(BNC interface), |
support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps, 5MP 25 / 30fps/8MP(4K)15fps | |
AHD Test |
1 channel AHD input (BNC interface）, |
support AHD 2.0 version, 720p 25 / 30fps, 1080p 25 / 30fps, 5MP 25 / 30fps/8MP(4K)15fps | |
POWER | |
Power Adapter |
DC 5V（1.5A） |
Battery |
Built-in 18650 2600mA battery X 2, |
After charging 3-4 hour, working time lasts 11 hours | |
General | |
Language |
English and Chinese optional |
Working Humidity |
30%-90% |
Dimension |
194mm x 112mm x 48mm / 540 |

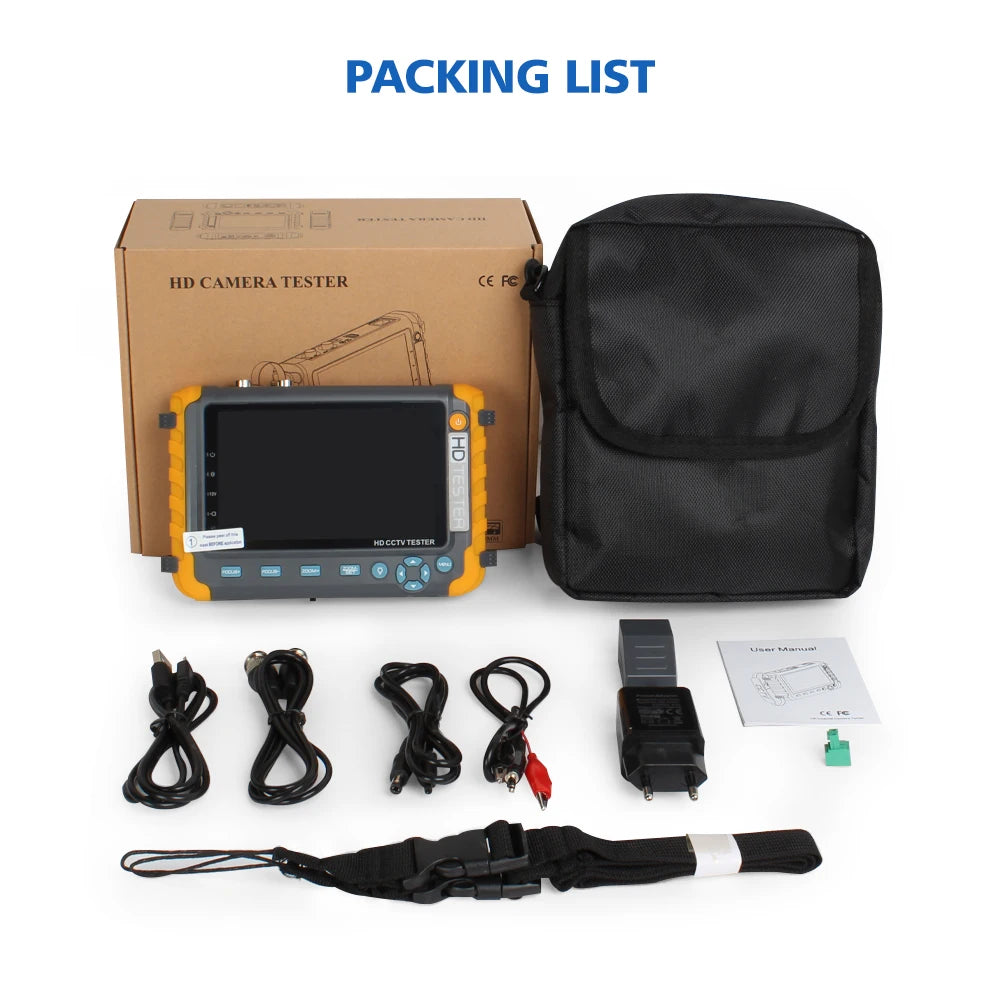

Packing List
1* HD 8MP Coaxial Tester
1* Adapter DC5V 1.5A（with USB cable)
2* International Standard 18650 2600ma battery
1* BNC cable
1* RS485 connector
1* Power output conversion cable
1* Audio cable
1* Lanyard
1* Tool bag
1* Instruction Manual
