SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Battery Included: no

Brand Name: MACHINIST

Certification: RoHS,CE

Chipset: Intel X79

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

High-concerned chemical: none

Material: others

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 1

Number of PCI: 0

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 8: 0

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: M.2

Processor compatibility: Intel Xeon Scalable,Intel Core

Quality Certification: ce,ROHS

RAID Supported: no

SATA RAID: 0

Socket Type: LGA 2011

Special Features: NONE

Storage Interface Type: SATA

Support Memory Type: DDR3

Support USB Type: USB 2.0

Supports M.2 SSD: 2280

TPM2.0: Not supported

Usage Scenario: Gaming,Audio & Video,Office,others

With CPU: No

>> Please note that the memory slot on this motherboard should be correctly installed as shown in the fifth picture.

>>The current version uses the default UEFI boot option. When installing the graphics card, you need to confirm whether your graphics card supports UEFI functionality. You can also enter the BIOS and change the boot option to legacy.

>> Motherboard Information:

Brand: MACHINIST.

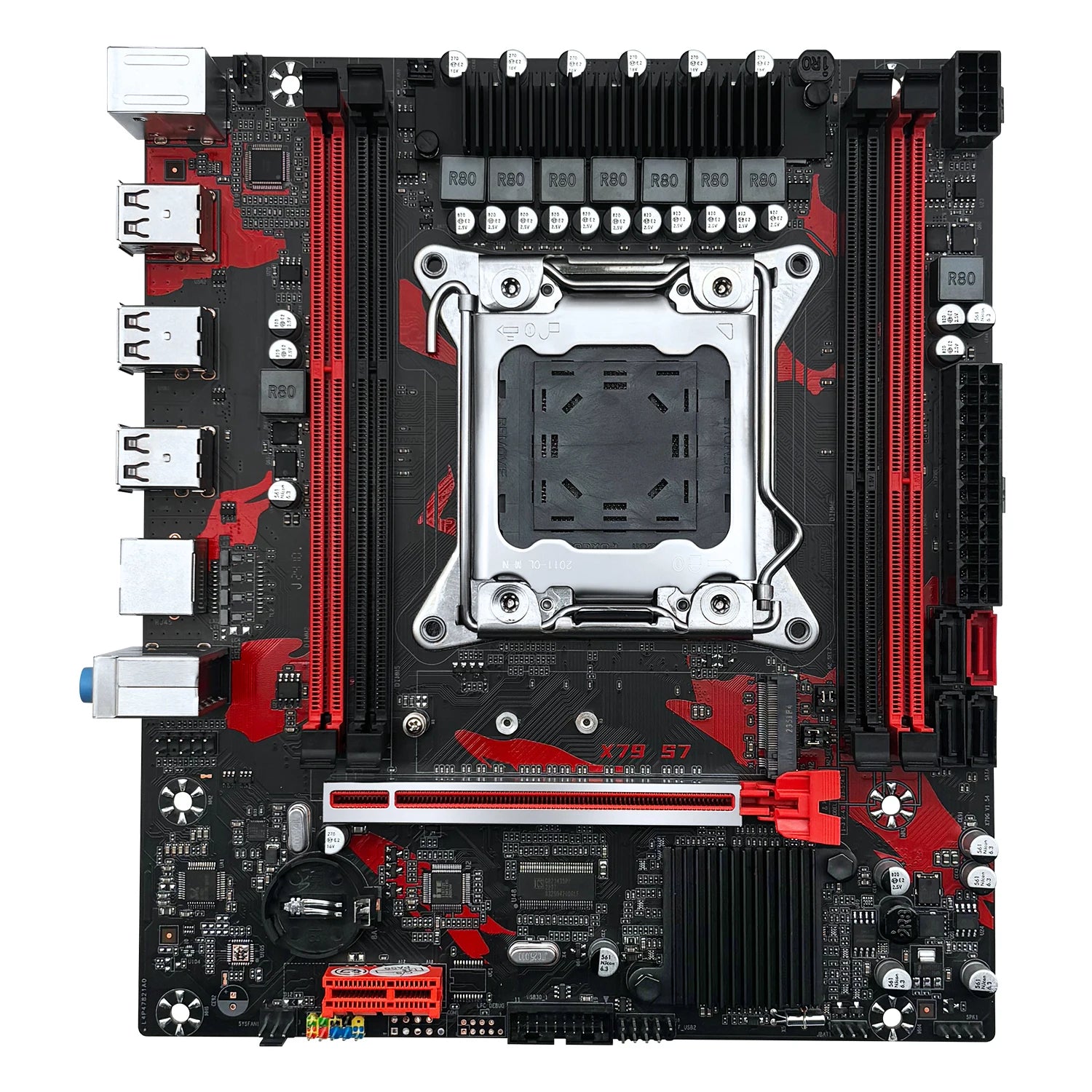

Motherboard Model: X79 S7.

Processor: Supports Intel LGA2011-pin series processors.

Chipset: Intel X79 Chipset.

Included Accessories: I/O Shield *1, SATA Cable *1.

(All before sending were tested manually and then packaged. If any gift items are missing, please understand!)

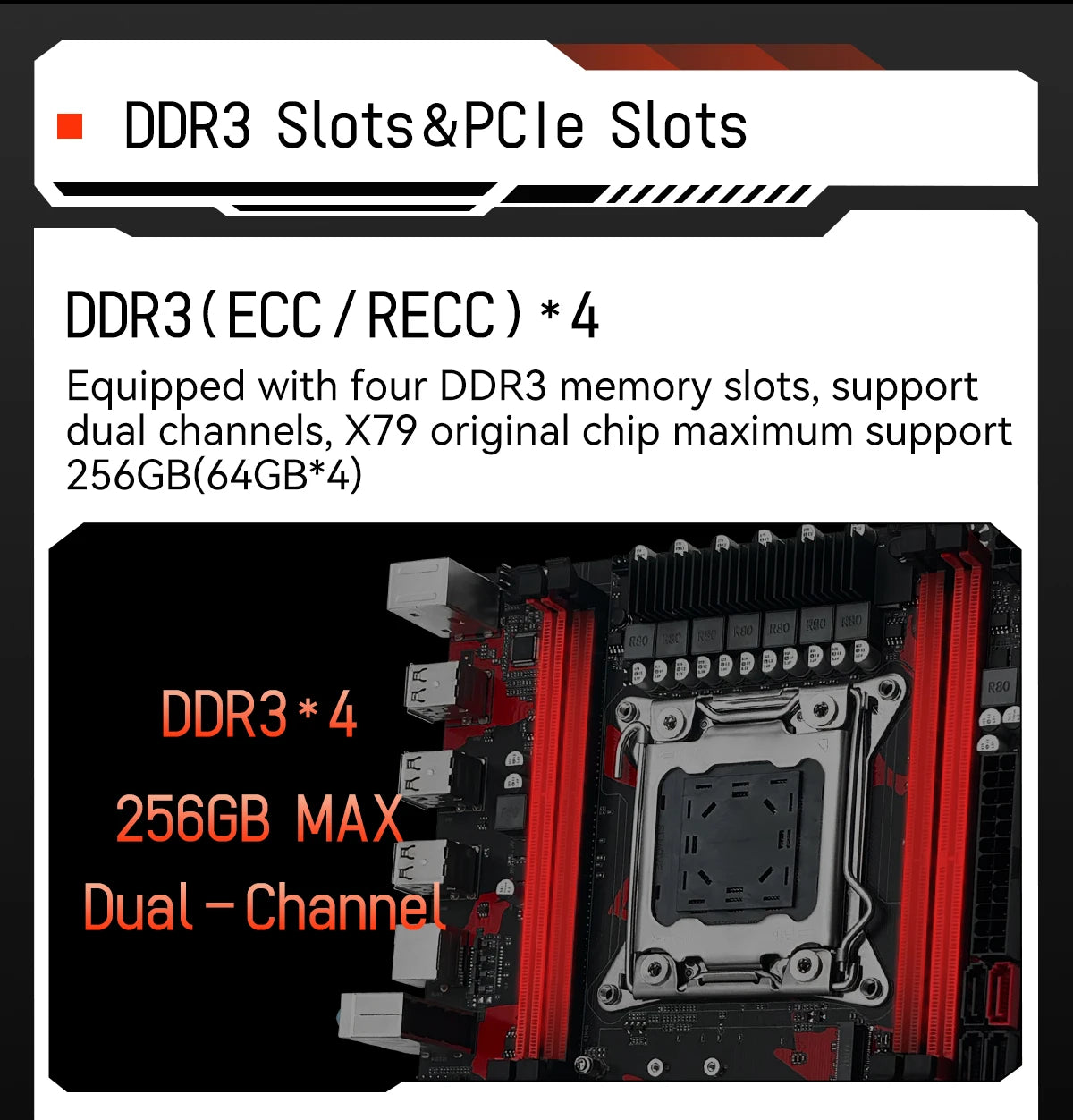

> > Memory:

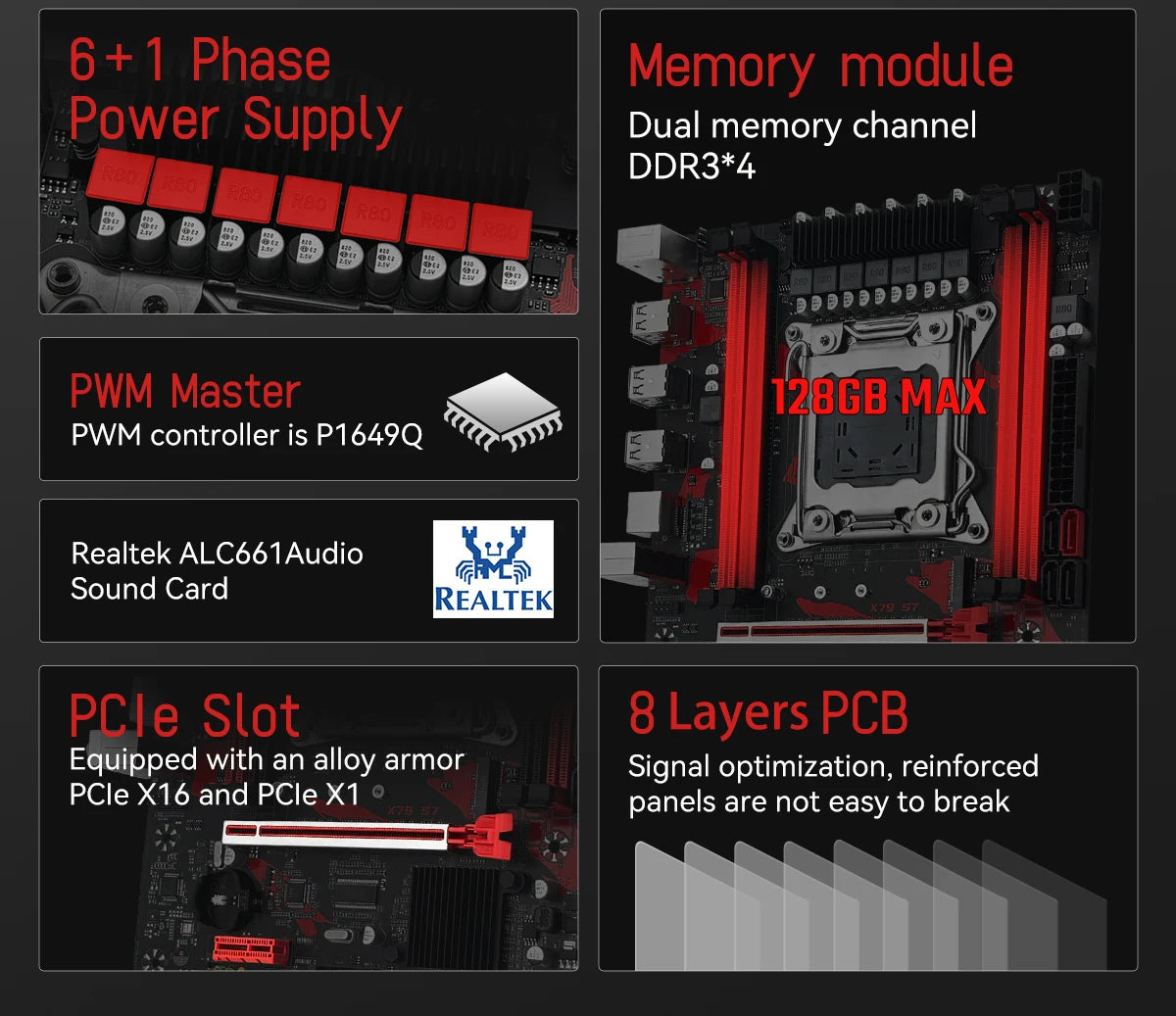

Technology: Dual-channel DDR3. Supports 1066/1333/1600/1866 MHz.

Maximum capacity: 128GB (32G x 4).

Memory slots: 4 * 240 PIN DDR3.

Supported memory types: DDR3 for desktops and servers.

(Notice: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may have incompatibility issues.)

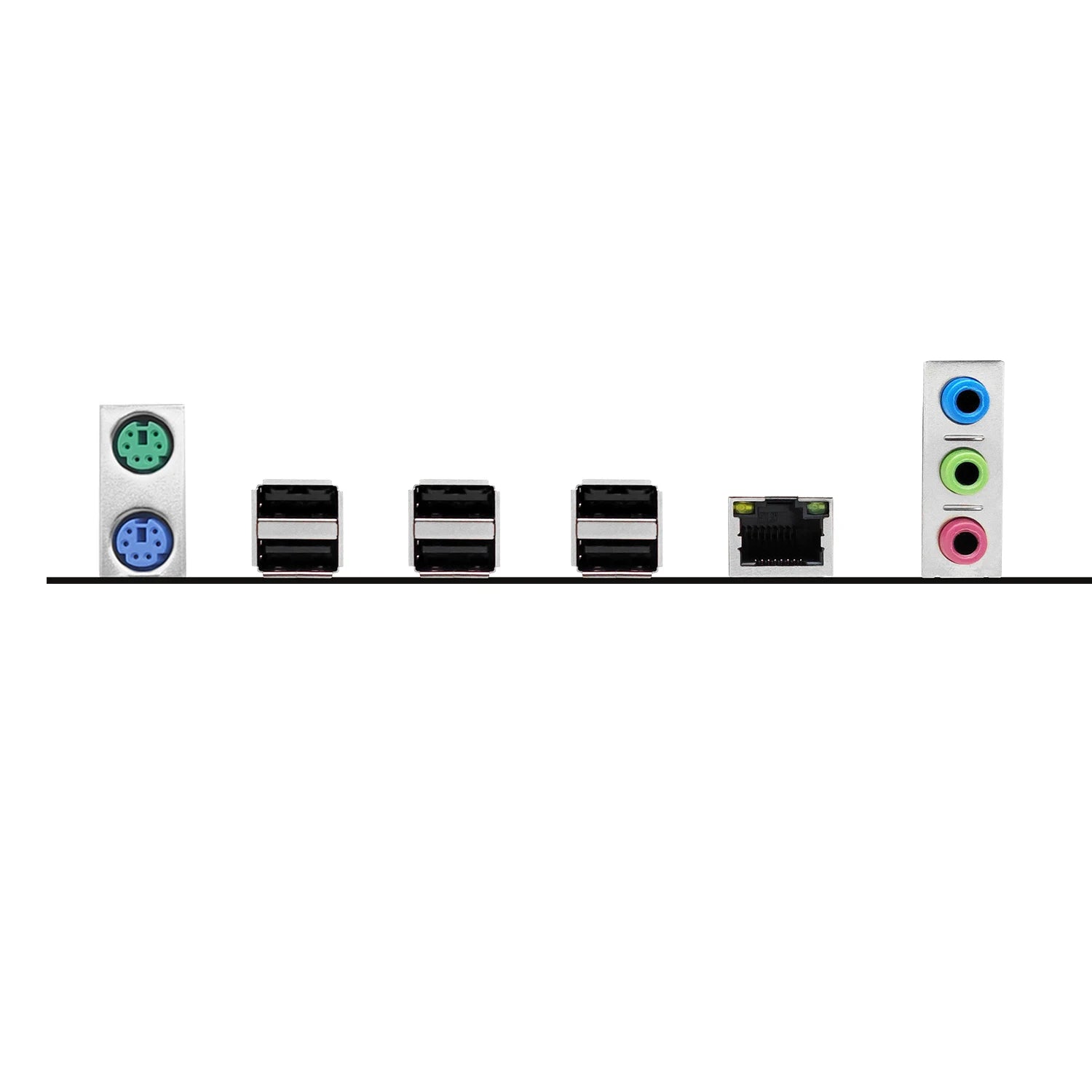

>> Post I/O:

PS/2: 1 KB interface + 1 MS interface.

USB interface: 6 USB 2.0 ports.

Ethernet: 1 Gigabit network card.

Audio: 1 (Mic-in, Line-out, Line-in).

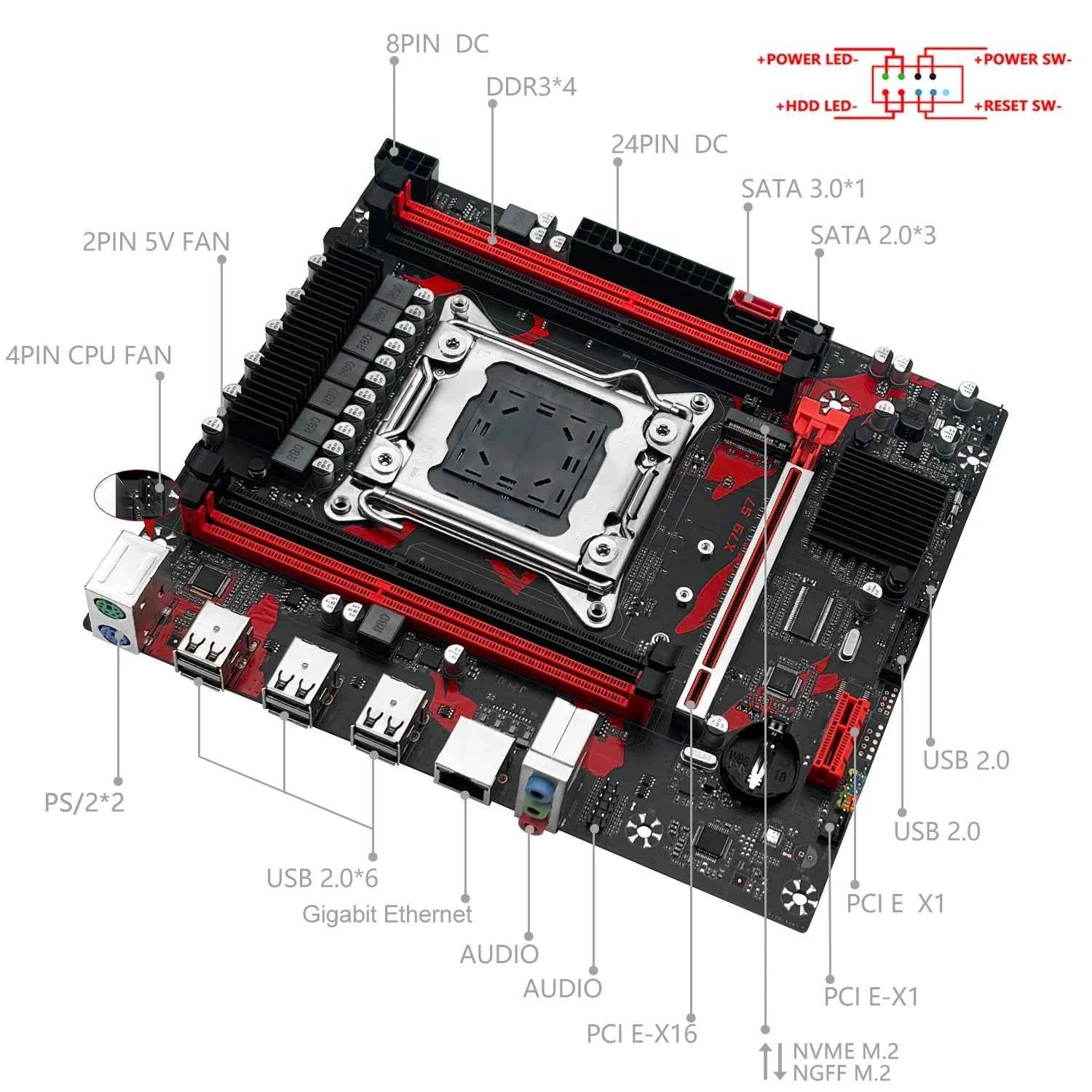

>>Internal Connectors:

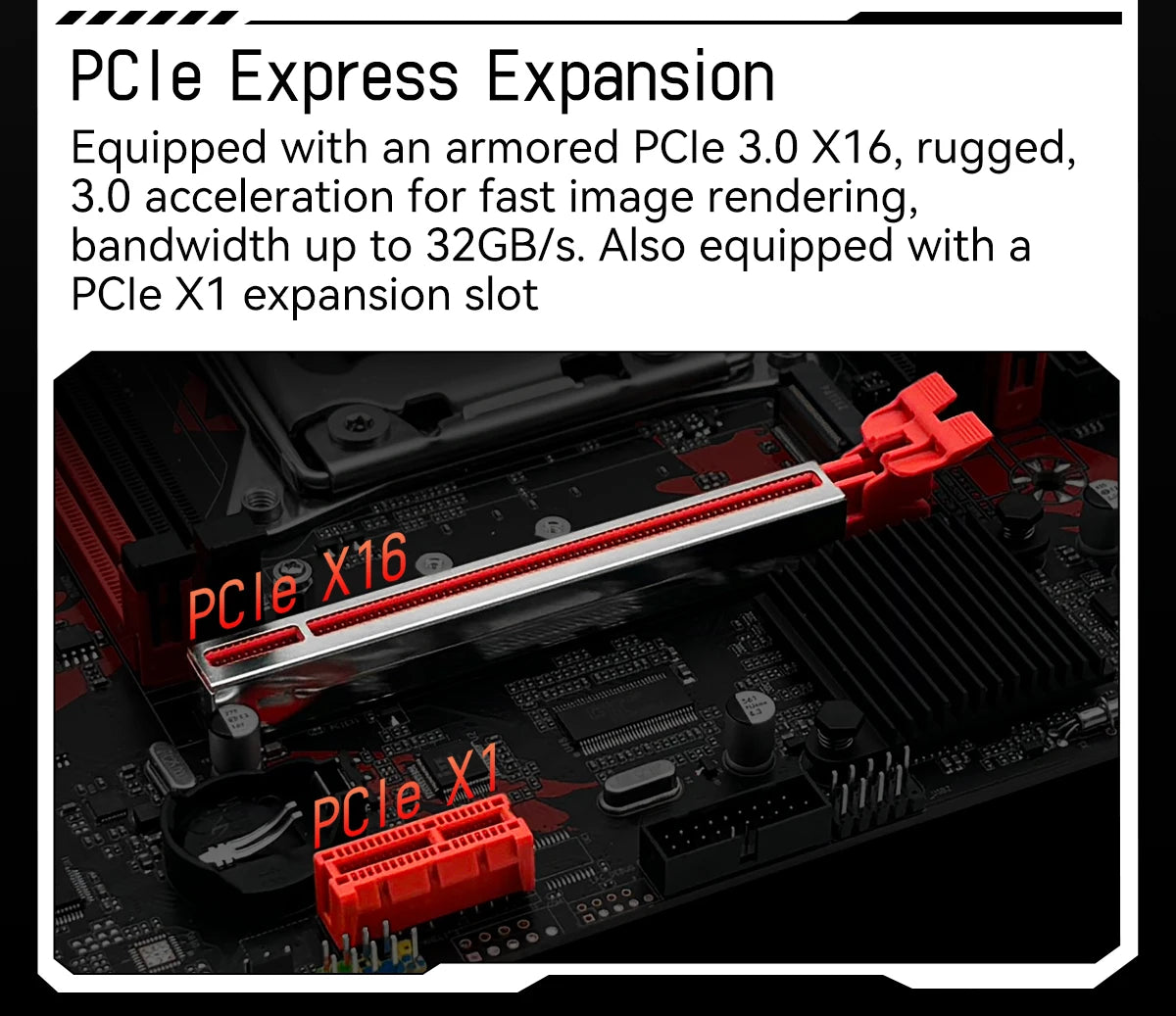

PCIe: 1 PCIe 16x, 1 PCIe 1x.

SATA Ports: 4 (3 SATA2.0; 1 SATA3.0);

1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket;

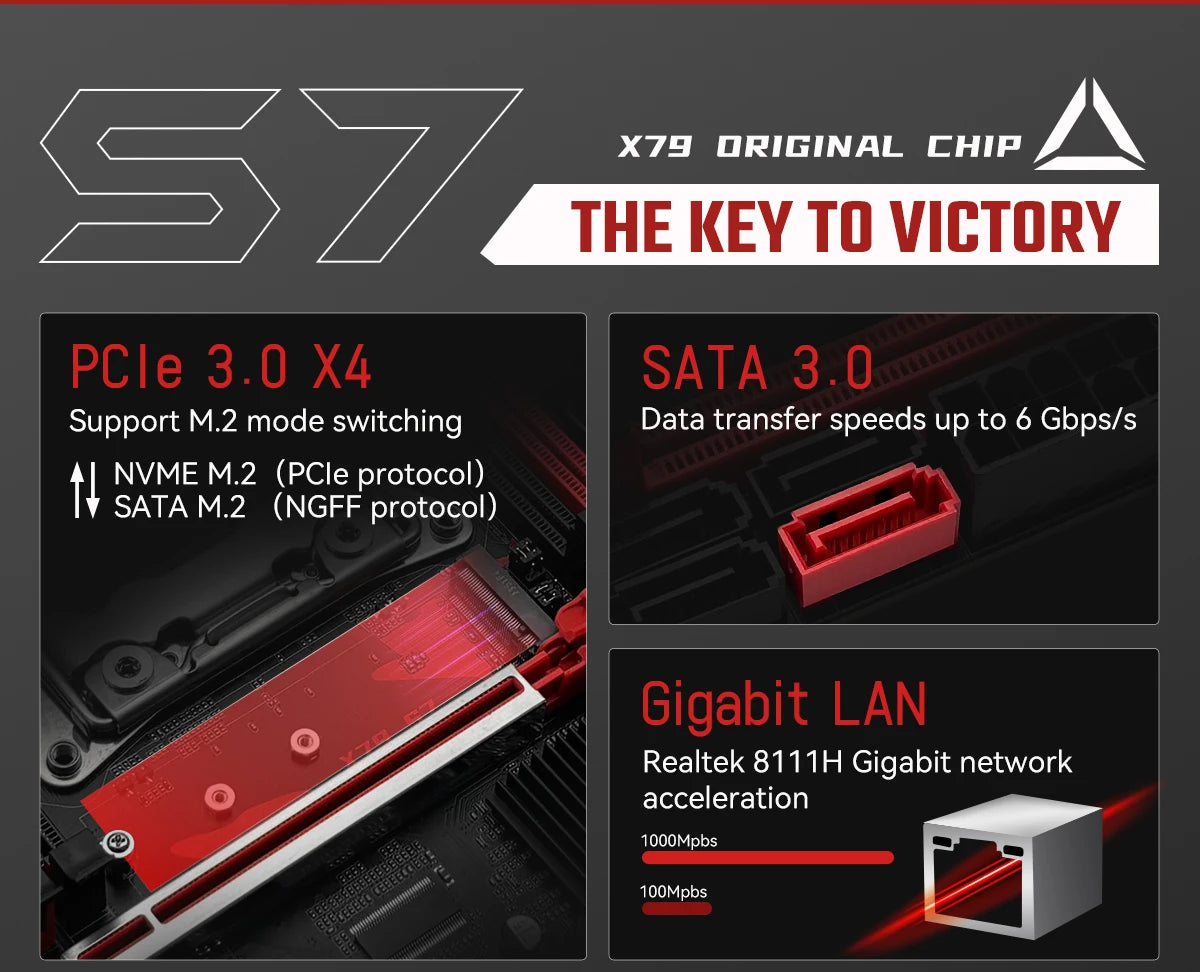

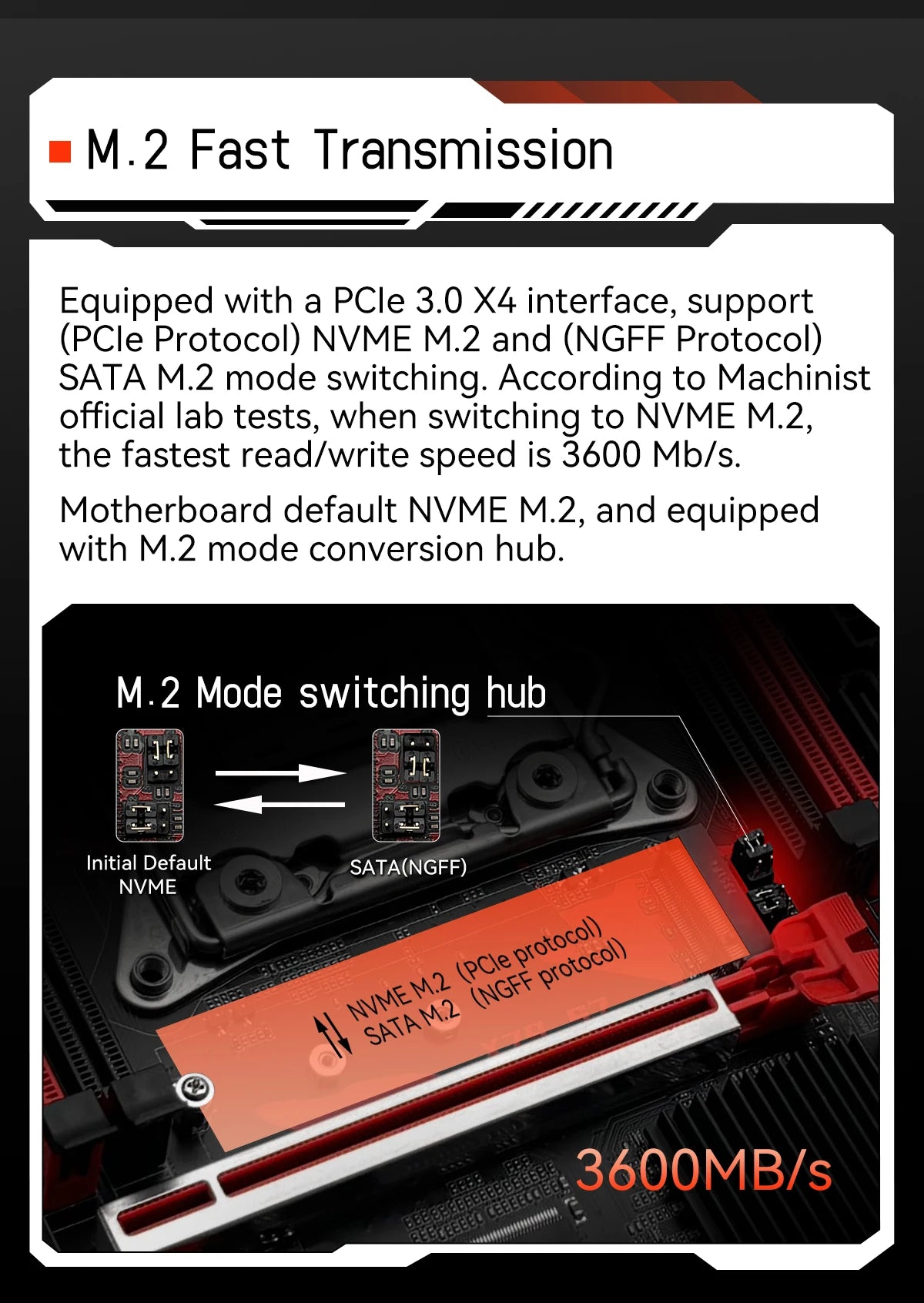

M.2 Interface: 1 (SATA/NVME, default NVME)

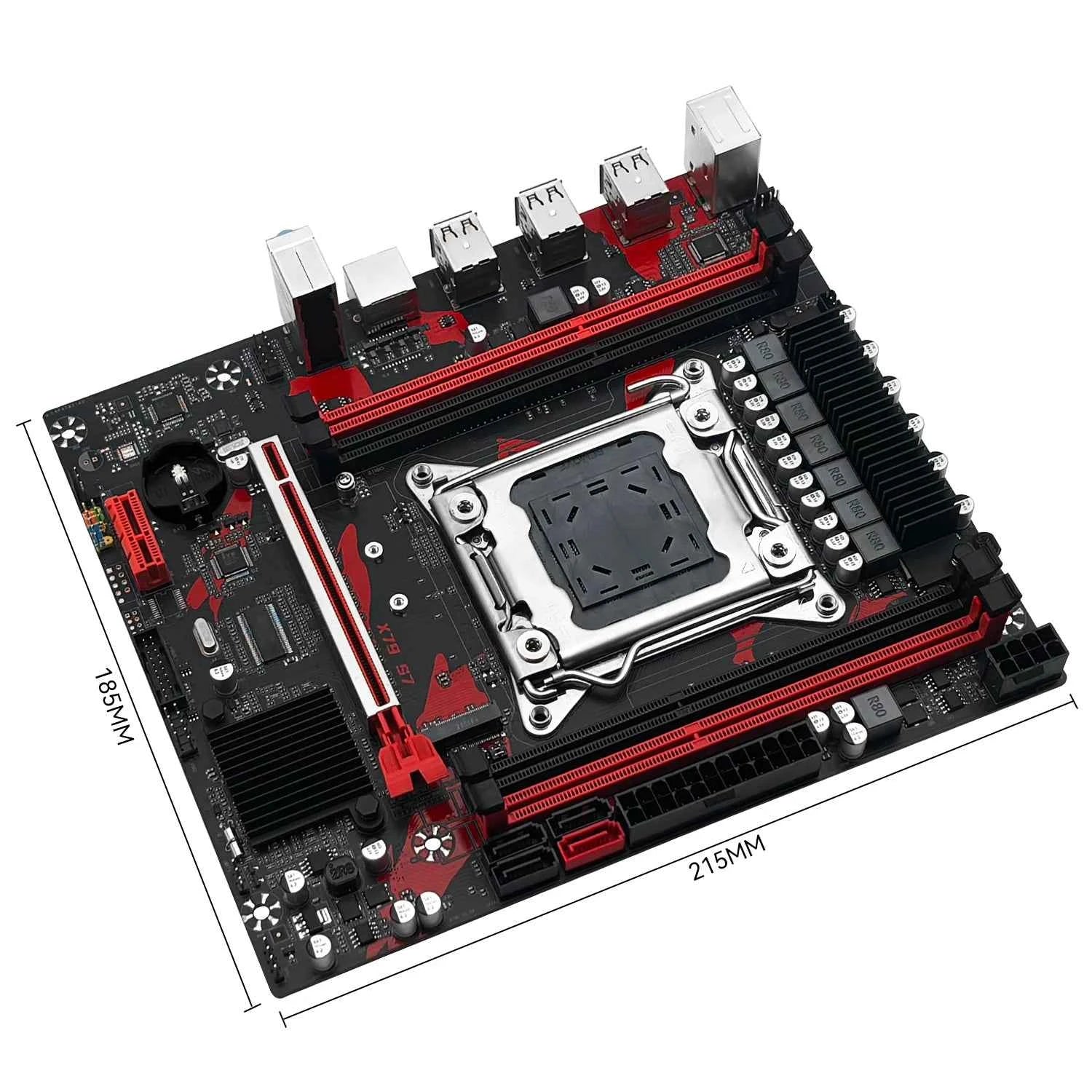

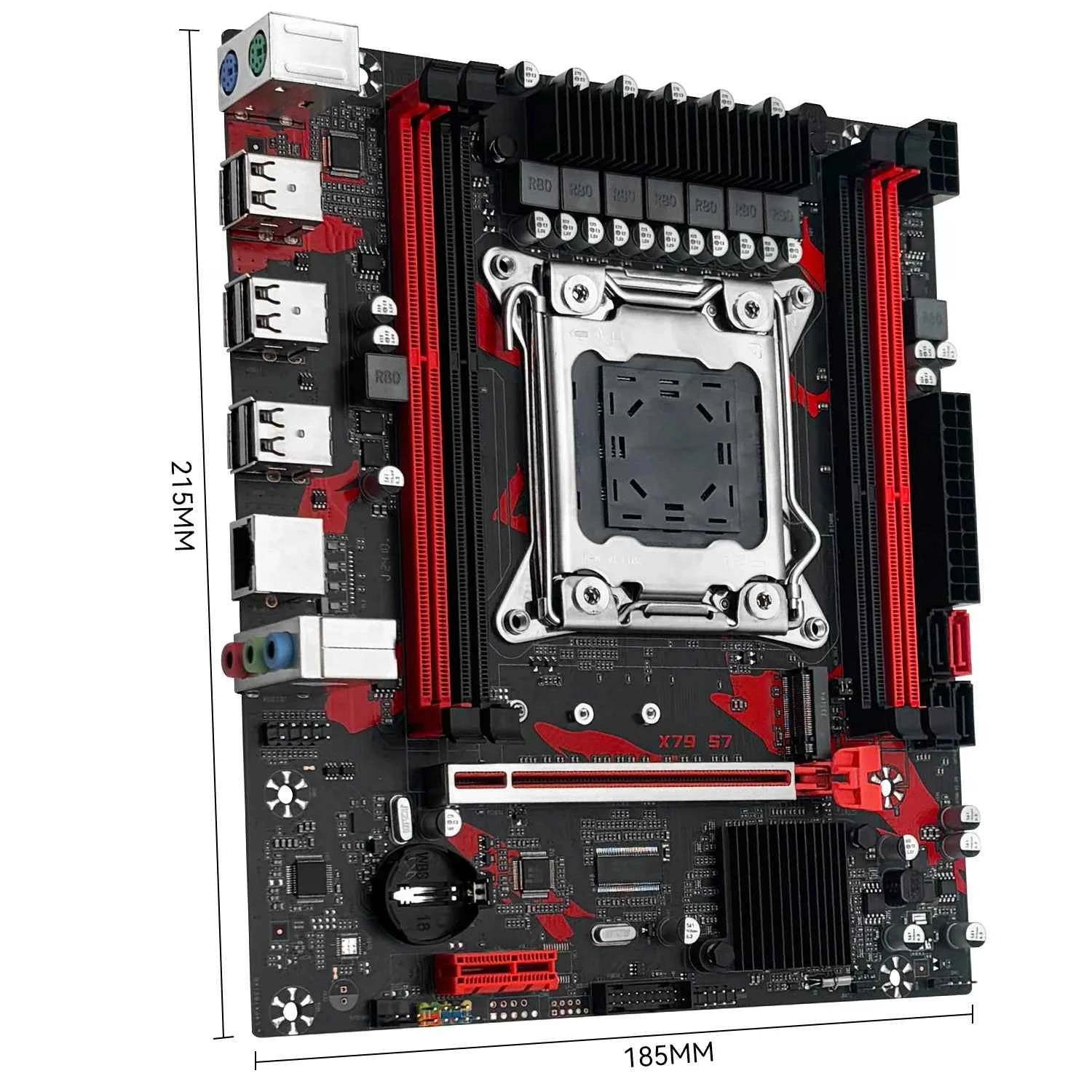

Dimensions: 215mm * 185mm.

Weight of the mainboard (including packaging): approximately 0.8 kilograms .>> Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>> Note:

(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1 to 3mm.

(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply

(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
