SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Battery Included: no

Brand Name: MACHINIST

Certification: RoHS,CE

Chipset: Intel B85

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

High-concerned chemical: none

MACHINIST Model: X99-PR9

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 1

Number of PCI: 0

Number of PCIe x 1: 0

Number of PCIe x 16: 1

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 2.0

Package: Yes

Ports: M.2

Processor compatibility: Intel Xeon

Quality Certification: ce,ROHS

RAID Supported: no

SATA RAID: 0

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: SATA,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

TPM2.0: For ASUS LPC 14PIN

Usage Scenario: Gaming,Audio & Video,Office,others

With CPU: No

> > Currently, the X99 PR9 TPM has been upgraded. However, there is a 5% chance that the product sent from the warehouse will be the old version. If you have specific requirements for the TPM function, please do not purchase.

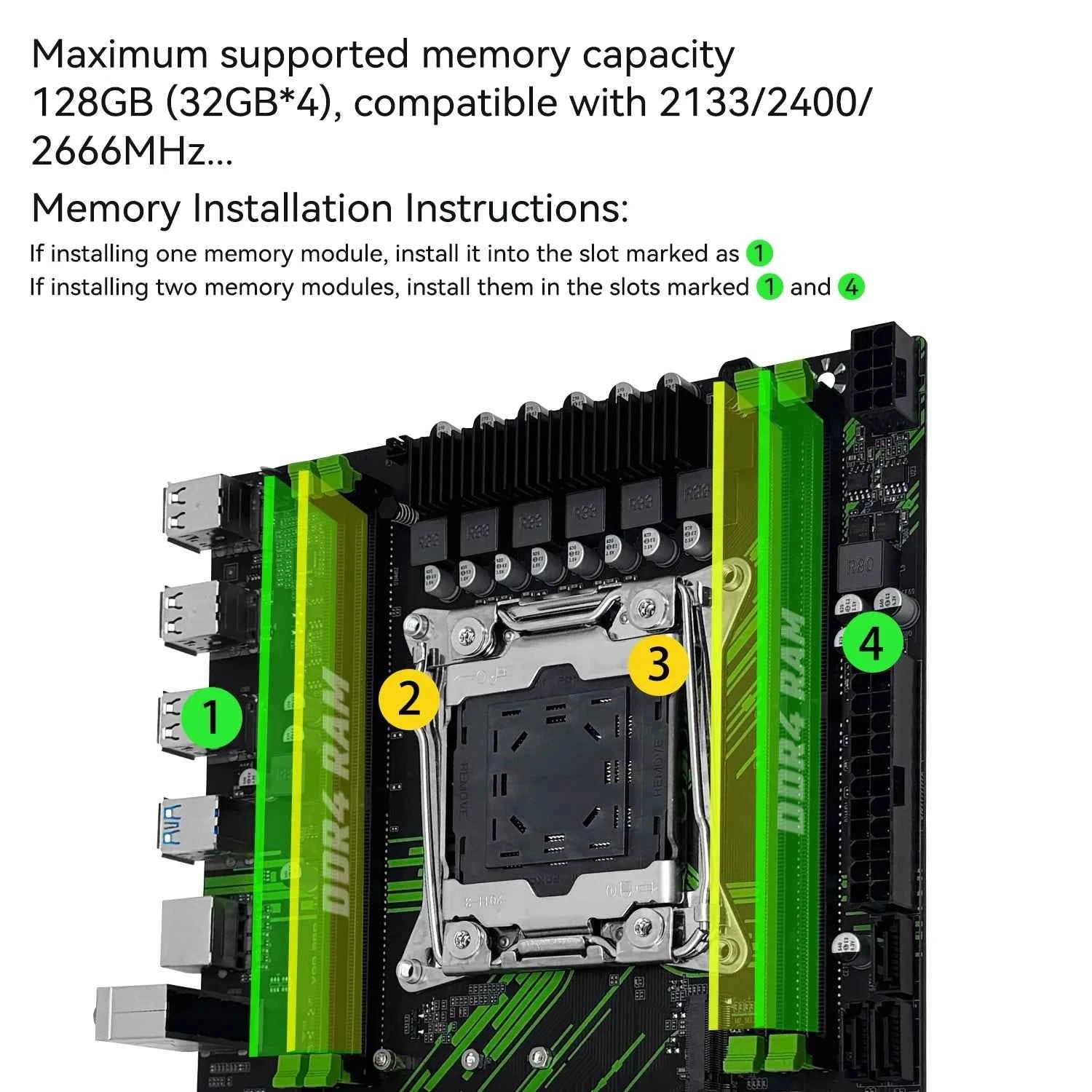

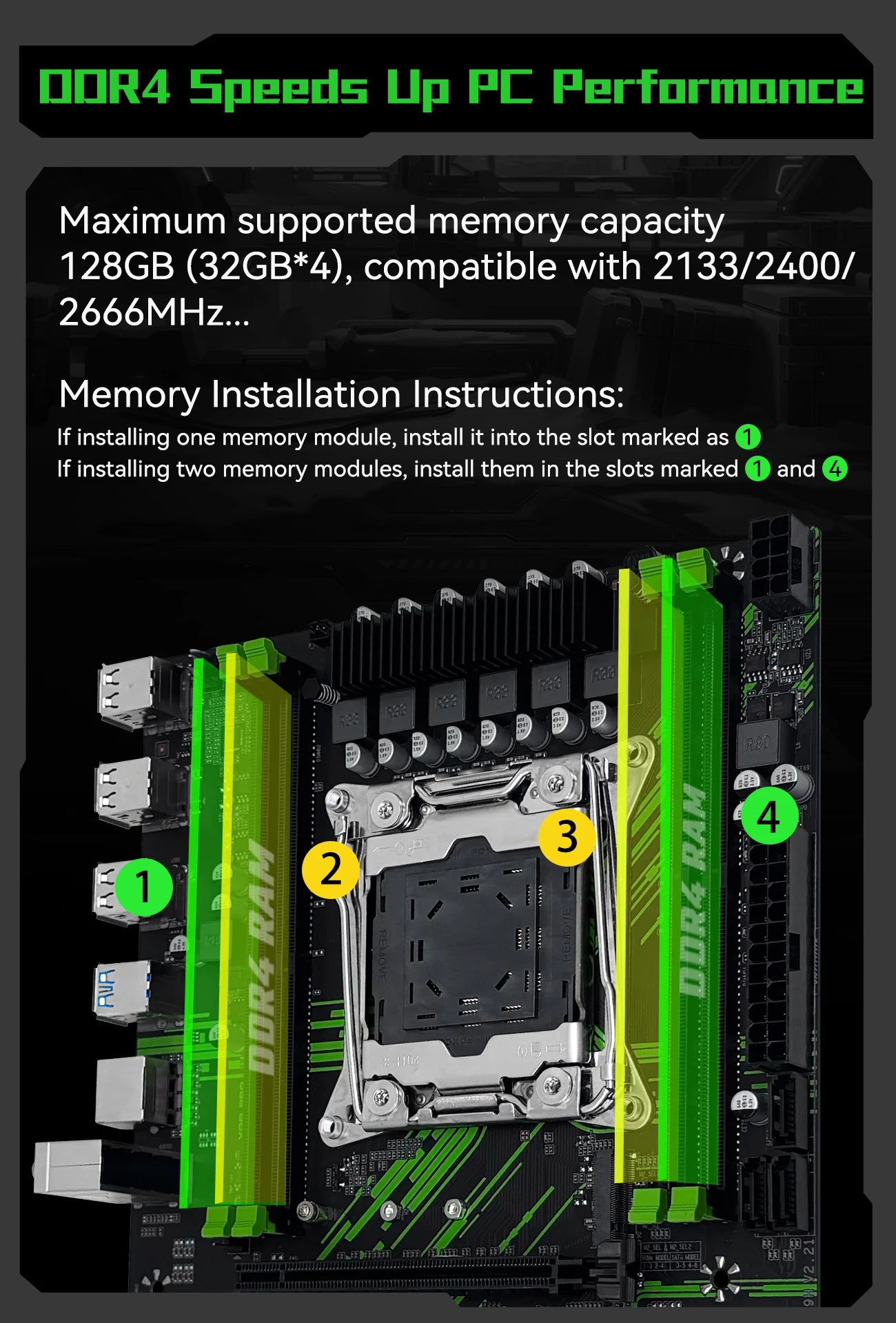

> > When installing the memory modules, please pay attention to the sequence of the memory slot positions, as shown in Figure 2.



> > (Included accessories: 1 I/O shield, 1 SATA cable, 1 IGA 2011 heat sink. If any of the gifts are lost, it cannot be used as a reason for a refund. Please understand!)

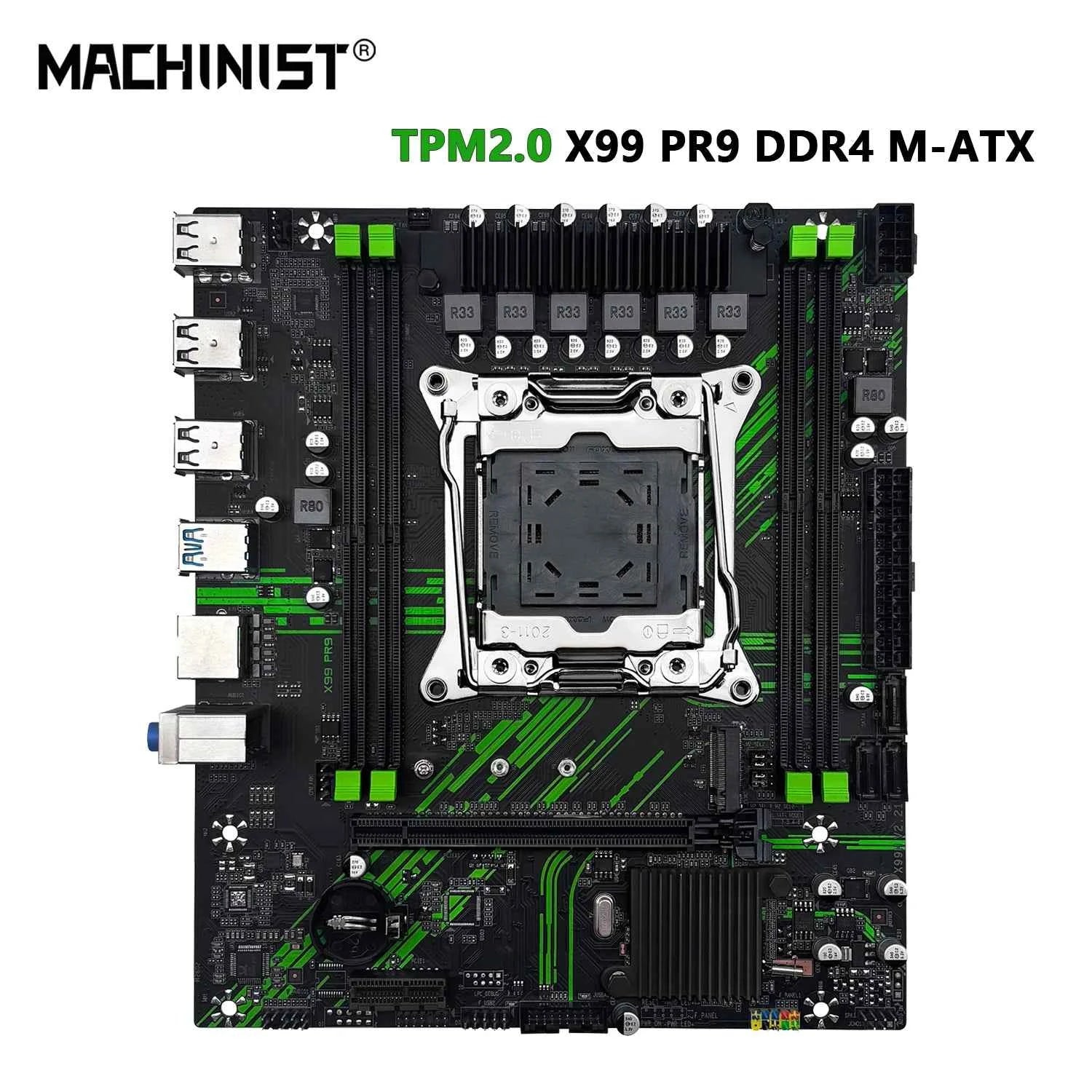

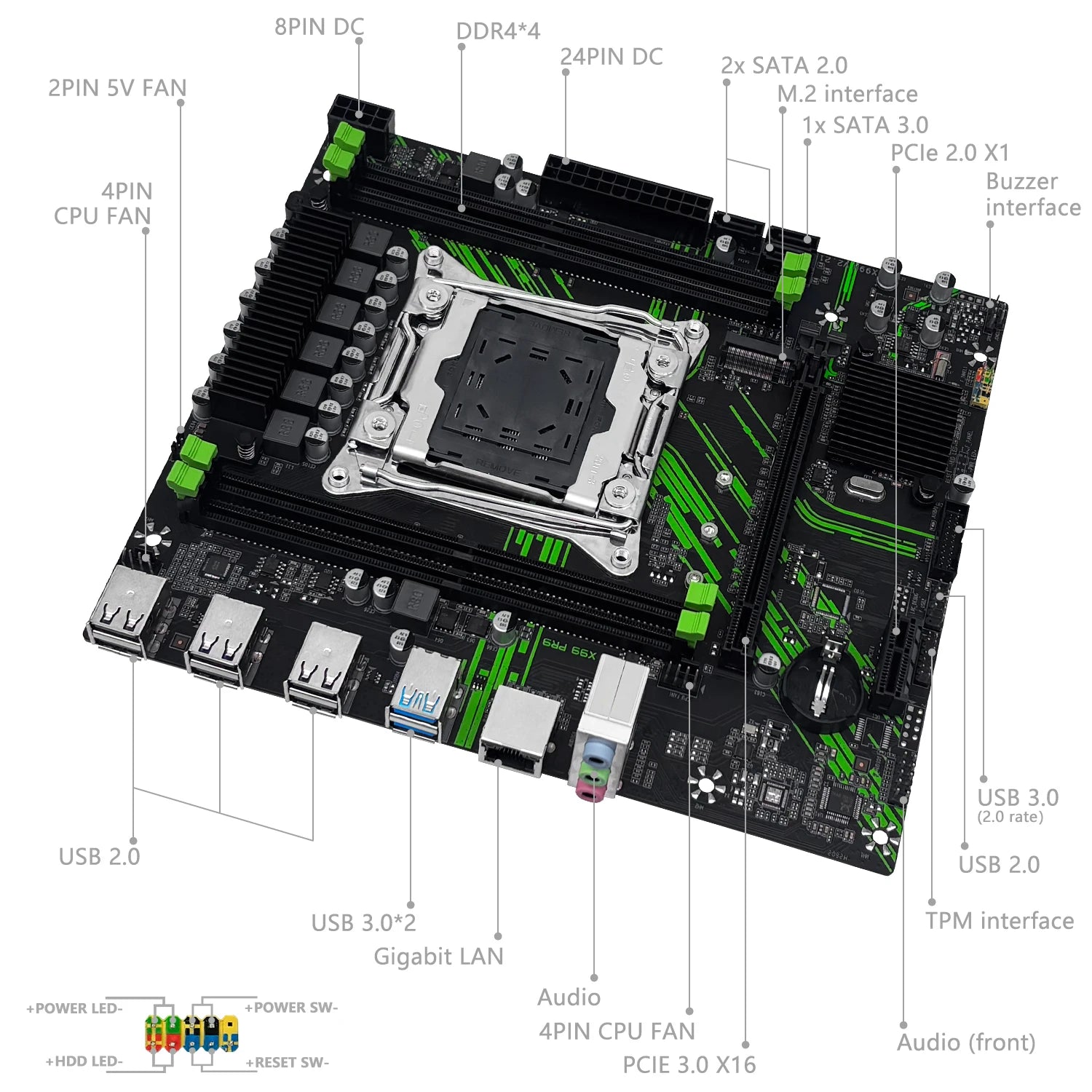

> > Motherboard Information:

Brand: MACHINIST.

Motherboard Model: X99 PR9.

Processor: Supports LGA 2011-3 series.

Chipset: B85/Q87/C226 Chipset.



> > Memory:

Technology: Dual-channel DDR4. Supports 2133/2400/2666/3000/3200 MHz.

Maximum capacity: 128GB (32G × 4).

Memory slots: 4 * 288 PIN DDR4.

Note #1: Please use international brands such as Samsung, Kingston, SanDisk, Micron, etc. Other brands may be incompatible.

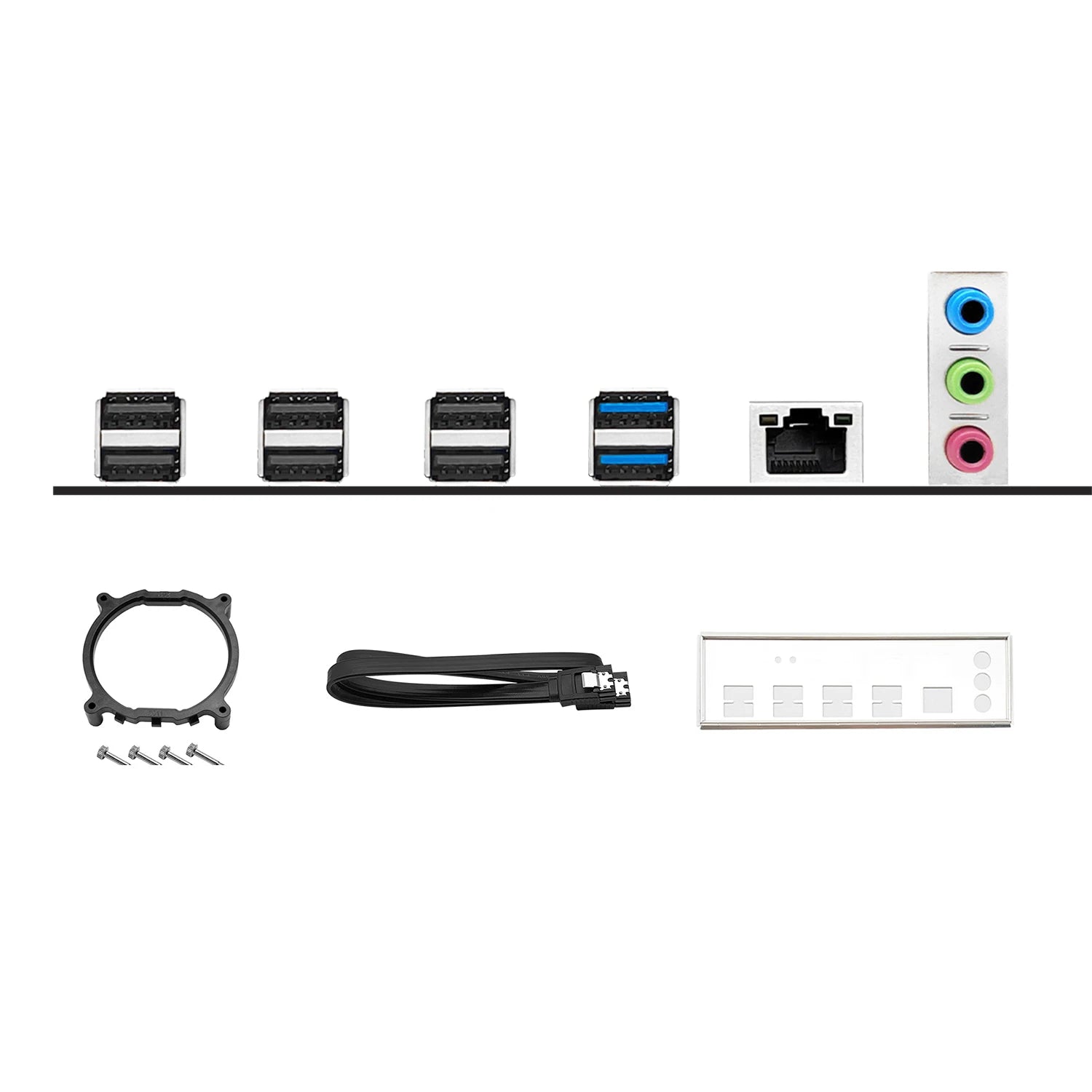

>> Post I/O:

PS/2: 1 KB interface + 1 MS interface.

USB interfaces: 6 USB 2.0; 2 USB 3.0.

Ethernet: 1 Gigabit network card.

Audio: 1 (Mic-in, Line-out, Line-in).



> > Other:

TPM interface: For ASUS LPC-14Pin-2.0

SATA interface: 2 (SATA 2.0), 1 (SATA 3.0).

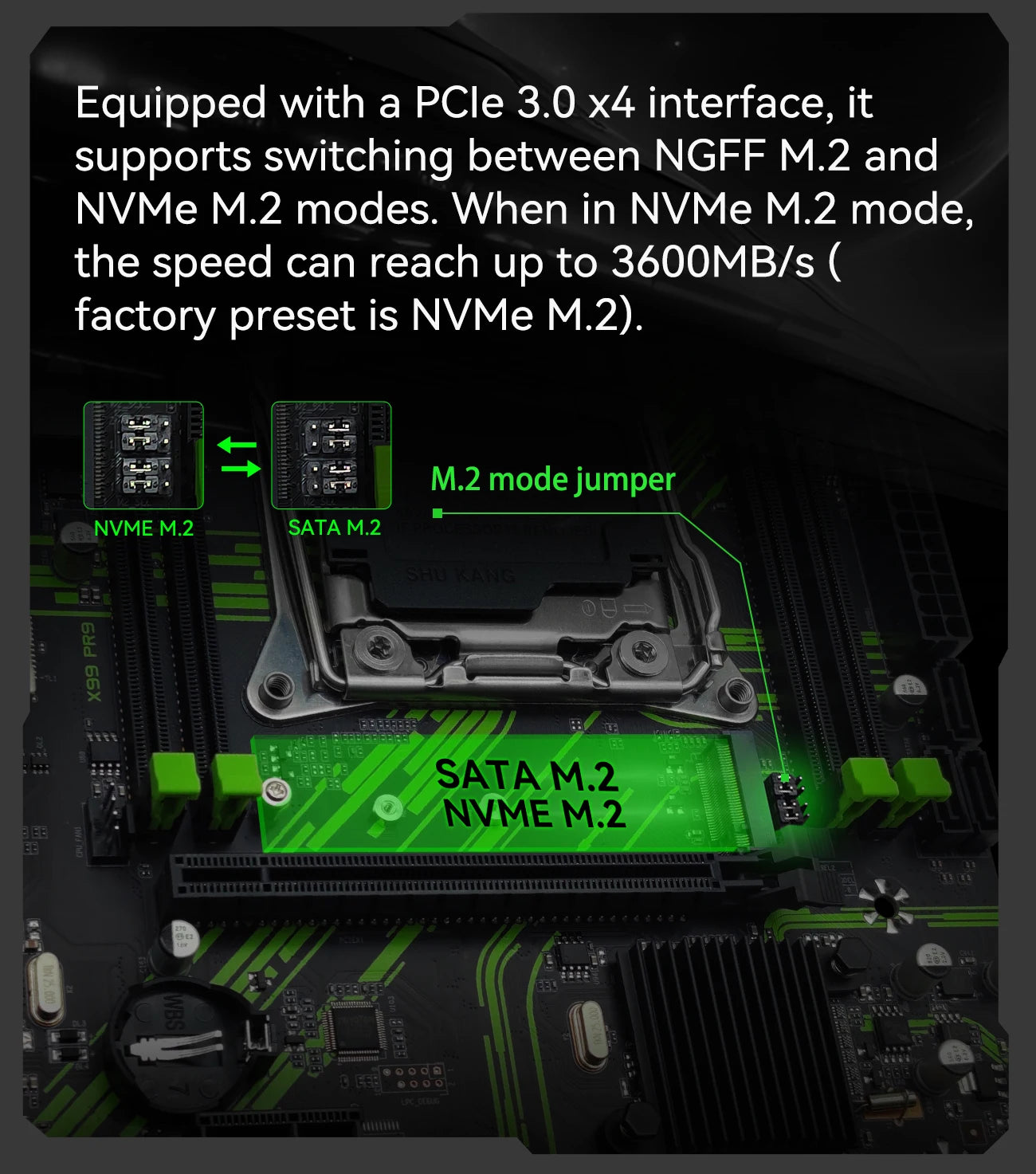

M.2: 1 (NVMe/SATA).

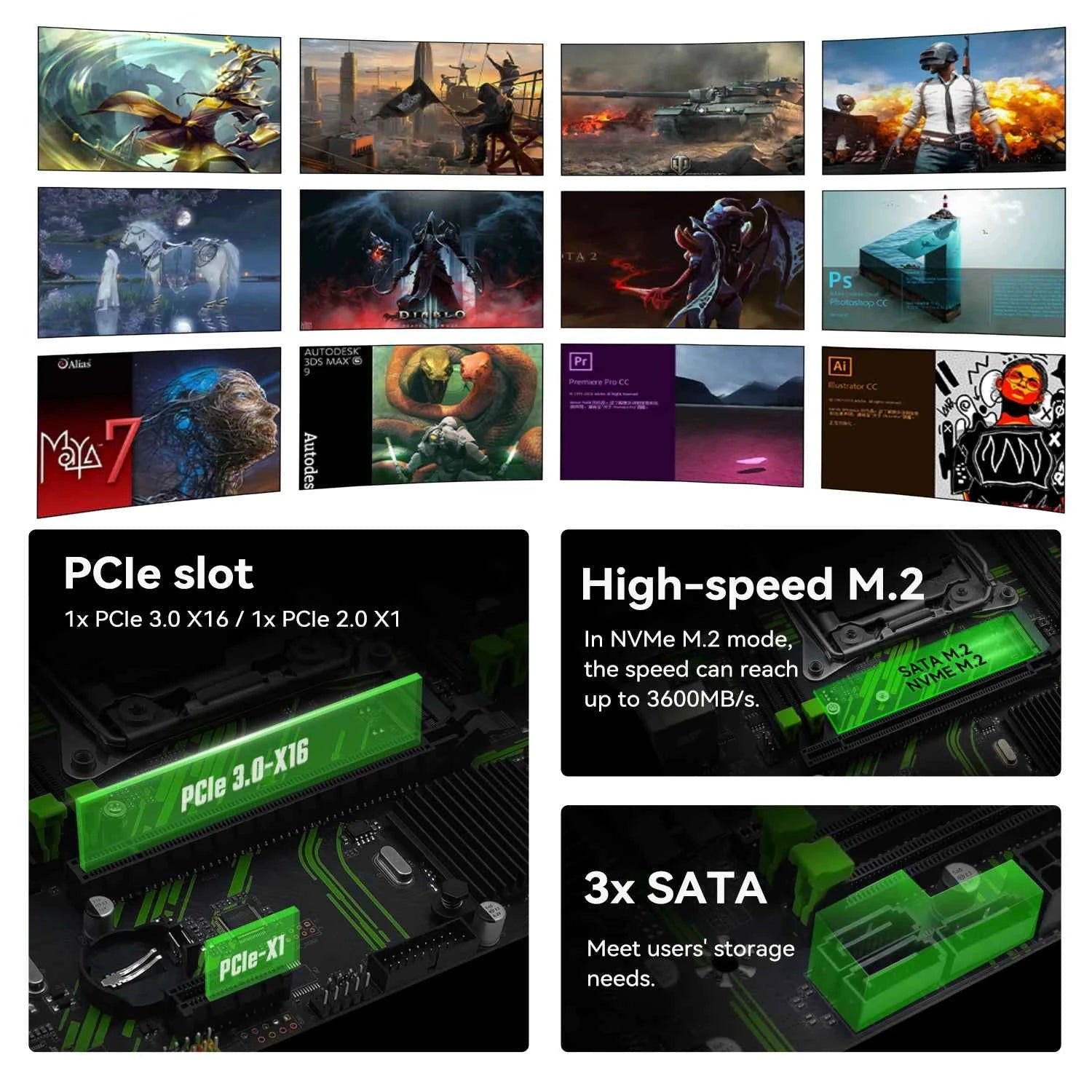

PCIe: 1 (PCIe 16x), 1 (PCIe 1x).

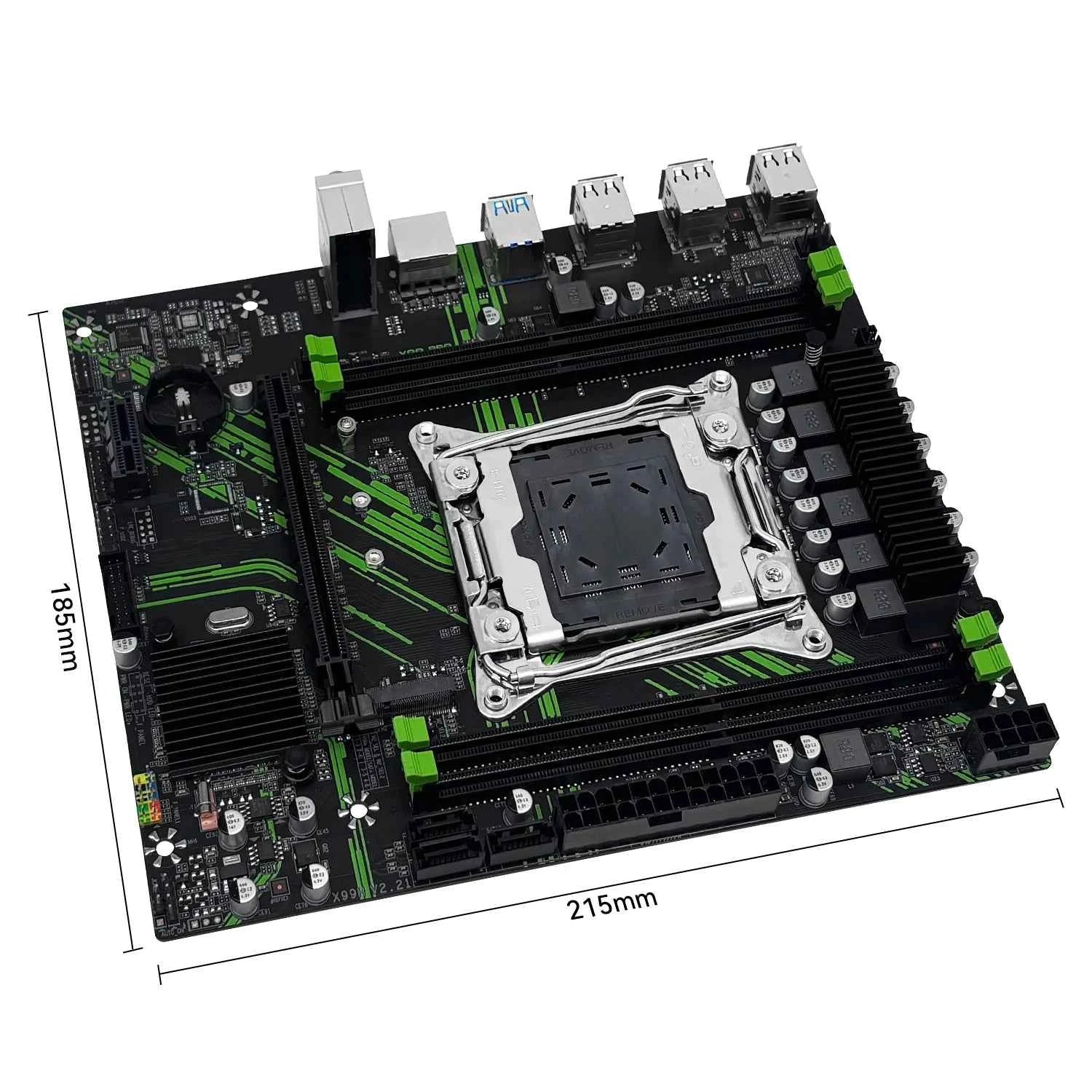

Overall dimensions: 215mm * 185mm.

>> Regarding customs issues, please ensure that you can solve the customs clearance problem by yourself. If you cannot solve it, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. thank you for understanding.

>> Notice:

(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1-3mm.

(3)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.

(4) The platform requires a powerful power supply. Please make sure your power supply is sufficient for this platform. (At least 500w brand power supply)

(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
