Chipset: Intel H55
-
Socket: LGA2011-3
-

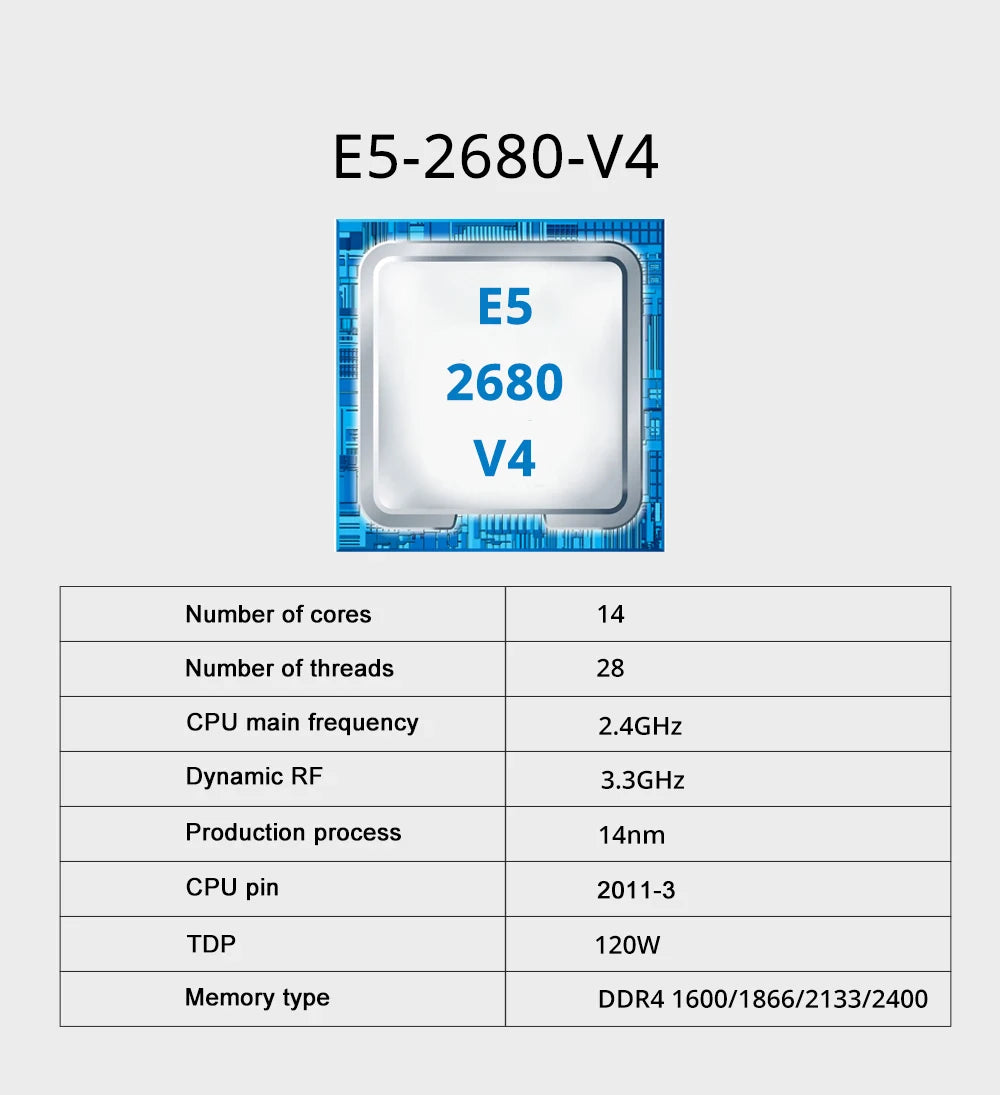

CPU Support: Xeon E5-2680 V4 (14C/28T, 2.4–3.3GHz)
-
Memory: DDR4 up to 128GB (4 slots, dual-channel)
-
Storage: 2× SATA2, 1× M.2 (NVMe/SATA)
-
Expansion: 1× PCIe x16, 1× PCIe x1, 1× PCI
-
LAN: 1× Gigabit RJ45
-

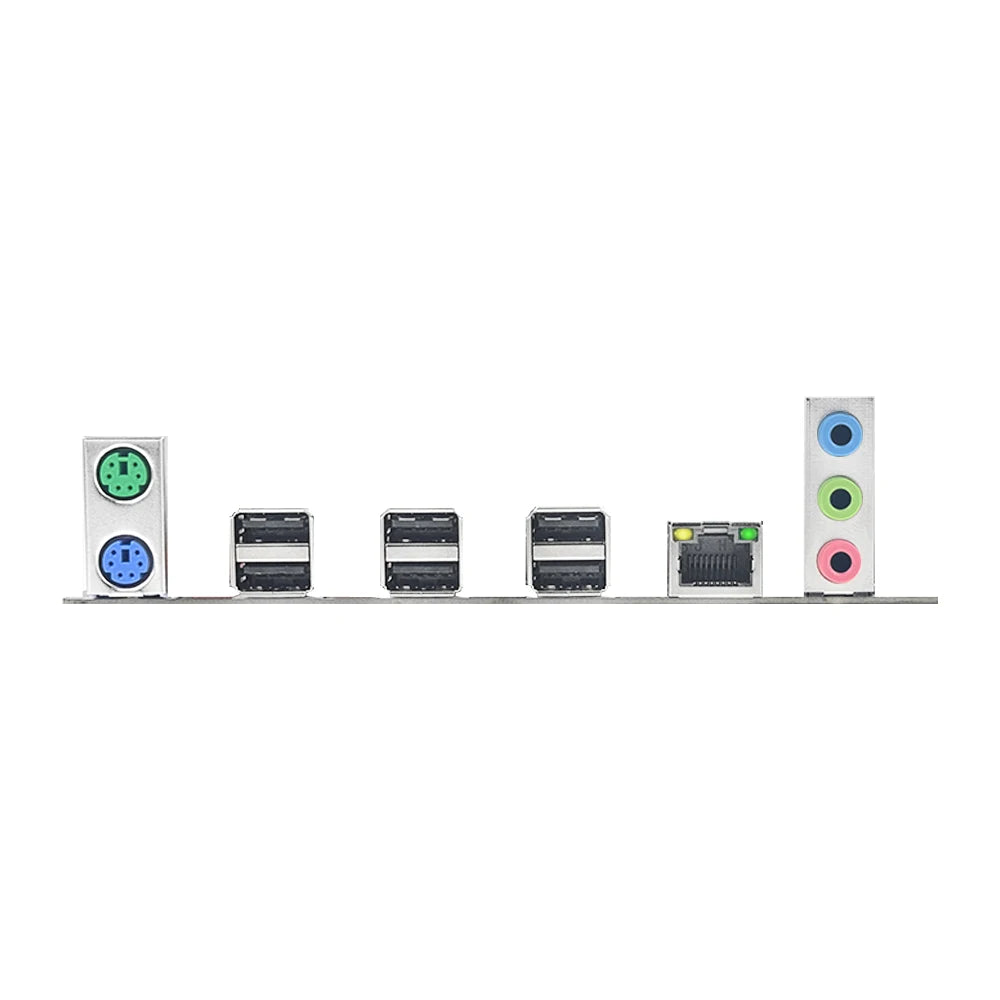

Audio: 3.5mm (MIC-IN, LINE-IN, LINE-OUT)
-
USB Ports: 6× USB 2.0 (rear) + 4 internal
-
Power: 24-pin ATX + 8-pin CPU
-
Form Factor: Micro-ATX (215×190mm)
-
Max RAM Speed: DDR4 2400MHz
-
RAID: SATA RAID 0
-
Notes: ≥500W PSU required, CMOS battery not included, gray RAM slots inactive alone
