Product Highlights
SPECIFICATIONS
Brand Name: houngjuly
Certification: CE,FCC,RoHS
Choice: yes
Color: Full color
Display resolution: 128X64
Driving method: Constant current 1/32 Scan
Equilibrium brightness: ≥800 CD/ M2
High-concerned chemical: None
LED Encapsulation: SMD 1515
Model Number: P1.875
Module port: HUB75
Module weight: 0.5KG
Module working voltage: 5V
Option distance: 2-35 M
Origin: Mainland China
Panel size: L240mm*H120mm*T10mm
Physical density: 284444 /M2
Pixel configuration: 1R1G1B
Pixel pitch: 1.875 MM
Place: Indoor
Refresh frequency: ≥1920 HZ
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
semi_Choice: yes
Selling Point

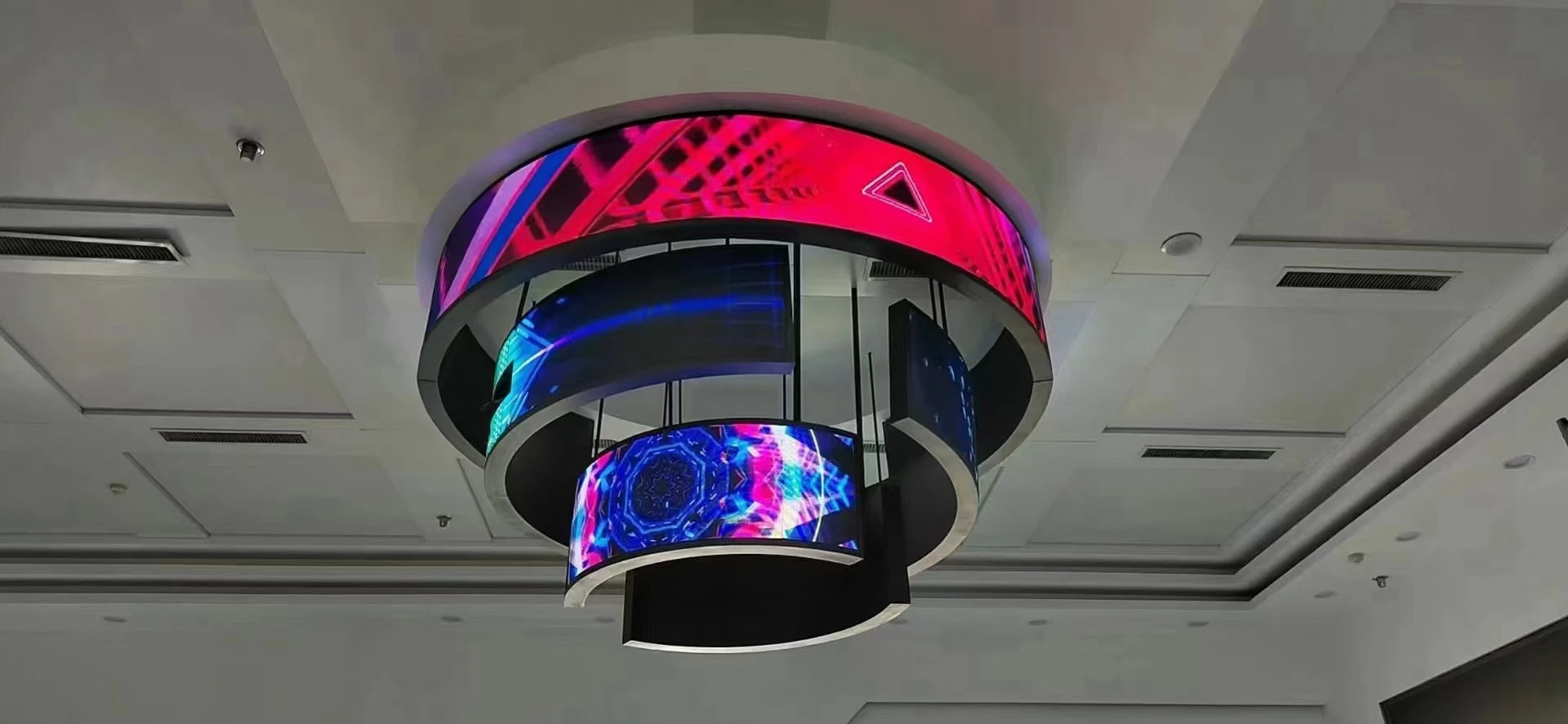

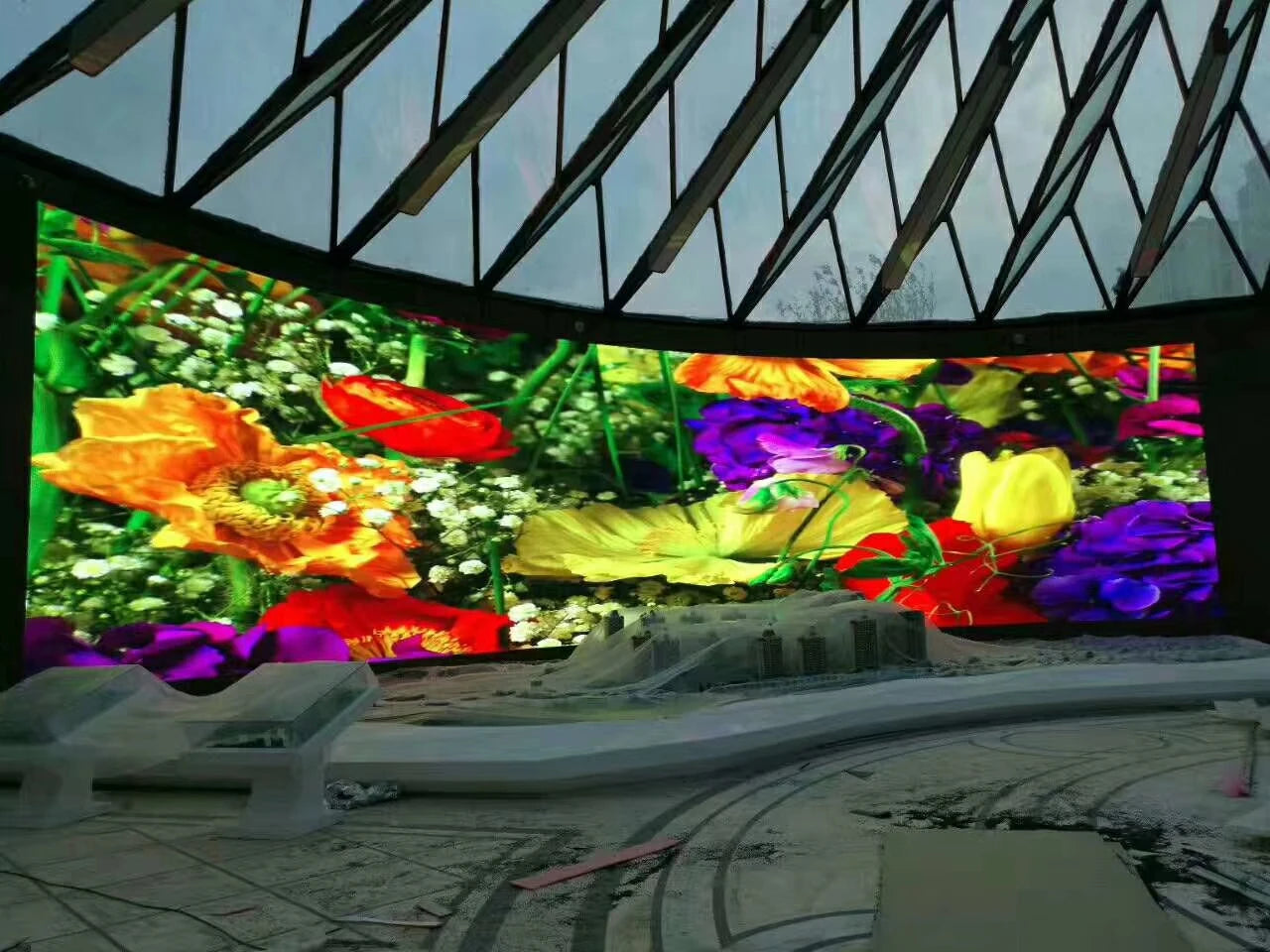

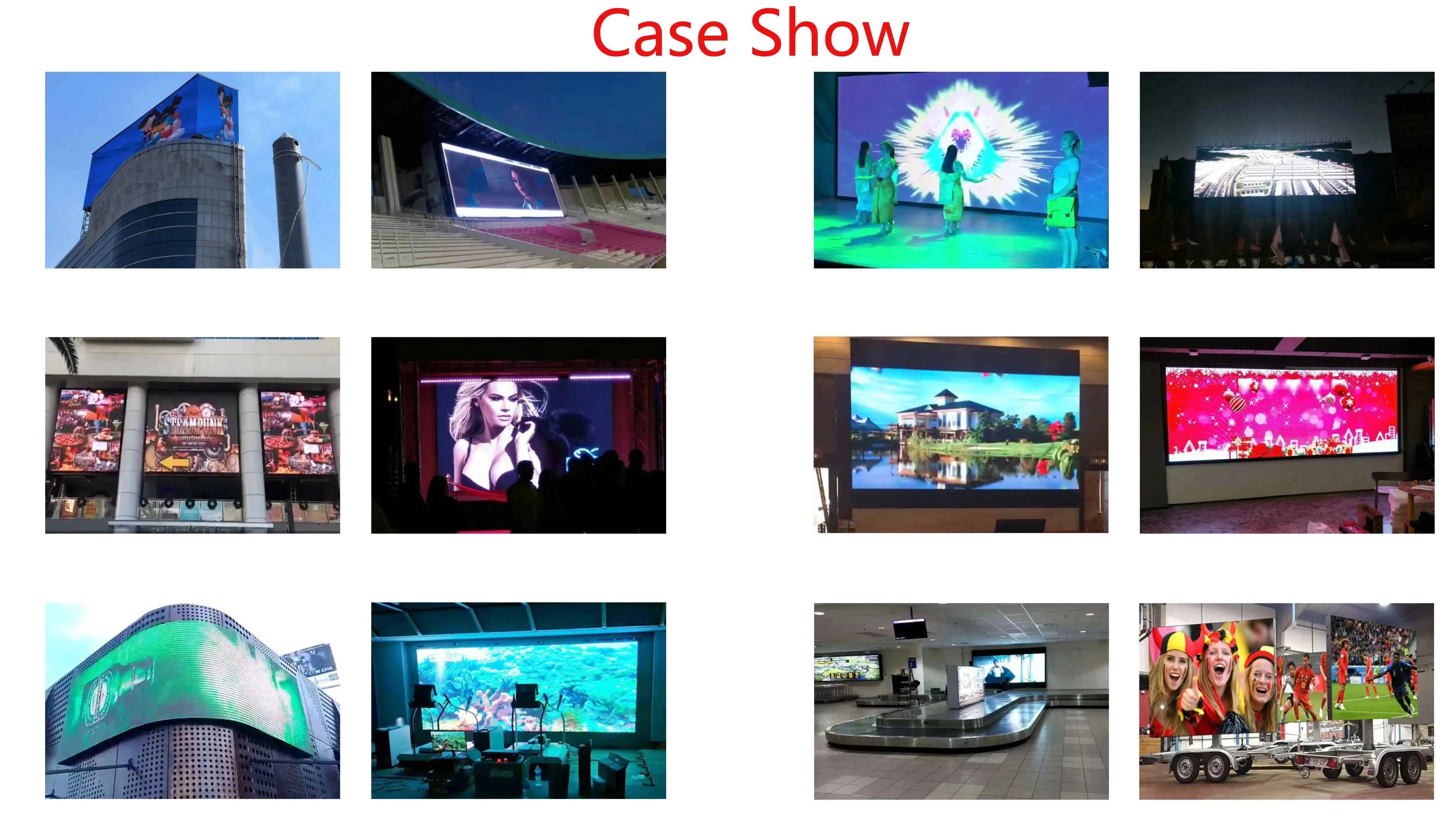

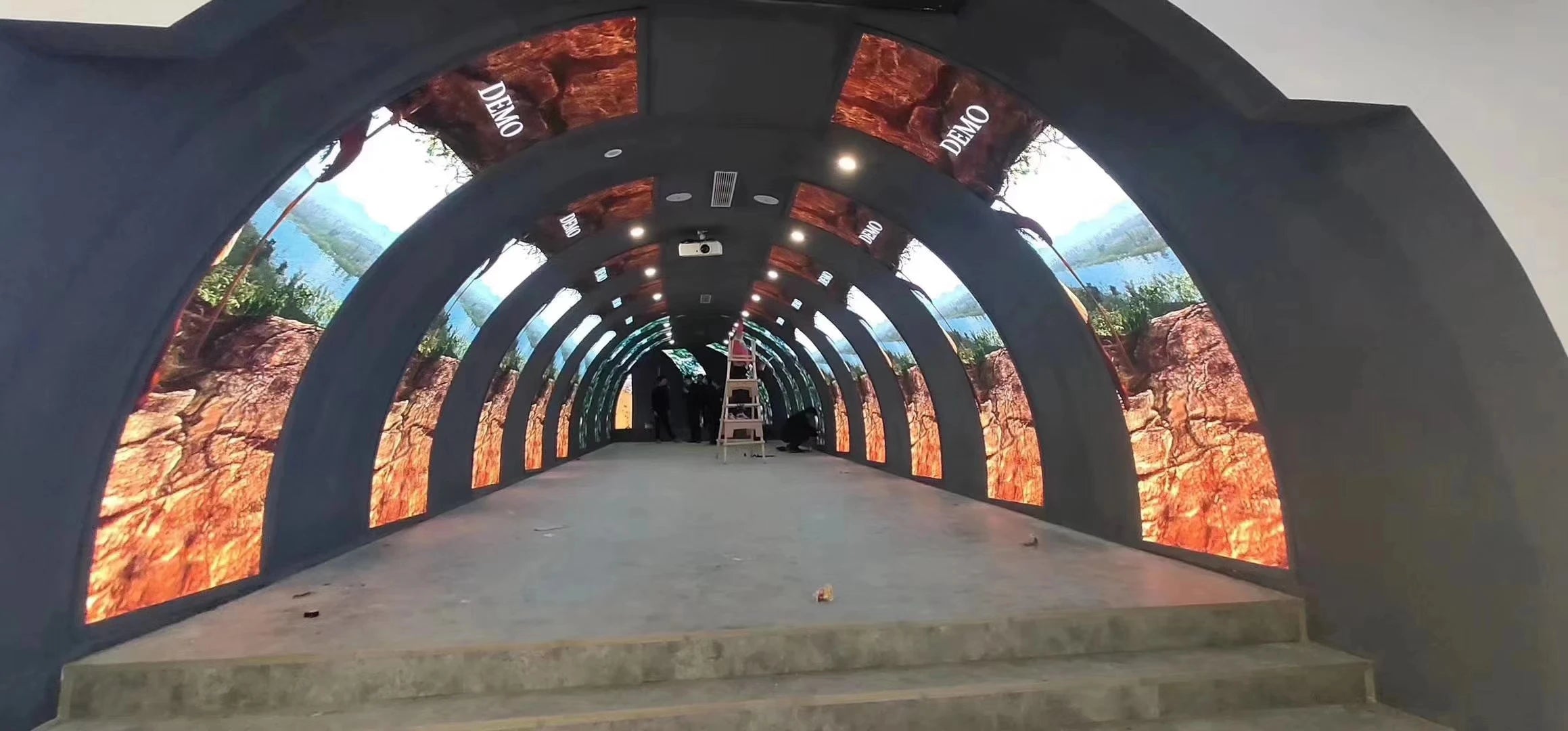

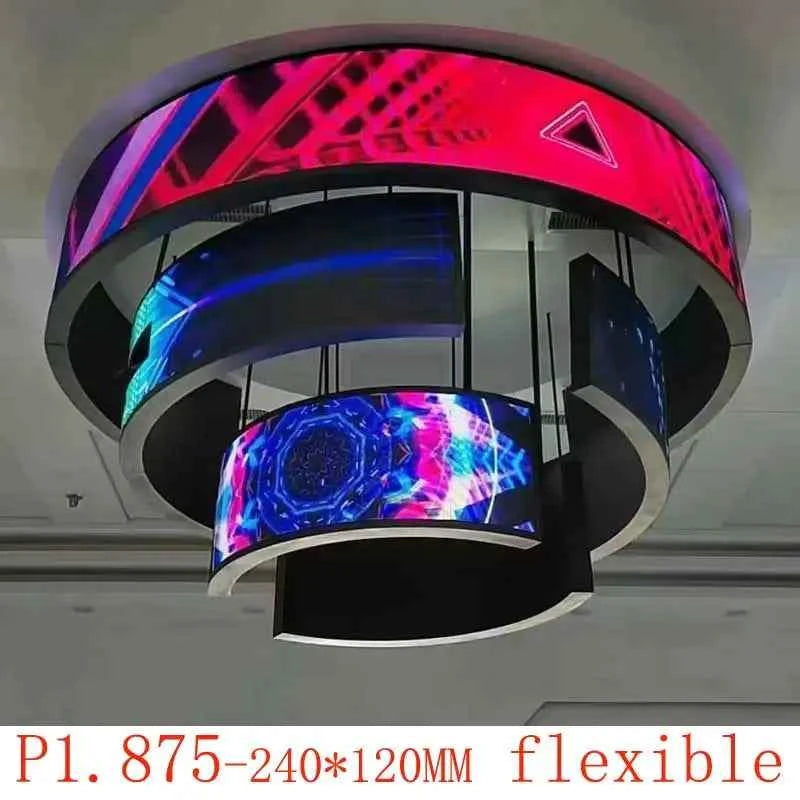

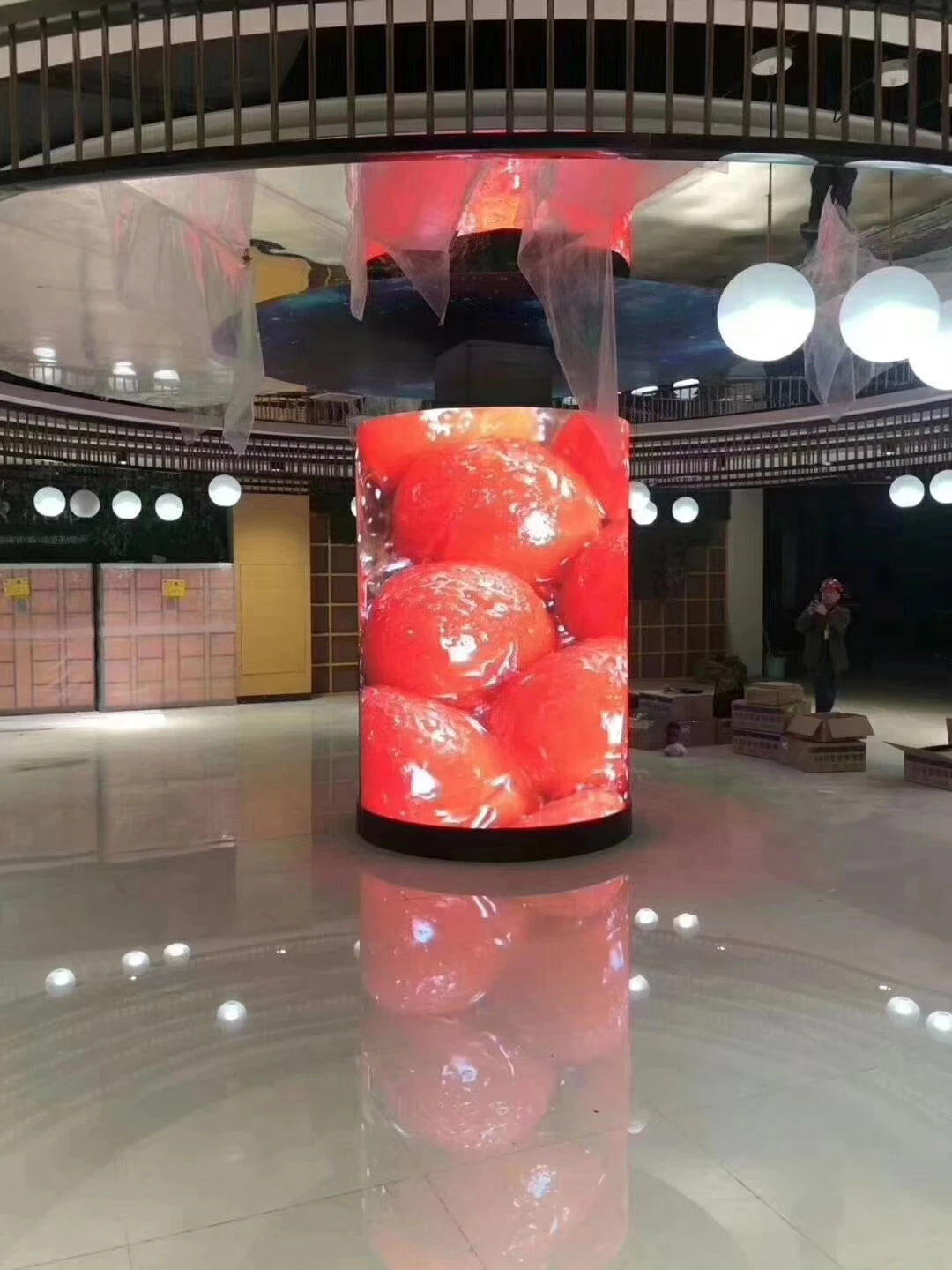

Applications Commercial advertising, night club, entertainment events, business establishments, stock exchange centers, schools, telecommunications, stadiums, shopping malls, railways, airports, stages, activities etc.
Selling Point

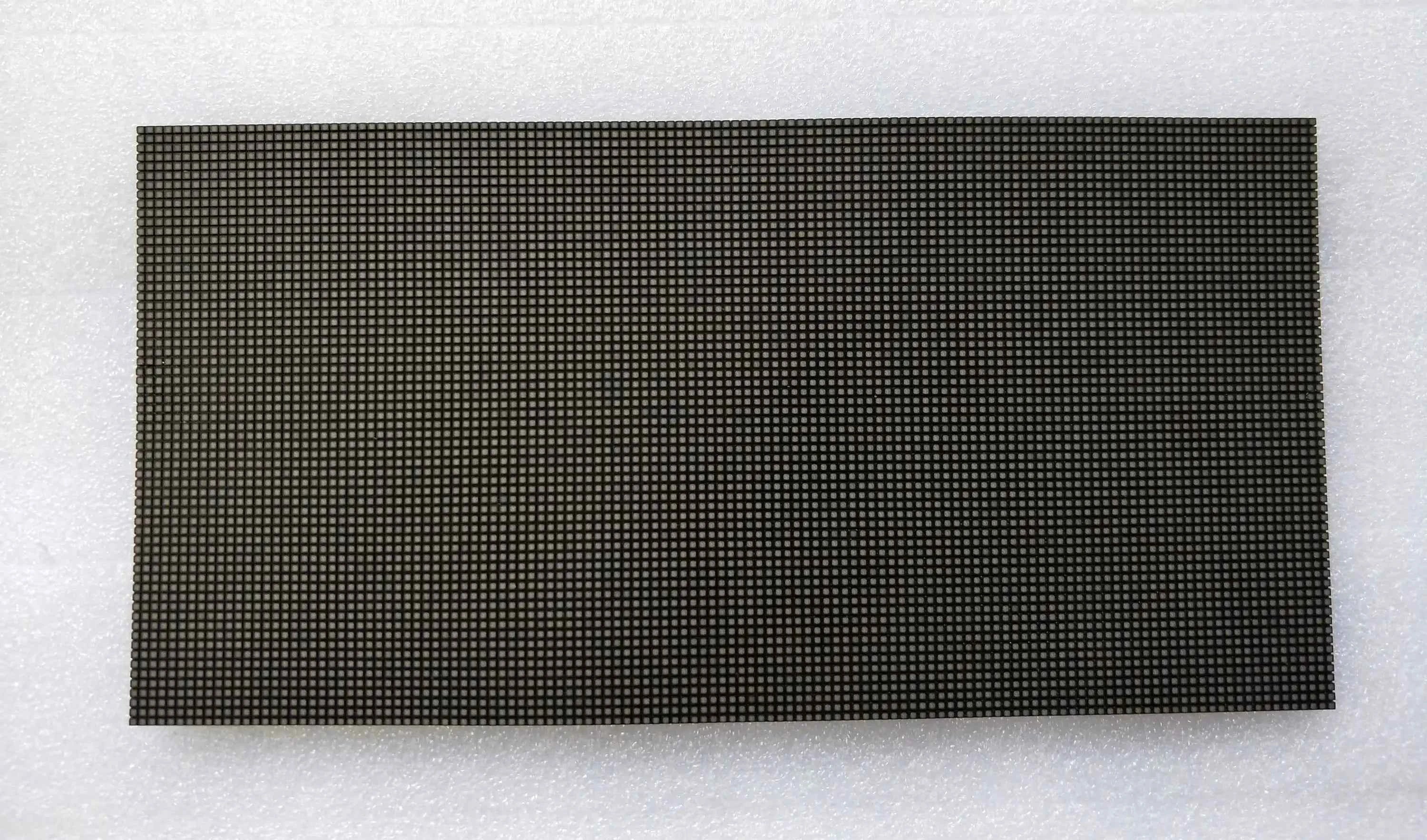

Item P1.875
Chip Epstar
Light type SMD1515
Pixel Pitch 1.875mm
Module Size 240mmX120mm
Module Resolution 128*64 (dots)
Density of pixel 284444dots/m2
Pixel configuration 1R1G1B
Red wavelength 625±2nm
Green wavelength 525±2nm
Blue wavelength 470±2nm
Colors 16777216
Best viewing distance ≥2m
viewing angle 120°/120°
Maximum power consumption 20W
Brightness 800cd/m2
Gray scale 14bits per color
Color temperature 9000k
Control method Synchronization or Asynchronization
Driving method 1/32 scanning
Frame frequency 60Hz
Refresh frequency ≥1920Hz
Working Voltage DC5V
IP grade IP45
MTBF More than 8000hours
Life Span 80,000hours
Selling Point

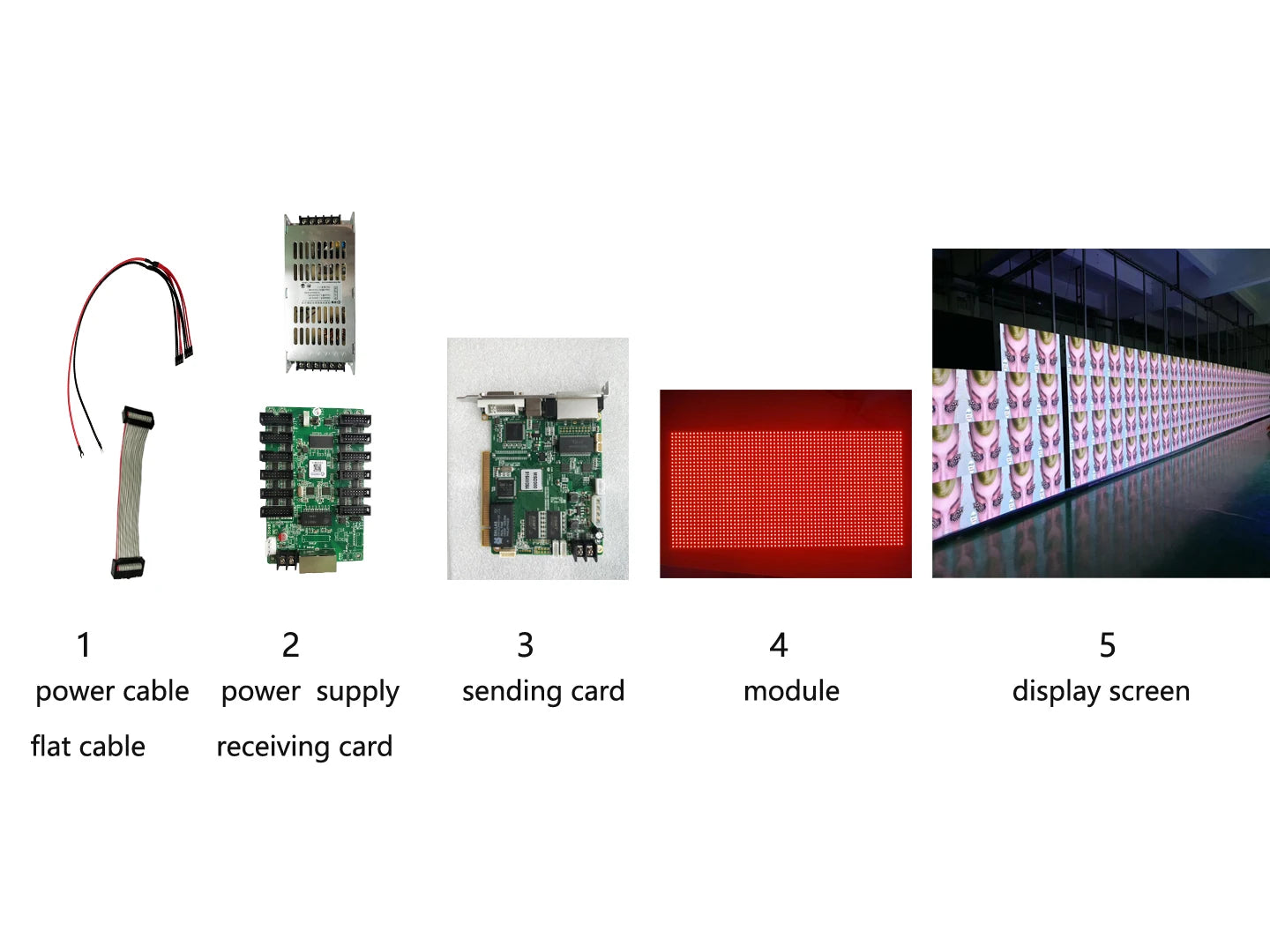

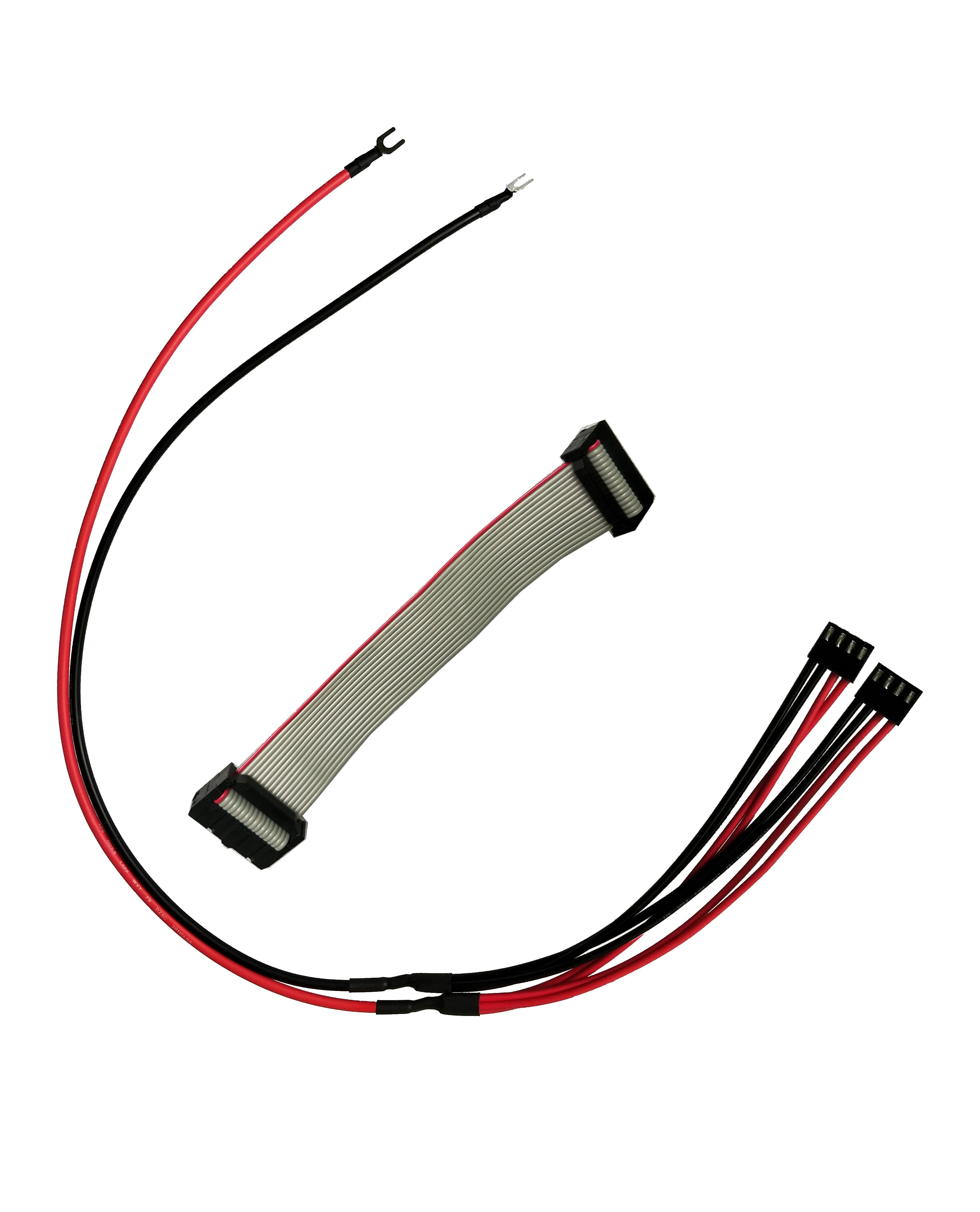

1 pcs flat ribbon data cable
1 pcs power cable for 2 module
Selling Point
Selling Point
1. LED display module is a special product. For different times, it maybe have Color/Configuration/Hole dimension difference.
So please buy all LED modules at the same time if you want all LED modules be same.
2.The picture of PCB board and screws holes in the description maybe different from what you receive because of the updating version. If you want to buy same PCB board and same screw holes led modules, please contact us in advance.
3. LED modules are mainly used to assemble large size LED display, it have special Control card for them. It is better to buy Control card from us.
Selling Point

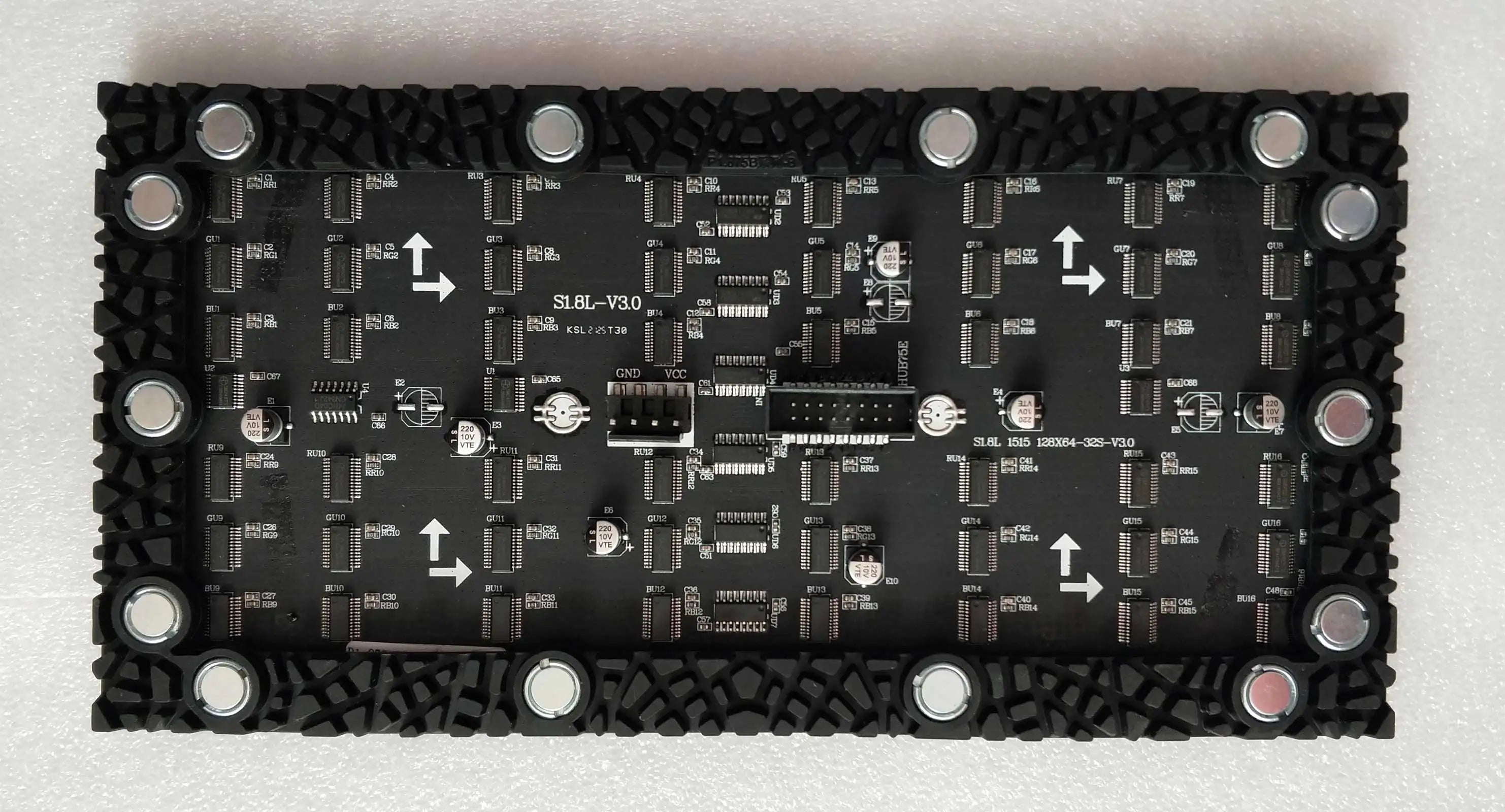

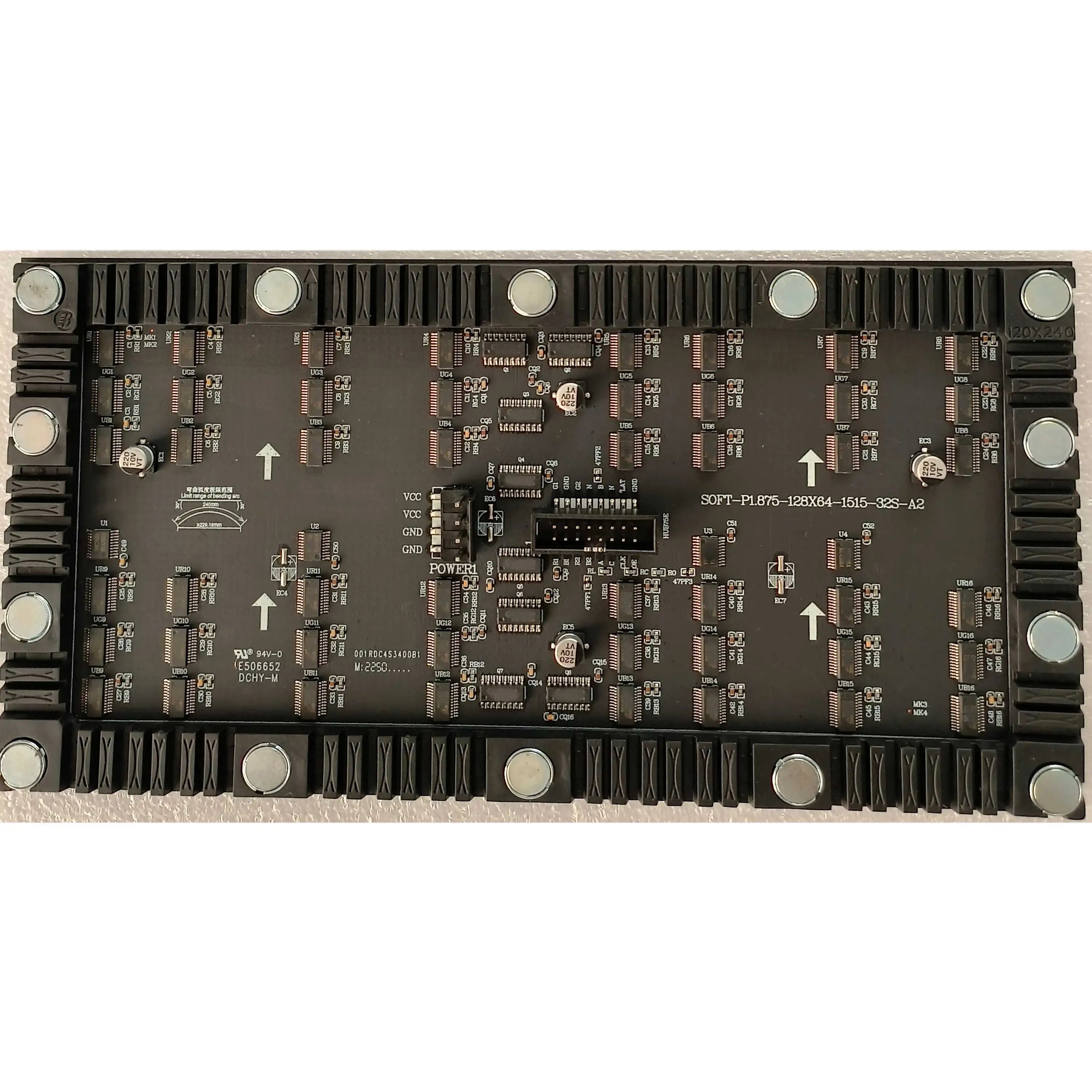

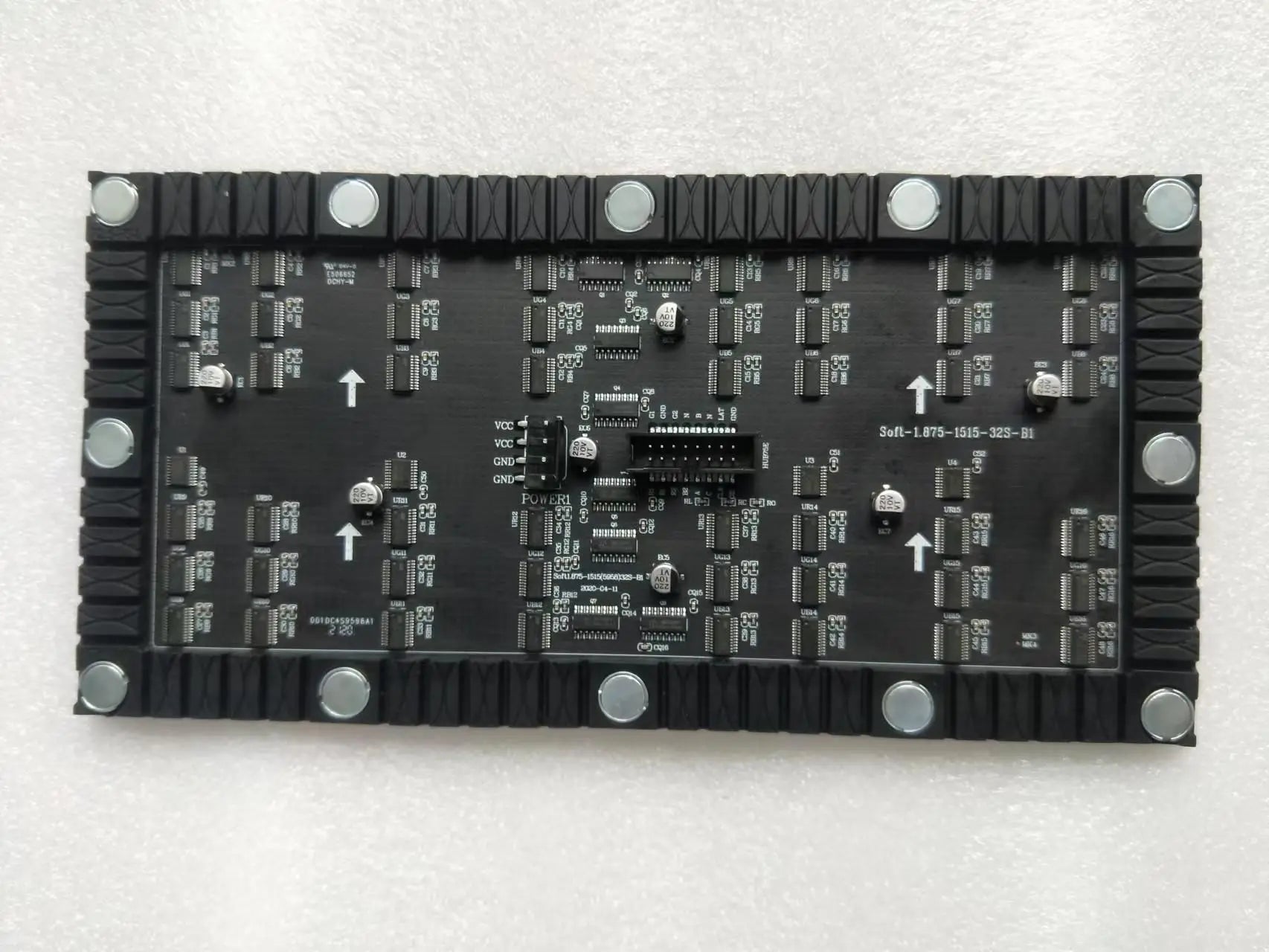

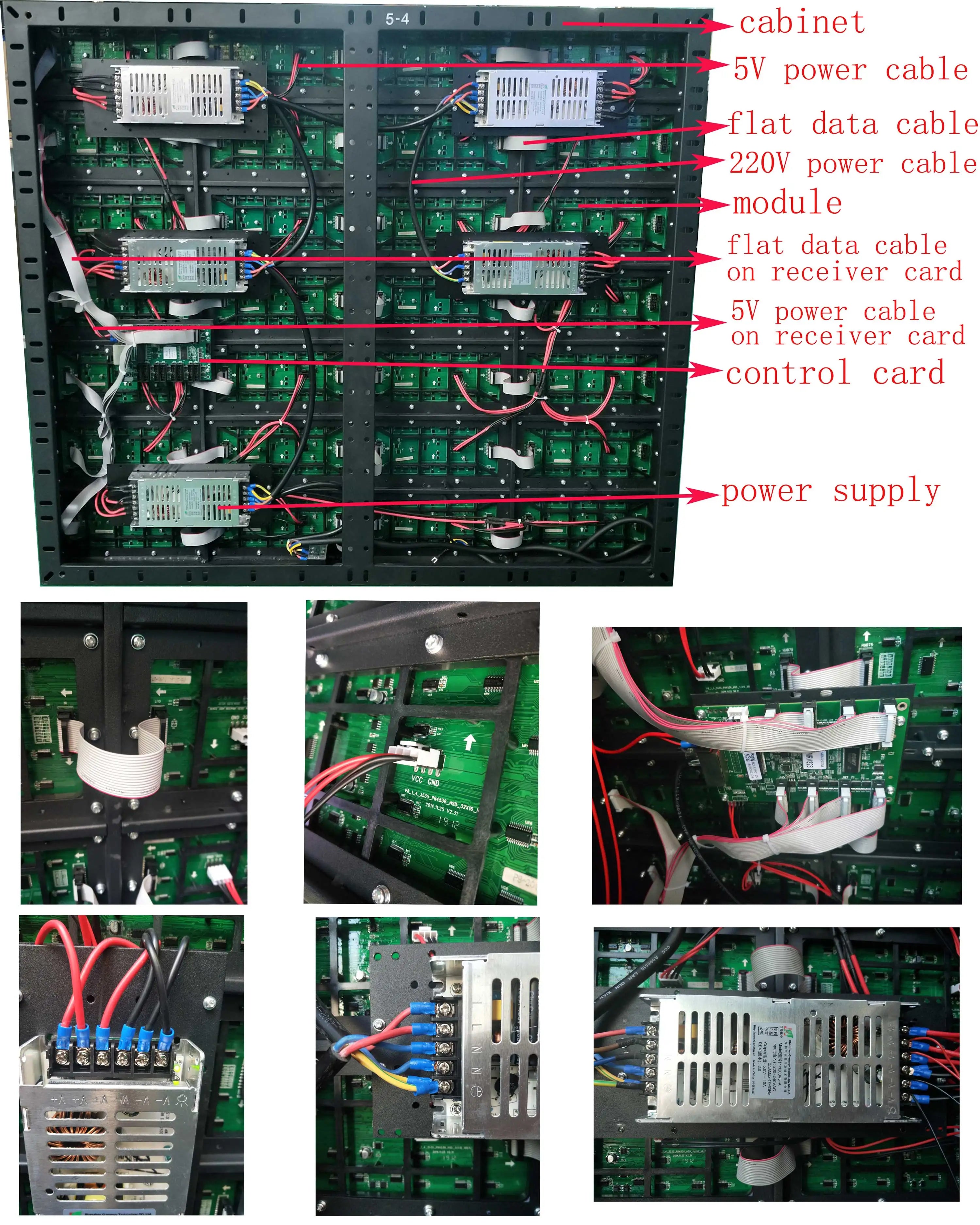

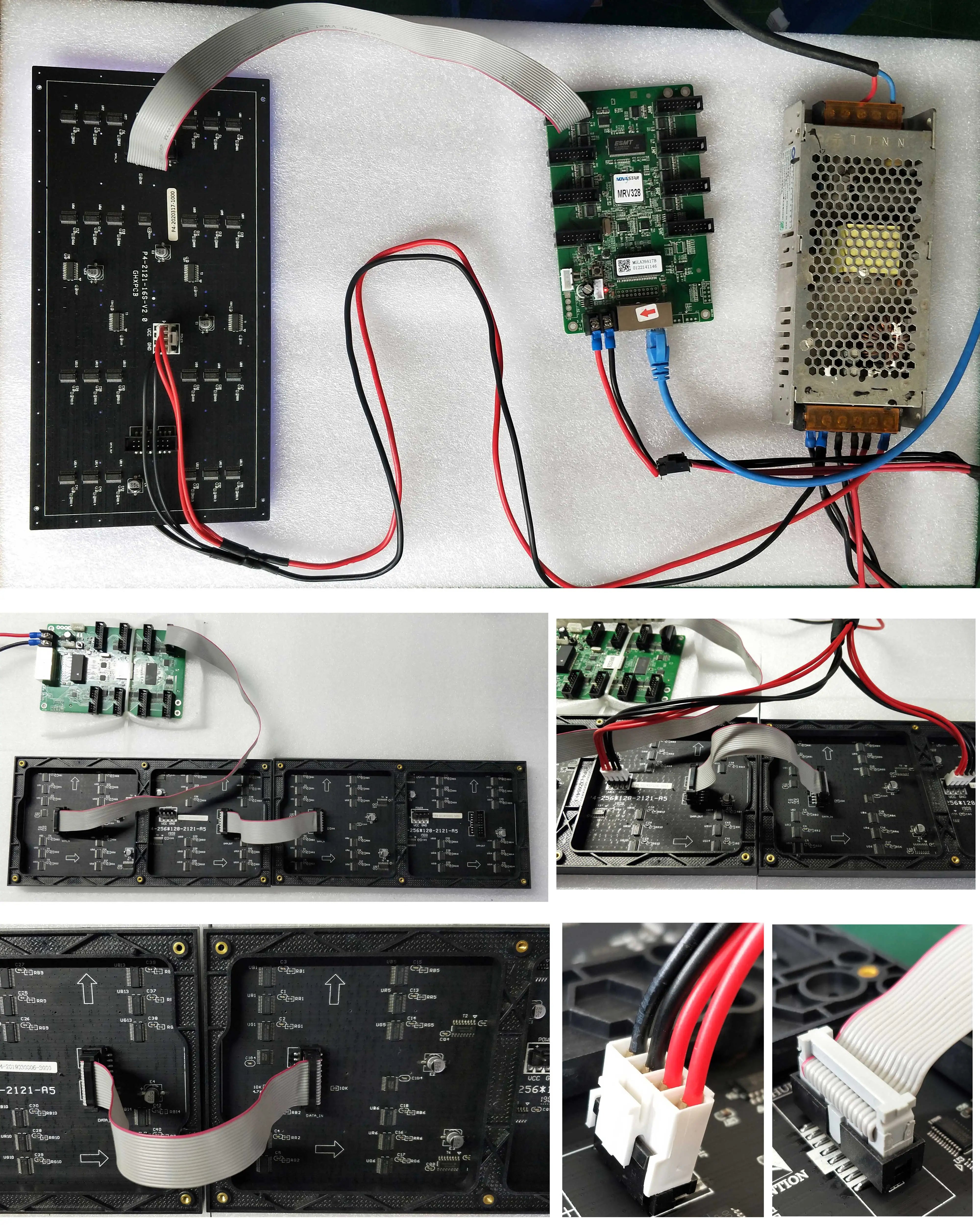

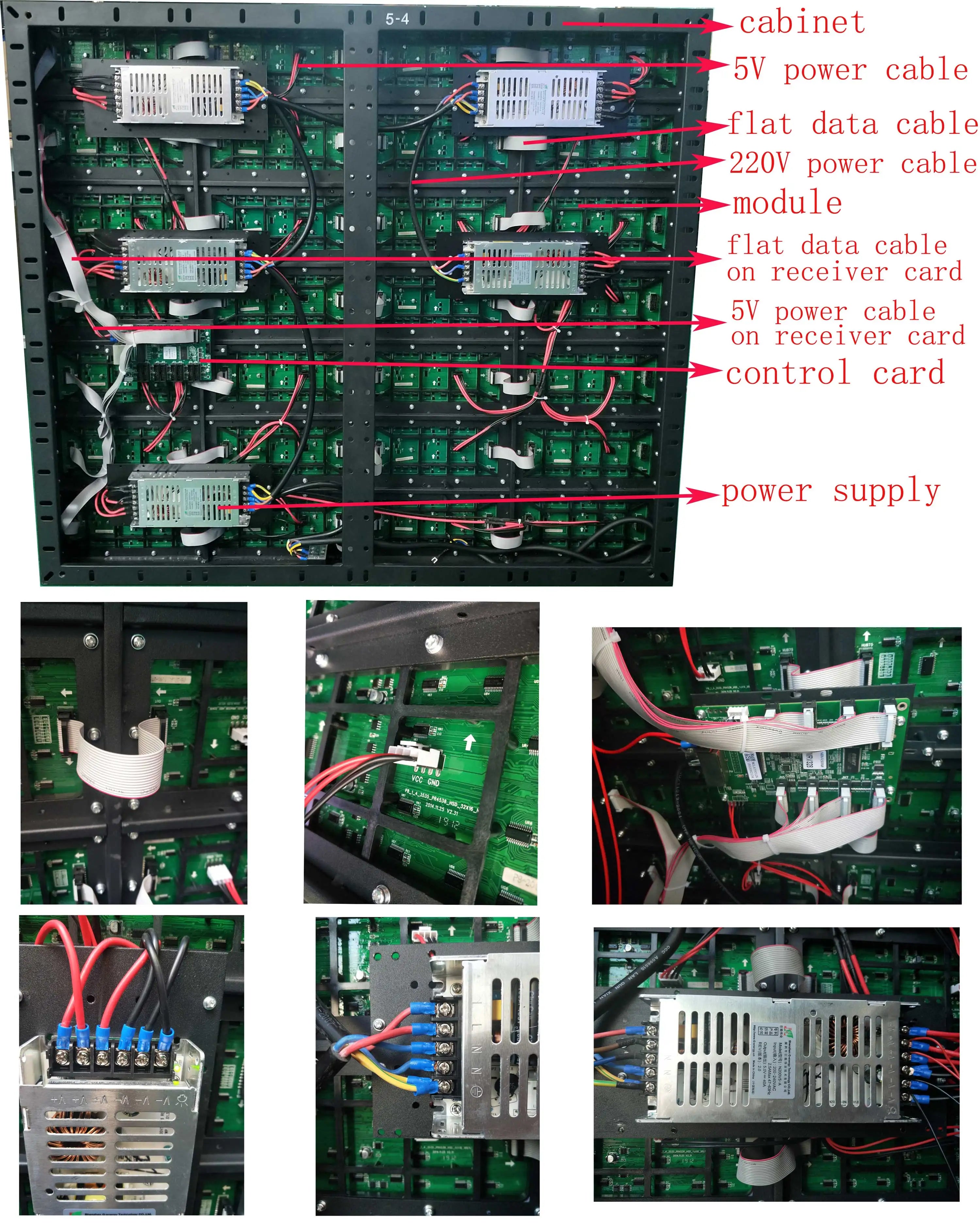

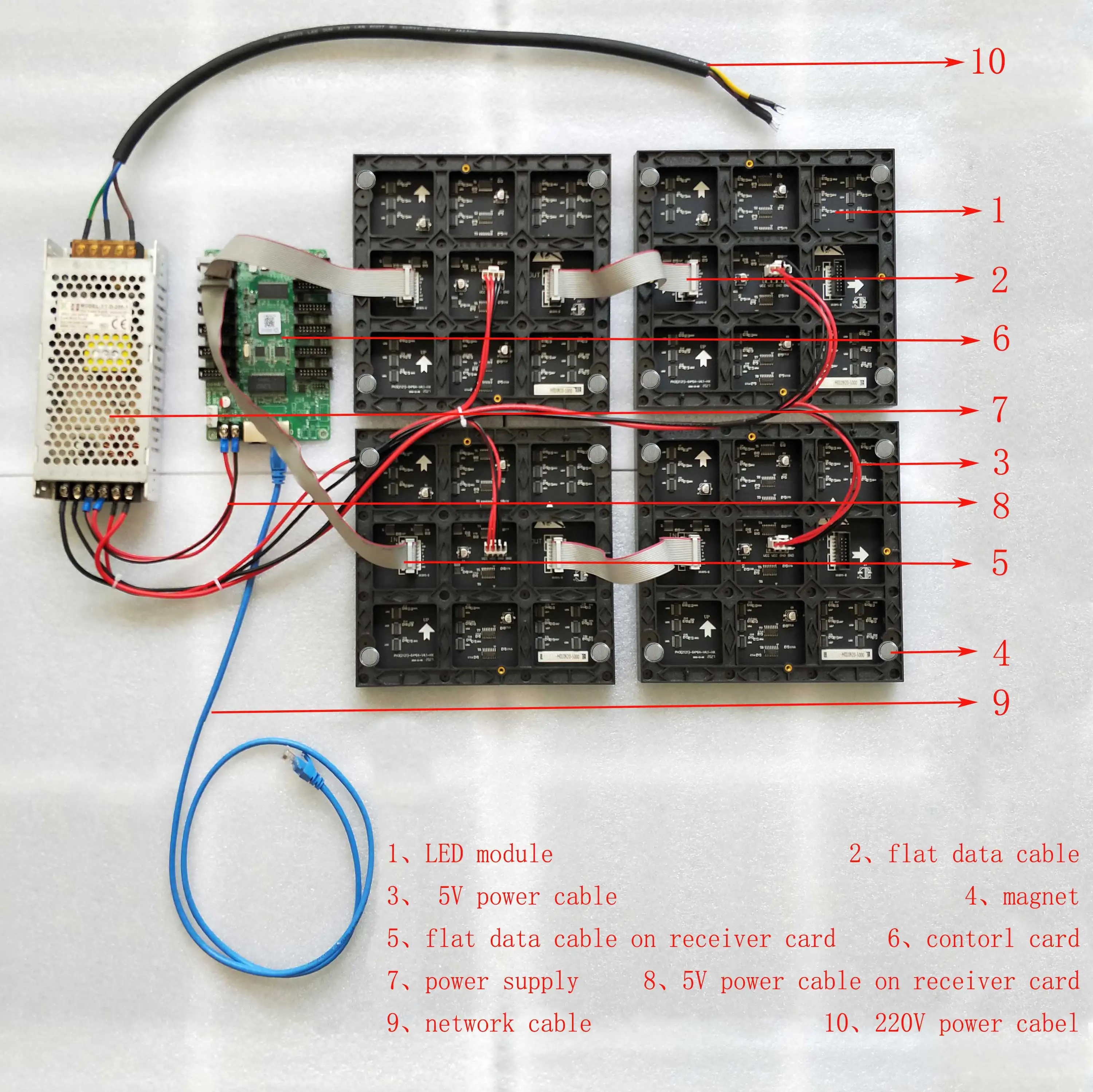

The data interface uses the conventional 16pin interface & VH4 power seat
usual modules are 16pin,you must need attention your control card suitable
Convenient power outlet, safety and quickly
Selling Point

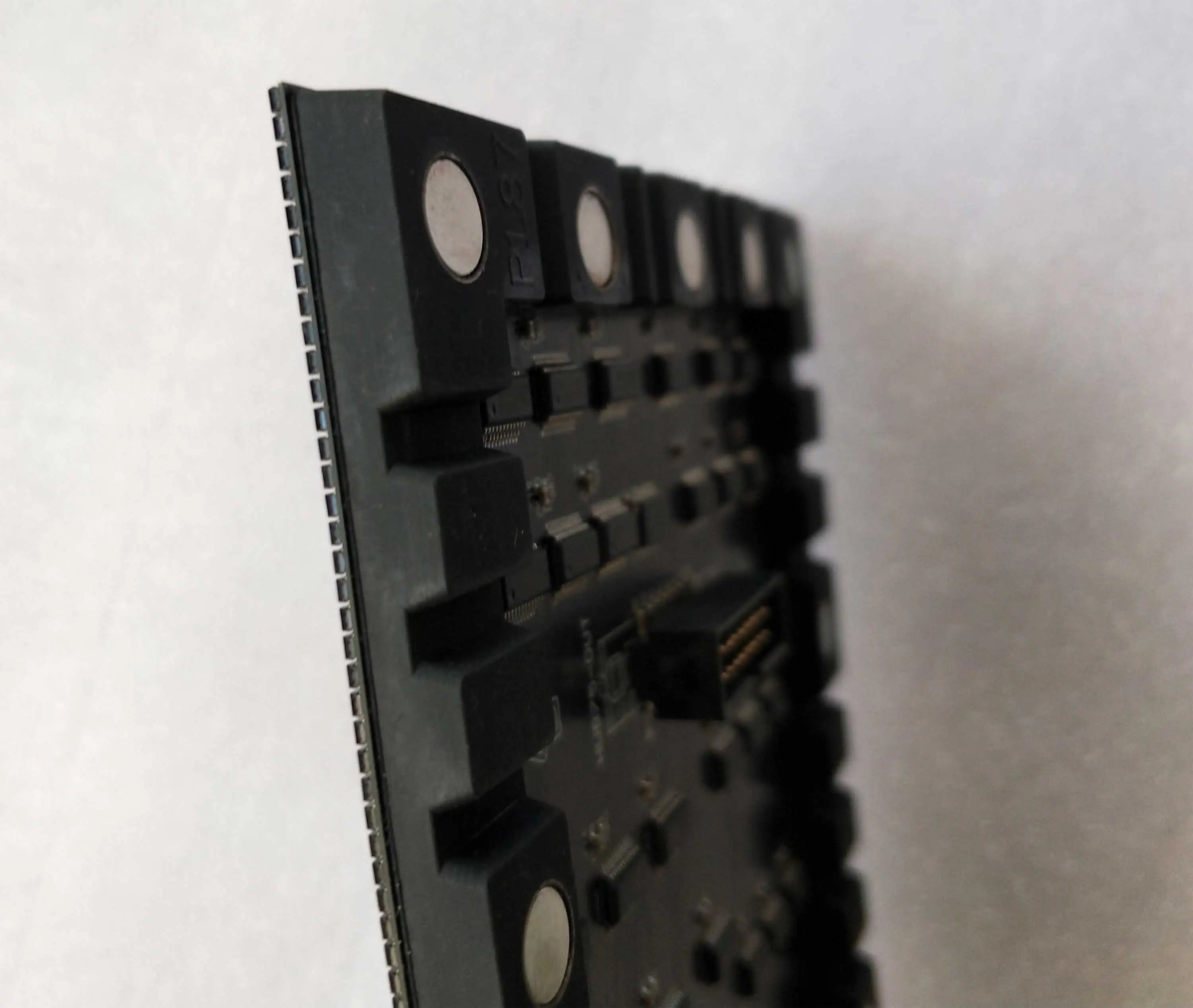

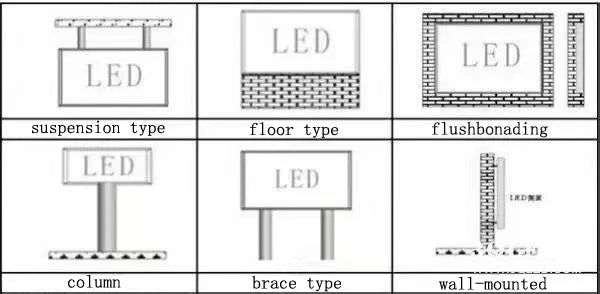

You can use screws fix the modules , magnets also available
indoor Modules not waterproof ,keep it dry , keep far away from water
The outdoor module lamp face is waterproof, and the driving face shall not be flooded.Outdoor waterproof case can be waterproof
Selling Point
1. Introduction
Some Products for customized products, not in stock. Does not provide any return service, the product produced, all the details of the pictures will be sent to you, both sides confirmed prior to shipment. If the inconvenience, please understand.
2. Warranty
One years of free maintenance: telephone consult maintenance, remote assistance, if the products have problems, please contact us immediately, we will help you solve the problem. If any part of the damage, we will send a new hardware replacement.

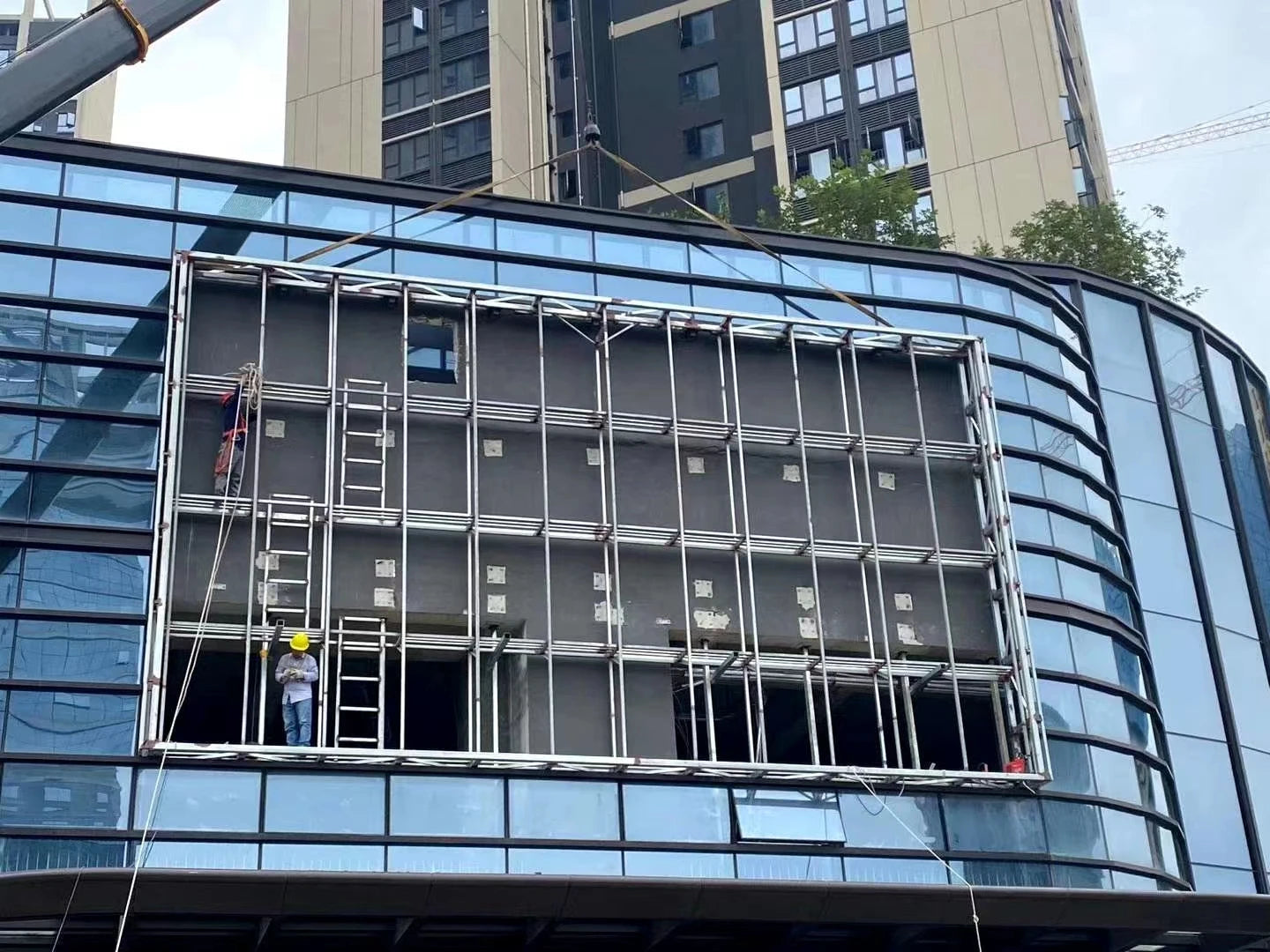

3.We can also send our engineer to your country for installation guide.
Selling Point

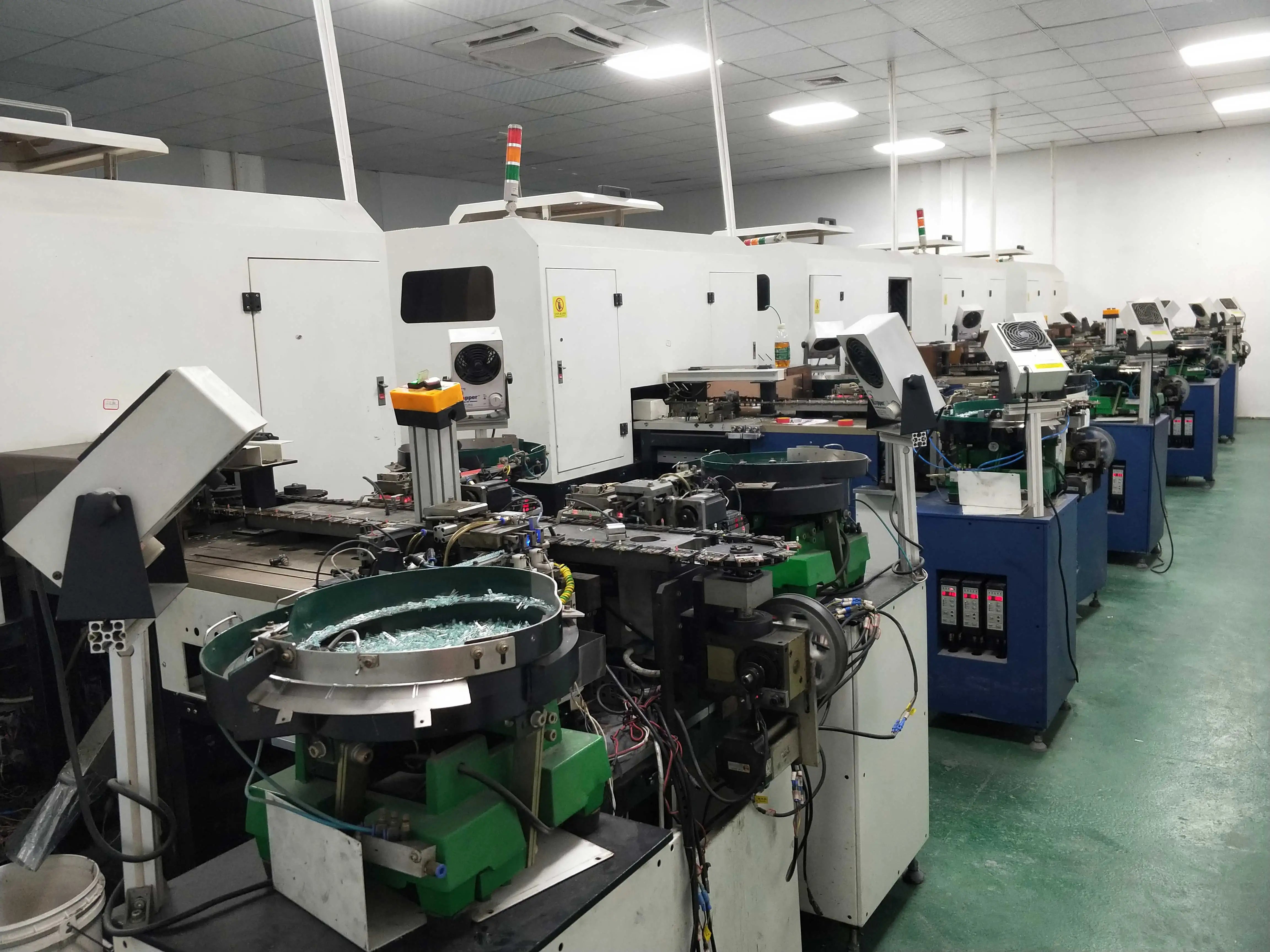

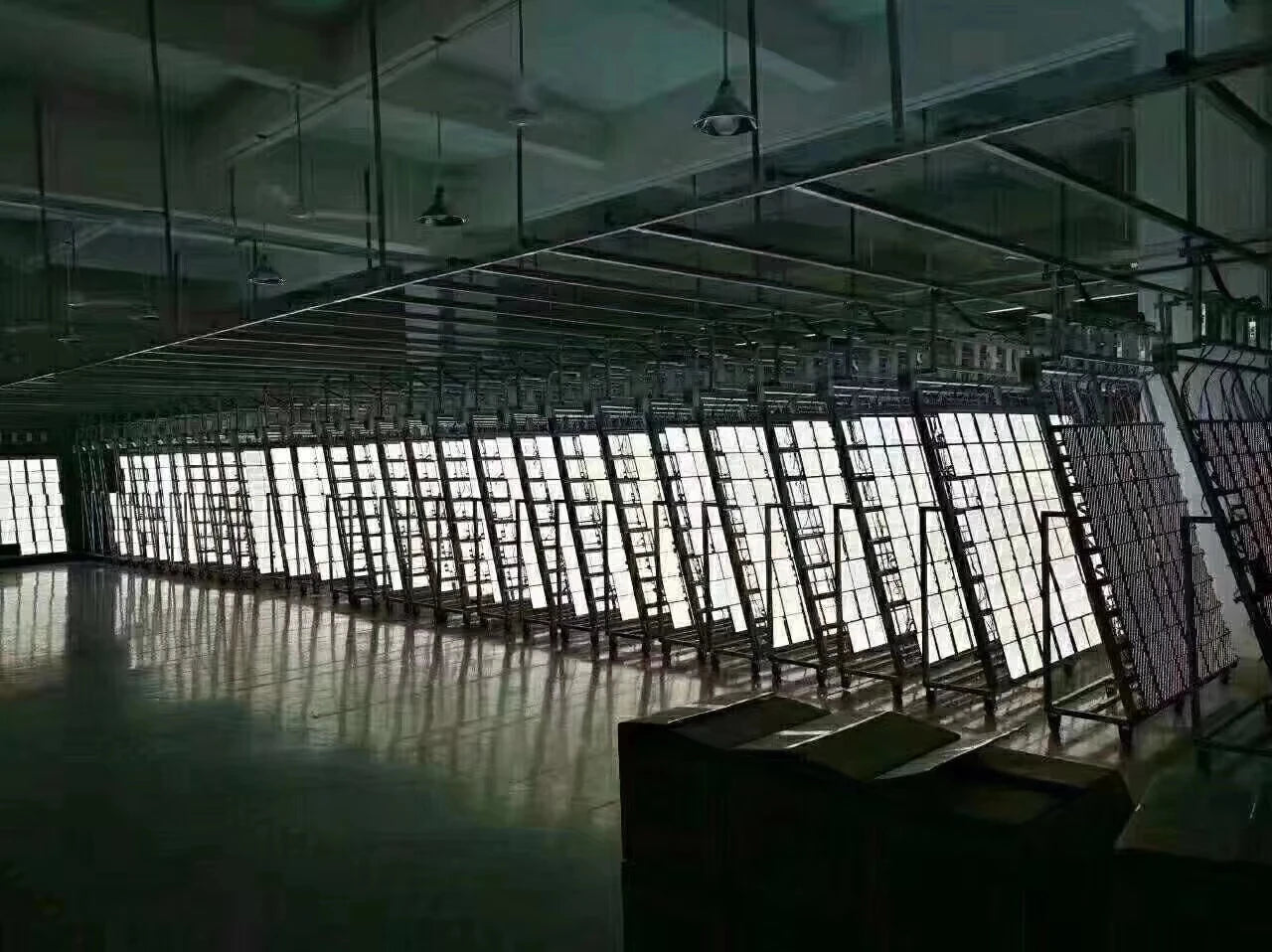

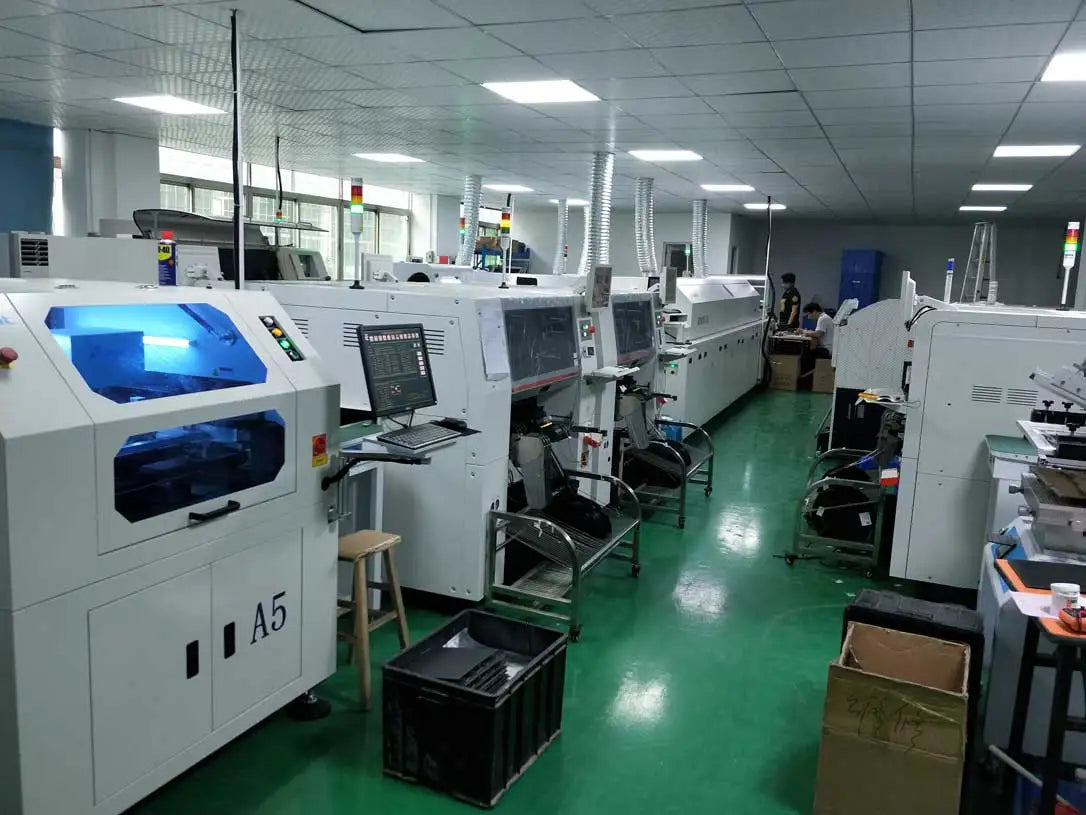

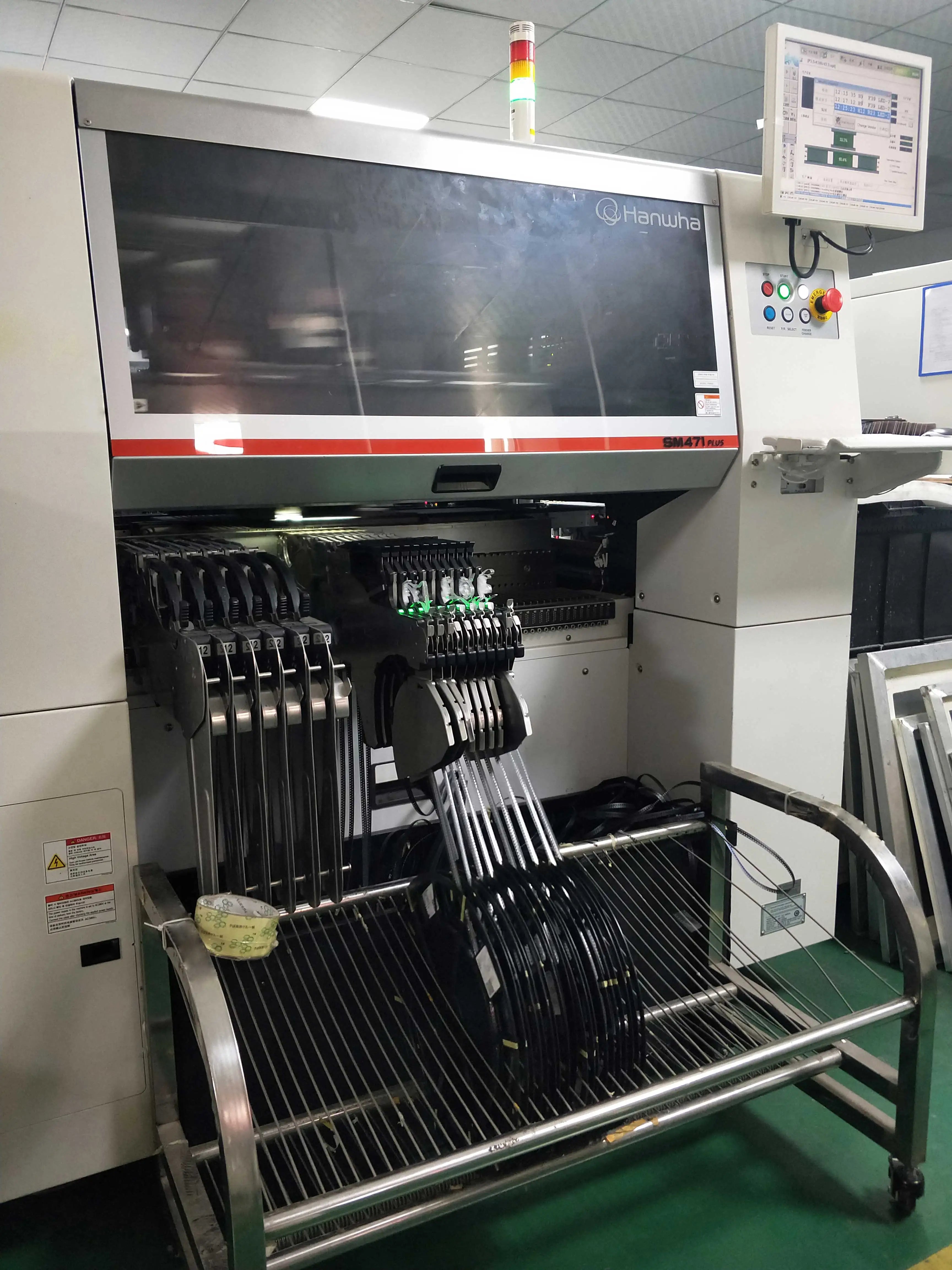

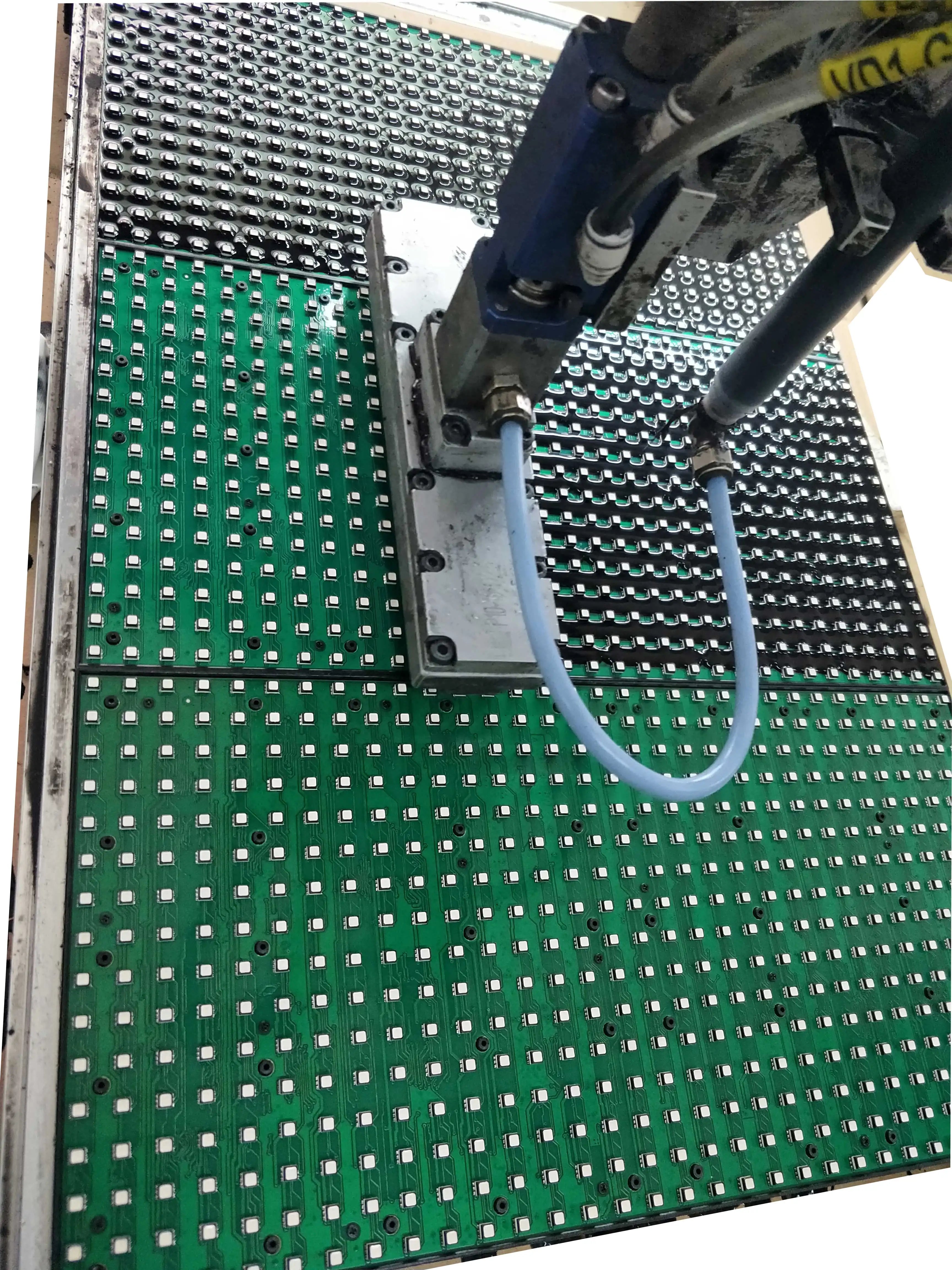

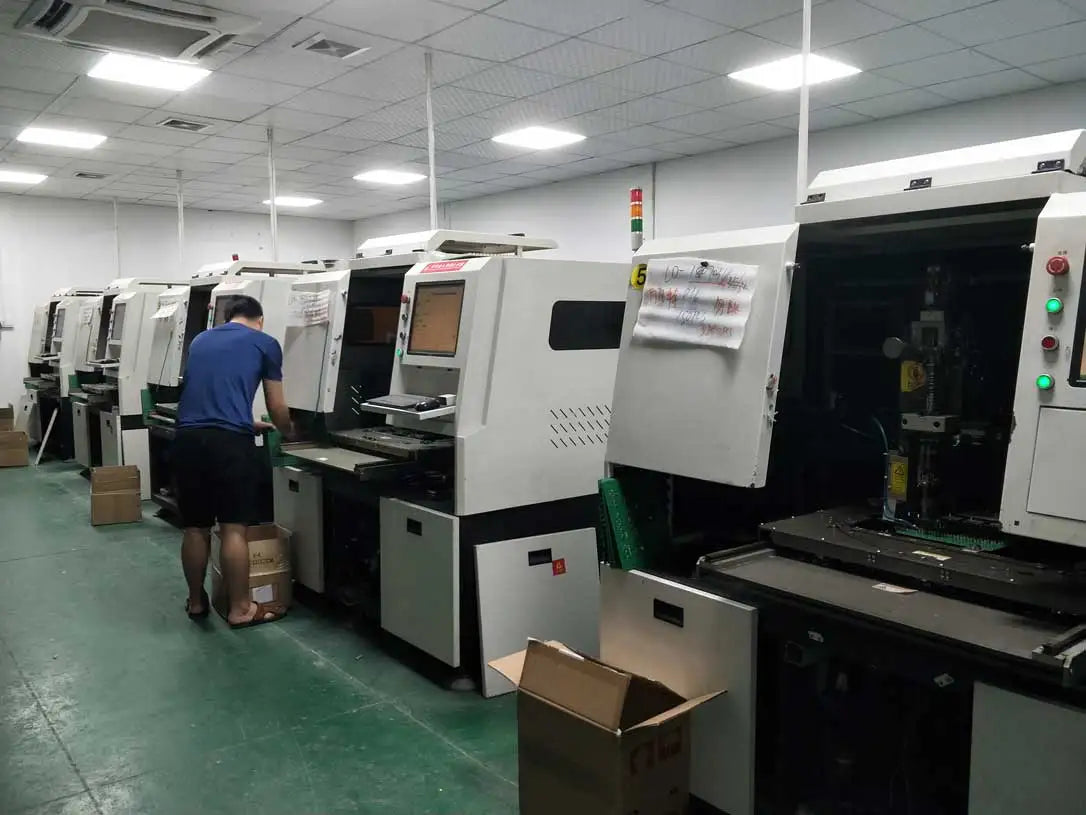

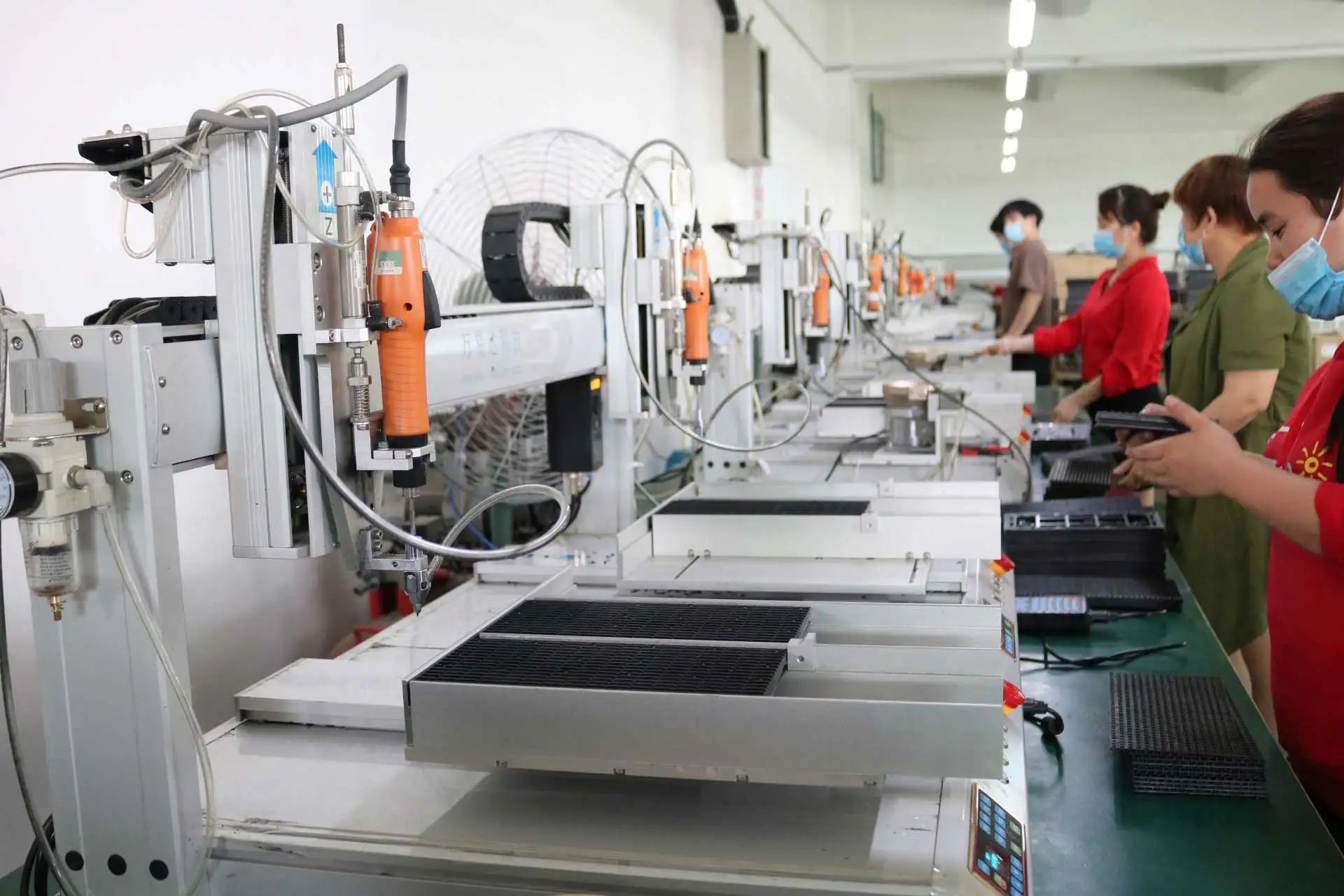

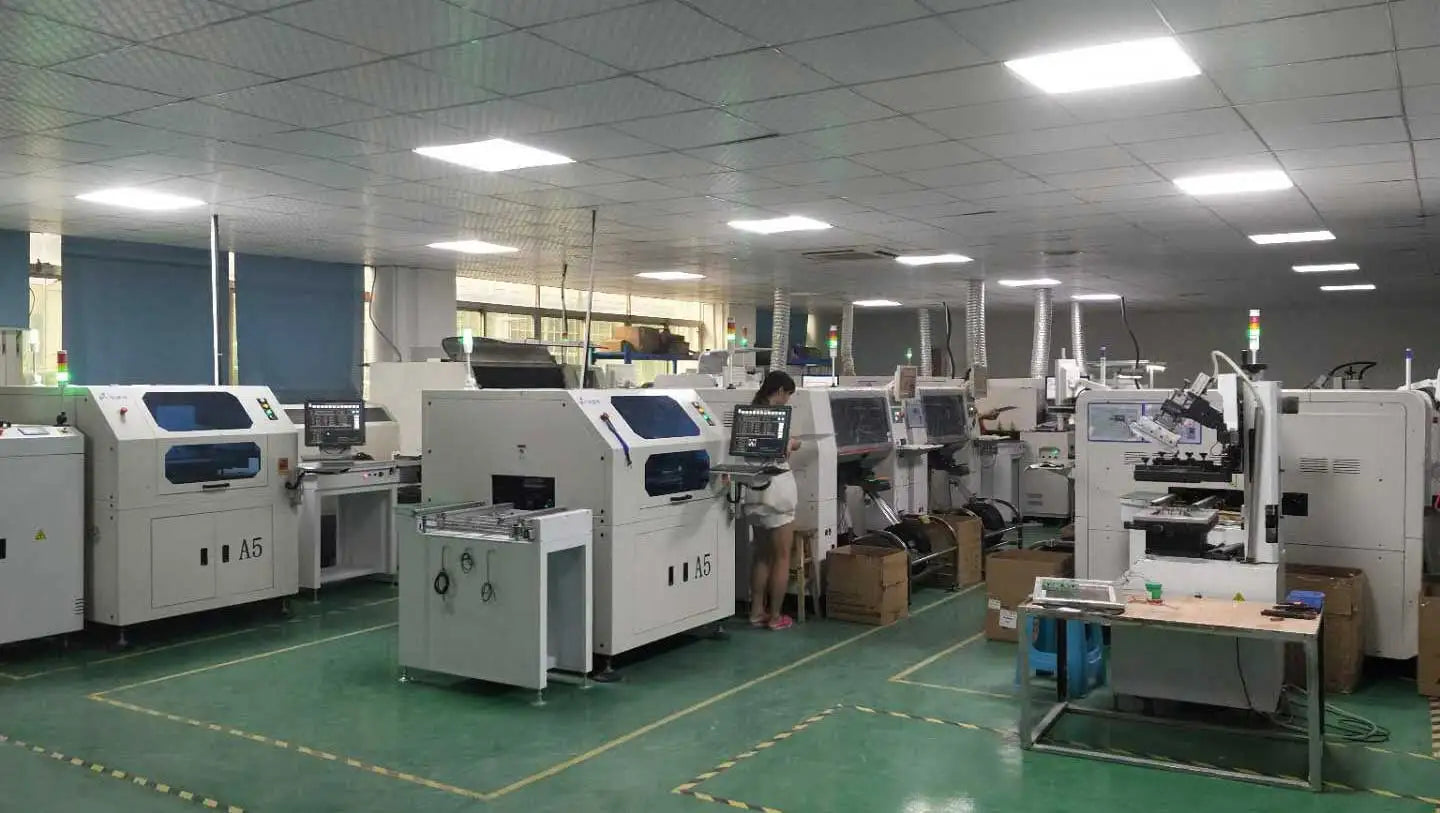

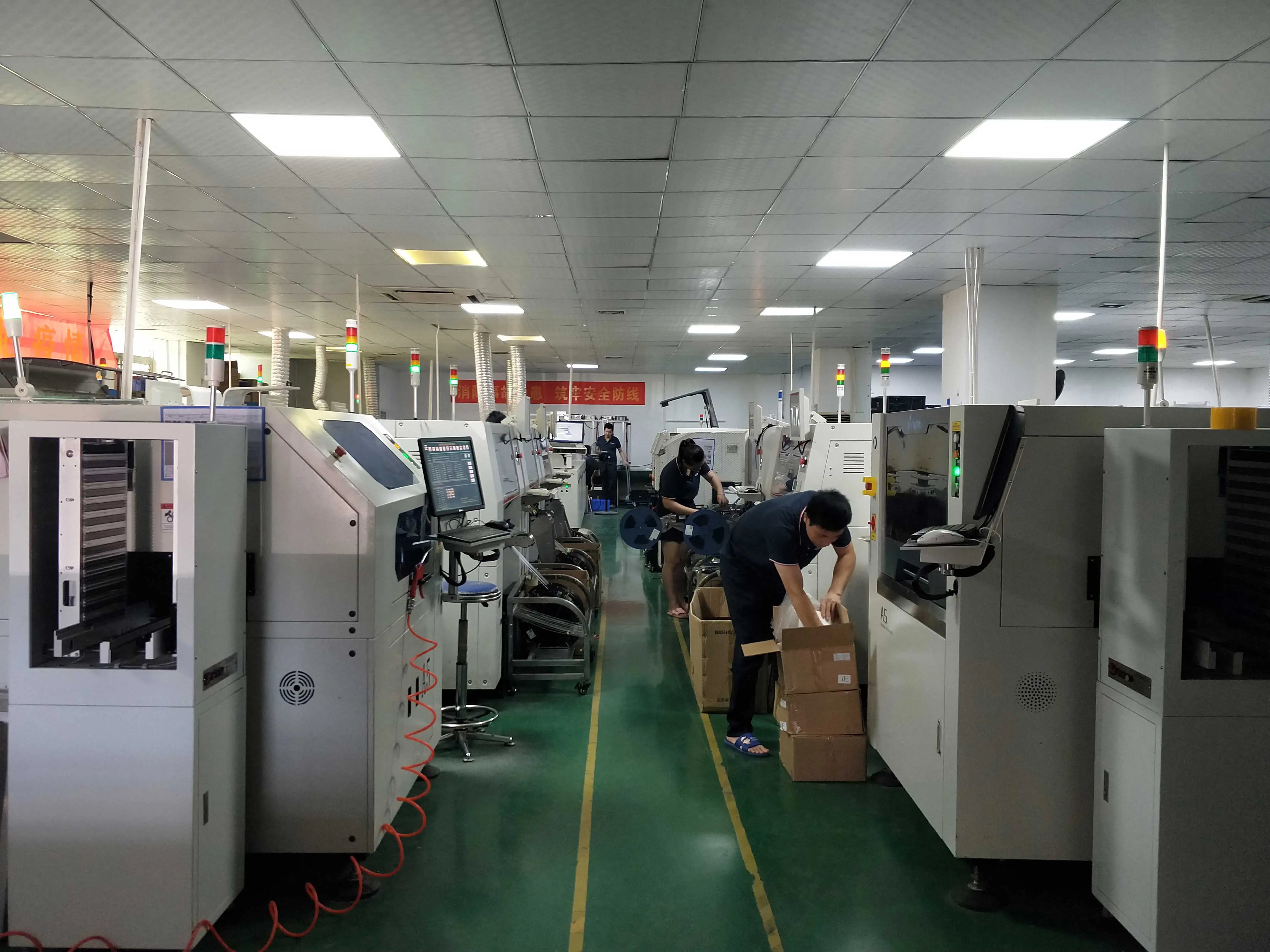

our company is a comprehensive professional LED display factory, which combined three areas: Production, R &D, and Sales together. a domestic advanced LED provider on LED application products and solutions. have independent decontaminating dust-free workshop, R&D base and the most advanced production and testing equipment in LED industry. always concentrate on offering high quality & high performance LED application products and solutions to professional agents and final customers, together with the most intimate and the most efficient service.
Selling Point
Enter the store to learn more products
FAQ
Q1. What's the warranty of your LED Display Screen ?
A: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2. What about your pre-sale service and post-sale service?
A:For pre-sale service: We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7.
We can offer a whole complete solution for your project.
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.
Also, we can send technician to your country to solve problems. Mostly, our led display will not have big problems within warranty time.
Q3. What's your payment term? How long it takes to delivery?
A: We accept T/T and PayPal, For T/T, At least 30% deposit in advance, and the rest 70% before delivery.
Our average production time is 15 days, after receiving the deposit.

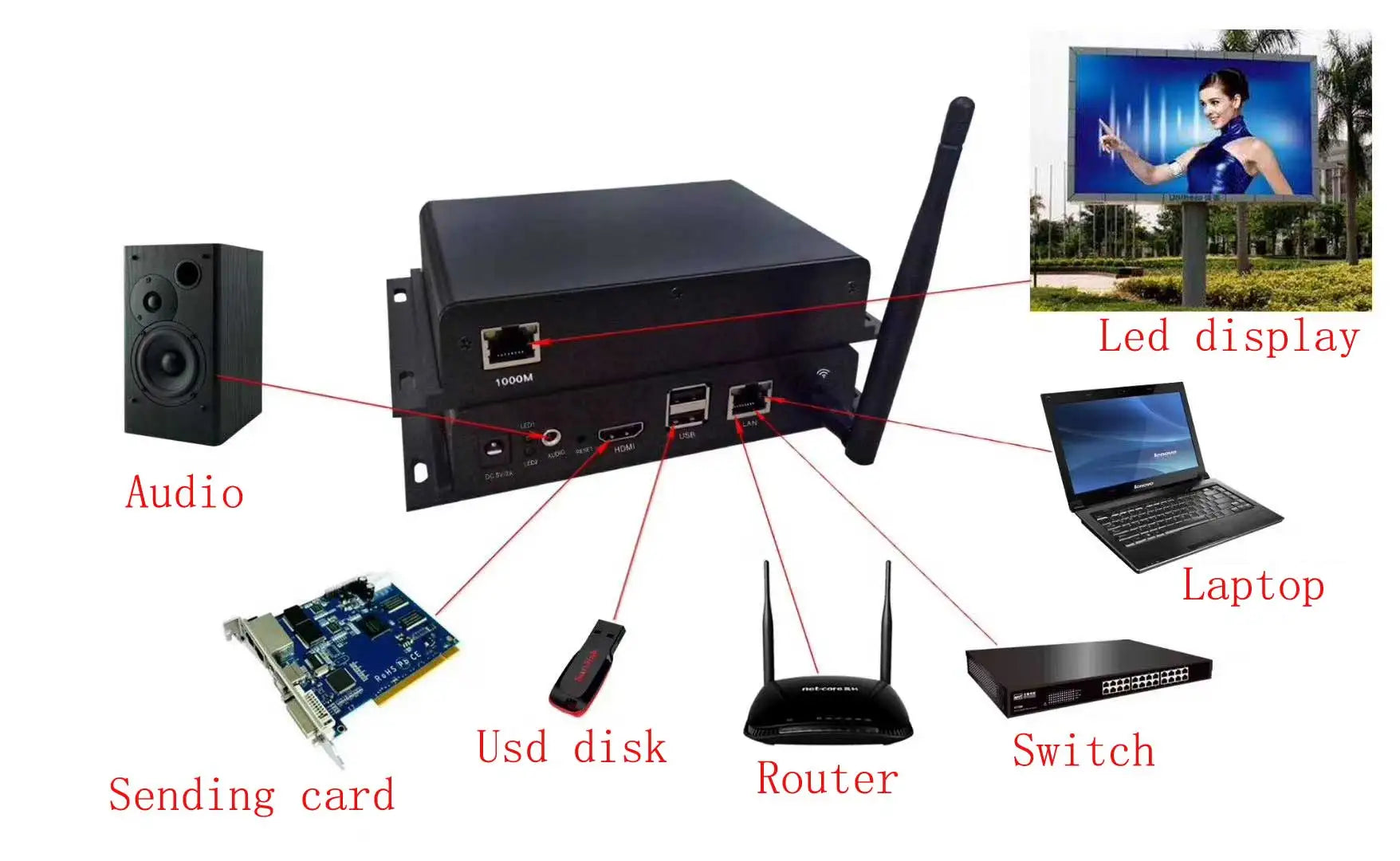

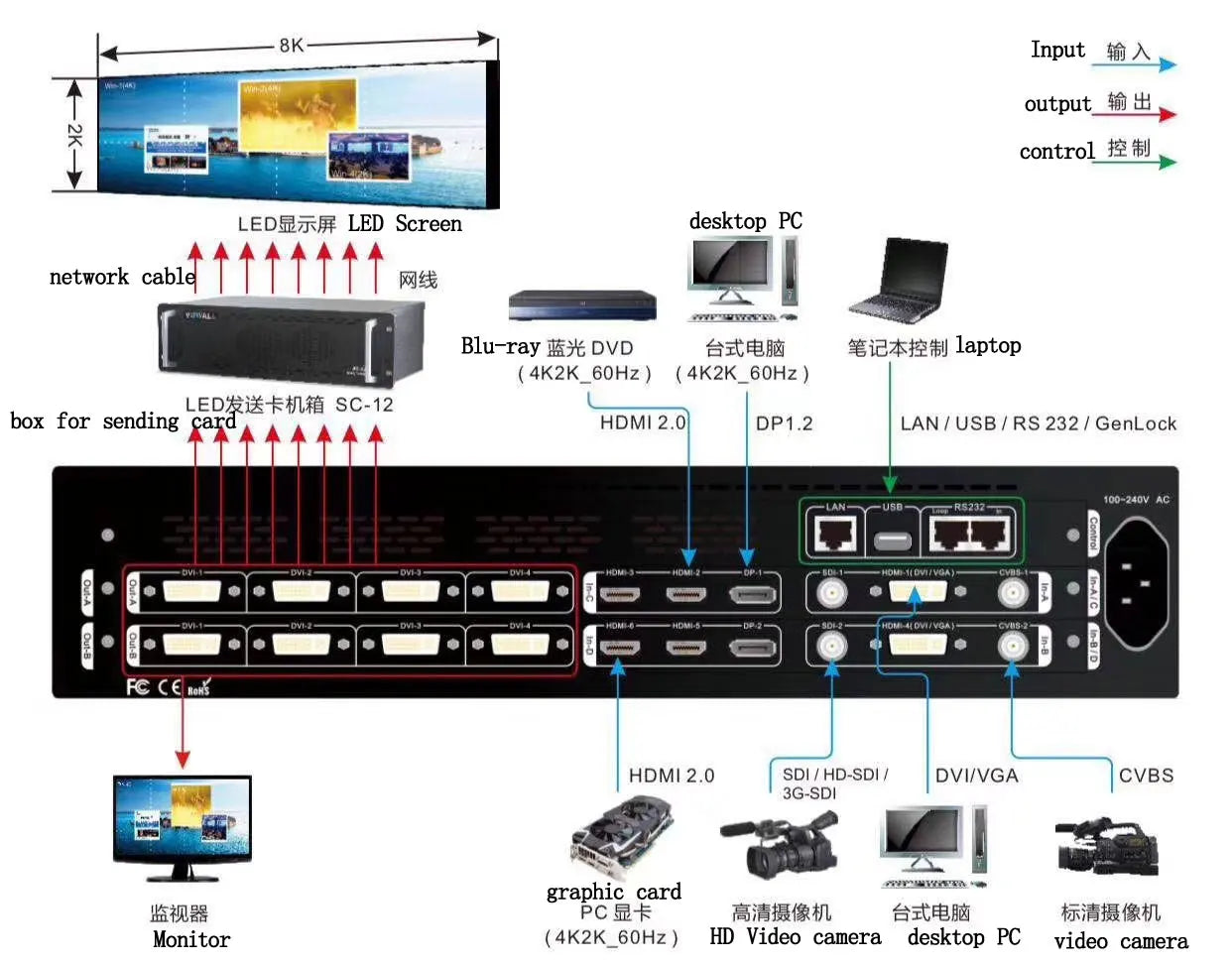

Q4. What's the control system?
A: For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use XiXun or HD control system.
Q5. How can you ensure the led display product quality?
A: Our led display screen quality is our core competence, for 8 years, what we rely on.
We have each standard process to make quality products.
