SPECIFICATIONS

Brand Name: smallrig

Compatibility 1: Android smartphones and tablets with USB-C ports

Compatibility 2: Cameras with 3.5mm audio input

Compatibility 3: Computers with UAC-compatible ports

Compatibility 4: Select Insta360 camera models with USB-C ports

Compatibility 5: Select DJI Osmo series camera models with USB-C ports

Compatible device: Action Cameras,Cameras,Laptops,Tablets,Phones

Connectivity: WireLess

Features 1: Discreet, Feather-Light Profile

Features 10: Features 3-level noise reduction and 5-level gain adjustment

Features 11: with 3 mixing modes: Mono, Safety Track, and Stereo

Features 12: Auto Limiter for Anti-Clipping

Features 13: Stylish Travel Case Design

Features 2: Extended 40-Hour Runtime

Features 3: Provides over 40 hours of continuous operation when paired with the charging case

Features 4: High-Fidelity Audio Capture

Features 5: 24-bit/48kHz sampling, 70dB SNR

Features 6: 120dB SPL maximum sound pressure for clean

Features 7: Grammy-Level Tuning by Luca Bignardi

Features 8: Offers 9 preset EQ modes, including General (Default), Rich, Bright, Male, Female, Singing, Guitar, Violin, and Ambient

Features 9: Flexible Noise & Gain Control

High-concerned chemical: None

Material(s): ABS + PC, Nitinol (Nickel-Titanium Alloy), Silicone

Microphone Type: USB microphone

Model: 5715

Origin: Mainland China

Polar Pattern: Bi-directional

5715 Product Description

I. Product Name

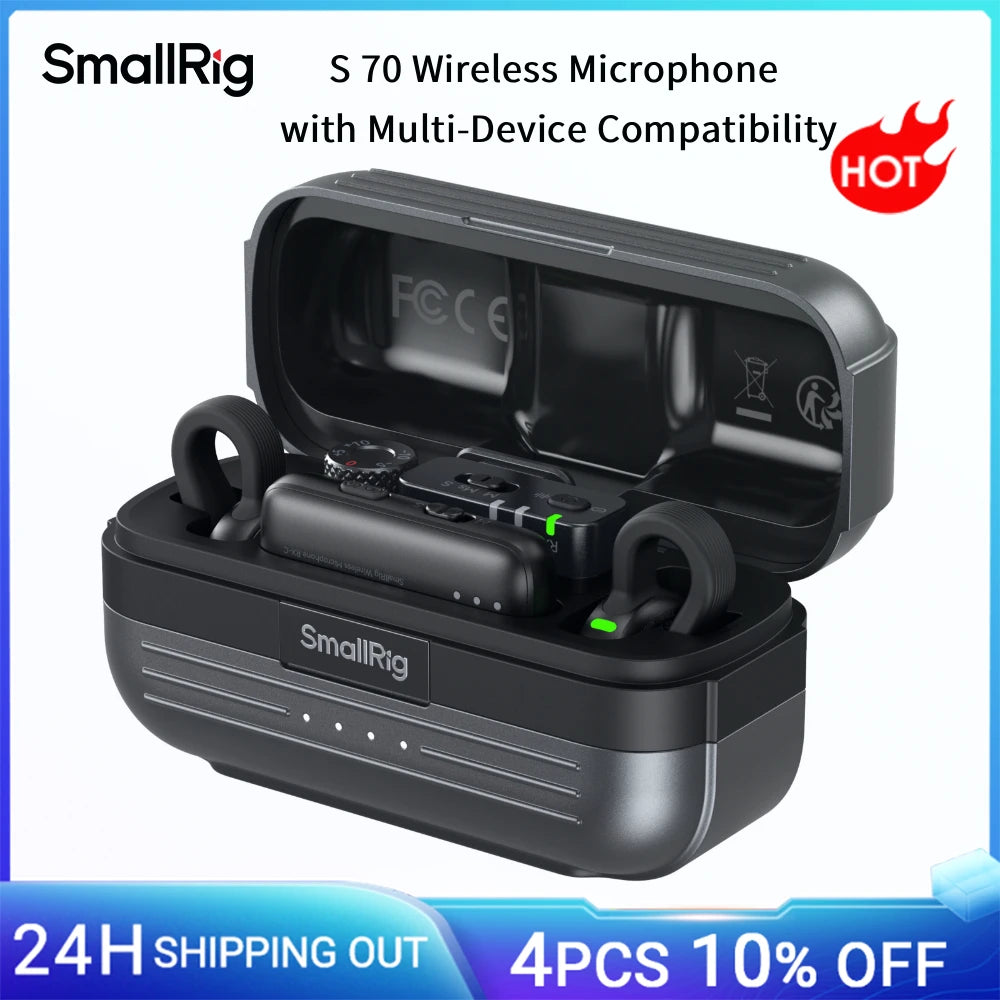

Product Name in Package: SmallRig S 70 Wireless Microphone with Multi-Device Compatibility (Black) 5715

Product Name in Marketing: SmallRig S 70 Wireless Microphone with Multi-Device Compatibility (Black) 5715

II. Key Features

1. Discreet, Feather-Light Profile: Measures only 8.8 × 29mm (0.3 × 1.1in) and weighs only 8.6g (0.3oz), making it virtually invisible when clipped to clothing.

2. Extended 40-Hour Runtime: Provides over 40 hours of continuous operation when paired with the charging case.

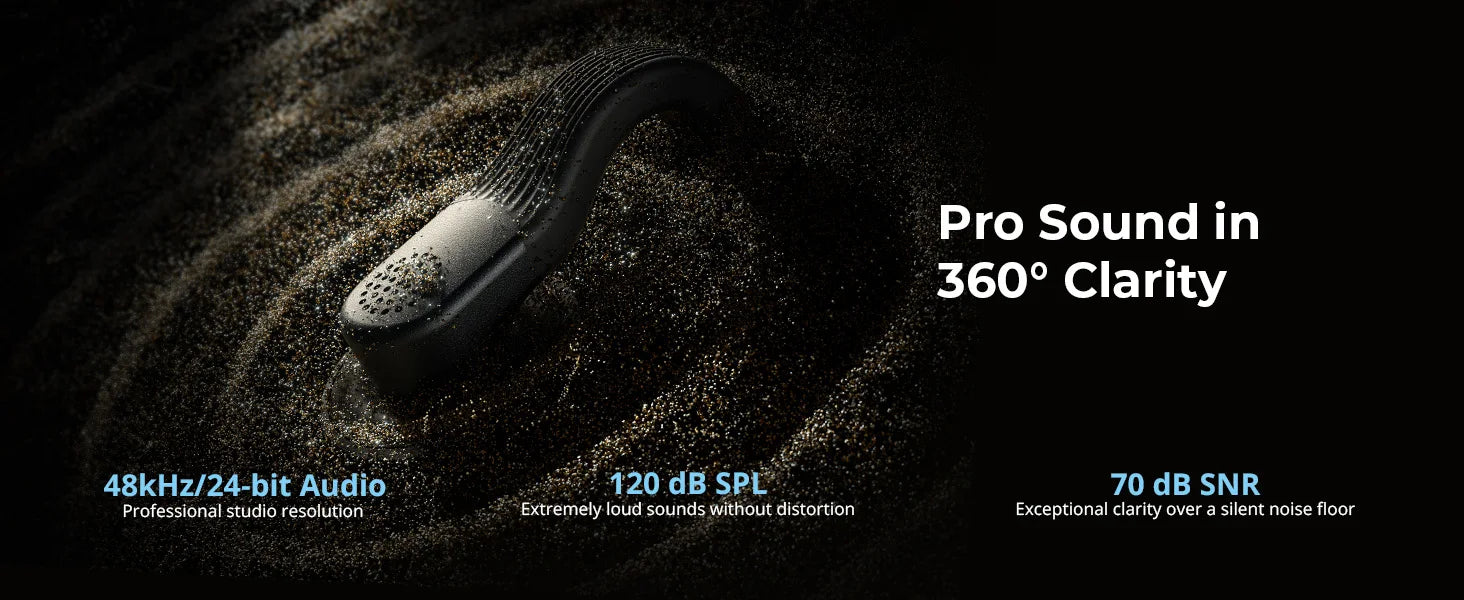

3. High-Fidelity Audio Capture: 24-bit/48kHz sampling, 70dB SNR, and 120dB SPL maximum sound pressure for clean, detailed recordings.

4. Grammy-Level Tuning by Luca Bignardi: Offers 9 preset EQ modes, including General (Default), Rich, Bright, Male, Female, Singing, Guitar, Violin, and Ambient.

5. Flexible Noise & Gain Control: Features 3-level noise reduction and 5-level gain adjustment, with 3 mixing modes: Mono, Safety Track, and Stereo.

6. Auto Limiter for Anti-Clipping: Automatically suppresses sudden peaks to deliver loud, clear, and distortion-free audio.

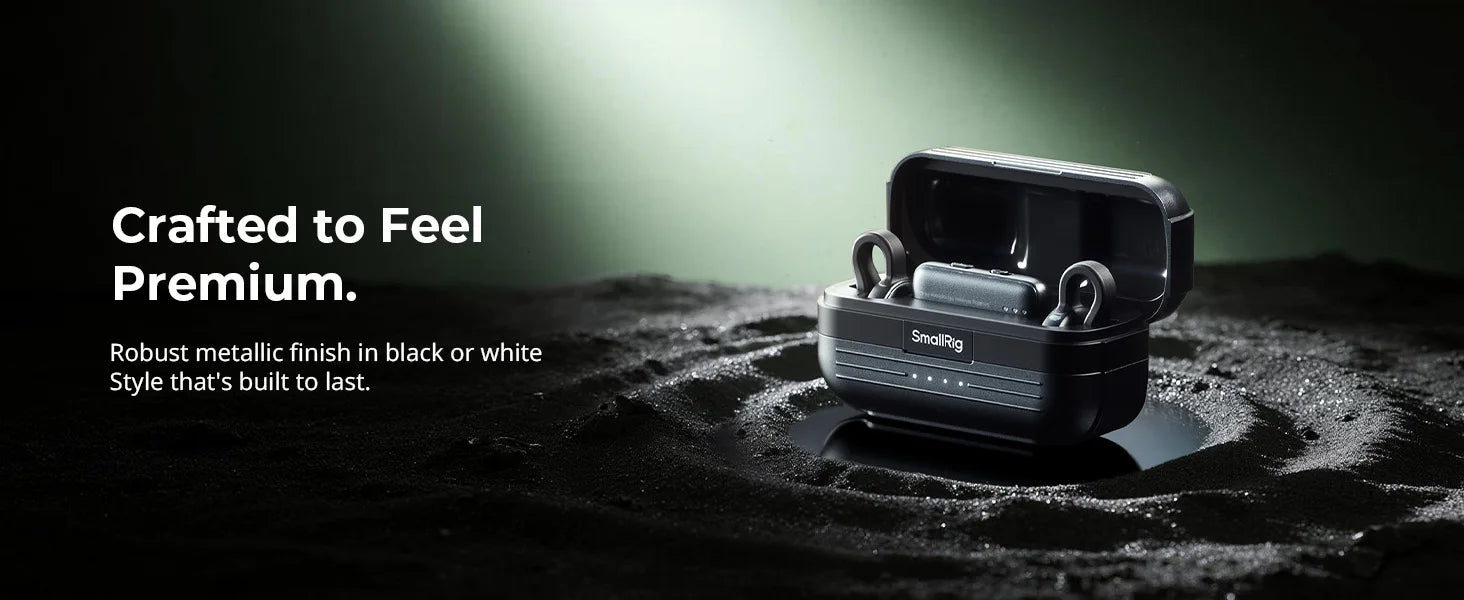

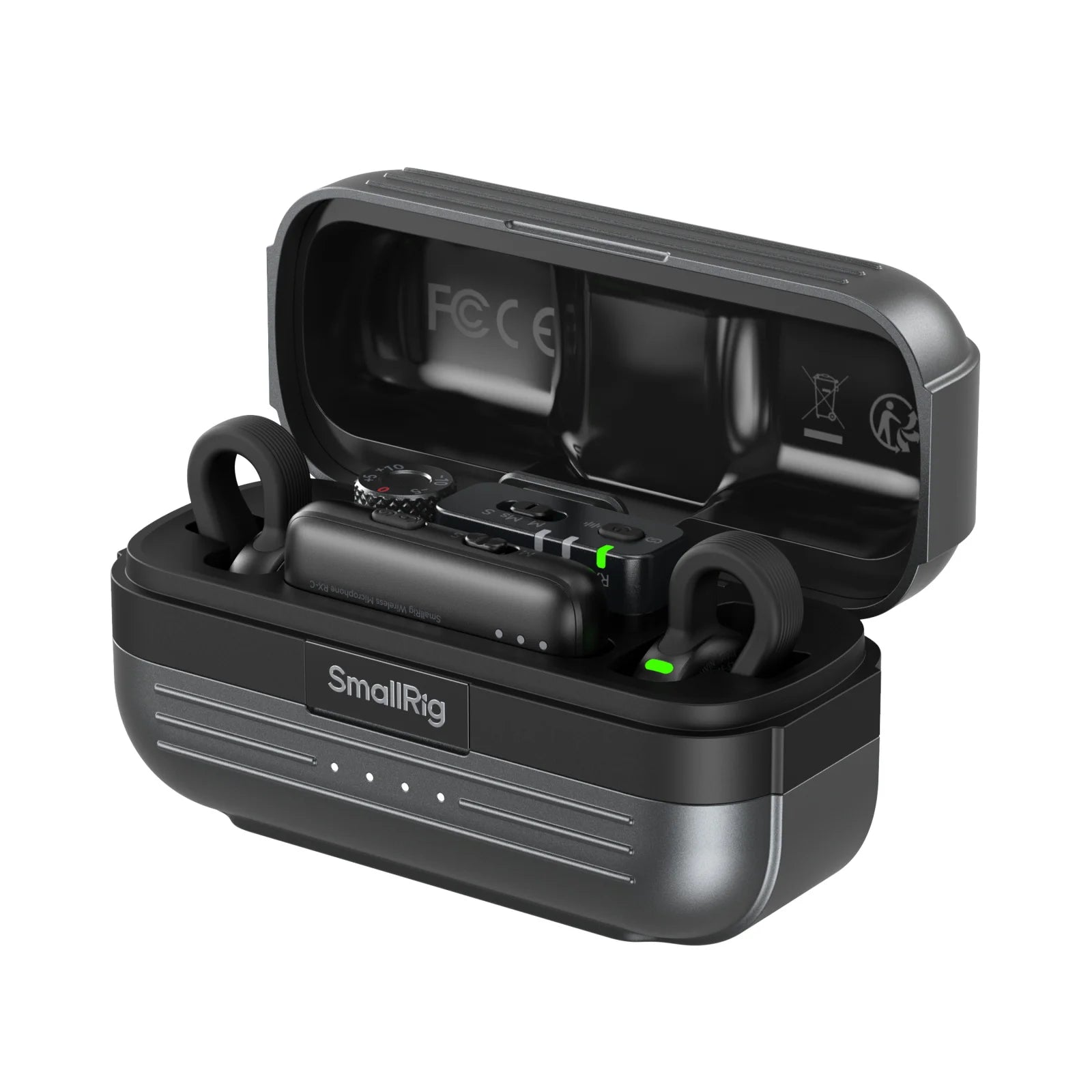

7. Stylish Travel Case Design: Features a classic, fashion-forward aesthetic that emphasizes mobility and smart storage.

III. Description

SmallRig S 70 Wireless Microphone with Multi-Device Compatibility (Black) 5715 is designed for content creators and streamers using cameras or smartphones. It is ideal for a wide range of scenarios including live streaming, daily vlogging, short video production, travel filming, and interviews.

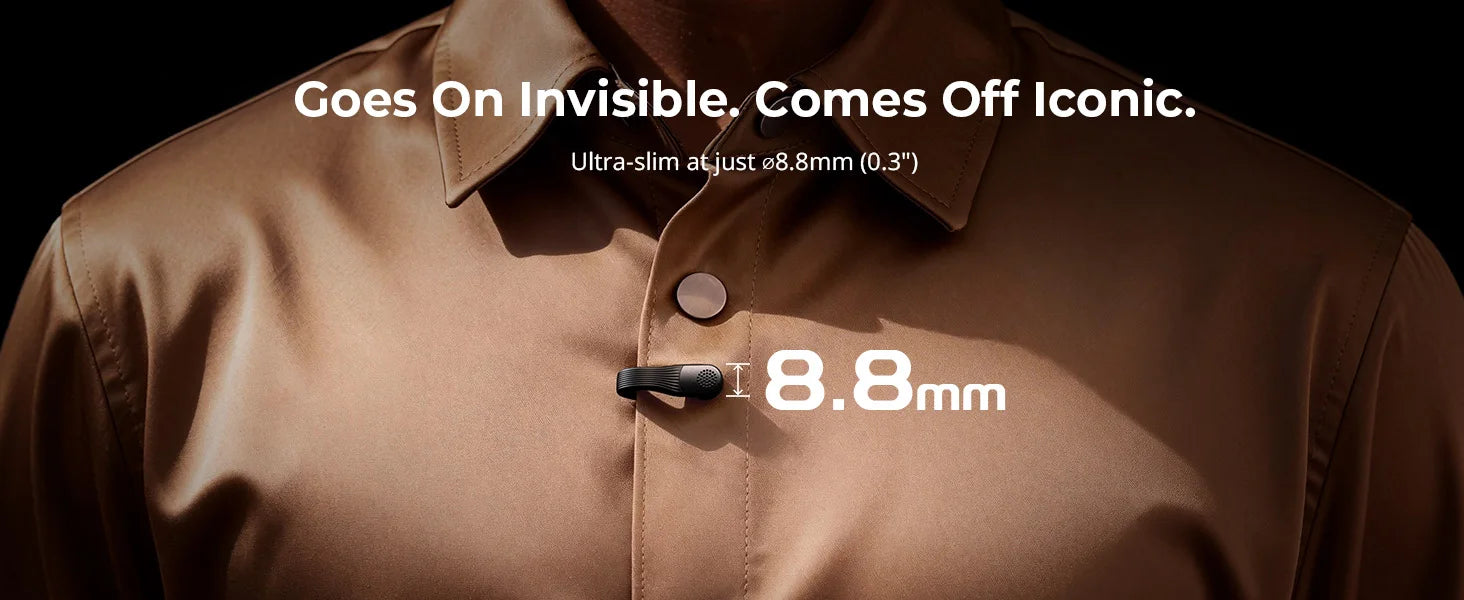

Featuring a semi-concealed design with a nitinol memory-alloy clip structure, the exposed components measure only 8.8 × 29mm (0.3 × 1.1in) and the entire unit weighs a mere 8.6g (0.3oz). When clipped to a collar, it remains nearly invisible and unnoticeable—without affecting clothing or appearance—making it an excellent choice for users who demand both high audio quality and a clean on-camera presence.

The system includes RX receivers with USB-C and 3.5mm connectors, ensuring broad compatibility with most mainstream Android smartphones and cameras.

Equipped with an ATS3031 chip, it supports high-fidelity 48 kHz/24-bit audio recording. With 3 noise reduction modes, 5 levels of gain adjustment, and 3 mixing modes, it adapts seamlessly to diverse recording environments. An auto limiter prevents clipping, ensuring consistently clear, distortion-free sound.

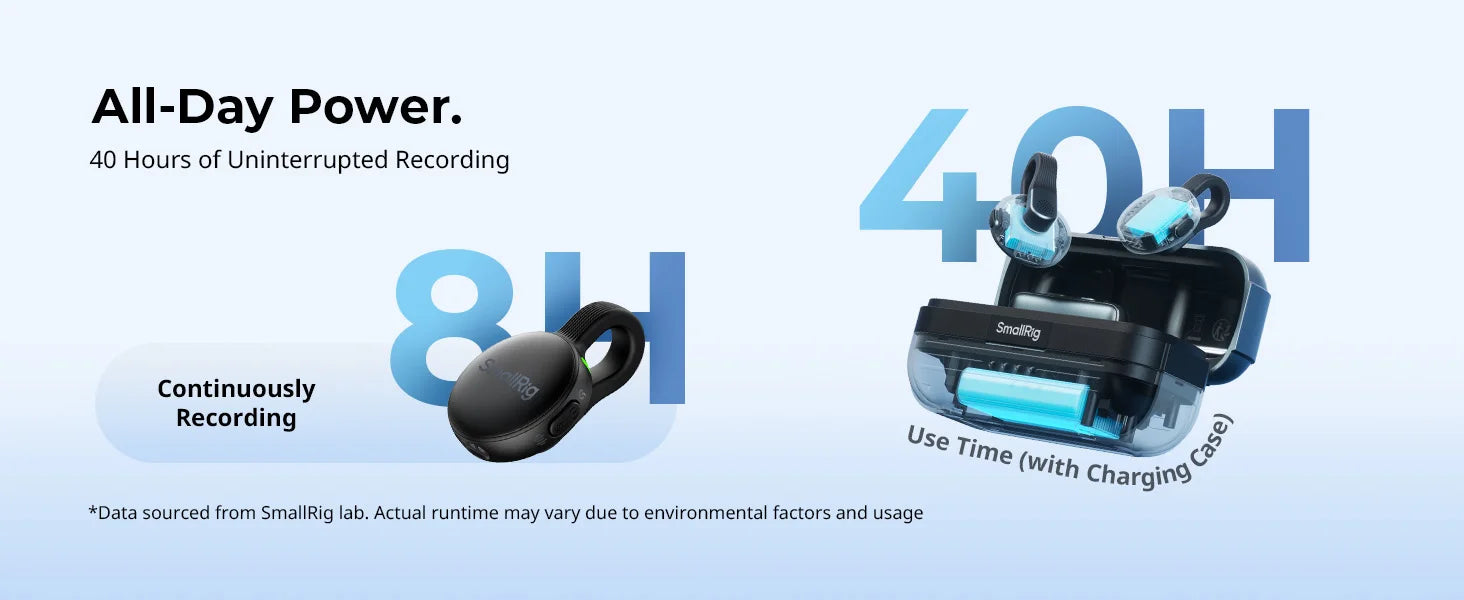

The microphone offers up to 8 hours of continuous use on a single charge, and when paired with the charging case, the total battery life extends to over 40 hours—sufficient for 2 to 3 days of operation without needing to recharge.

Expertly tuned by Grammy-winning sound engineer Luca Bignardi, the nine preset EQs enhance vocal clarity and purity across various voice types and recording conditions.

IV. Compatibility

1. Android smartphones and tablets with USB-C ports

2. Cameras with 3.5mm audio input

3. Computers with UAC-compatible ports

4. Select Insta360 camera models with USB-C ports

5. Select DJI Osmo series camera models with USB-C ports

V. Package

Charging Case × 1

TX Transmitters × 2

Smartphone RX Receiver × 1

Camera RX Receiver × 1

Furry Windscreens × 2

USB-C Charging Cable × 1

3.5mm Audio Adapter Cable × 1

User Manual × 1

Carrying Bag × 1

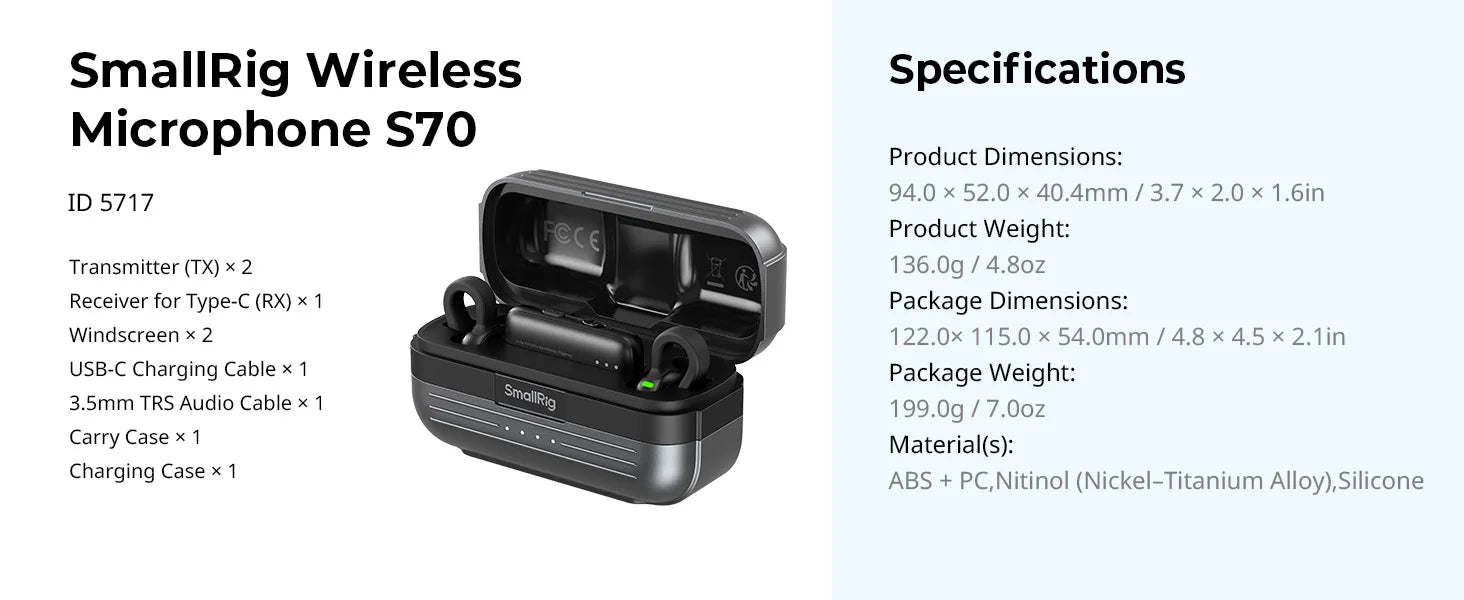

VI. Specifications

● Product Dimensions:

Charging Case: 94.0 × 52.0 × 40.4mm / 3.7 × 2.0 × 1.6in

TX Transmitter:

(Rear): 37.15 × 25.0 × 9.38mm / 1.5 × 1.0 × 0.4in (with titanium wire)

(Front): 29.15 × 8.6 × 6.83mm / 1.1 × 0.3 × 0.2in (with titanium wire)

Smartphone RX Receiver: 42.6 × 16.7 × 8.9mm / 1.7 × 0.7 × 0.4in (excluding connector)

Camera RX Receiver: 43.0 × 23.0 × 12.0mm / 1.7 × 0.9 × 0.5in (excluding cold shoe mount)

Lightning RX Receiver: 42.6 × 16.7 × 8.9mm / 1.7 × 0.7 × 0.4in (excluding connector)

● Package Dimensions:

122.0 × 115.0 × 54.0mm / 4.8 × 4.5 × 2.1in

● Product Weight:

Charging Case: 129.2g / 4.6oz

TX Transmitters: 8.8g / 0.3oz

Smartphone RX Receiver: 5.9g / 0.2oz

Camera RX Receiver: 12.5g / 0.4oz

● Package Weight: 220.0 ± 5.0g / 7.8 ± 0.2oz

● Material(s): ABS + PC, Nitinol (Nickel–Titanium Alloy), Silicone

● Regulatory Notes: Weak Magnetic Properties | UN3481, UN3480
