Product Highlights
SPECIFICATIONS
Accessory Type: Battery Accessories
Battery Included: no
Brand Name: ecoflypower
Charger included: N
Electronic: no
High-concerned chemical: None
Model Number: HT24468
Origin: Mainland China
PCBincluded: No
Use: others
Voltage range: USB (5-20V DC)

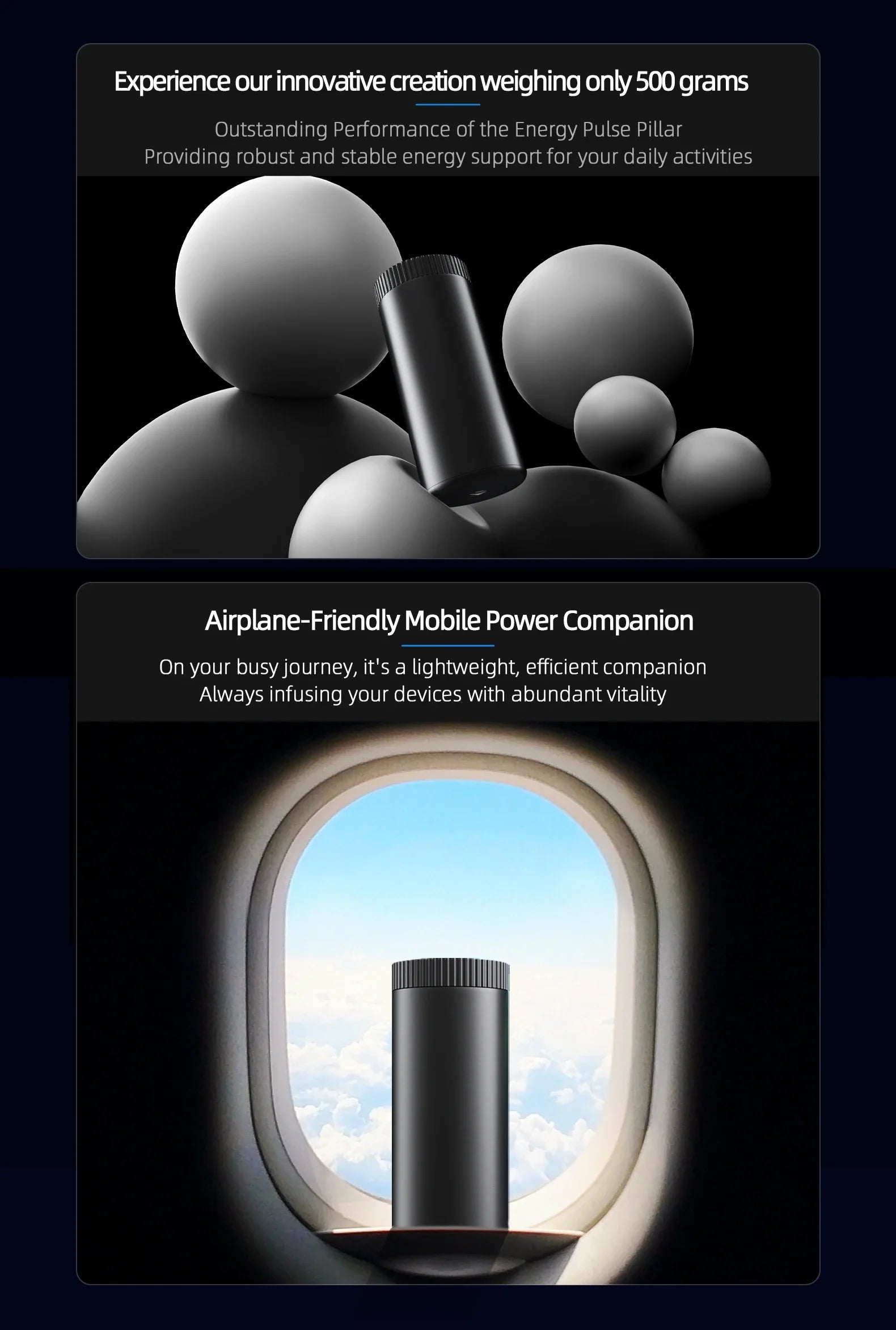

Weight: 500 g
fast charging: 24W
note: packing list not include battery
Click to view more options

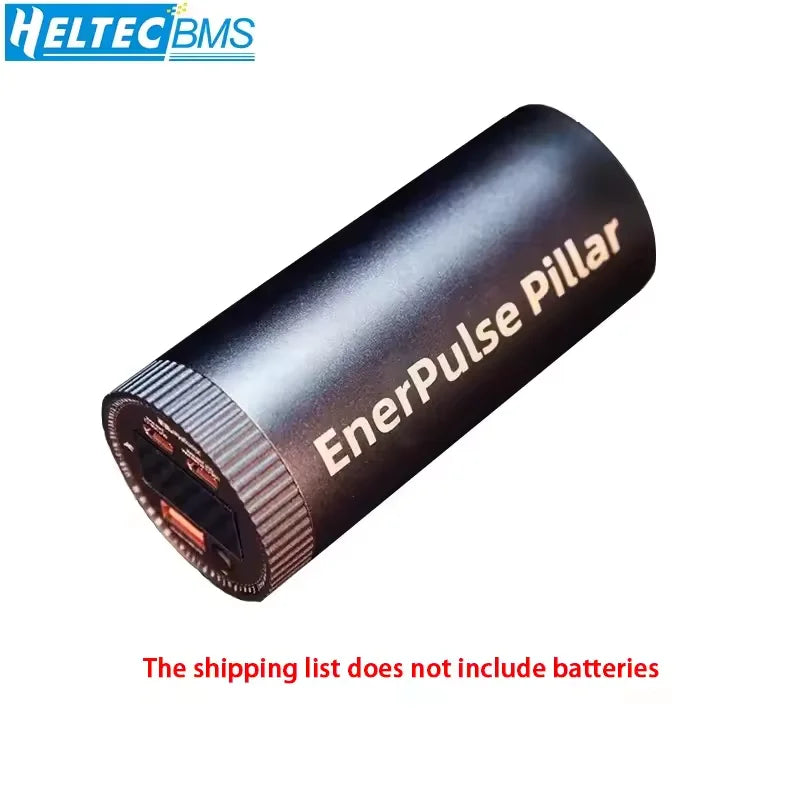

NOTE:The shipping list does not include batteries

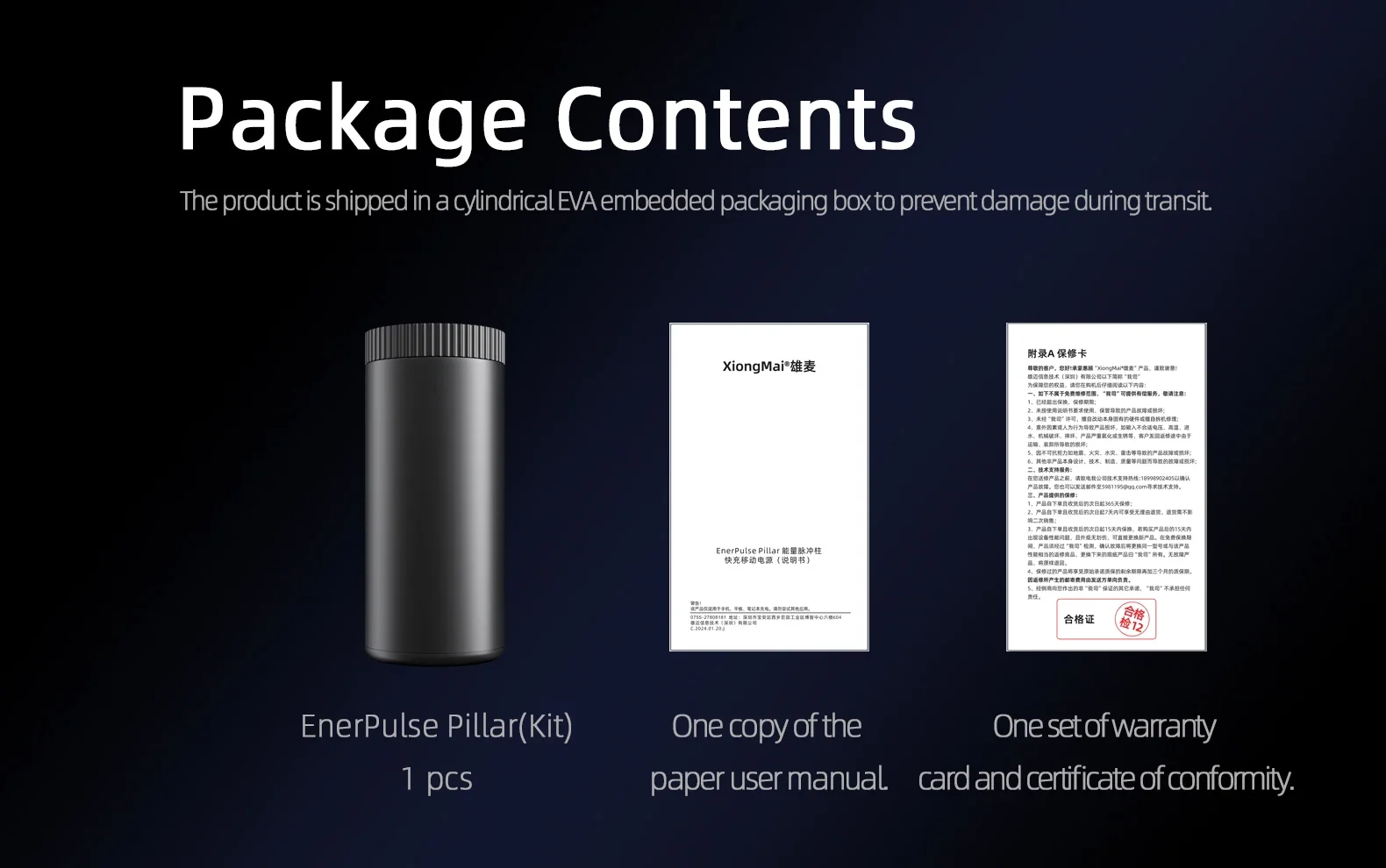

Packaging list:
1.,1 energy pulse tank,
2 ,instructions (including warranty card and certificate of conformity)
Use on Ternary lithium battery !
Overview

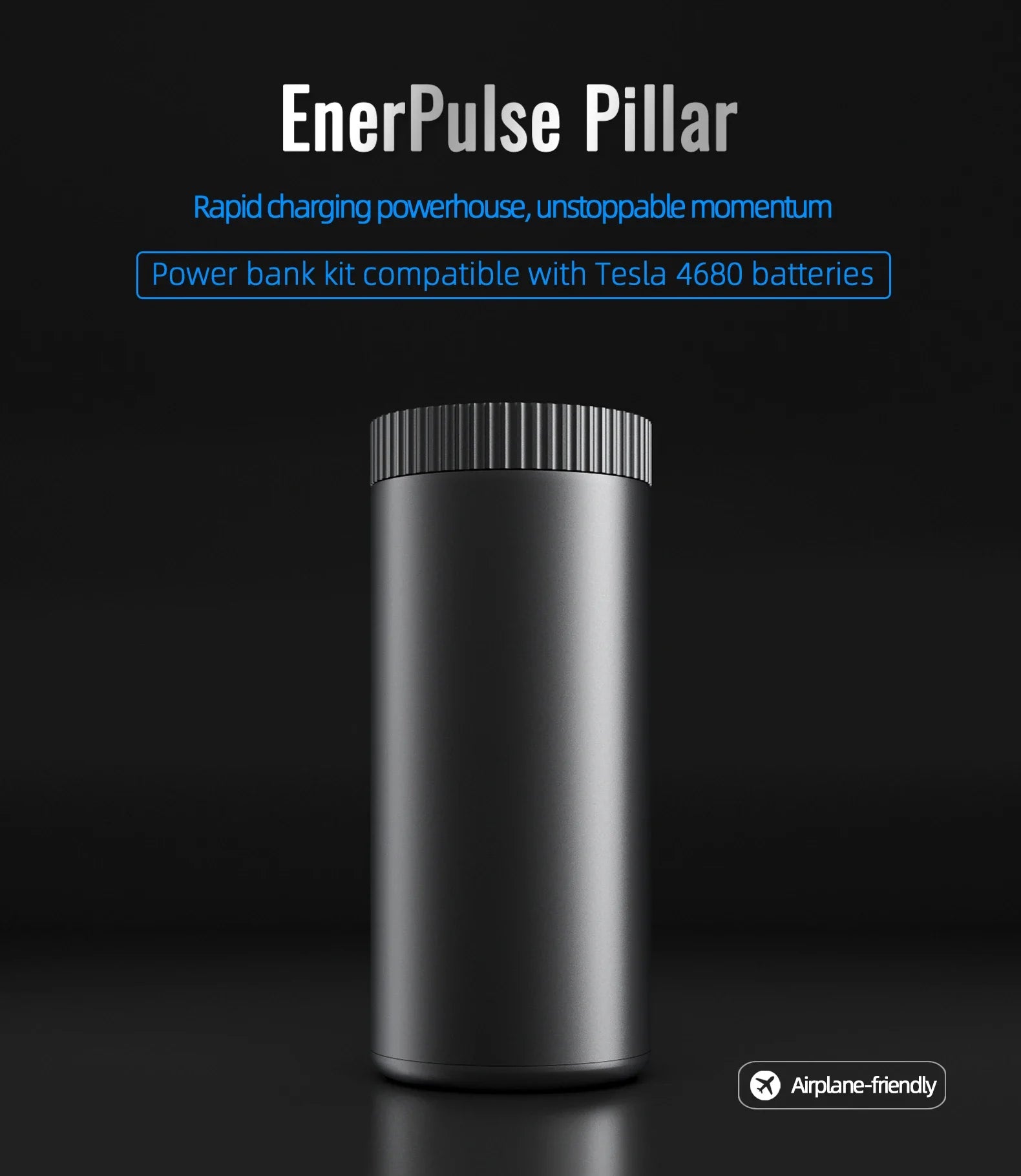

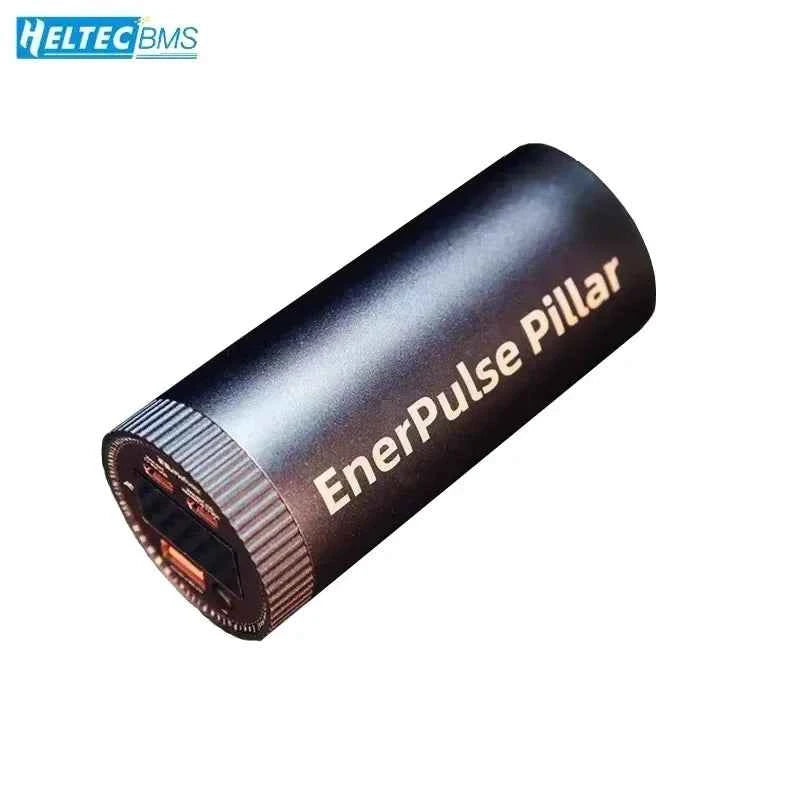

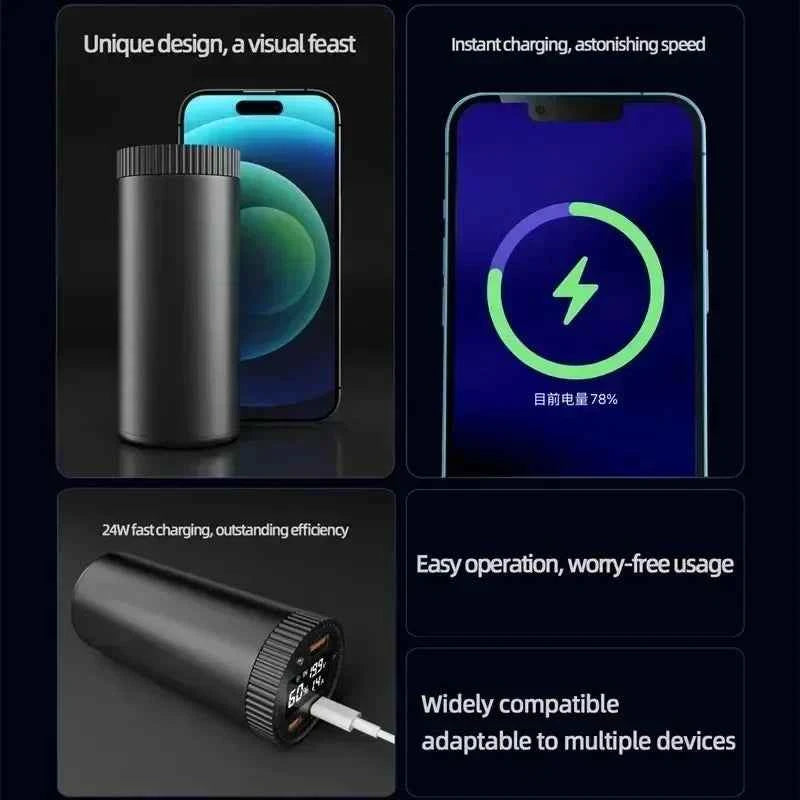

The industry's first input and output peak power of 24W, "Energy Pulse Column" is a portable fast-charging mobile power supply, made of all-aluminum alloy sandblasted The anodizing process is mainly used in outdoor scenes such as business trips, camping, traveling, live broadcasts, photography, etc. It is suitable for charging mobile phones, tablets, and laptops, and supports many protocols. It comes standard with 2 USB-C ports and 1 USB-A port. The charging process is clearly visible on the smart display, with real-time voltage, current, and input and output logos at a glance. A more cost-effective battery, the "Energy Pulse Column" has the same type of small size and large capacity! The two models respectively use 4680 battery cell 23000mAh (3.7V/85Wh)
Features:
Volume: The volume is 50% lower than other brand products
Power: 20% higher than similar products
Calories: 30% lower than similar products

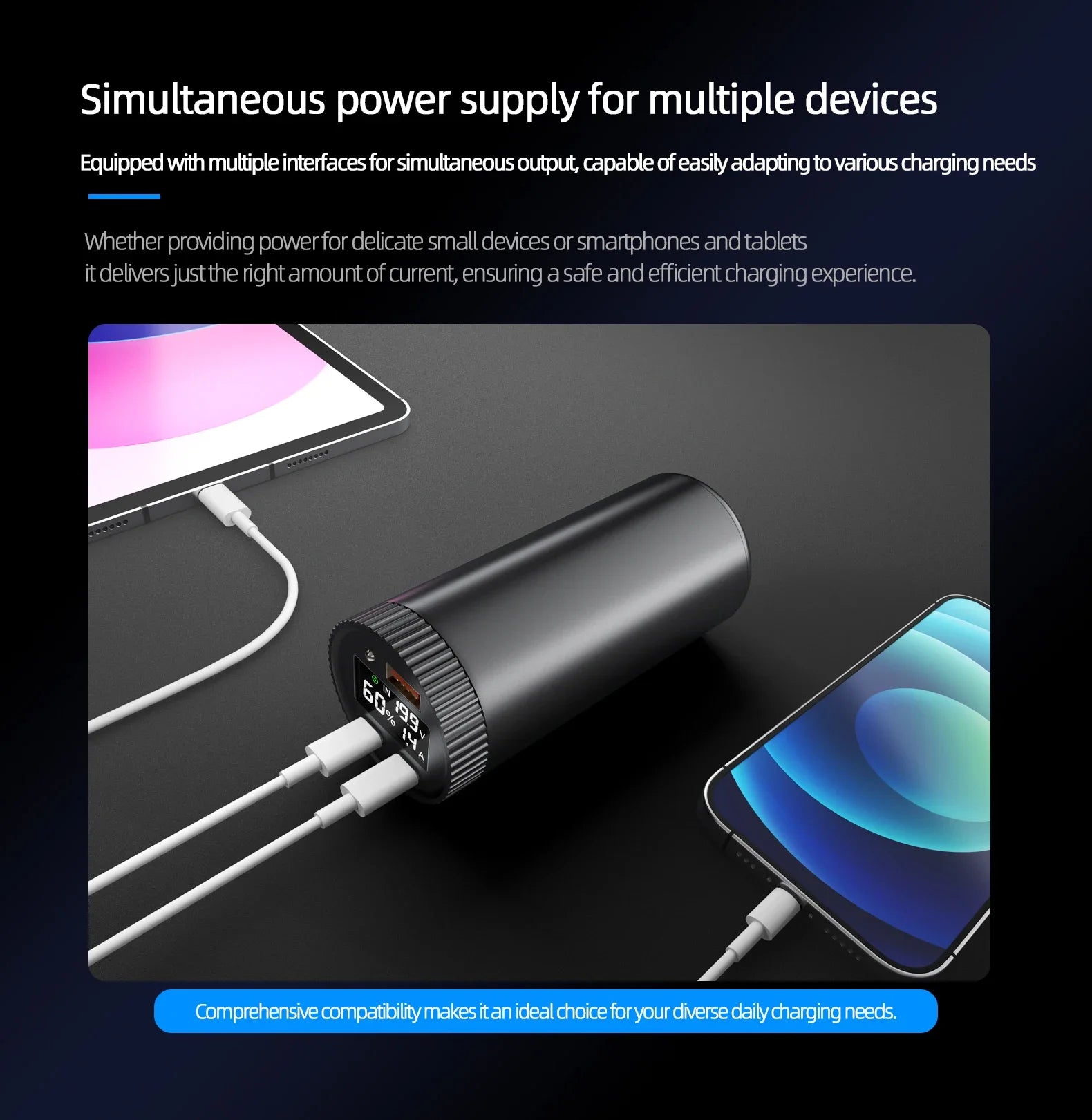

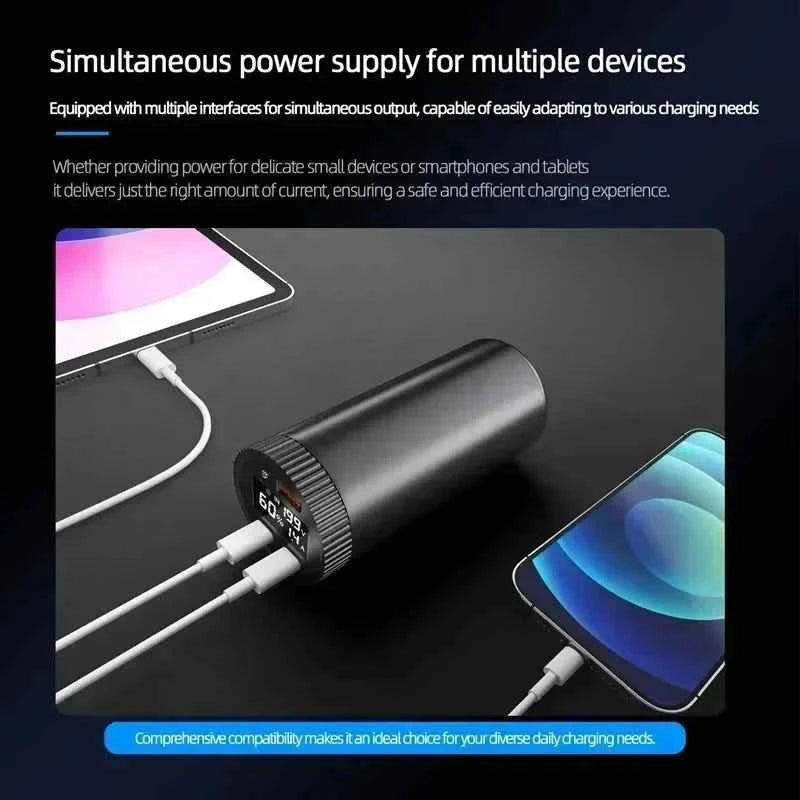

1. Three-port design, USB-C1 supports input and output 24W (Max), USB-C2 supports output 24W (Max), USB-A output interface (18W Max), the two M3 copper posts on the negative pole and the M3 spring pin on the positive pole carry a current of 5A. After gold plating process, the risk of poor contact is greatly reduced.

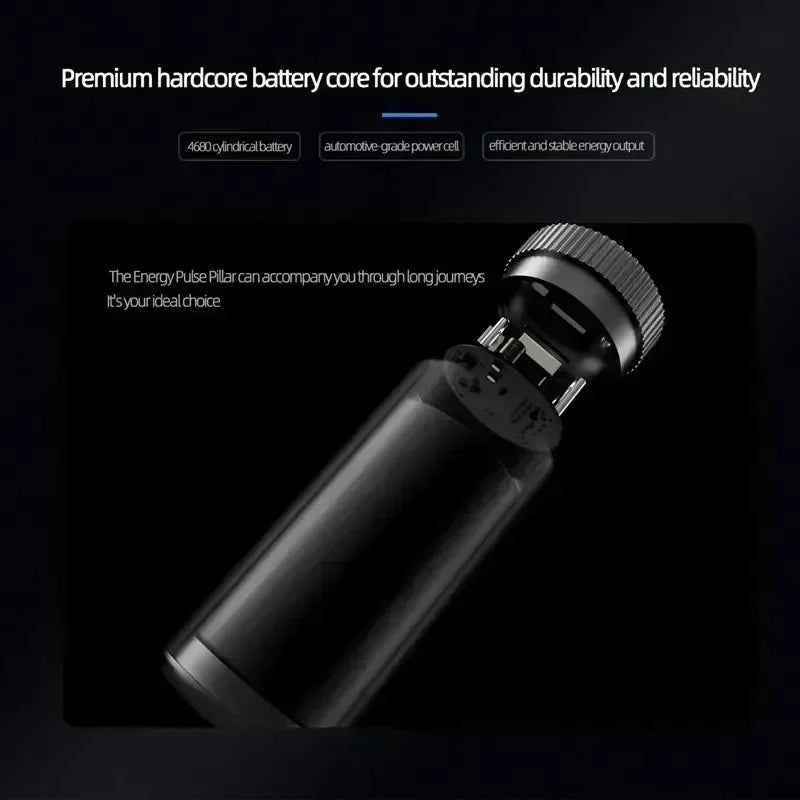

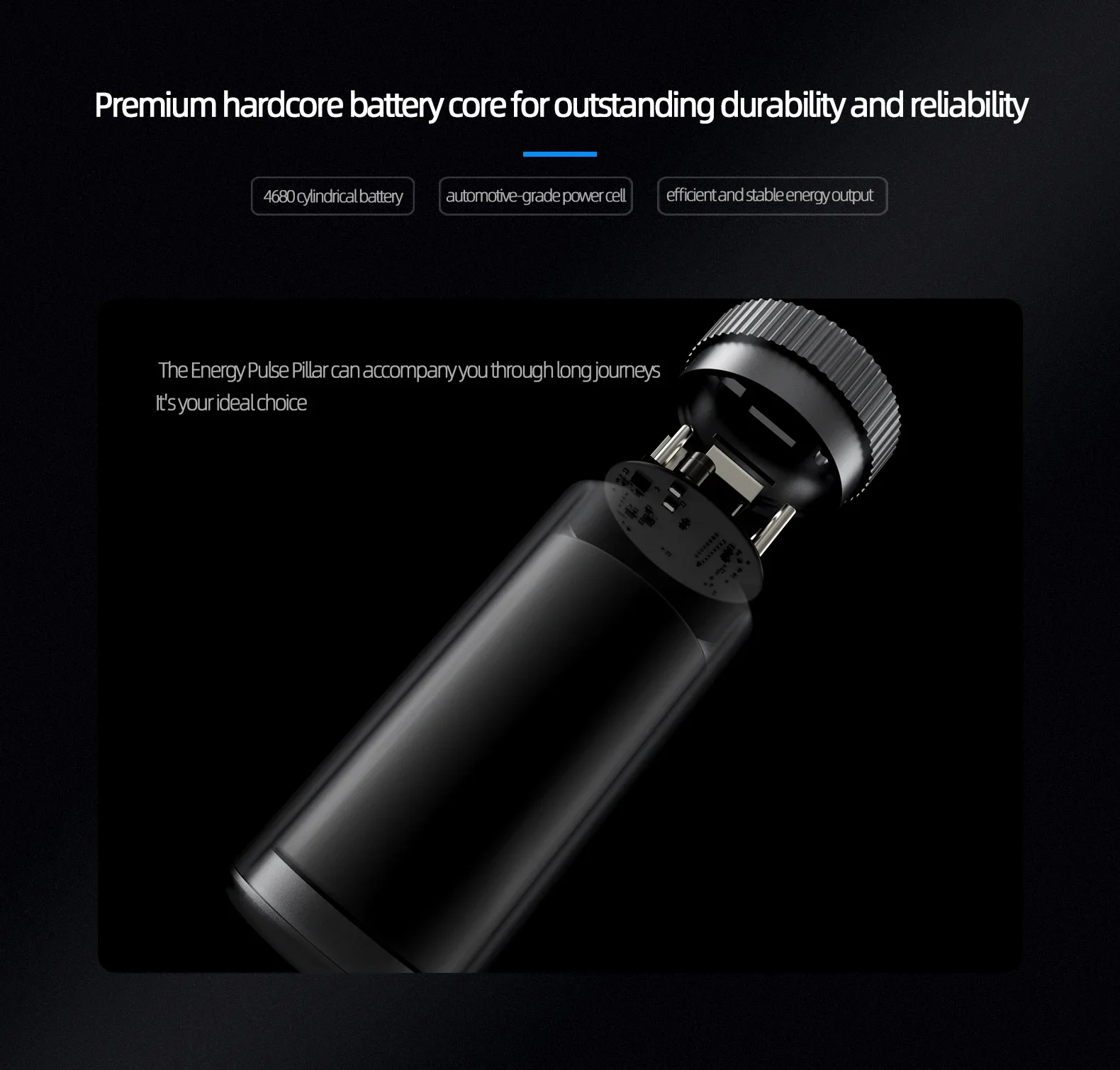

2. Detachable structural design makes it easy to replace the battery without welding or screwing.

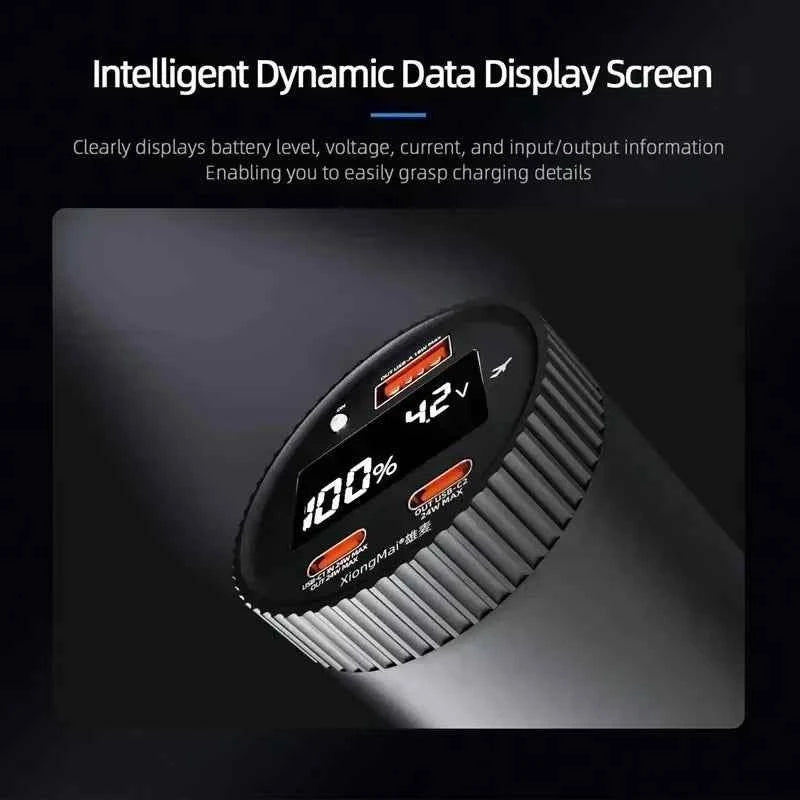

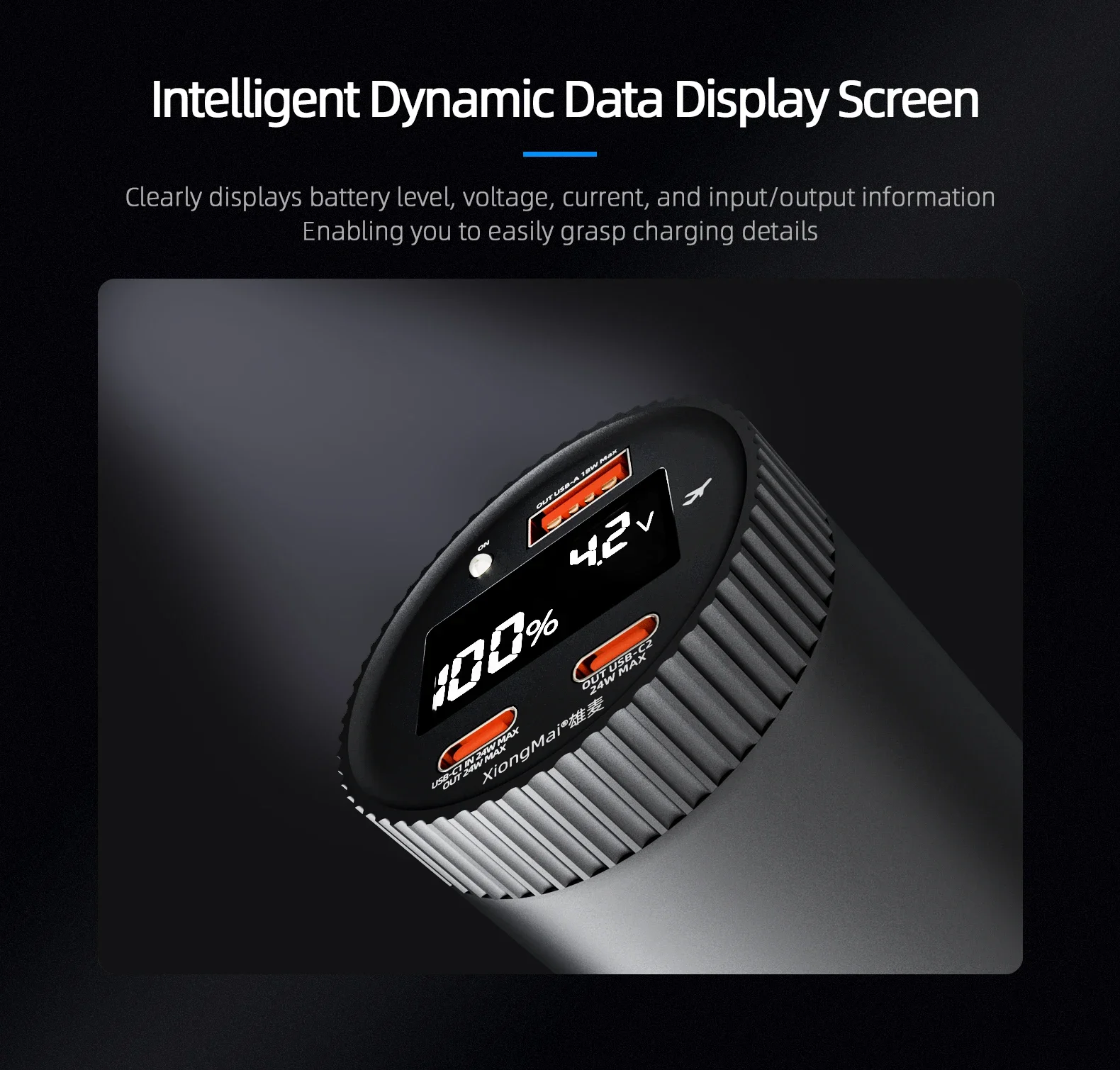

3. Intelligent display screen, real-time display of voltage and current during charging and discharging, and clearly visible input and output marks. The international standard 1/4 universal hole at the bottom can be equipped with mobile phones, cameras, gimbal brackets, etc. The all-aluminum alloy shell has better heat dissipation, and the structure and thickness of the thickened aluminum alloy barrel are optimized to make it more sturdy and durable.
4. Self-developed coulomb meter (automatic learning of battery power), digital tube displays the battery power, accurate management (this function requires a battery to be installed to complete a discharge to 0%, and then complete a charge of 0% to 100%. It will become invalid after disassembly and needs to be recharged. cycle). Real-time voltage monitoring technology makes power management more convenient and accurate, and is conducive to real-time monitoring of detachable power (when the power is disassembled, the priority voltage is displayed, the coulomb meter becomes invalid, and after a complete charge and discharge cycle, the coulomb meter takes effect).

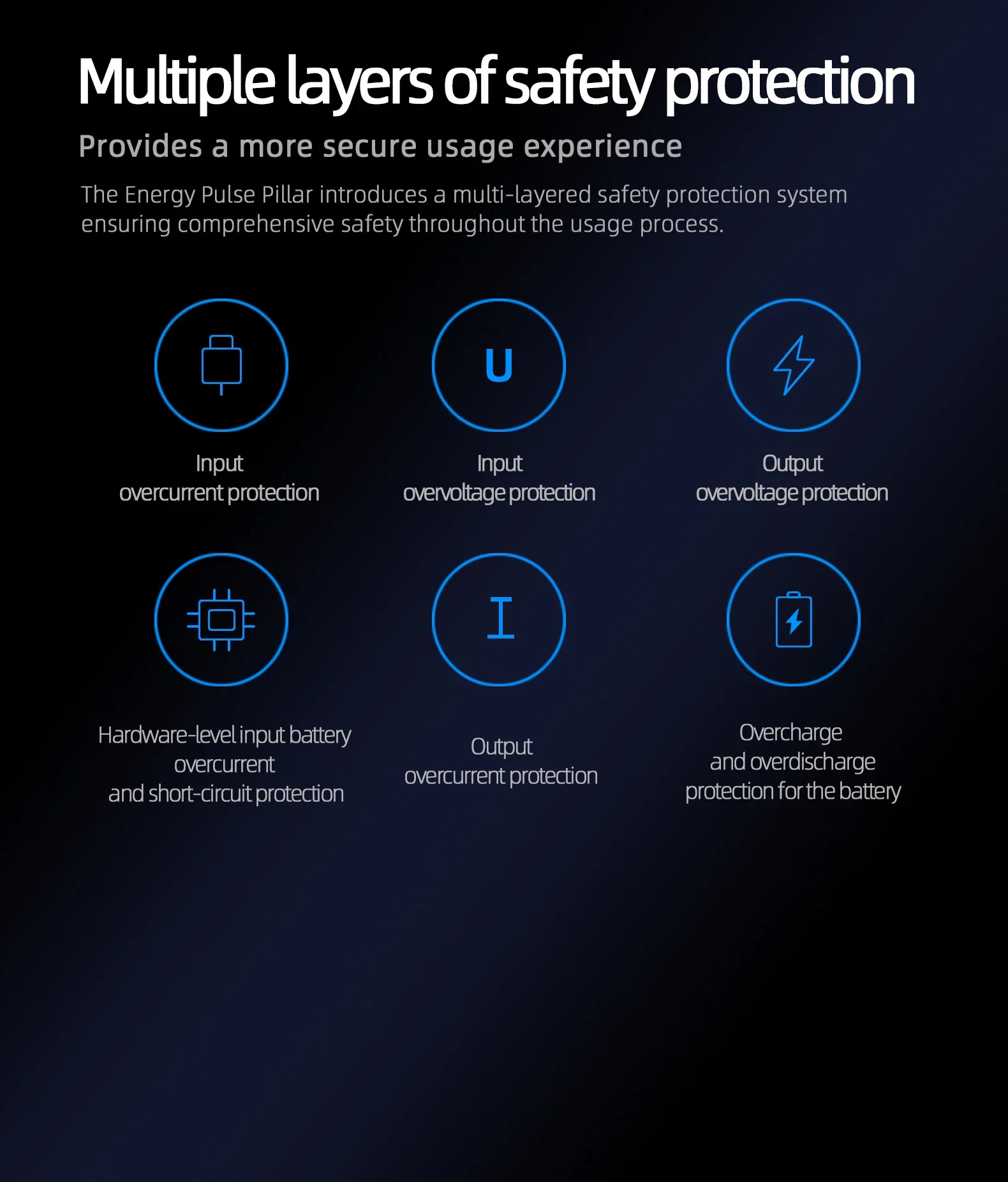

5. The main control step-up and step-down chip integrates real-time monitoring of internal temperature, making charging and discharging safer. PD/PPS/FIXED/AFC/FCP/QC/SCP/multi-protocol support, stronger compatibility. The product has been tested by relevant institutions and has a test report. It is safer. The laser engraving is clear and can be used on airplanes and high-speed trains.

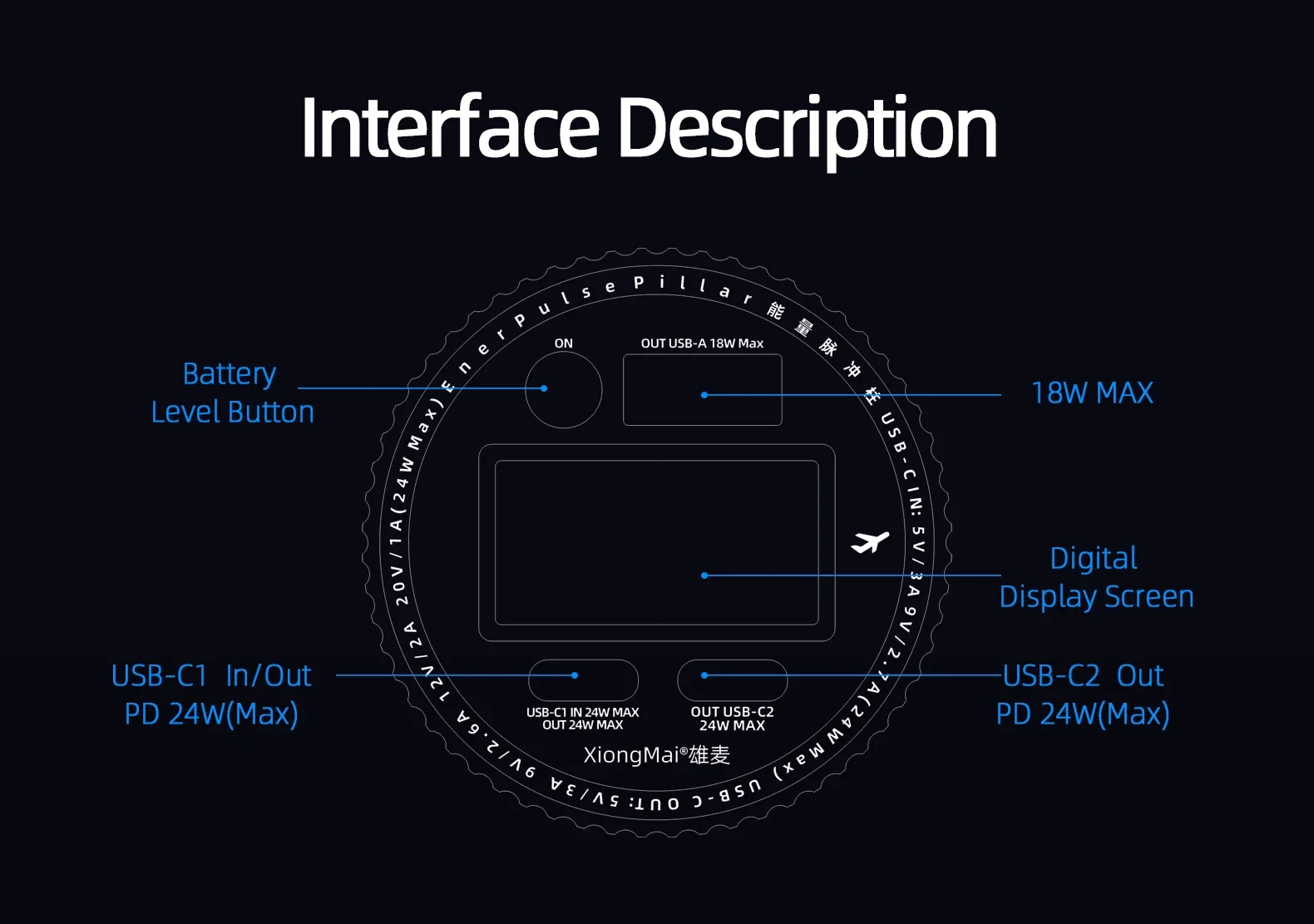

Interface Description:
Bidirectional (input/output) interface: USB-C1
One-way (output) interface: USB-C2
One-way (output) interface: USB-A
Interface power description:
USB-C1 input: 5V/3A 9V/2.7A (24W Max)
USB-C1 output: 5V/3A 9V/2.67A 12V/2A 20V/1A (24W Max)
USB-C2 output: 5V/3A 9V/2.67A 12V/2A 20V/1A (24W Max)
USB-A output: 5V/3A 9V/2A 12V/1.5A (18W Max)
Model: XM24468
Battery Type: 1* 46800 battery(Not Include)
Battery life: can be cycled about 1000 times
Full charging time: 0~99%, about 4.5~5.5 hours

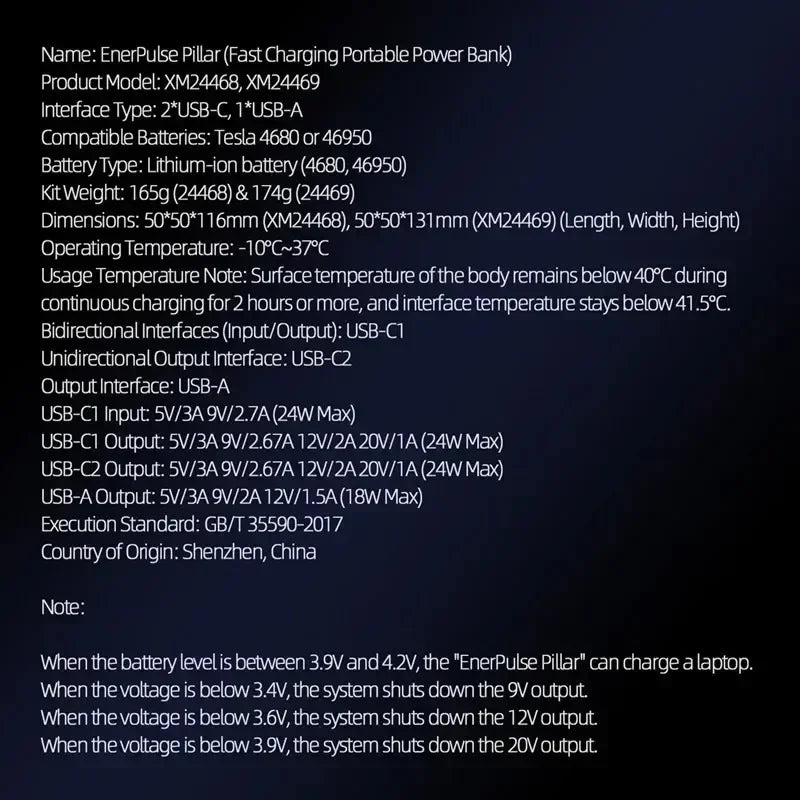

Product parameters:
Name: EnerPulse Pillar (fast charging mobile power supply)
Product model: XM24468
Interface type: 2*USB-C, 1*USB-A
Battery capacity: 20000mAh, 30000mAh
Rated capacity: 12000mAh (5V3A), 18000mAh (5V3A)
Battery energy: 3.7V/74Wh, 3.7V/111Wh
Battery type: ternary lithium battery 4680
Product weight: 531g & 603g

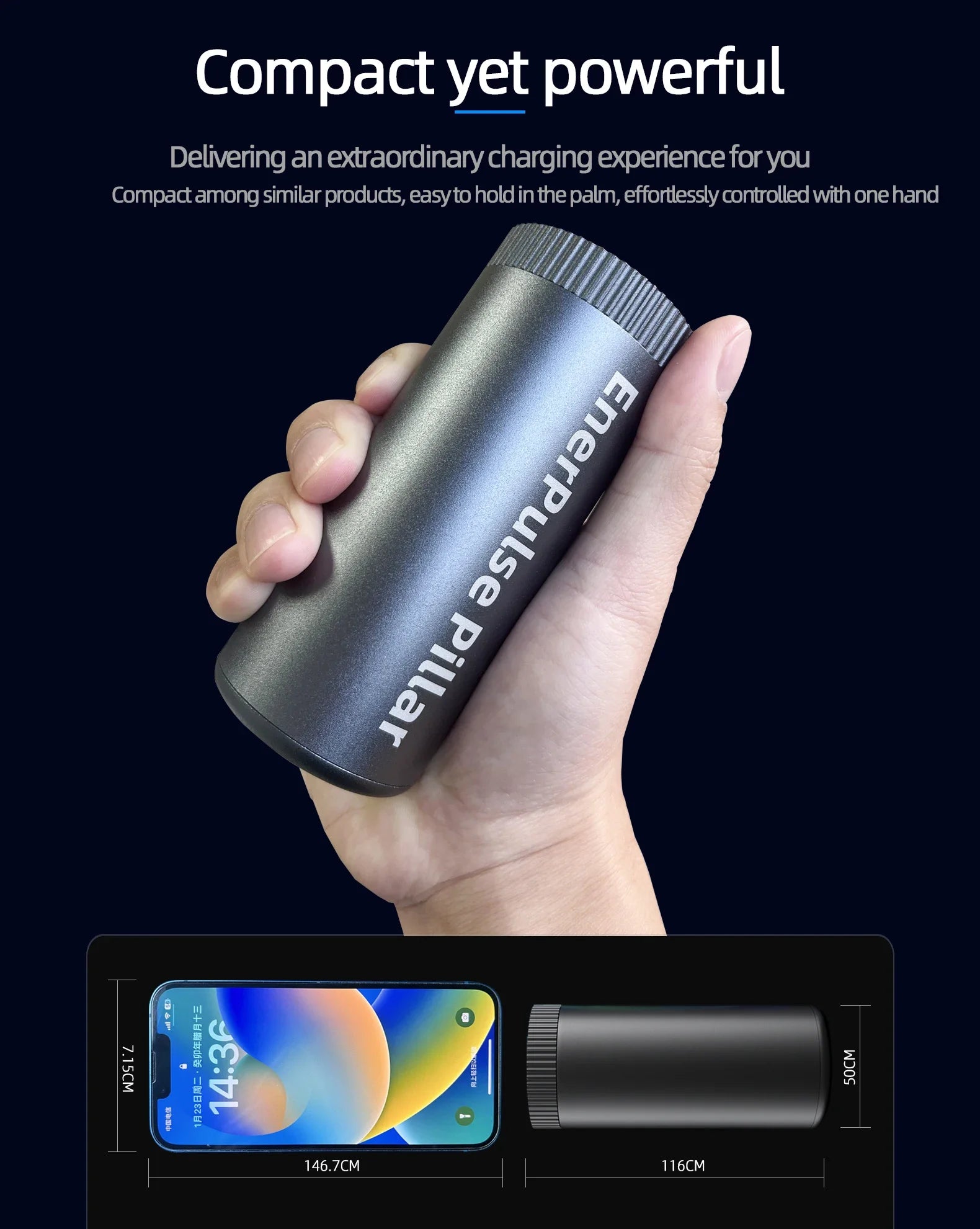

Overall dimensions: 50*50*116mm, 50*50*131mm (length, width and height)
Working temperature: -10℃~37℃
Operating temperature instructions: continuous charging for more than 2 hours
The surface temperature of the fuselage is 40℃, the interface temperature is 41.5℃
Output/input bidirectional interface: USB-C1
Output one-way interface: USB-C2
Output interface: USB-A USB-C1
Input: 5V/3A 9V/2.7A (24W Max)
USB-C1 output: 5V/3A 9V/2.67A 12V/2A 20V/1A (24W Max)
USB-C2 output: 5V/3A 9V/2.67A 12V/2A 20V/1A (24W Max)
USB-A output: 5V/3A 9V/2A 12V/1.5A (18W Max)
