What's in the box？

1x Touch monitor
1xMINI HDMI cable (1080P)
2xU-C cable (2.0)
1xC-C line
4xM3 * 4mm VESA screws
1x5V 3A power plug

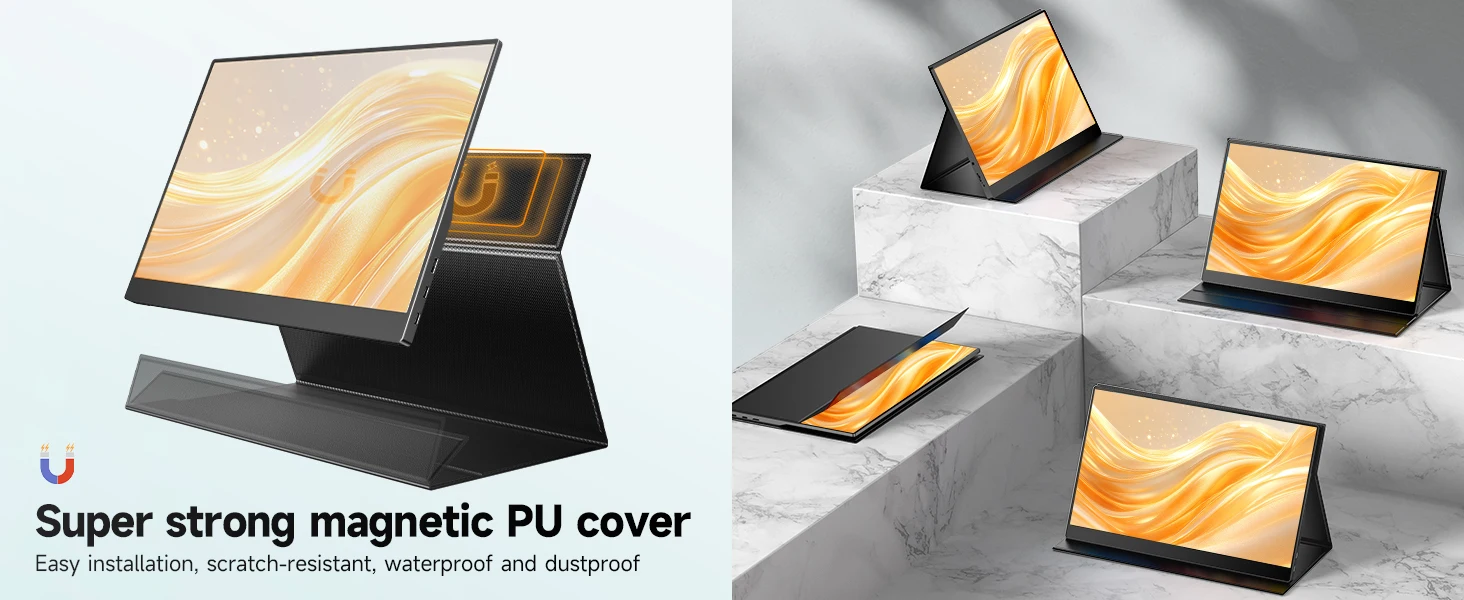

1x leather case
1x instruction manual

Specifications:

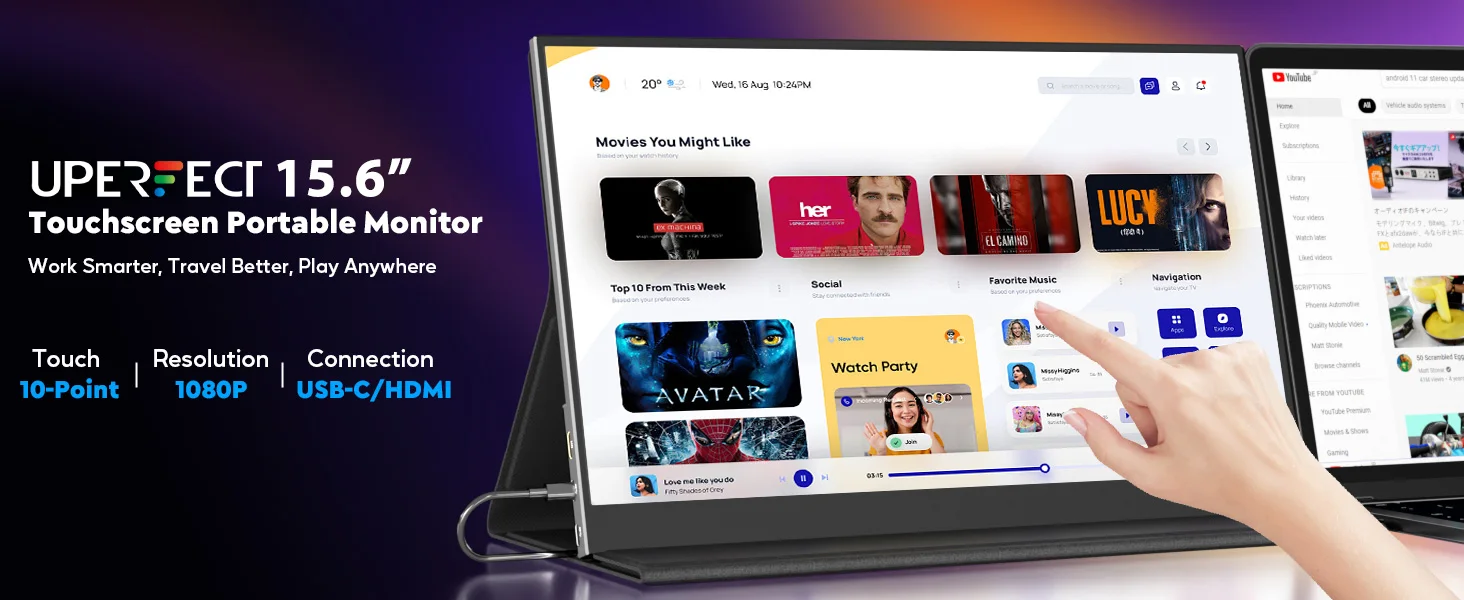

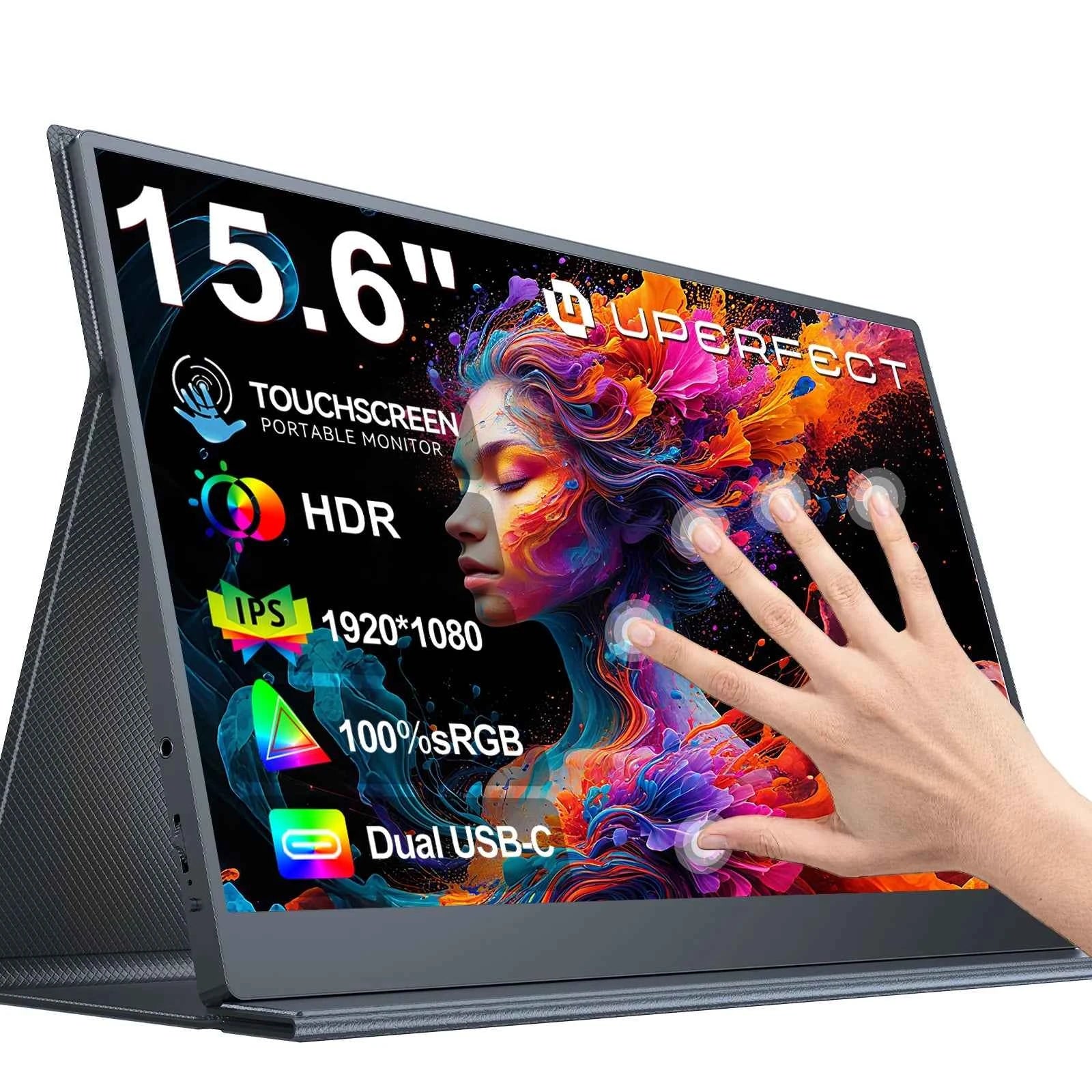

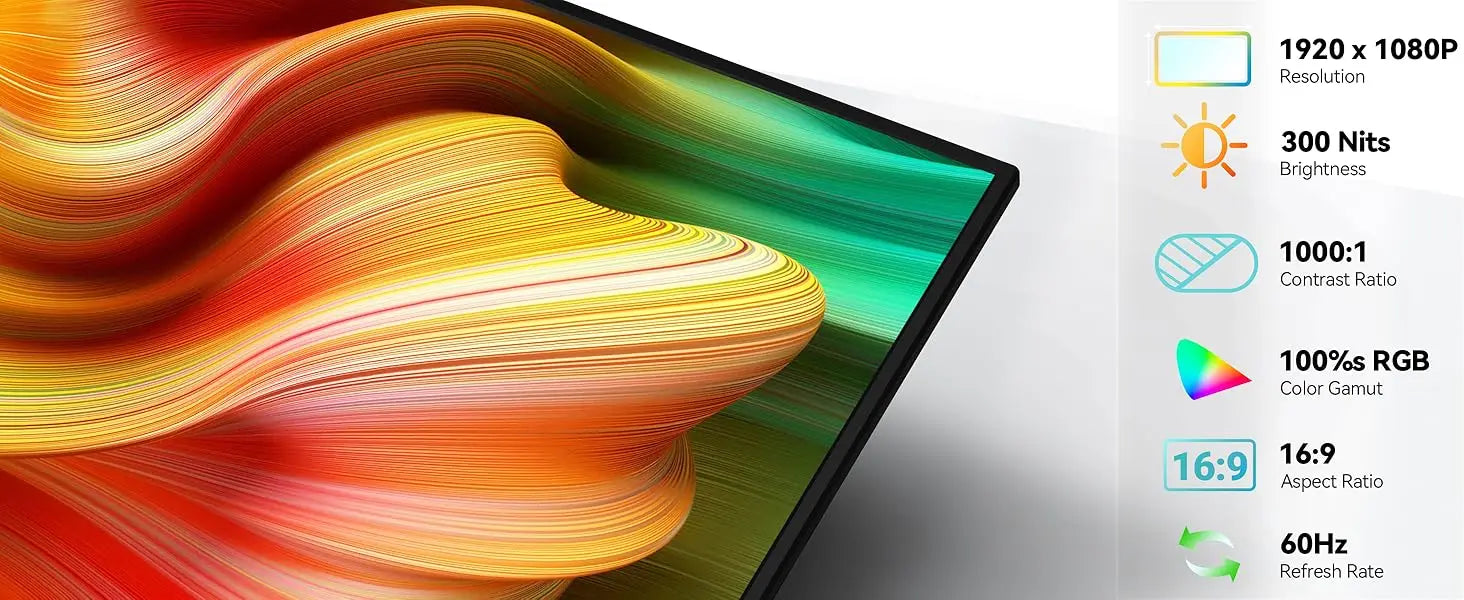

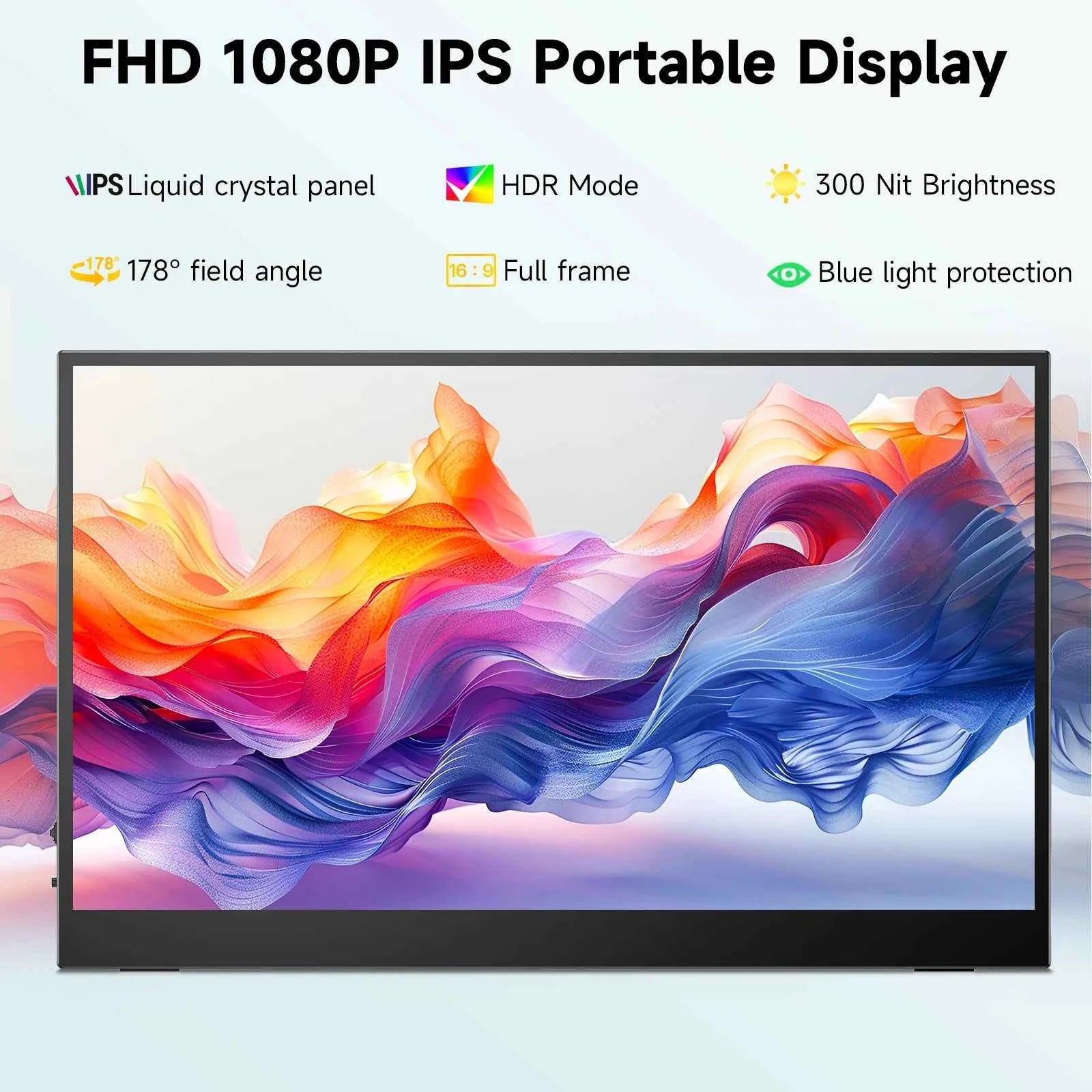

Panel Type: 15.6inch Touch Screen

Resolution: 1920*1080 FHD

Display Color: 16.7M(8bit)

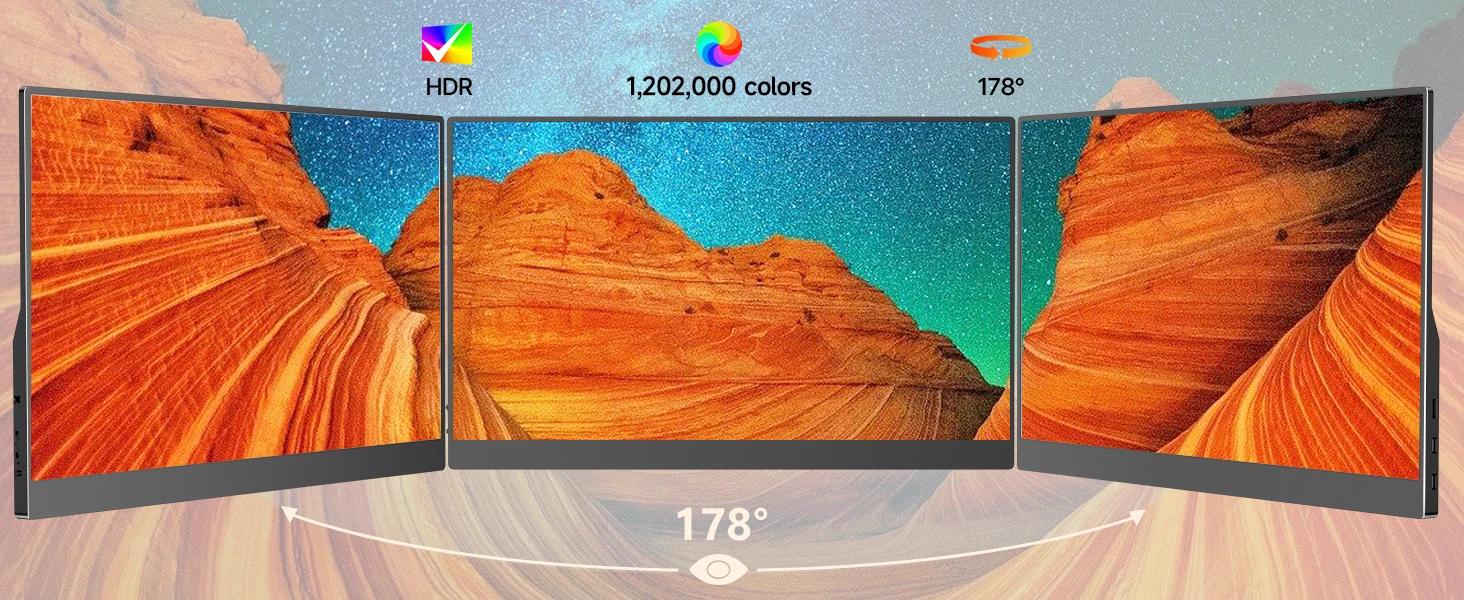

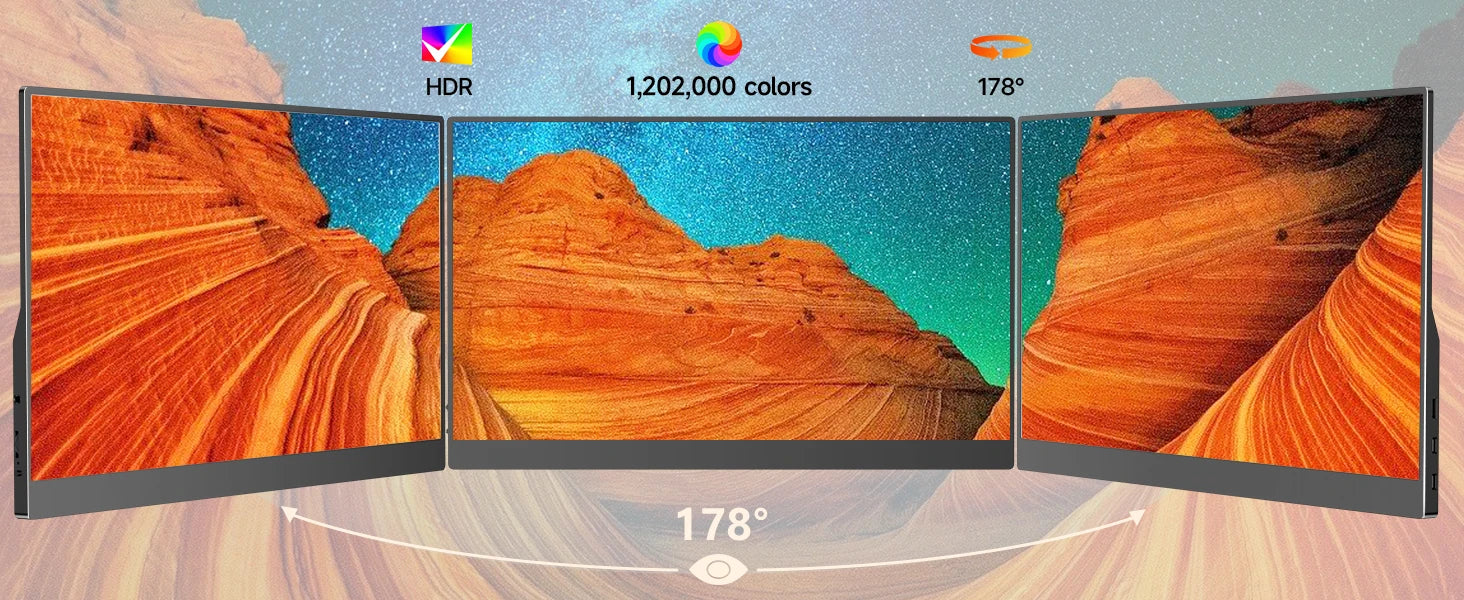

Visual Angle: 178° Full View Angle

Contrast Ratio: 1000:1

Brightness: 300 cd/㎡

Refresh Rate: 60Hz

NTSC: 100% DCI-P3

Response time : 30ms

Display area: 344.16（W） × 193.59 (H) mm

Bulit-in Speakers: Dual 8Ω 1W Speakers

Input Interface: 1xMINI HDMI (signal source)
2xType C (fully functional type C, USB PD protocol can provide power and transmit signals)
1x3.5mm headphone jack“

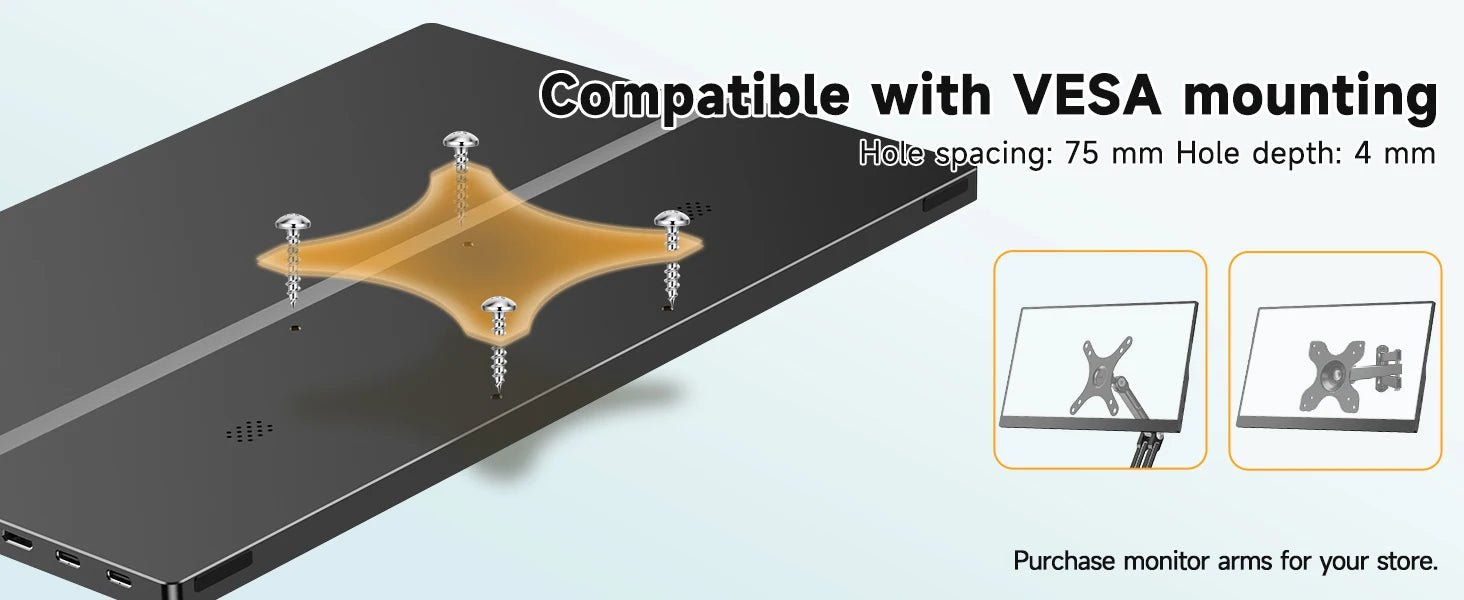

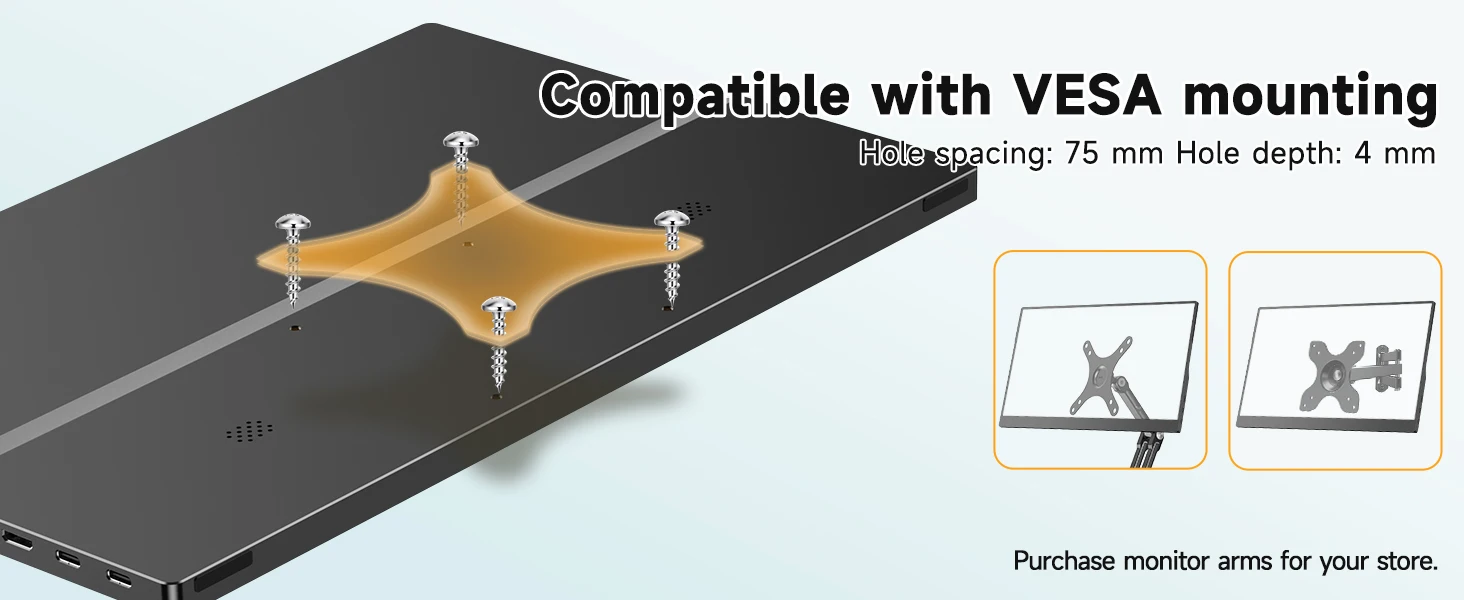

VESA:75mm*75mm

Screen Type: Matte

Color: Black

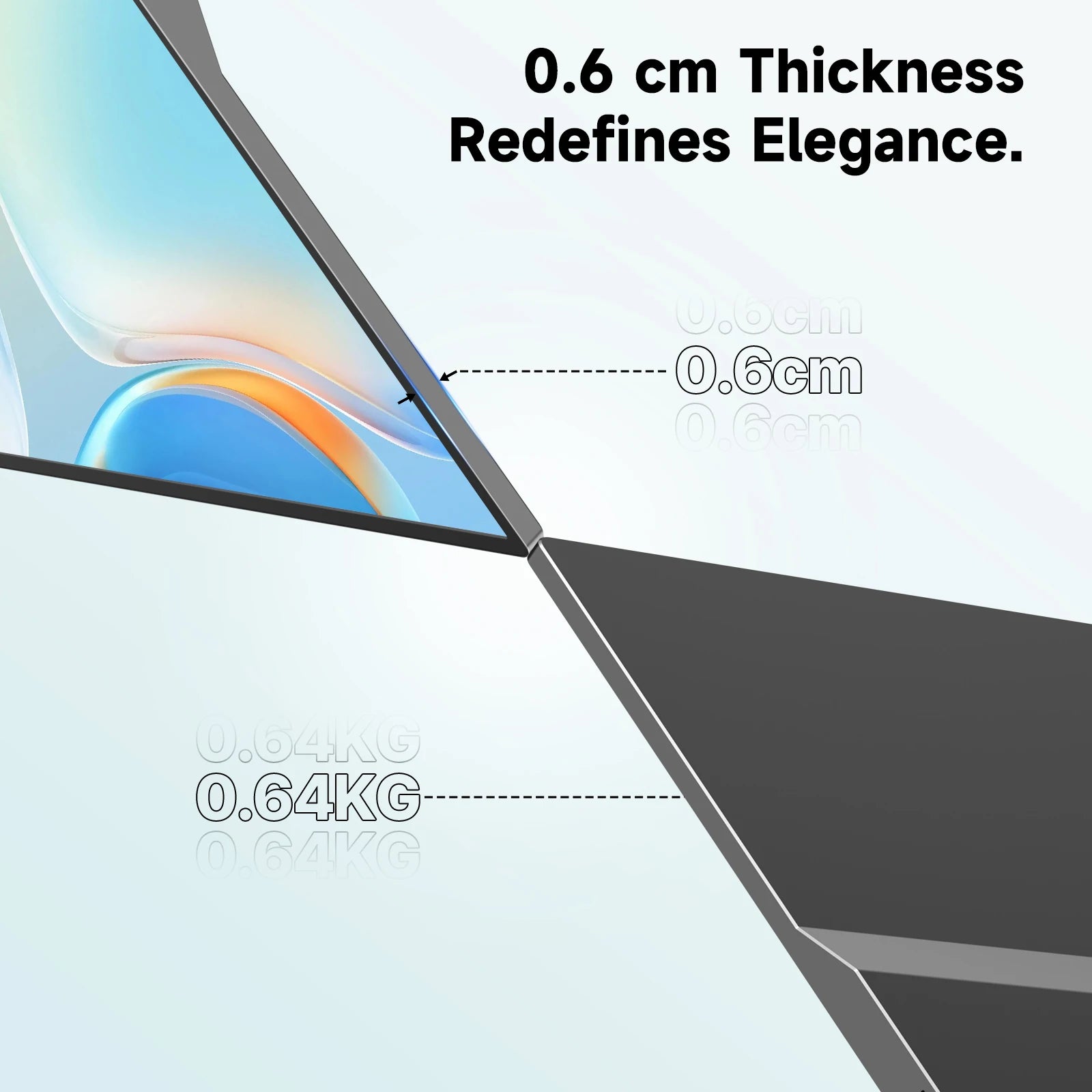

Net Weight: 0.65 kg

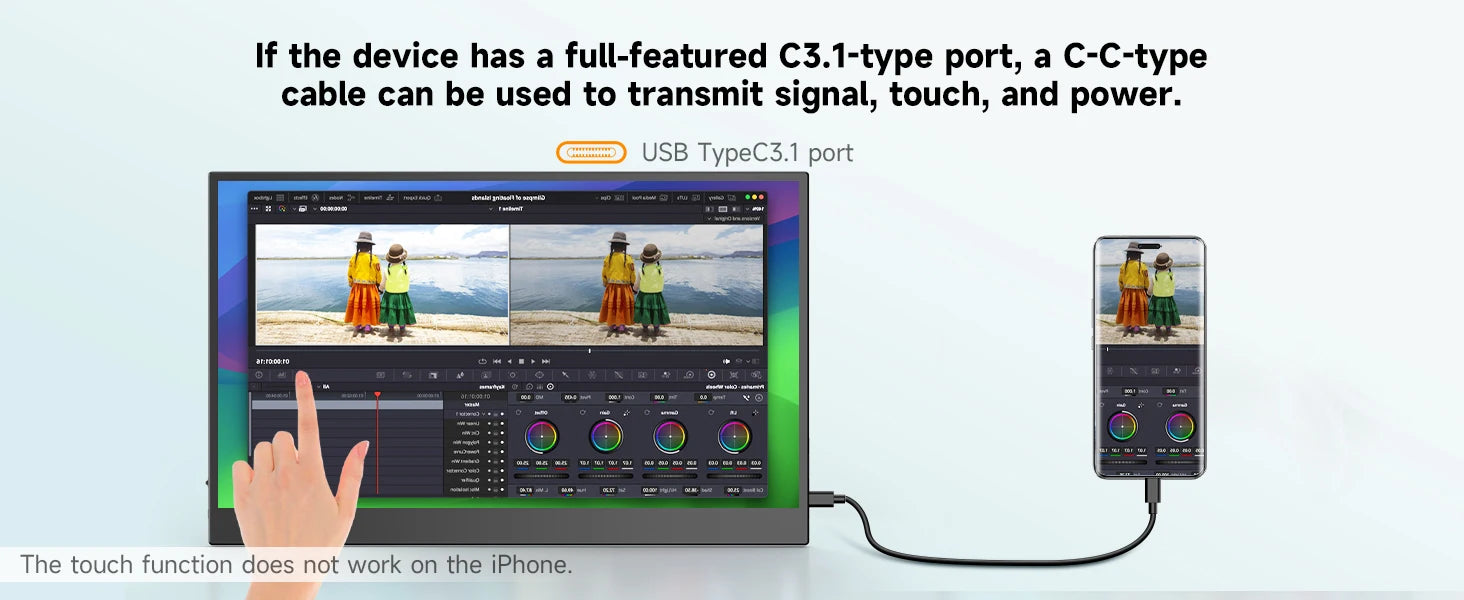

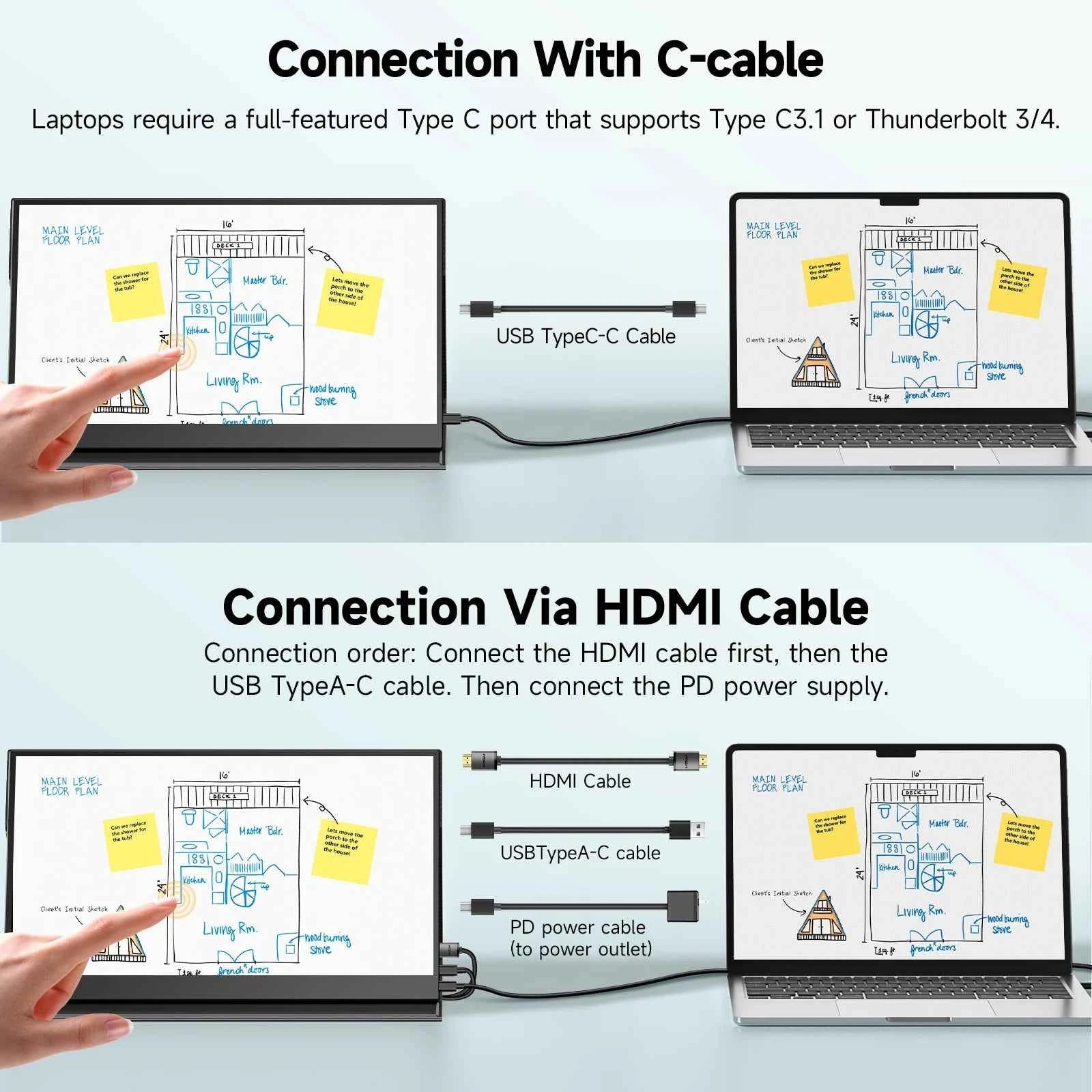

Support Single Type-C Cable For Display & Power Device Model

- Mobile Phones Support USB 3.1:

For Samsung: Samsung Galaxy S8, S8+, S9, S9+, S10, S10+, S10e,S20,S20+,S20 Ultra,S21,S21+,S21 Ultra,S22,S22+,S22 Ultra, Note 8, Note 9，Note 10

For Huawei: P50 Pocket/40 Pro/40/30/20/10/9 Series, Mate X/Xs/X2/40 Pro/40/30/20/10/9 Series, Honor Note 10,Honor Magic V/3/Pro/Pro+/4/4 Pro/4 Ultimate;

For SONY: Xperia 1 / 1 II/1 III/1 IV/5/5 II/5 III/10 III/Pro/Pro-I;

For OnePlus: 7/7 Pro/8/8 Pro/9/9R/9 Pro;

For OPPO: Find X3 Pro/Reno 10x Zoom/Reno 5G/R17 Pro (OPPO RX17 Pro in Europe);

For LG: V60/V50/V40/V35/V30/V30+/V20 Series,G8/G7/G6/G6+(with Dec 2018 update)*functionality has not been tested*/G5 Series,Q8;

For HTC: 10/U Ultra/U11/U11+/U12+/U19e,Exodus 1;

For ASUS:ROG Phone/Phone II/Phone 3/Phone 5/Phone 5s Series,ZenFone 3 Ultra,ZenFone AR,ZenFone Ares;

For Motorola: Edge+/Edge S (China variant)/Moto G100 (global version for European market)/ Edge 20 Pro/30 Pro(global variant)/X30;

For Xiaomi: Black Shark 2/3/4;

For ZTE: Axon 9 Pro/10 Pro,Nubia Red Magic 6S Pro/7/7 Pro;

Others: BlackBerry Key2,BQ Aquaris X2,Essential Phone,Fairphone 4,Lenovo Legion Phone Duel/2 Pro/Duel 2,NOKIA 9 PureView, Microsoft Lumia 950/950 XL, HP Elite x3,Razer Phone/Phone 2,Fairphone 4;

*NOTE: If you can not find your devices above, please use IOS/Android to HDMI Adapter for connecting

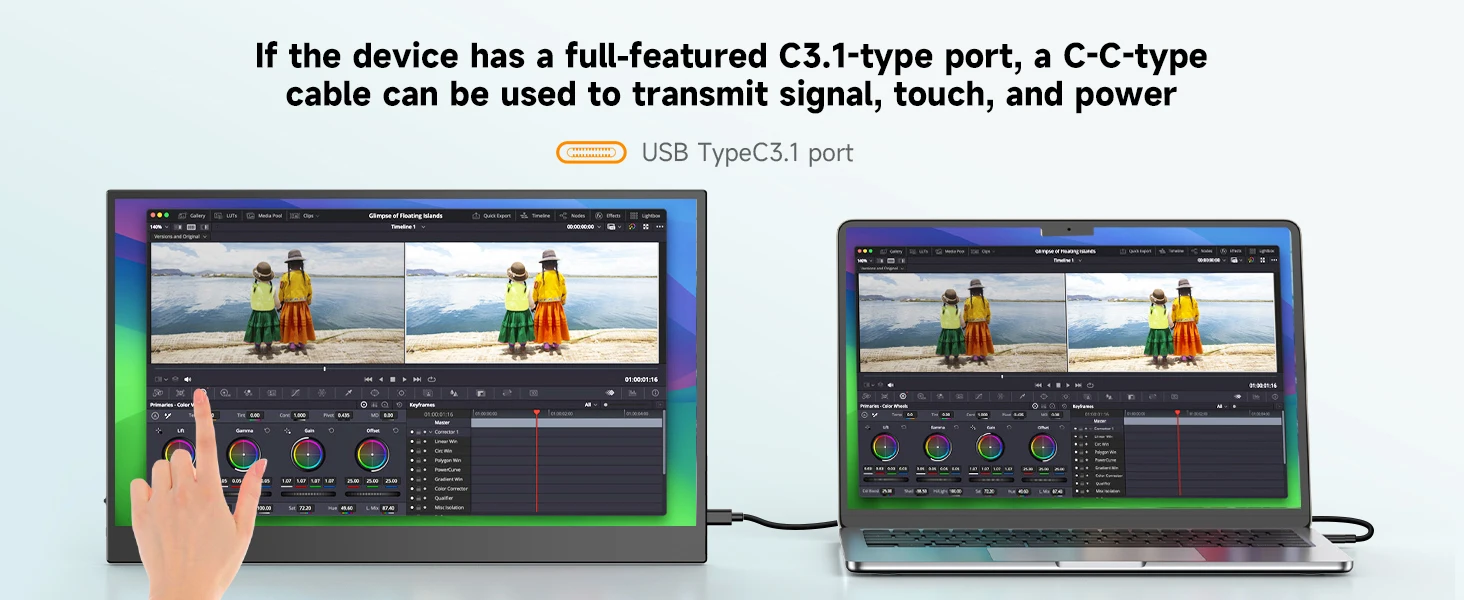

- Laptops Support Thunderbolt 3 or USB 3.1:

For Apple: Apple MacBook Pro (Late 2016) and newer,Apple MacBook Air (Late 2018) and newer ;

For Huawei: MateBook D/X/X Pro/E/13, MagicBook;

For ASUS: ZenBook, U4100UN, U5100UQ, ROG Series;

For HP: EliteBook Folio G1, Spectre 13,ZbookZbook Studio;

For Dell: G3/G5/G7 Series, Inspiron 5000/7000 Series, XPS12/13/15;

For Lenovo: Thinkpad E580/T470/T470s/T480/T480s/X1 Carbon (2017-2019);

For MIUI: Air 12.5"/133.3", Pro 15.6", MI Game NoteBook

For Google: ChromeBook Pixels

For Razer: Blade Stealth Series (All)

For Microsoft: Surface Book 2

Others: Acer Swift 5,MSI GS60 6QE,Gigabyte Aero 15x/15 x9/15 y9;

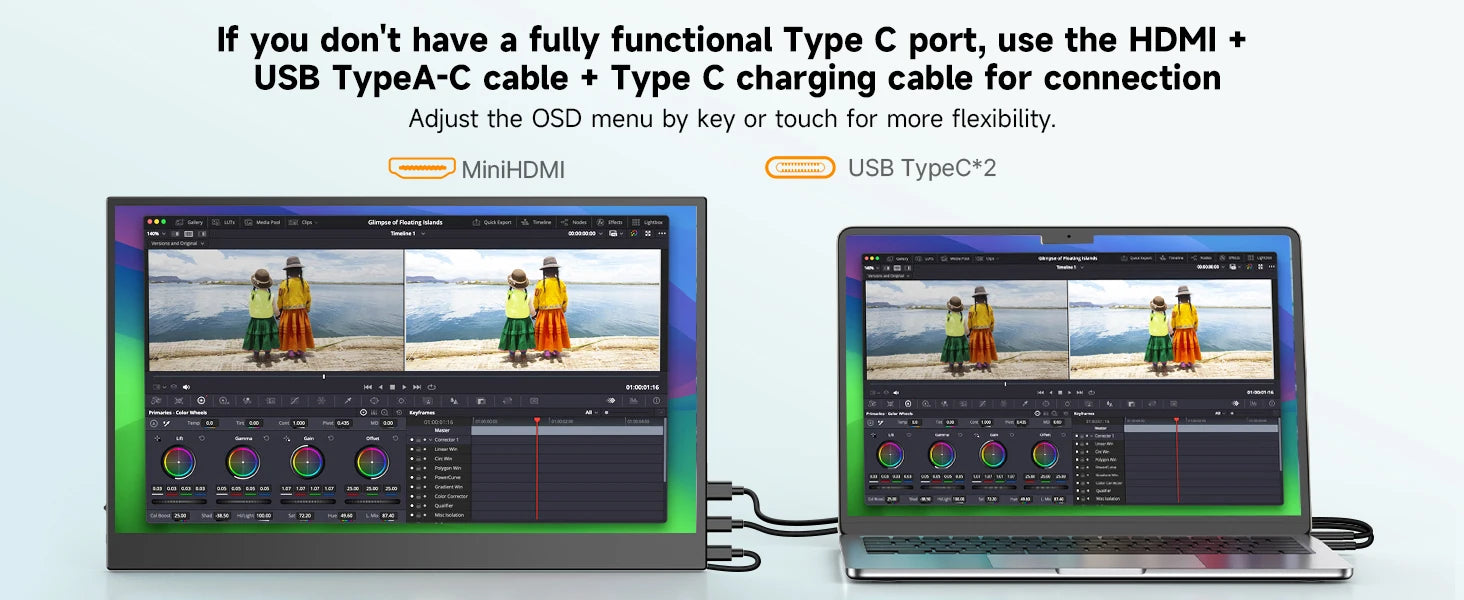

*NOTE: If you can not find your devices above, please use mini HDMI cable instead.

Q: The monitor keeps switching and flicker, although it connected to outlet forextra power supply.

A: This situation is generally caused by insufficient voltage; Please check whetherthe factory-packed cables are used, and then check whether an external PD powersupply is used.

Q: Can we supply energy from power bank without using self power adapter?

A: That depends on the output of the power bank, because this monitor requires atleast 15w power supply.
And if the output of your power bank is only 10w , this power bank will not supplyenough energy for the monitor.
The output of power adapter we provide is 15W, so a power bank with output above18w is recommended.

Q: ls it possible to set the default contrast? I have to adjust each time from 10%to 70%, each time l connect to my Macbook Pro laptop.

A:How to save the settings of brightness, volume, etc.
When the HDMl port is used for display and monitor powered by Type C port, all thesettings will be saved automatically.
But when the Type-C port is used for display without external power supply,brightness and volume will not be saved after the monitor is powered off, this designis to avoid that the monitor doesn't work when connected to phones which could notprovide enough power for monitor with high brightness setting. So to avoid thebrightness is reset everyday, please give the monitor an external power supply withType C port and do not cut off the power.
Actually, all the portable monitors on Amazon all have this same design.

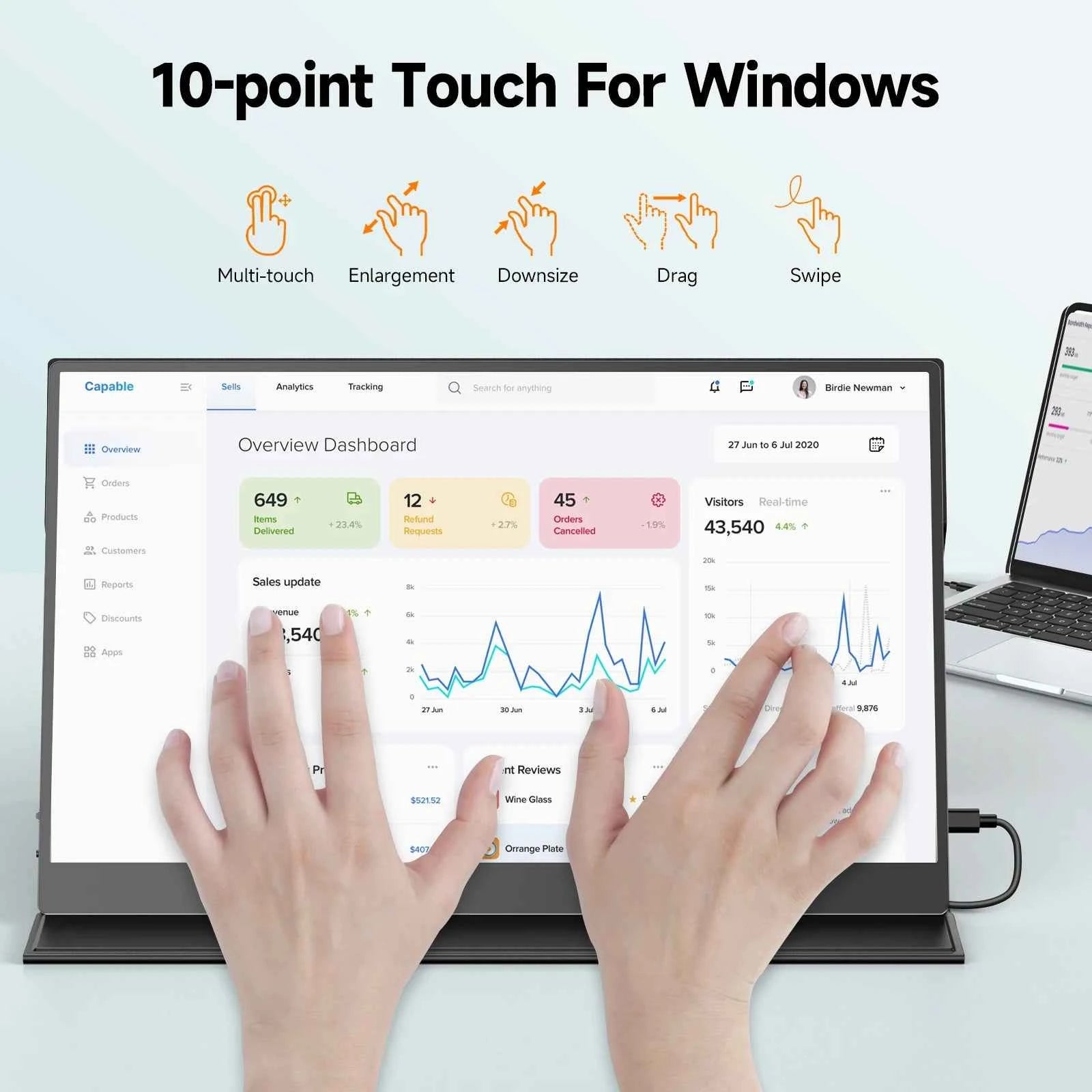

Q: Touchscreen isn't responsive or not working.

A: 1.For mobile phones
①.Touchscreen is not working when connecting to a mobile phone supporting USB3.1.Please contact us to upgrade the display program.
②.Touchscreen isn't responsive or not working if the phone doesn't support USB3.1.Please check the phone model to ensure if it supports USB3.1.
2.For game devices (Nintendo, XBOX, PS4, etc.), the touch-function is unresponsive.
3.For Computer/Micro-host.Please check the connection.Please use the genuine cableprovided. Incorrect connection may arouse touch-function unresponsive in most cases.
4.If the connection is correct and the touch-function is still unresponsive.Please tryanother computer.If it failed, please contact us for the replacement of the touch cable.
