This USB 3.0 capture card can capture HD video and audio at the same time, and can transmit audio and video signals to computers and smart phones for preview and storage. It is suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Features:

* Support the maximum input resolution of 4K@30HZ;

* Support maximum output resolution up to 1080P@60Hz;

* Support 8/10/12 bit color depth;

* When using standard AWG26 cables, the input transmission distance is up to 15 meters (1080P and below resolution);

* Support most acquisition software, such as VLC, OBS, Amcap, etc.;

* Support Windows, Android and MacOS;

* Comply with USB video UVC specification;

* Comply with USB audio UAC specification;

* No need for external power supply, compact and easy to carry.

Collection software download address

OBS download address: https://obsproject.com

potplay download address: https://potplayer.daum.net

Specifications:

HD video resolution......................................... ....... Maximum input can support 4K

Video input format............................................... .........8/10/12 bit color depth

Video output mode......................................... .........YUV, JPEG

Video output resolution............................................. ..Maximum output resolution 1080P

Support audio format............................................... ........ L-PCM

Input cable length............ ≤15 meters, AWG26 HD standard Cable

Maximum working current............................................... ............. 0.4A/5VDC

Range of working temperature............................................... ........ (-10 to +55℃)

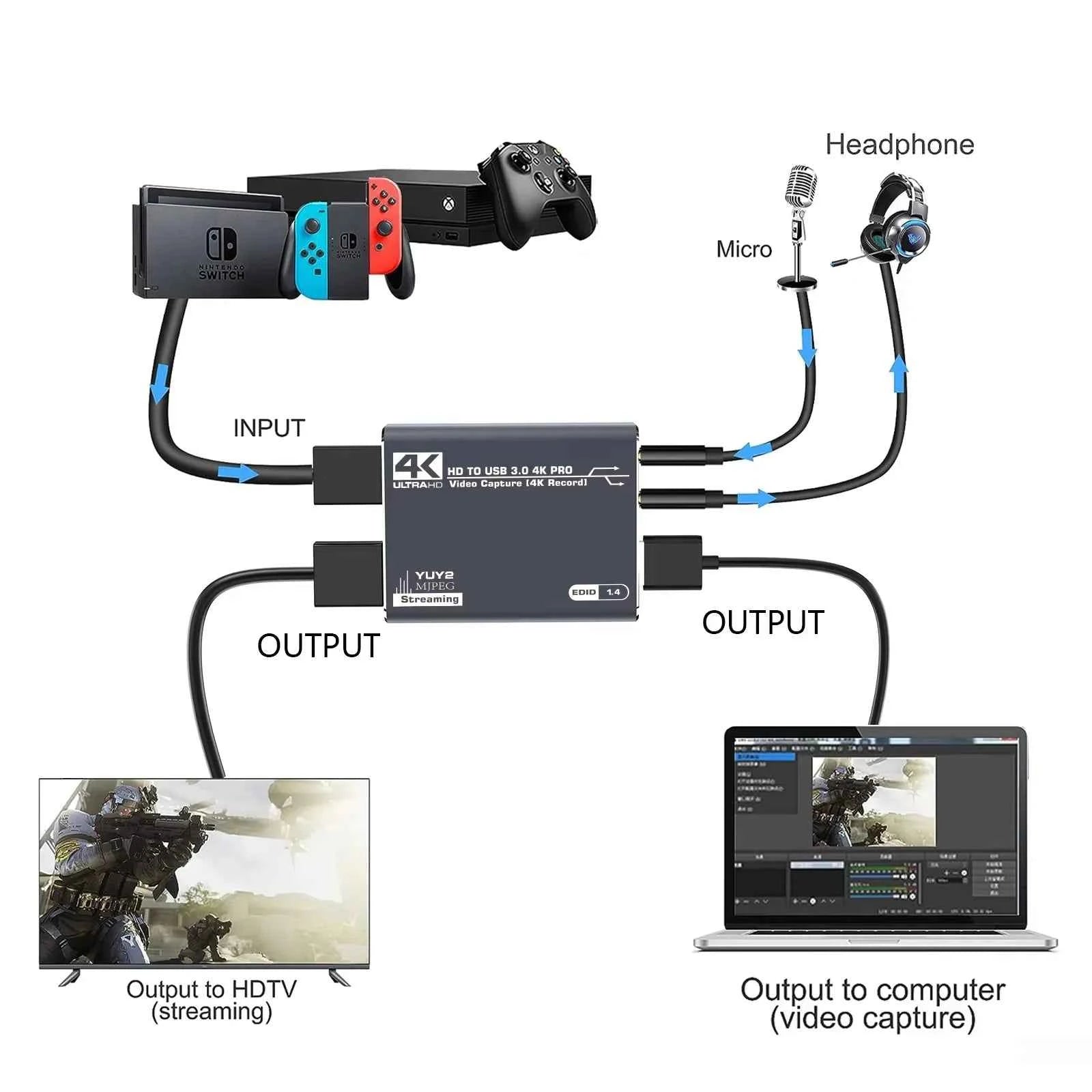

Connection operation:

1. Connect the UHD signal source and the HD input port of the USB capture card together through an HD cable;

2. Connect the display port and the HD output port of the USB capture card together through an HD cable;

3. Connect the USB port of the computer and the USB port of the capture card through a USB cable;

4. Acquisition operation steps (OBS):

Open the software → add a new source → select 'video capture device' → set the screen size → select 'studio mode' (dual window) → click 'start recording'

Computer hardware configuration requirements

CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above

Graphics Card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above

Storage: 4G RAM

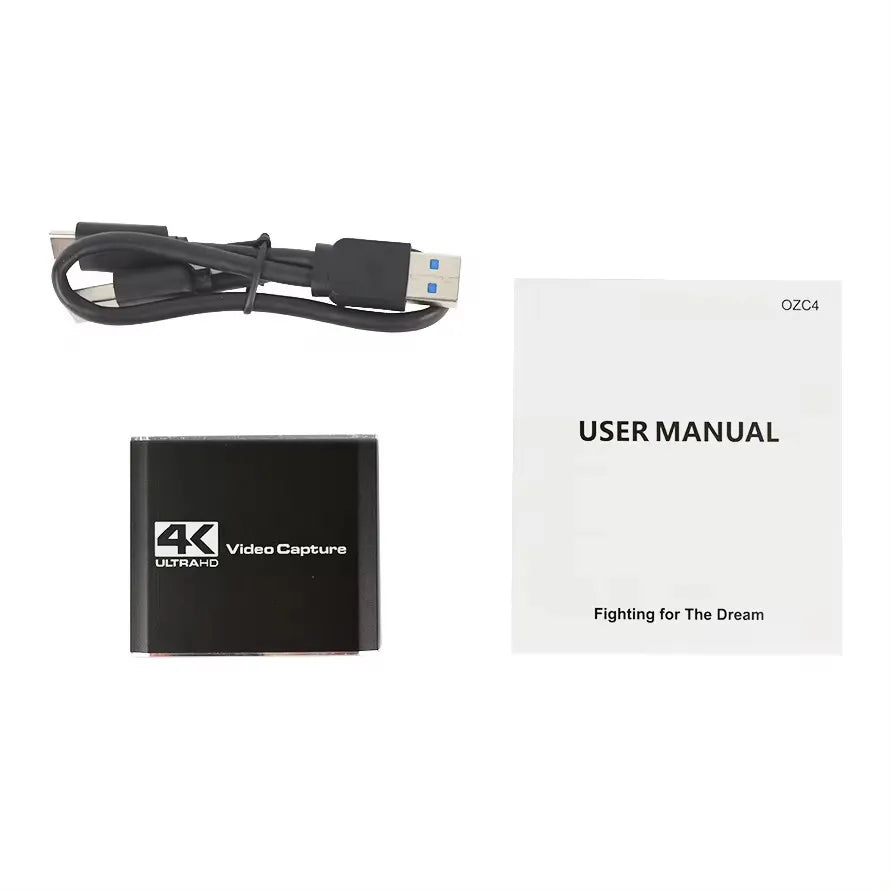

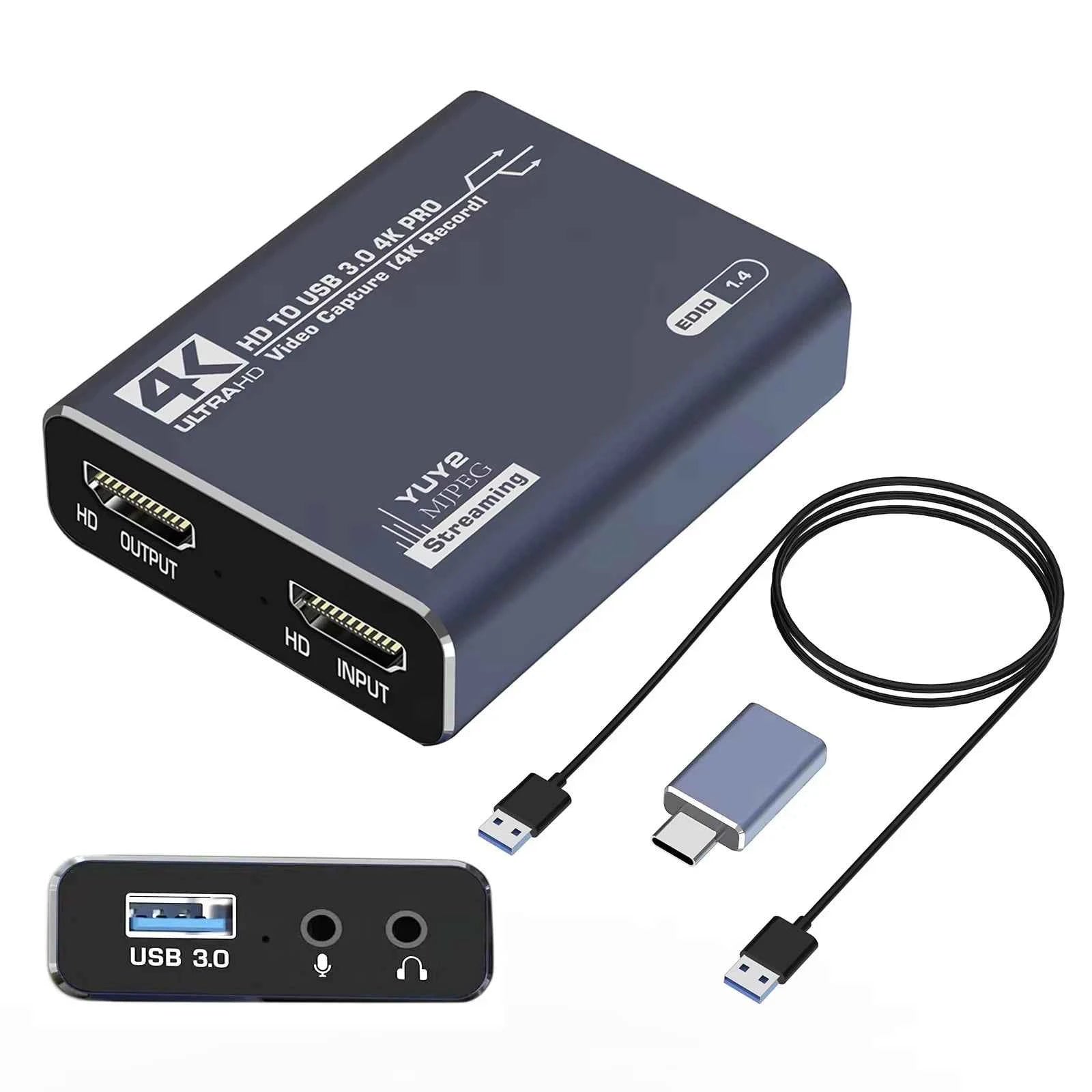

Package included:

1* HD Video Capture Card

1* USB Cable

1* English Manual
