Waveshare ESP32-C6 1.47 Inch Display RISC-V Development Board WiFi 6 & BT ESP32 1.47" Screen 172×320 LCD for AIoT GUI LVGL HMI

$26.78
Free 1-Year Remote Support

Eligible laptops, desktops, workstations, mini PCs, monitors and other items include complimentary 1-year remote technical support from Win Support Tech. Our team can assist with device setup, software installation, Windows troubleshooting, driver issues, performance optimization, printer connectivity, email configuration, and general technical assistance. Support is provided remotely through secure support tools, phone, or email. Product eligibility may vary.

Product Highlights

SPECIFICATIONS

Accessory Type: LCD Screen

Battery Included: no

Bluetooth: Bluetooth 5 (LE)

Brand Name: SHCHV

Choice: yes

Compatible With: ESP32-C6

Display: 1.47 inch LCD

Flash memory: 4MB

HP SRAM: 512KB

High-concerned chemical: none

LP SRAM: 16KB

Origin: Mainland China

Processor: 32-bit RISC-V,up to 160 MHz

ROM: 320KB

Screen color: 262K

Screen resolution: 172x320

Typical Application Fields: Education and Learning

WiFi: 2.4GHz Wi-Fi 6 (802.11 b/g/n)

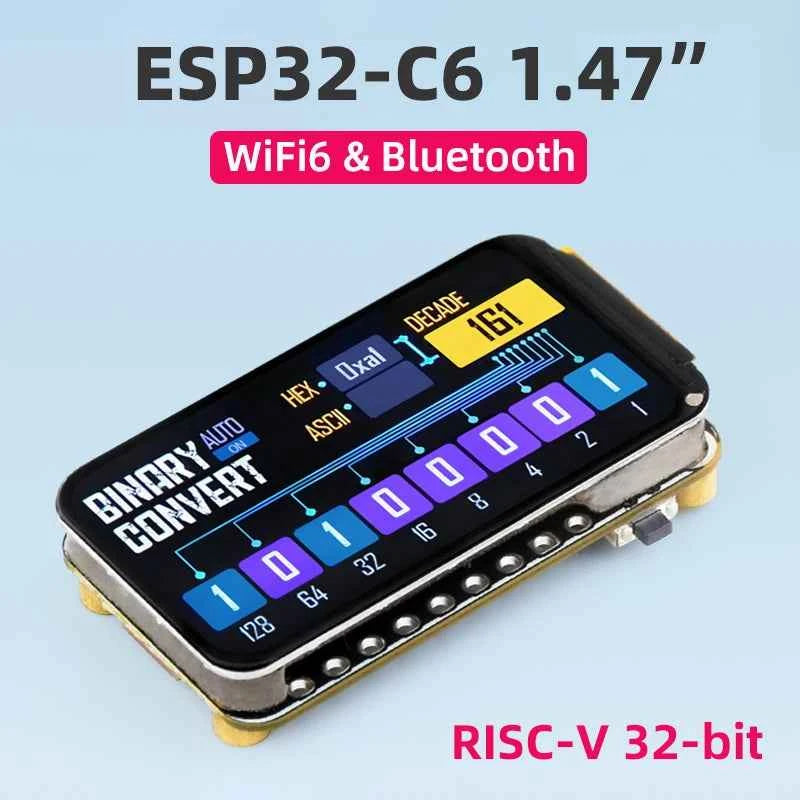

ESP32-C6 1.47inch Display Development Board, 172×320, 262K Color, 160MHz Running Frequency Single-core Processor, Supports WiFi 6 & Bluetooth, With Colorful RGB LED, ESP32 With Display

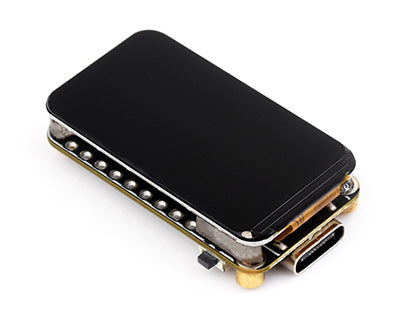

ESP32-C6-LCD-1.47

Integrates LCD display, onboard TF card slot and multiple peripheral interfaces



* for reference only, please refer to the actual display effect

version options

ESP32-C6-LCD-1.47
Standard version



ESP32-C6-LCD-1.47-M
With pre-soldered header (black)

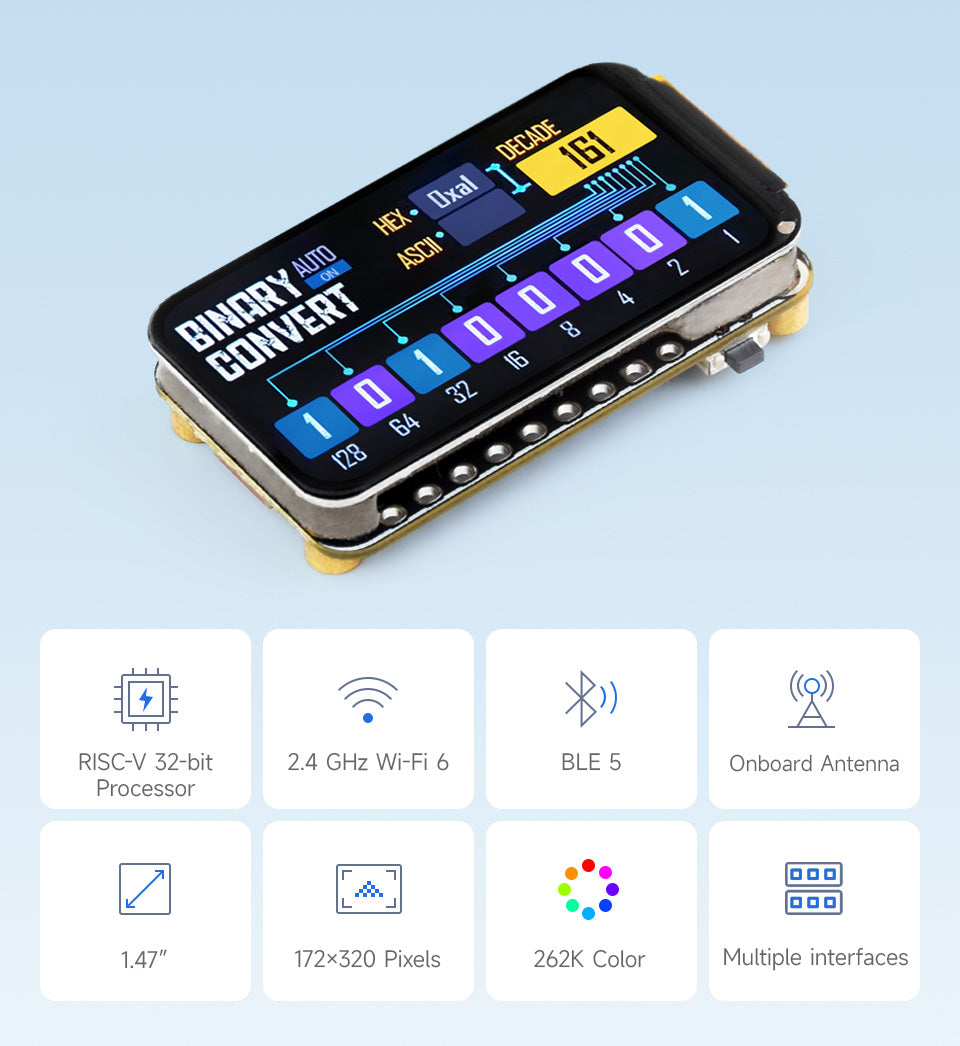

Features

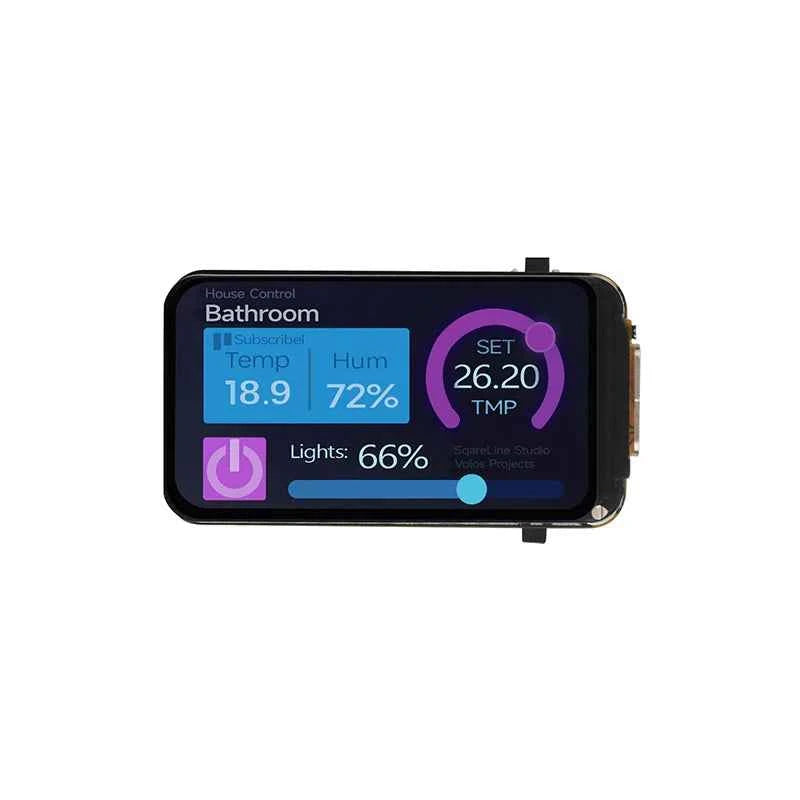

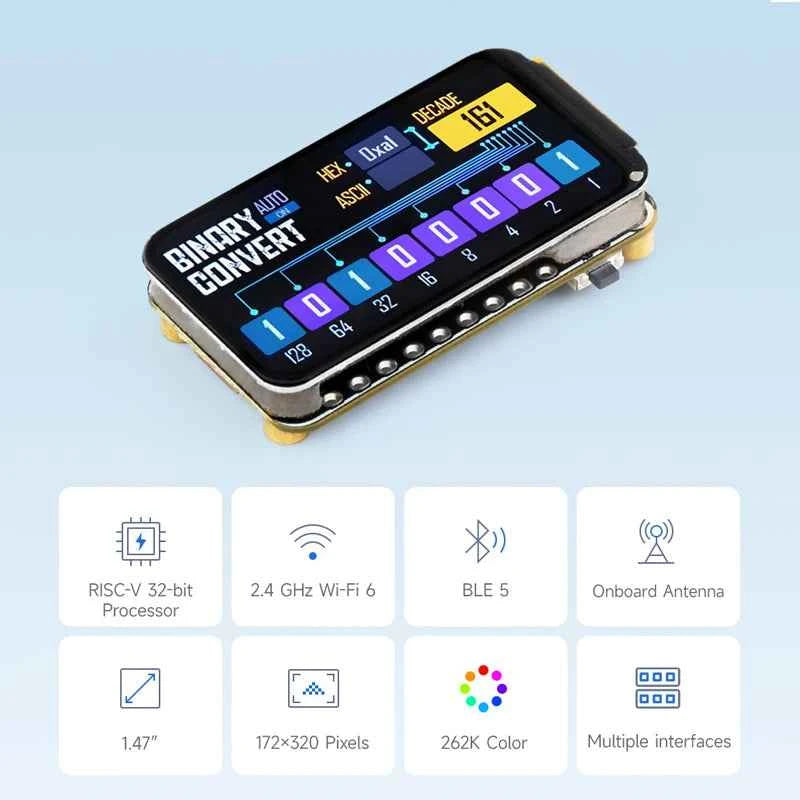

ESP32-C6-LCD-1.47 is a microcontroller development board with 2.4GHz Wi-Fi 6 and Bluetooth BLE 5 support, integrates 4MB Flash. Onboard 1.47inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-C6 applications.

  • Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz

  • Supports 2.4GHz Wi-Fi 6 (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

  • Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory

  • Onboard 1.47inch LCD display, 172×320 resolution, 262K color

  • Adapting multiple IO interfaces, integrates full-speed USB port

  • Onboard TF card slot for external TF card storage of pictures or files

  • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

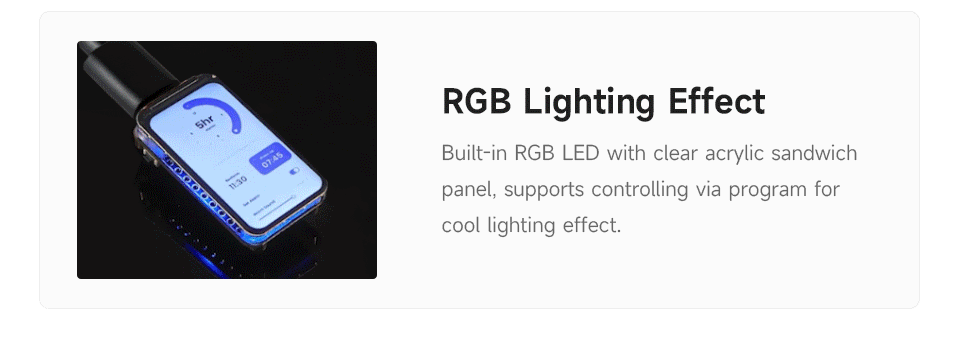

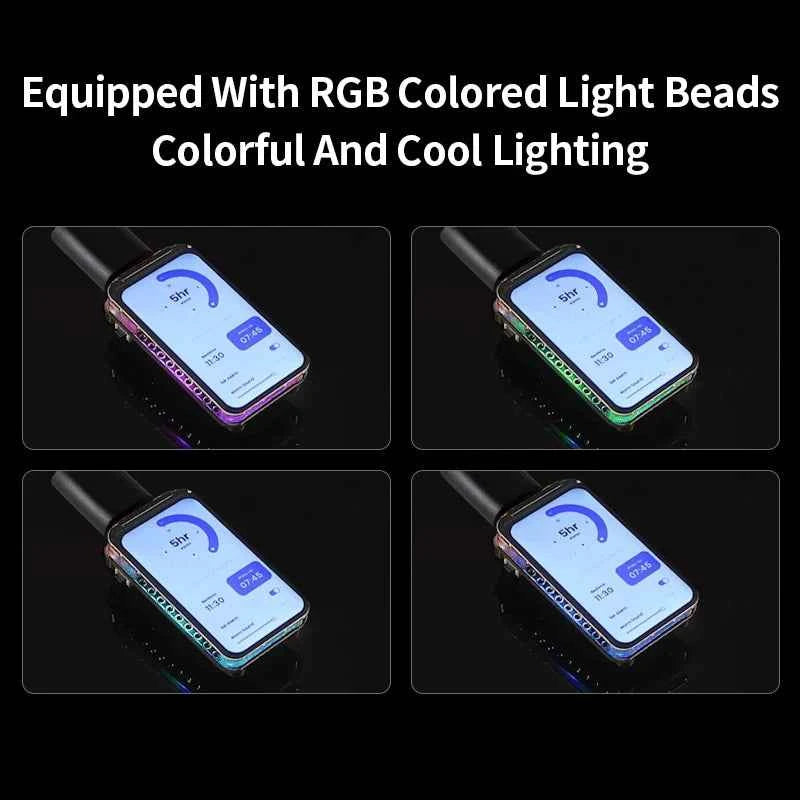

  • Built-in RGB LED with clear acrylic sandwich panel for cool lighting effect


ESP32-C6 suitable for AIoT applications

Powered by a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 160 MHz, Powerful AI Computing Capability & Reliable security features

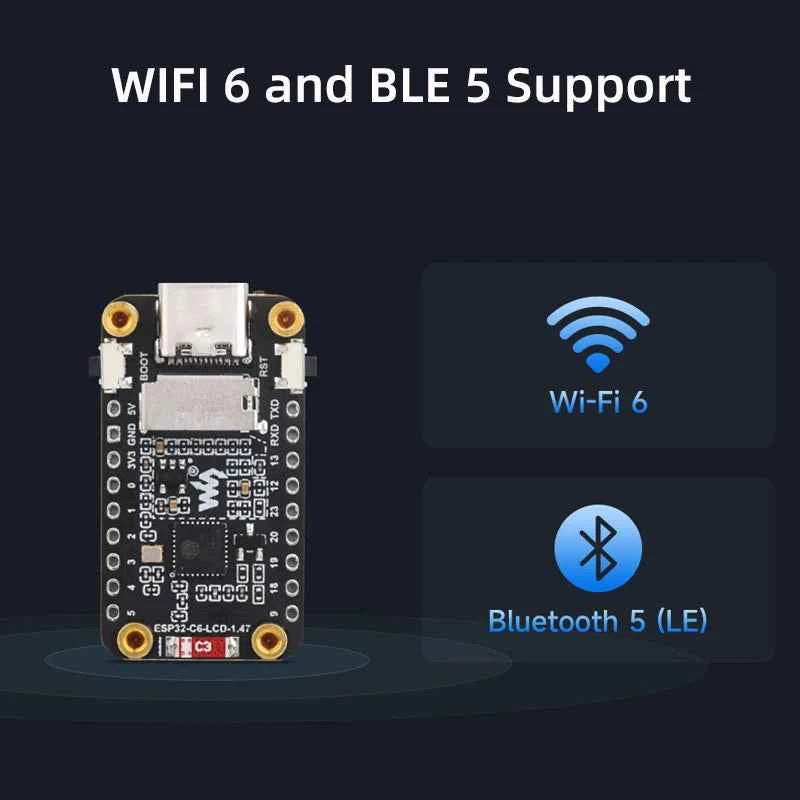

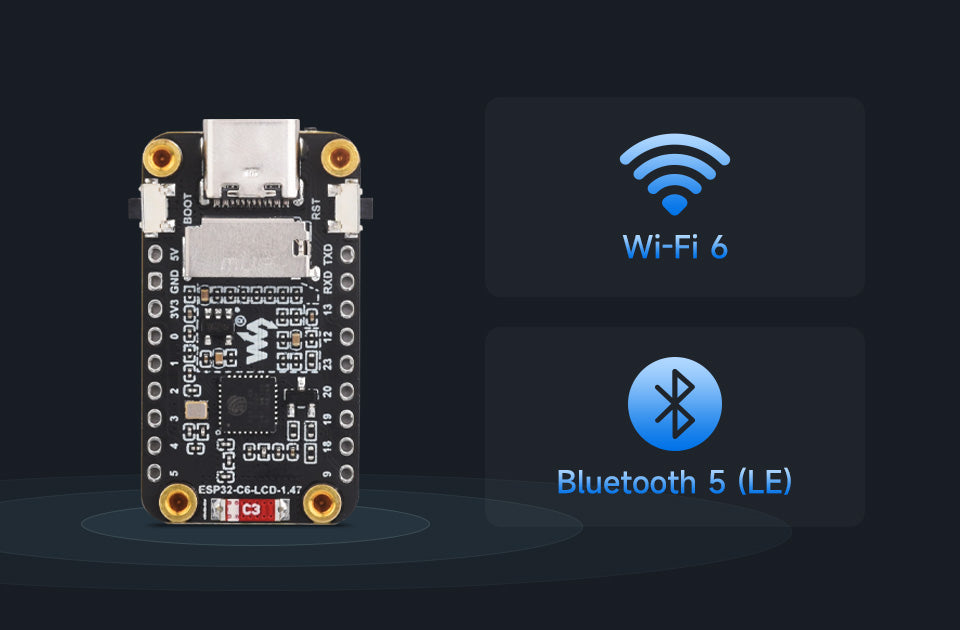

WIFI 6 and BLE 5 support

ESP32-C6 integrates 2.4 GHz Wi-Fi 6 (802.11 ax/b/g/n) with 40 MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Application Scenarios

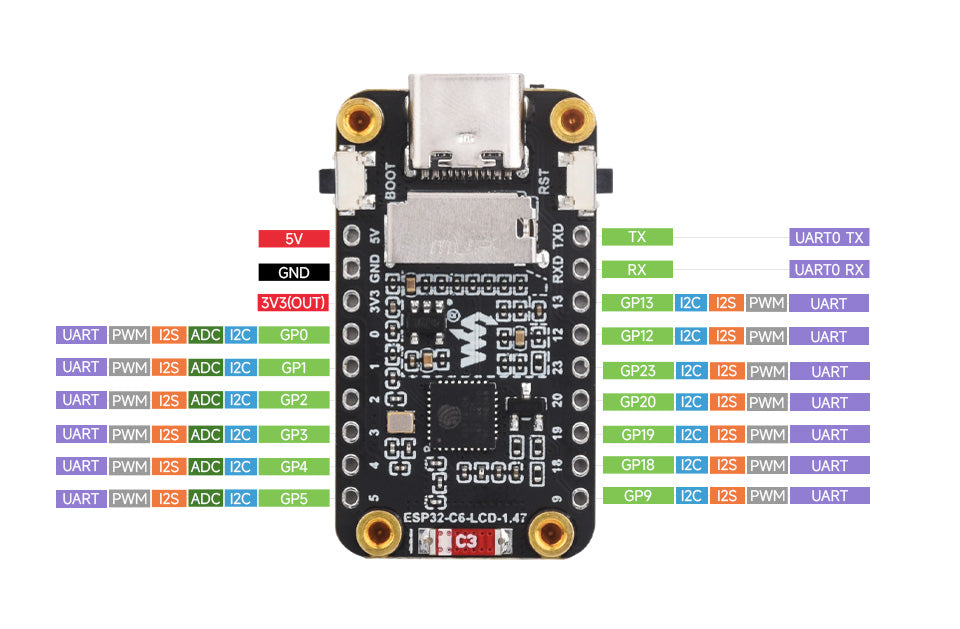

Supports multiple peripherals

Supports the expansion of multiple peripherals via GPIO header

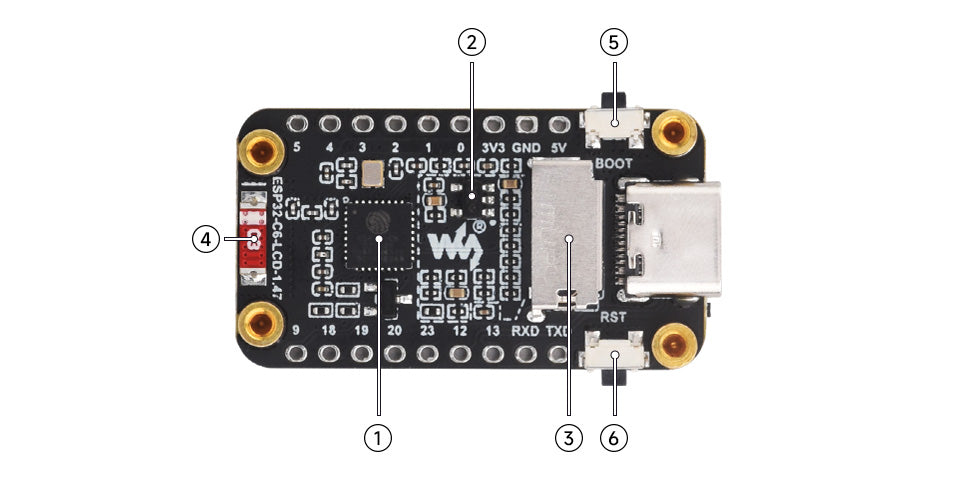

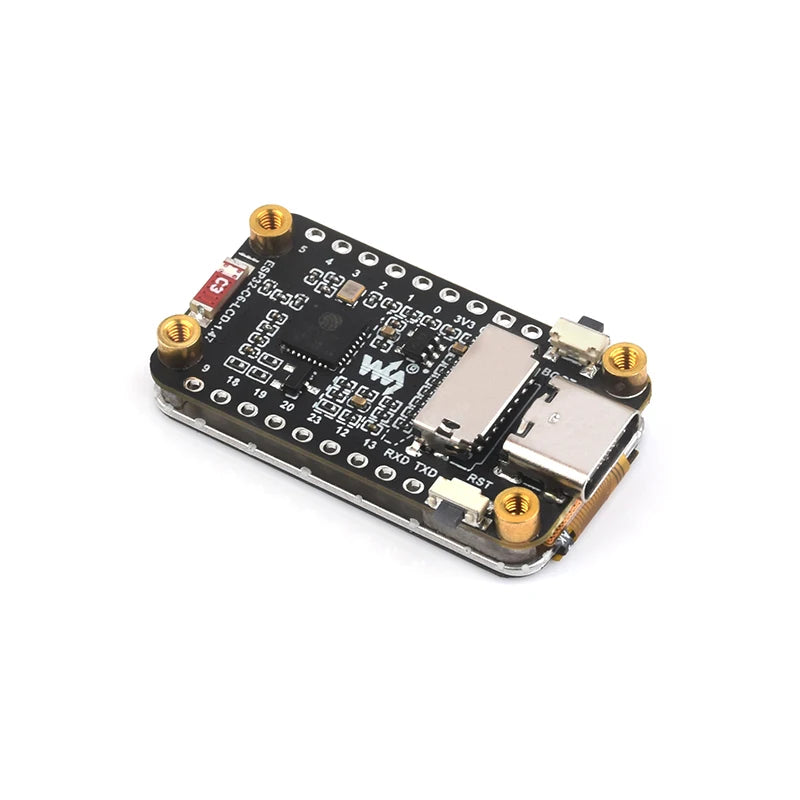

What's On Board

  1. ESP32-C6FH4

  2. ME6217C33M5G
    Low dropout regulator, 800mA output (Max.)

  3. TF card slot



  1. Onboard ceramic antenna

  2. BOOT button

  3. RESET button

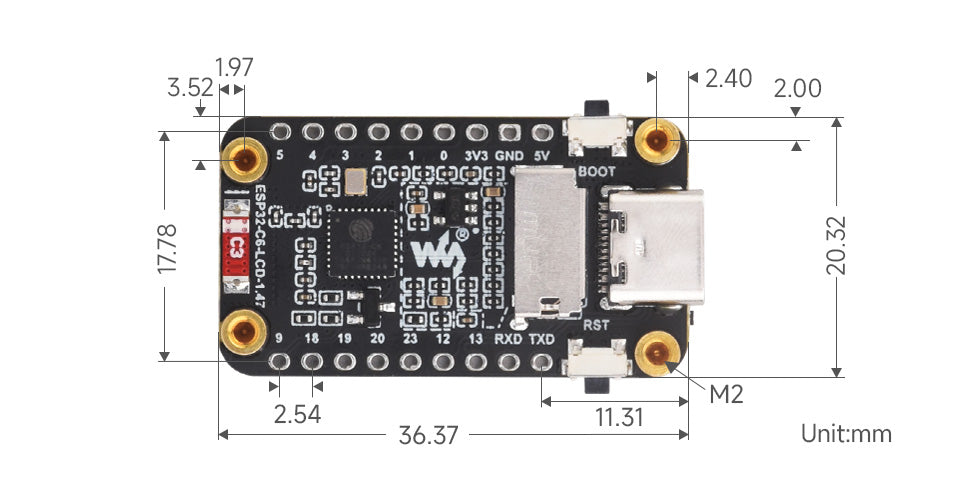

outline dimensions
Resources & Services

Wiki:  http://www.waveshare.com/wiki/ESP32-C6-LCD-1.47





Packing List

ESP32-C6-LCD-1.47

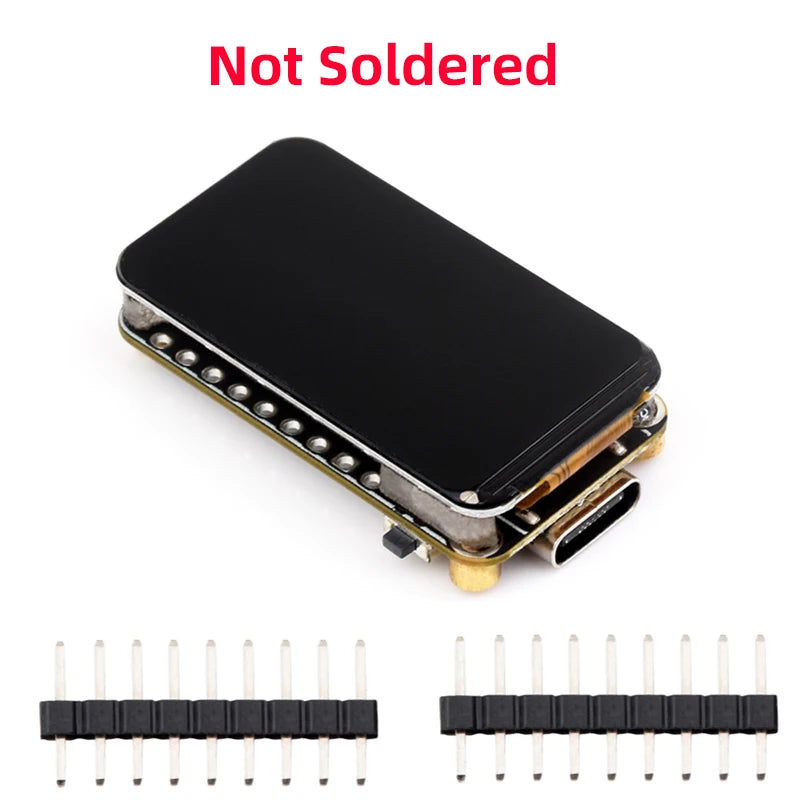

  1. ESP32-C6-LCD-1.47 x1

  2. Black header ×2

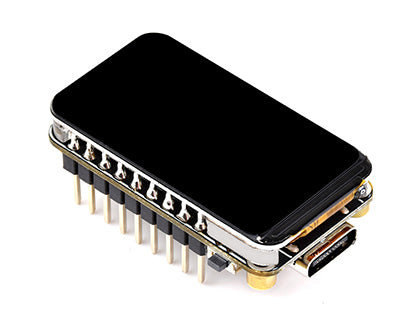

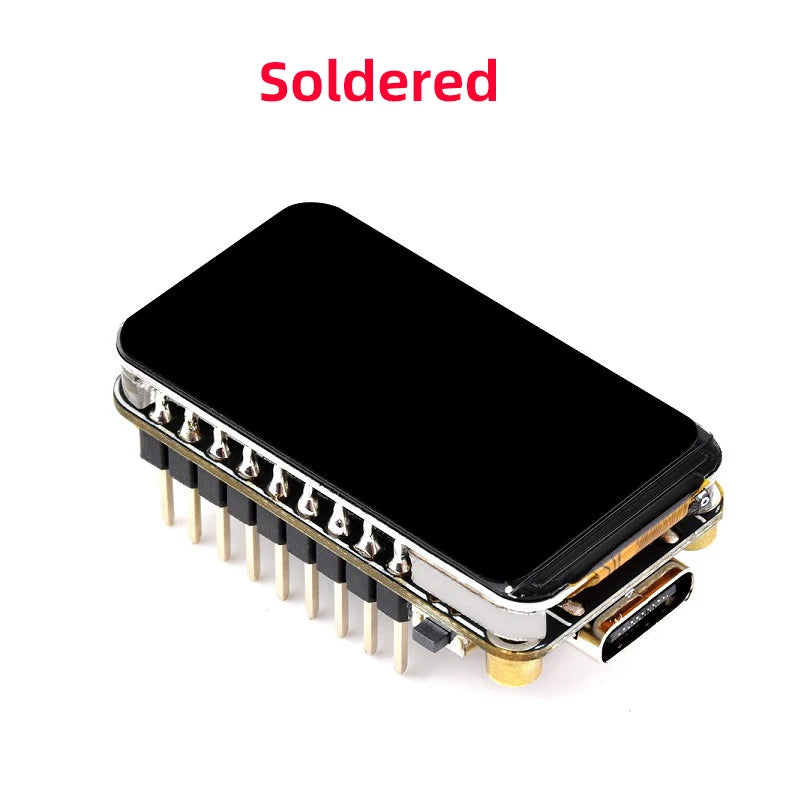

ESP32-C6-LCD-1.47-M

ESP32-C6-LCD-1.47 with pre-soldered header x1
